| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_191T01_9000000572_04592cztM0_level2.evt | modeM0/AS1G05_191T01_9000000572_04592cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,643,200 | 82,152,000 |
| Size | 501.3 MB | 78.3 MB |
| Events in quadrant A | 3,886,850 | 497,726 |
| Events in quadrant B | 3,690,306 | 498,331 |
| Events in quadrant C | 3,536,207 | 493,852 |
| Events in quadrant D | 4,292,175 | 471,375 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16280 | 4 |
| B | 0 | 15988 | 3 |
| C | 0 | 15741 | 1 |
| D | 0 | 18080 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7563 | 268 | 3.543567% |
| B | 7563 | 266 | 3.517123% |
| C | 7564 | 174 | 2.300370% |
| D | 7563 | 342 | 4.522015% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7594 | 7566 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7594 | 7566 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7594 | 7566 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7594 | 7566 | 132 | 132 | 1.74% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 106029 | 566.03 | 910 | 892 | 185.7 |
| A | 0 | 149 | 104274 | 556.58 | 910 | 892 | 185.7 |
| A | 15 | 174 | 103193 | 550.76 | 910 | 892 | 185.7 |
| B | 14 | 167 | 57168 | 313.8 | 921 | 900 | 179.3 |
| B | 4 | 172 | 31367 | 169.91 | 921 | 900 | 179.3 |
| B | 15 | 204 | 18867 | 100.2 | 921 | 900 | 179.3 |
| C | 14 | 48 | 43821 | 206.3 | 889 | 893 | 208.1 |
| C | 5 | 250 | 7678 | 32.61 | 889 | 893 | 208.1 |
| C | 13 | 61 | 7227 | 30.44 | 889 | 893 | 208.1 |
| D | 10 | 15 | 358743 | 1685.42 | 875 | 850 | 212.3 |
| D | 13 | 239 | 164512 | 770.73 | 875 | 850 | 212.3 |
| D | 12 | 110 | 140391 | 657.14 | 875 | 850 | 212.3 |

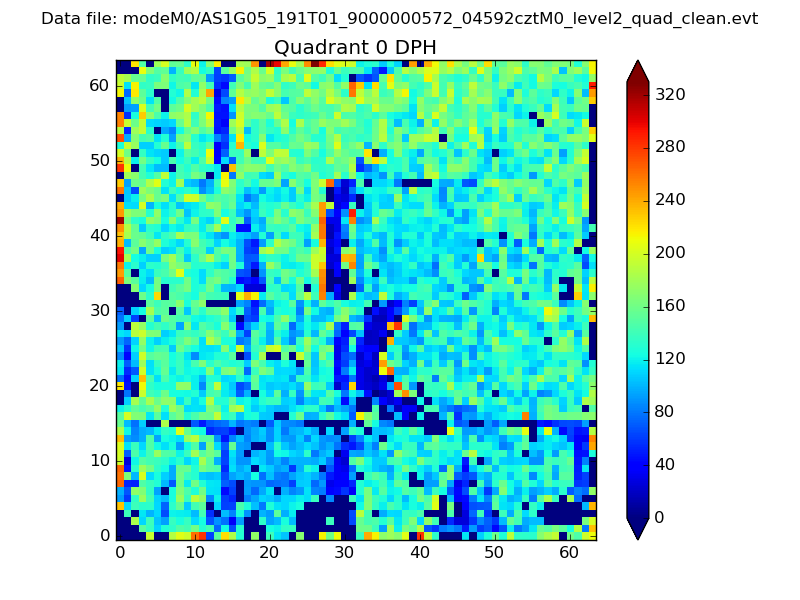

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

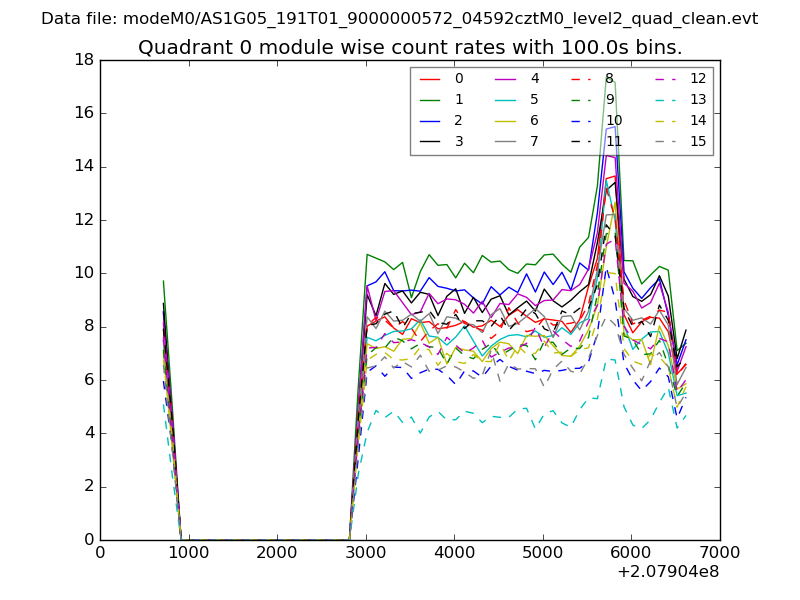

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

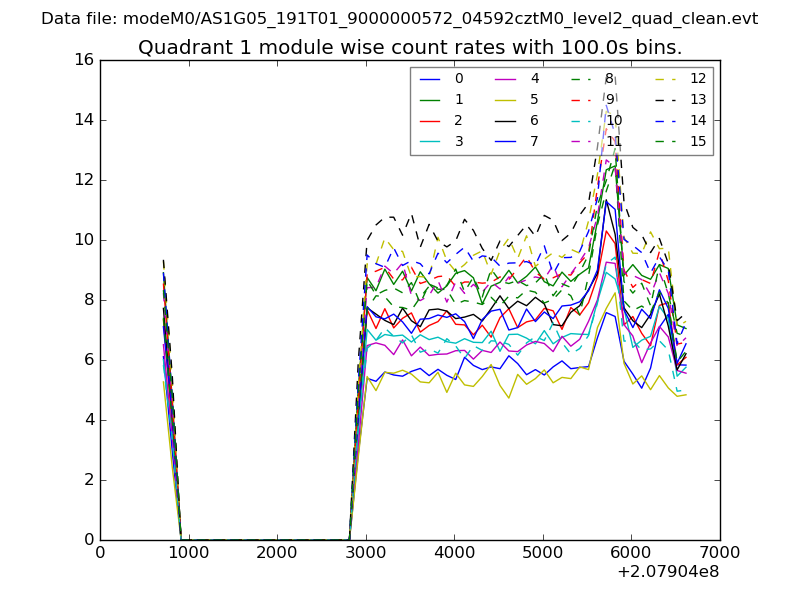

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

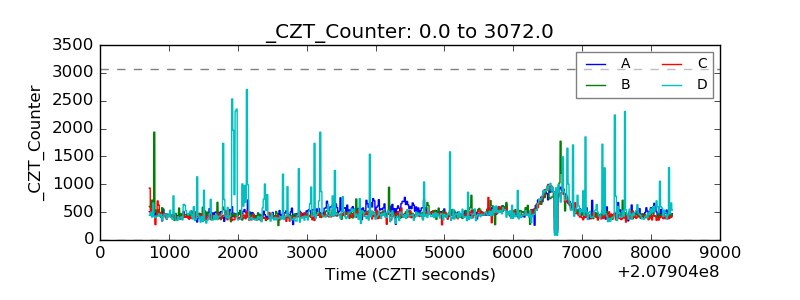

| CZT Counter |  |

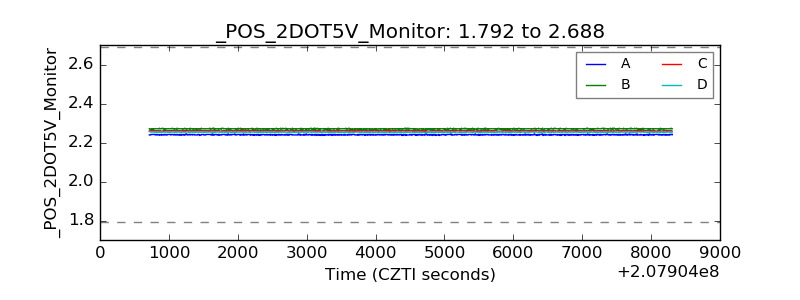

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

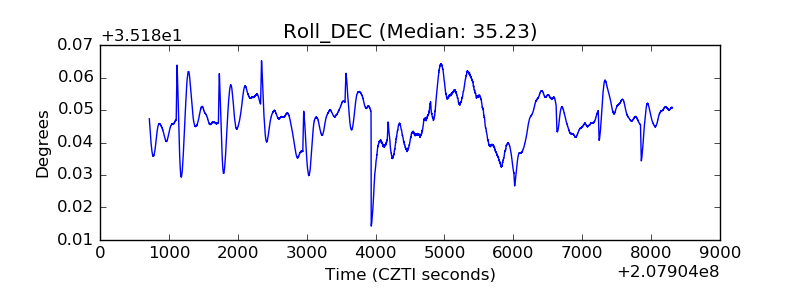

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
