| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_190T01_9000000578_04627cztM0_level2.evt | modeM0/AS1G05_190T01_9000000578_04627cztM0_level2_quad_clean.evt |
| Size (bytes) | 742,101,120 | 71,075,520 |
| Size | 707.7 MB | 67.8 MB |
| Events in quadrant A | 3,327,163 | 467,182 |
| Events in quadrant B | 3,339,945 | 465,112 |
| Events in quadrant C | 2,853,837 | 463,946 |
| Events in quadrant D | 12,514,929 | 302,920 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14439 | 2 |
| B | 0 | 14216 | 1 |
| C | 0 | 13177 | 1 |
| D | 0 | 41627 | 7 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6475 | 100 | 1.544402% |
| B | 6475 | 43 | 0.664093% |
| C | 6475 | 14 | 0.216216% |
| D | 6474 | 3989 | 61.615694% |

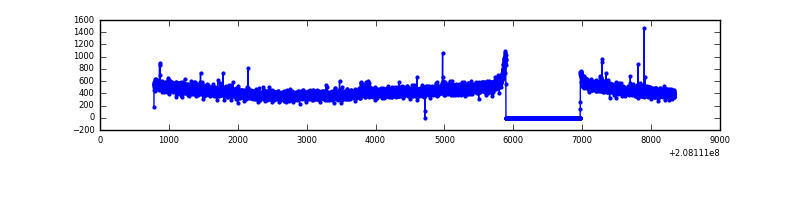

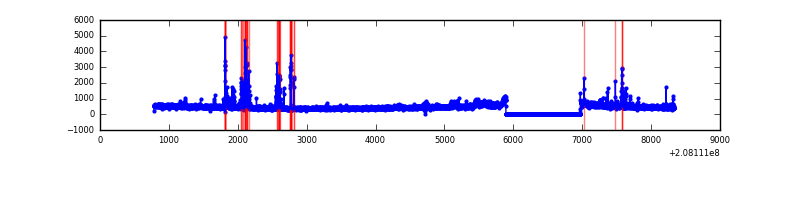

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7557 | 6477 | 48 | 48 | 0.64% | 0.74% |  |
| B | 7557 | 6477 | 11 | 11 | 0.15% | 0.17% |  |
| C | 7557 | 6477 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7556 | 6475 | 3428 | 3428 | 45.37% | 52.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 255935 | 1642.06 | 754 | 737 | 155.4 |
| A | 15 | 174 | 91041 | 581.05 | 754 | 737 | 155.4 |
| A | 0 | 226 | 32538 | 204.62 | 754 | 737 | 155.4 |
| B | 14 | 167 | 89791 | 606.69 | 762 | 743 | 146.8 |
| B | 8 | 3 | 81493 | 550.15 | 762 | 743 | 146.8 |
| B | 10 | 16 | 68621 | 462.45 | 762 | 743 | 146.8 |
| C | 0 | 10 | 9619 | 51.96 | 725 | 730 | 171.1 |
| C | 13 | 61 | 6171 | 31.8 | 725 | 730 | 171.1 |
| C | 9 | 54 | 6143 | 31.64 | 725 | 730 | 171.1 |
| D | 8 | 112 | 8221898 | 71070.88 | 473 | 458 | 115.7 |
| D | 13 | 235 | 1925641 | 16642.39 | 473 | 458 | 115.7 |
| D | 2 | 63 | 292761 | 2526.84 | 473 | 458 | 115.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

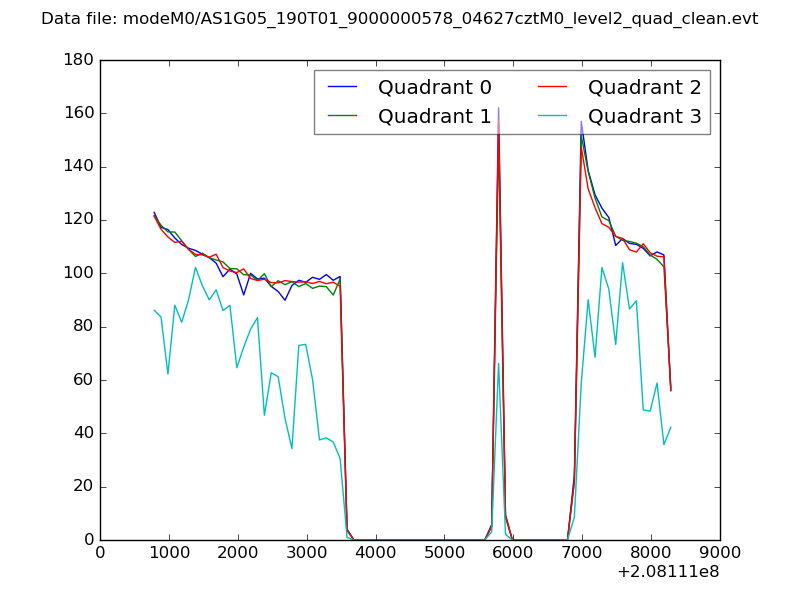

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

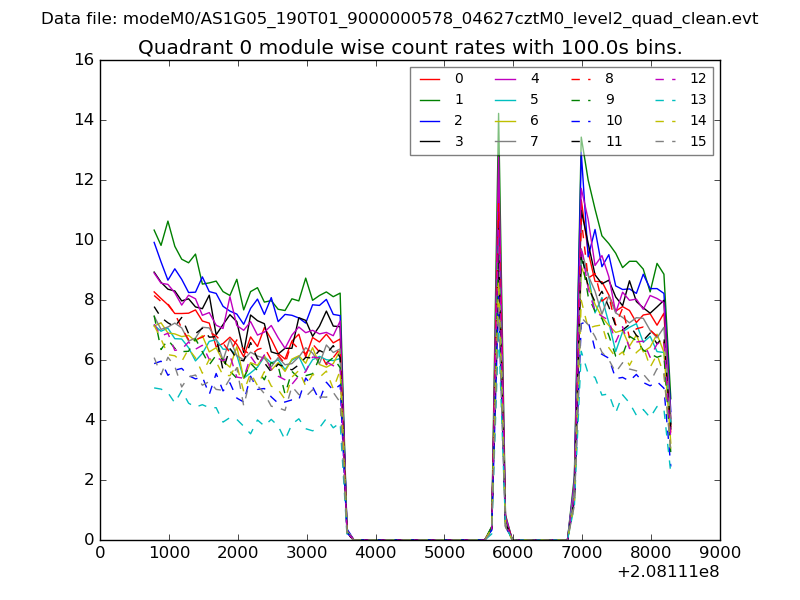

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

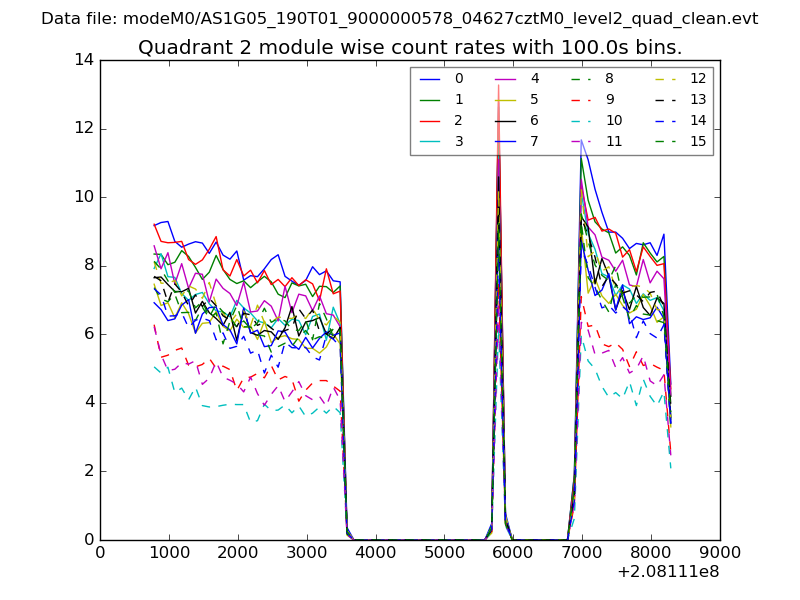

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

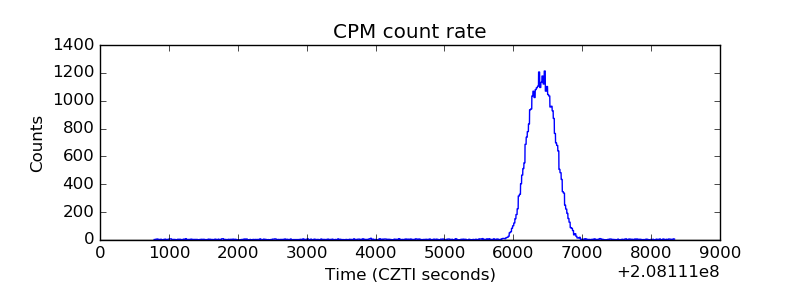

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

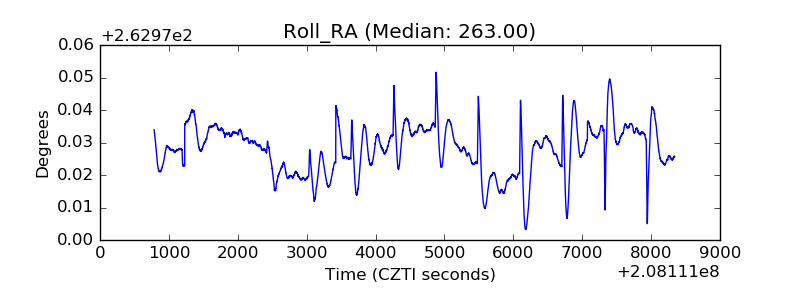

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

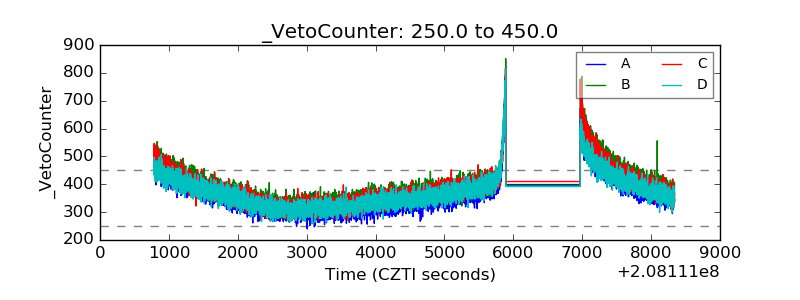

| Veto Counter |  |
