| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T03_9000000582_04643cztM0_level2.evt | modeM0/AS1G05_218T03_9000000582_04643cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,086,400 | 87,206,400 |
| Size | 437.8 MB | 83.2 MB |
| Events in quadrant A | 3,157,067 | 559,766 |
| Events in quadrant B | 3,151,915 | 568,786 |
| Events in quadrant C | 3,007,660 | 545,159 |
| Events in quadrant D | 4,146,178 | 514,751 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14097 | 3 |
| B | 0 | 13967 | 2 |
| C | 0 | 13639 | 2 |
| D | 0 | 17051 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6476 | 33 | 0.509574% |
| B | 6476 | 31 | 0.478691% |
| C | 6476 | 36 | 0.555899% |
| D | 6476 | 290 | 4.478073% |

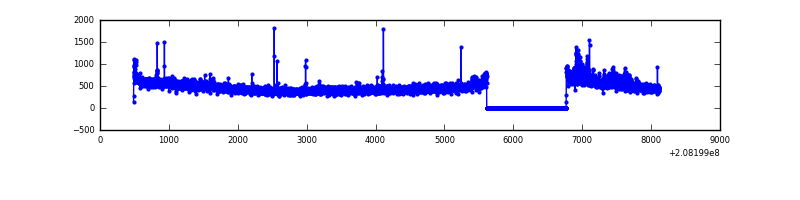

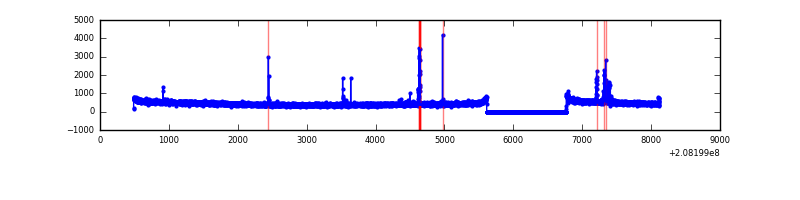

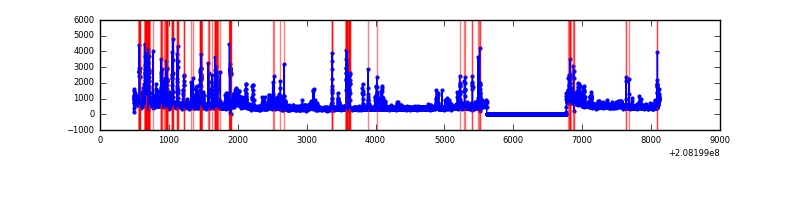

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7631 | 6477 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7631 | 6477 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7631 | 6477 | 12 | 12 | 0.16% | 0.19% |  |
| D | 7631 | 6477 | 215 | 215 | 2.82% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 214891 | 1392.76 | 757 | 740 | 153.8 |
| A | 8 | 15 | 10749 | 65.09 | 757 | 740 | 153.8 |
| A | 12 | 194 | 7699 | 45.26 | 757 | 740 | 153.8 |
| B | 15 | 204 | 105566 | 703.87 | 770 | 750 | 148.9 |
| B | 14 | 167 | 30426 | 199.28 | 770 | 750 | 148.9 |
| B | 4 | 80 | 15325 | 97.88 | 770 | 750 | 148.9 |
| C | 1 | 16 | 101158 | 581.27 | 741 | 742 | 172.8 |
| C | 9 | 247 | 9815 | 52.52 | 741 | 742 | 172.8 |
| C | 13 | 61 | 6066 | 30.82 | 741 | 742 | 172.8 |
| D | 8 | 112 | 770684 | 4442.86 | 719 | 697 | 173.3 |
| D | 2 | 234 | 262107 | 1508.35 | 719 | 697 | 173.3 |
| D | 2 | 136 | 169754 | 975.46 | 719 | 697 | 173.3 |

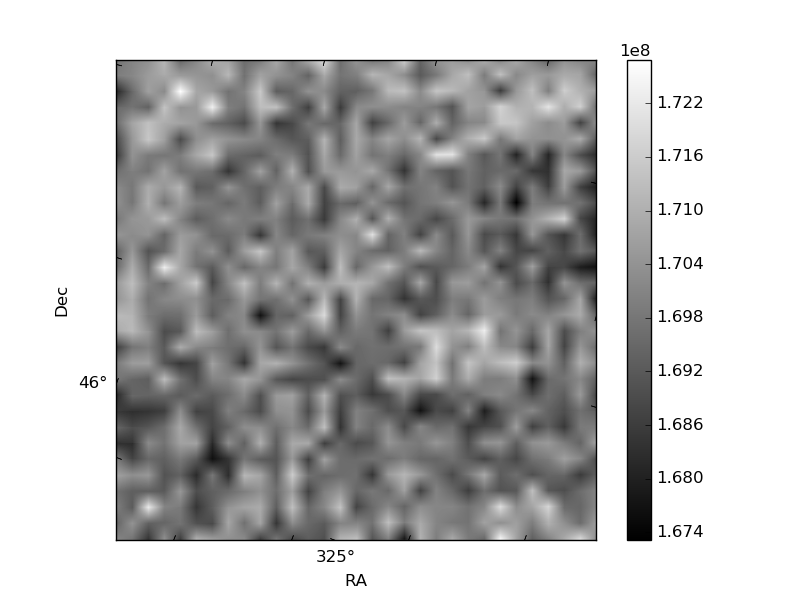

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

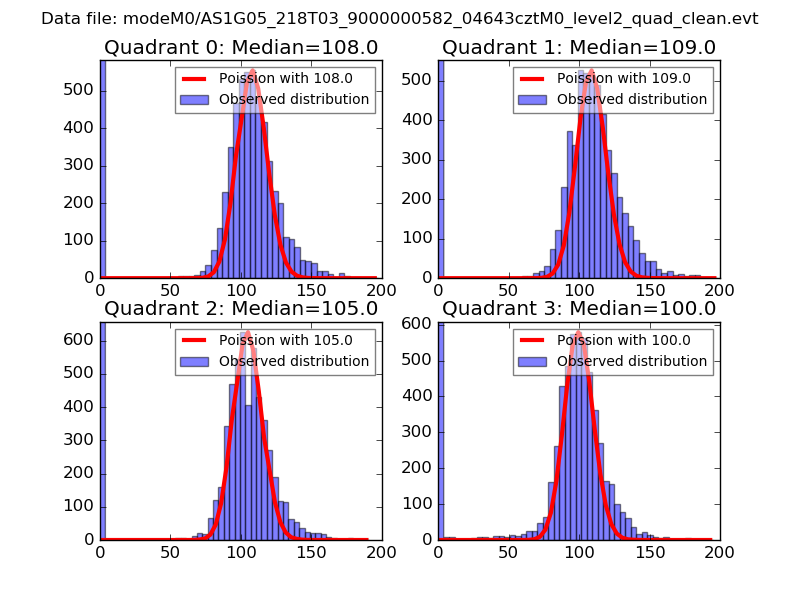

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

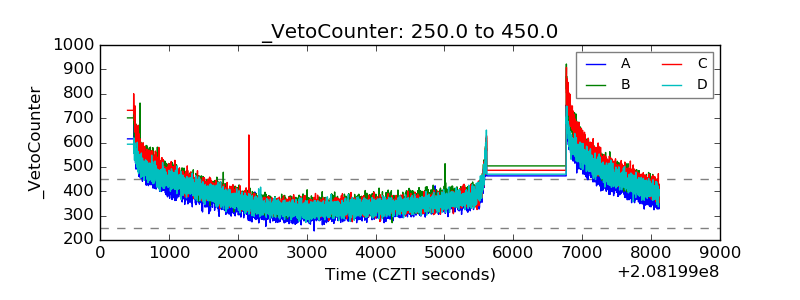

| Veto Counter |  |
