| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T03_9000000582_04644cztM0_level2.evt | modeM0/AS1G05_218T03_9000000582_04644cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,475,840 | 86,952,960 |
| Size | 454.4 MB | 82.9 MB |
| Events in quadrant A | 3,805,146 | 559,482 |
| Events in quadrant B | 3,138,920 | 576,842 |
| Events in quadrant C | 3,034,434 | 552,667 |
| Events in quadrant D | 4,026,386 | 506,970 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15700 | 3 |
| B | 0 | 13685 | 2 |
| C | 0 | 13491 | 2 |
| D | 0 | 16469 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 72 | 1.148509% |
| B | 6269 | 36 | 0.574254% |
| C | 6269 | 61 | 0.973042% |
| D | 6269 | 303 | 4.833307% |

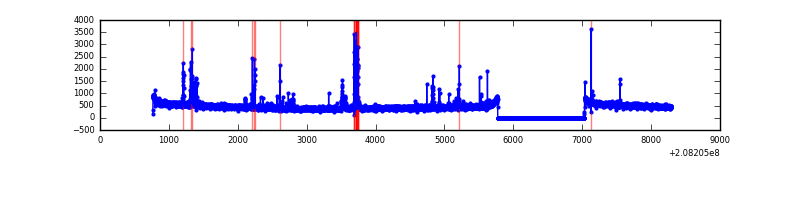

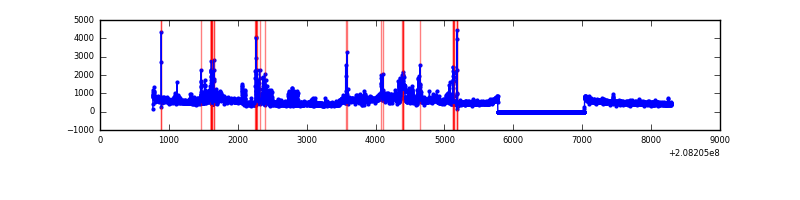

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7529 | 6270 | 39 | 39 | 0.52% | 0.62% |  |
| B | 7529 | 6270 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7529 | 6270 | 25 | 25 | 0.33% | 0.40% |  |
| D | 7528 | 6269 | 278 | 278 | 3.69% | 4.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 949161 | 6386.53 | 736 | 719 | 148.5 |
| A | 7 | 16 | 12754 | 81.04 | 736 | 719 | 148.5 |
| A | 12 | 194 | 7415 | 45.09 | 736 | 719 | 148.5 |
| B | 15 | 204 | 122328 | 844.98 | 756 | 739 | 143.9 |
| B | 14 | 167 | 39612 | 270.15 | 756 | 739 | 143.9 |
| B | 4 | 80 | 37652 | 256.53 | 756 | 739 | 143.9 |
| C | 1 | 16 | 169199 | 1010.64 | 726 | 731 | 166.7 |
| C | 9 | 54 | 10459 | 58.36 | 726 | 731 | 166.7 |
| C | 9 | 247 | 7385 | 39.92 | 726 | 731 | 166.7 |
| D | 13 | 235 | 645933 | 3844.87 | 696 | 675 | 167.8 |
| D | 8 | 112 | 224855 | 1335.81 | 696 | 675 | 167.8 |
| D | 2 | 234 | 206972 | 1229.25 | 696 | 675 | 167.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

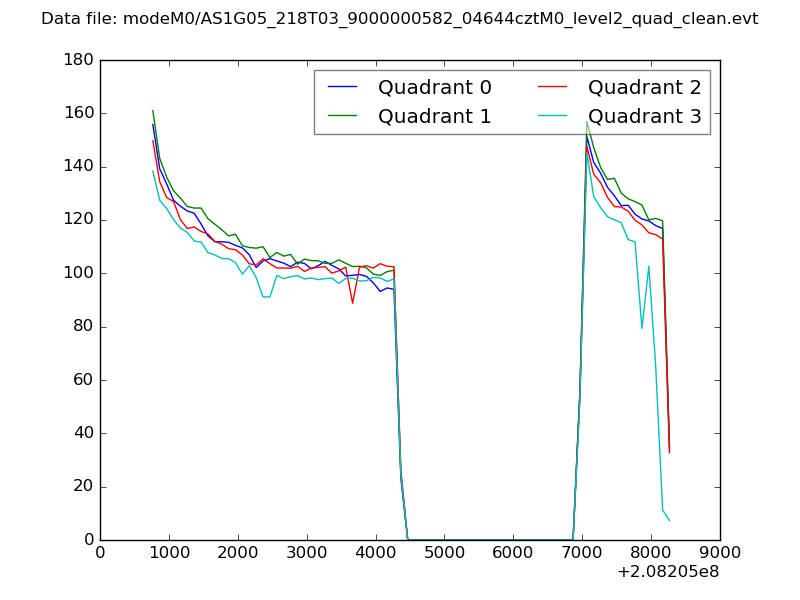

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

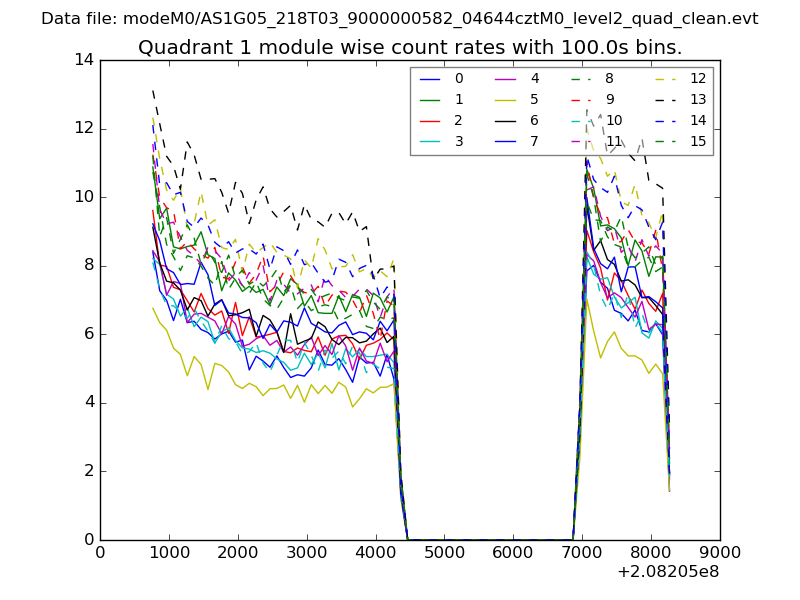

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

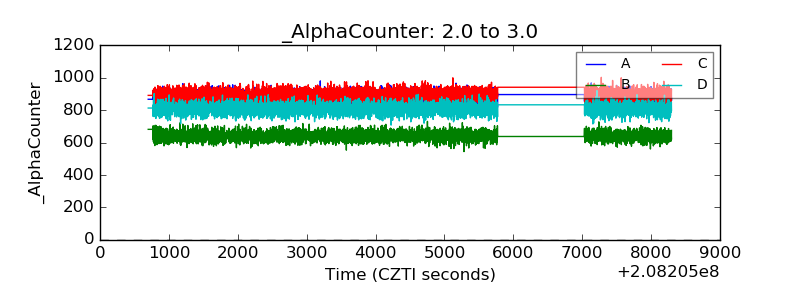

| Alpha Counter |  |
| _CPM_Rate |  |

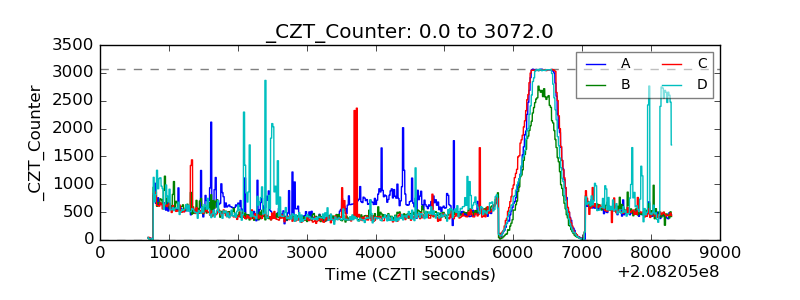

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

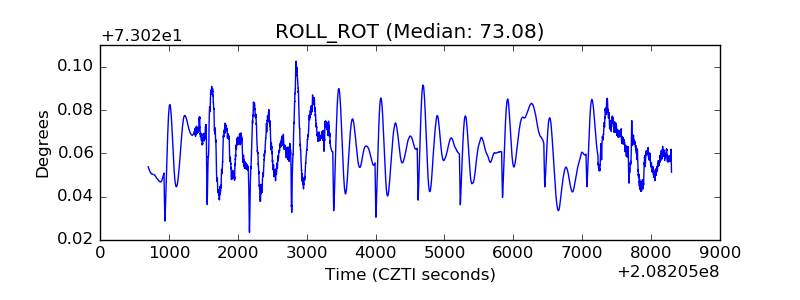

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

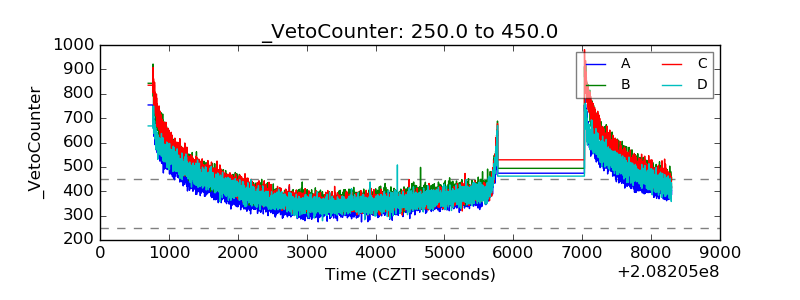

| Veto Counter |  |
