| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T03_9000000582_04648cztM0_level2.evt | modeM0/AS1G05_218T03_9000000582_04648cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,797,440 | 79,770,240 |
| Size | 417.5 MB | 76.1 MB |
| Events in quadrant A | 2,938,029 | 501,525 |
| Events in quadrant B | 3,049,320 | 510,039 |
| Events in quadrant C | 2,865,972 | 490,283 |
| Events in quadrant D | 3,957,897 | 454,864 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13538 | 3 |
| B | 0 | 13603 | 2 |
| C | 0 | 13487 | 2 |
| D | 0 | 16442 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6577 | 42 | 0.638589% |
| B | 6577 | 62 | 0.942679% |
| C | 6577 | 26 | 0.395317% |
| D | 6577 | 282 | 4.287669% |

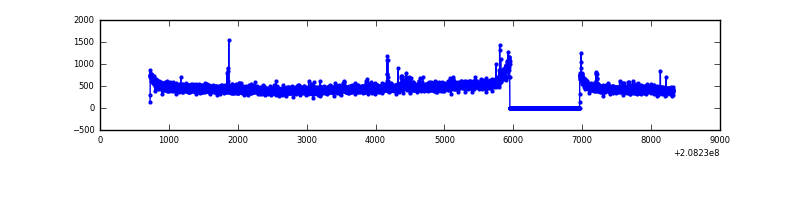

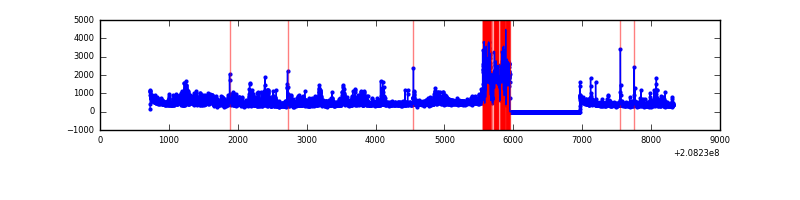

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7592 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7592 | 6578 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7592 | 6578 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7592 | 6578 | 160 | 160 | 2.11% | 2.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 15328 | 94.33 | 757 | 742 | 154.6 |
| A | 0 | 226 | 7496 | 43.68 | 757 | 742 | 154.6 |
| A | 12 | 194 | 7383 | 42.95 | 757 | 742 | 154.6 |
| B | 15 | 204 | 27610 | 181.76 | 768 | 753 | 147.8 |
| B | 5 | 6 | 17969 | 116.52 | 768 | 753 | 147.8 |
| B | 12 | 111 | 13583 | 86.83 | 768 | 753 | 147.8 |
| C | 9 | 247 | 8803 | 47.82 | 731 | 735 | 168.7 |
| C | 13 | 61 | 5964 | 31.0 | 731 | 735 | 168.7 |
| C | 14 | 15 | 2727 | 11.81 | 731 | 735 | 168.7 |
| D | 8 | 112 | 561660 | 3267.91 | 705 | 684 | 171.7 |
| D | 12 | 110 | 518306 | 3015.36 | 705 | 684 | 171.7 |
| D | 2 | 136 | 45993 | 263.94 | 705 | 684 | 171.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

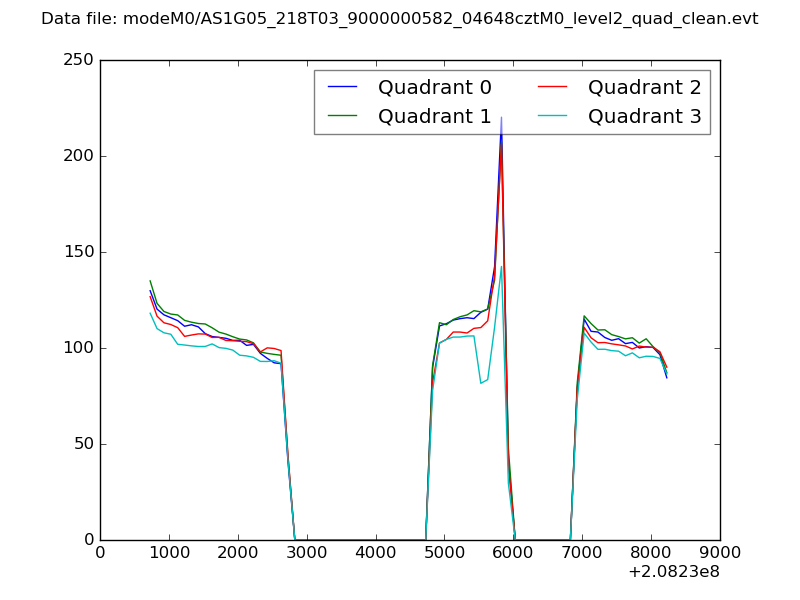

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

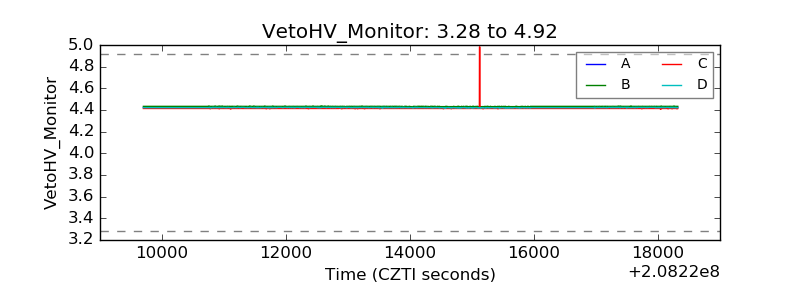

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

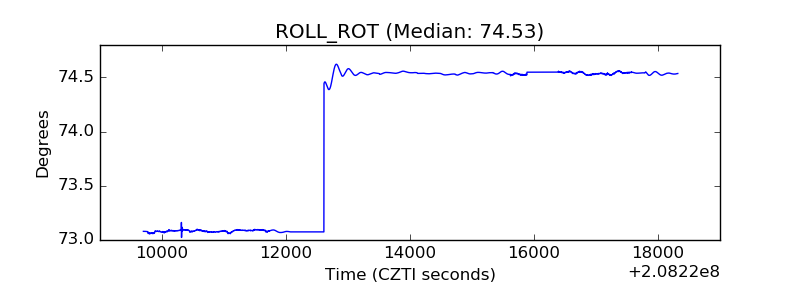

| _ROLL_ROT |  |

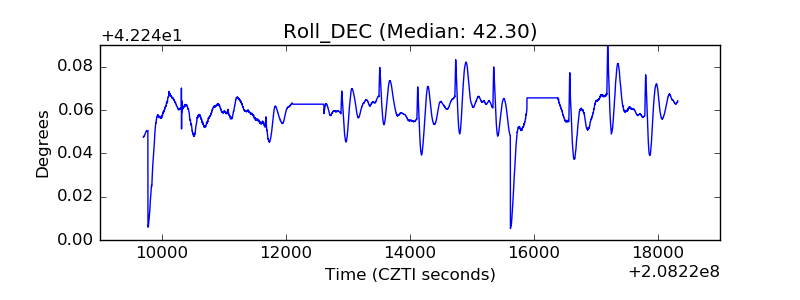

| _Roll_DEC |  |

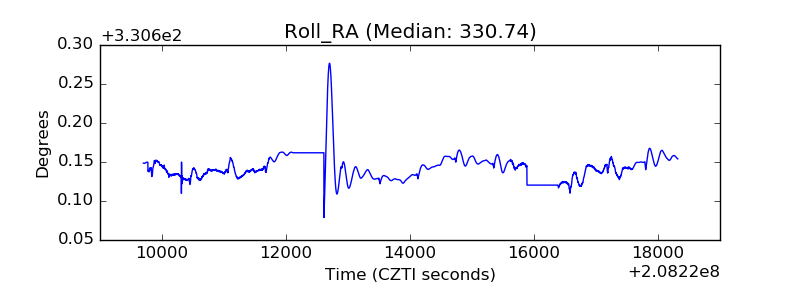

| _Roll_RA |  |

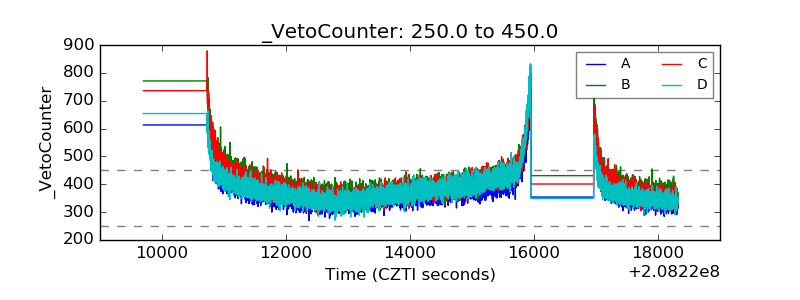

| Veto Counter |  |
