| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T03_9000000582_04649cztM0_level2.evt | modeM0/AS1G05_218T03_9000000582_04649cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,825,280 | 83,105,280 |
| Size | 466.2 MB | 79.3 MB |
| Events in quadrant A | 3,139,378 | 520,360 |
| Events in quadrant B | 3,250,649 | 529,064 |
| Events in quadrant C | 3,081,822 | 510,747 |
| Events in quadrant D | 4,848,582 | 460,639 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14561 | 3 |
| B | 0 | 14656 | 2 |
| C | 0 | 14541 | 2 |
| D | 0 | 19611 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7114 | 110 | 1.546247% |
| B | 7114 | 133 | 1.869553% |
| C | 7114 | 62 | 0.871521% |
| D | 7114 | 566 | 7.956143% |

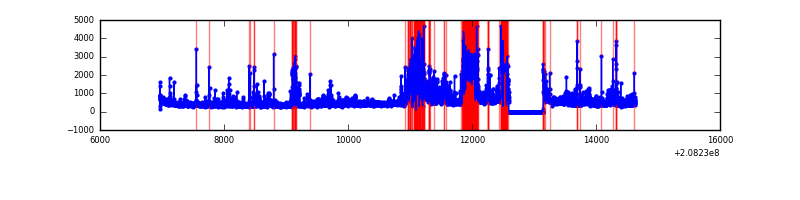

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 7115 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7669 | 7115 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7669 | 7115 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7669 | 7115 | 425 | 425 | 5.54% | 5.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 20724 | 119.24 | 809 | 792 | 167.2 |
| A | 12 | 194 | 7985 | 43.03 | 809 | 792 | 167.2 |
| A | 0 | 226 | 7843 | 42.18 | 809 | 792 | 167.2 |
| B | 4 | 80 | 22572 | 135.56 | 822 | 801 | 160.6 |
| B | 12 | 111 | 15164 | 89.44 | 822 | 801 | 160.6 |
| B | 15 | 54 | 12063 | 70.13 | 822 | 801 | 160.6 |
| C | 9 | 247 | 11448 | 58.24 | 785 | 787 | 183.0 |
| C | 13 | 61 | 6380 | 30.56 | 785 | 787 | 183.0 |
| C | 1 | 16 | 4174 | 18.5 | 785 | 787 | 183.0 |
| D | 13 | 235 | 1017209 | 5663.13 | 742 | 719 | 179.5 |
| D | 12 | 110 | 283333 | 1574.52 | 742 | 719 | 179.5 |
| D | 8 | 112 | 234704 | 1303.59 | 742 | 719 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

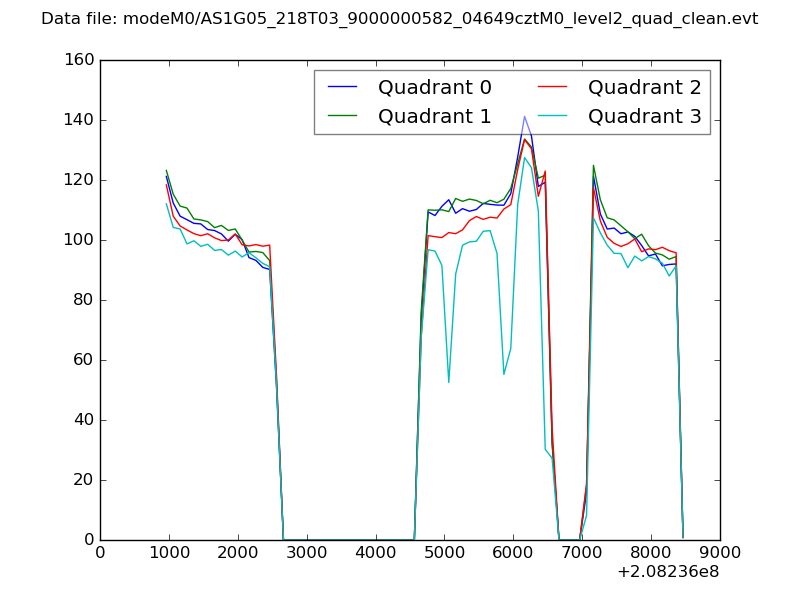

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

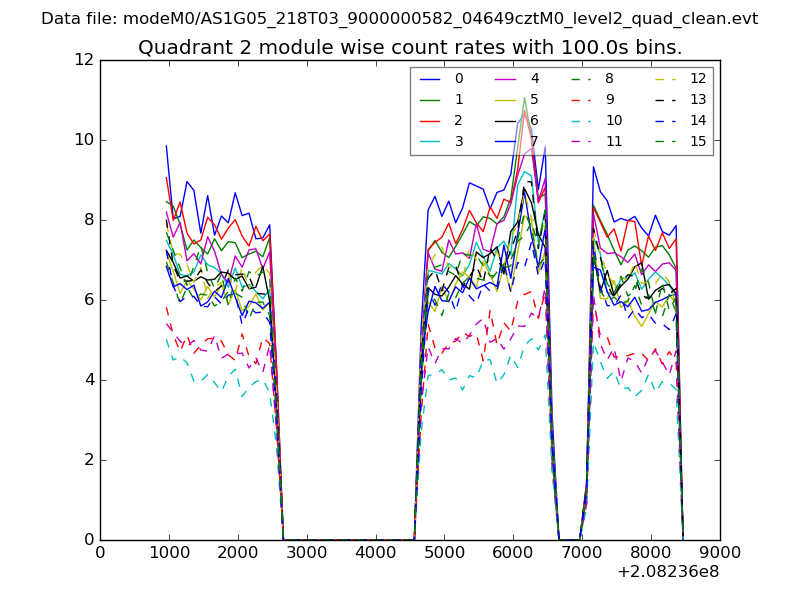

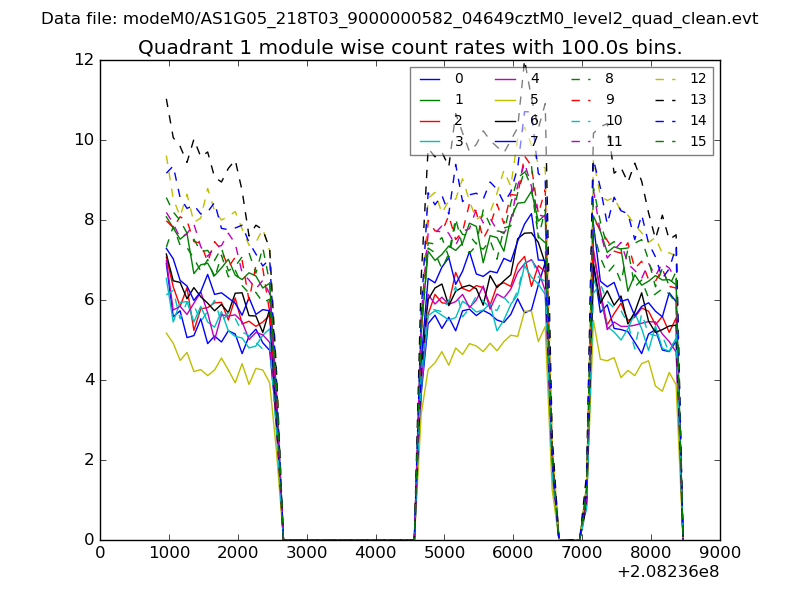

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

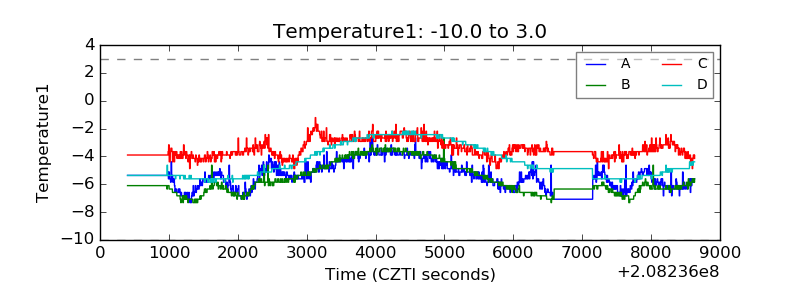

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

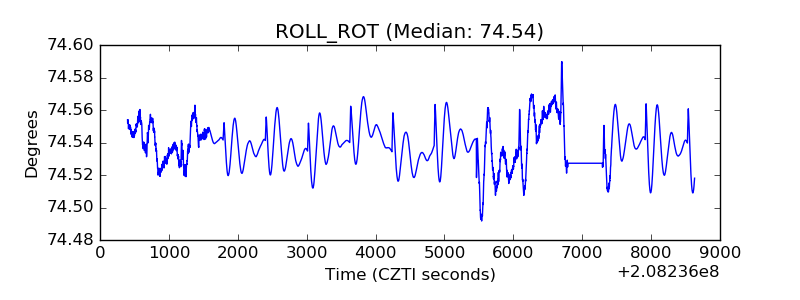

| _ROLL_ROT |  |
| _Roll_DEC |  |

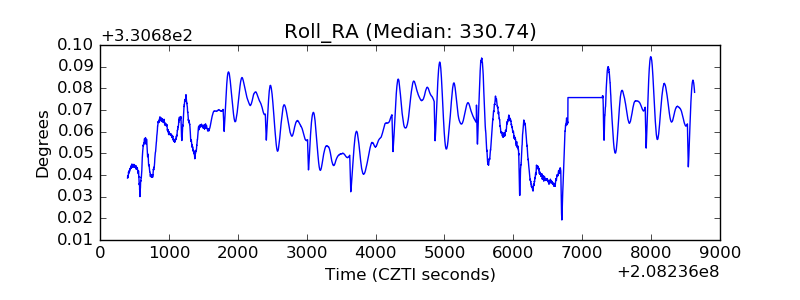

| _Roll_RA |  |

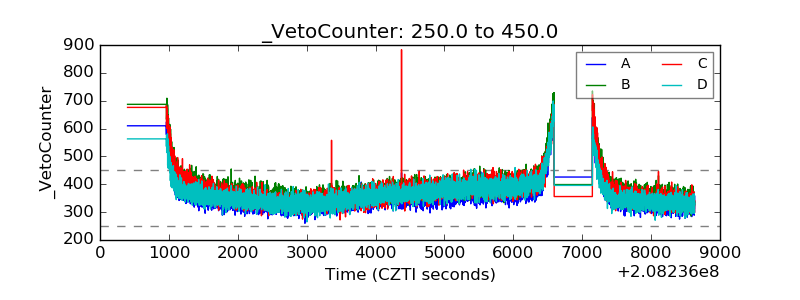

| Veto Counter |  |
