| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_218T03_9000000582_04656cztM0_level2.evt | modeM0/AS1G05_218T03_9000000582_04656cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,531,520 | 81,247,680 |
| Size | 431.6 MB | 77.5 MB |
| Events in quadrant A | 3,225,370 | 515,728 |
| Events in quadrant B | 3,644,979 | 514,364 |
| Events in quadrant C | 2,909,619 | 496,712 |
| Events in quadrant D | 3,484,031 | 481,017 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14134 | 3 |
| B | 0 | 15198 | 2 |
| C | 0 | 13260 | 2 |
| D | 0 | 14877 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6479 | 47 | 0.725421% |
| B | 6479 | 123 | 1.898441% |
| C | 6479 | 25 | 0.385862% |
| D | 6479 | 57 | 0.879765% |

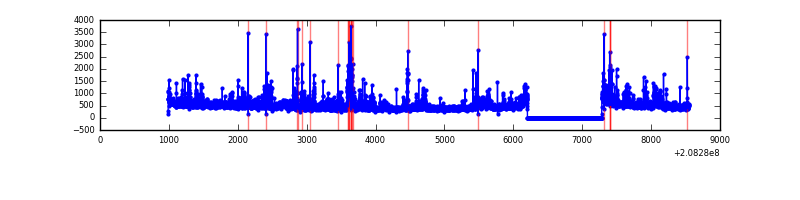

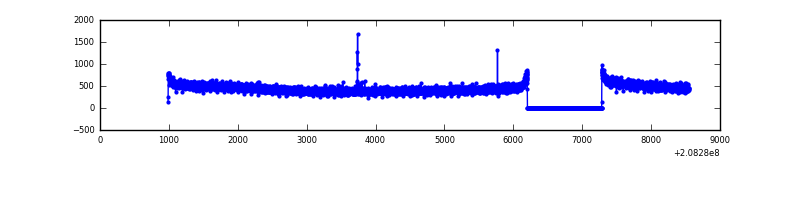

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7559 | 6480 | 13 | 13 | 0.17% | 0.20% |  |
| B | 7559 | 6480 | 66 | 66 | 0.87% | 1.02% |  |
| C | 7559 | 6480 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7559 | 6480 | 23 | 23 | 0.30% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 284050 | 1813.97 | 760 | 743 | 156.2 |
| A | 8 | 15 | 12598 | 75.91 | 760 | 743 | 156.2 |
| A | 12 | 194 | 7669 | 44.35 | 760 | 743 | 156.2 |
| B | 10 | 16 | 448479 | 3037.78 | 767 | 750 | 147.4 |
| B | 15 | 204 | 97972 | 659.63 | 767 | 750 | 147.4 |
| B | 4 | 80 | 79614 | 535.08 | 767 | 750 | 147.4 |
| C | 12 | 4 | 7251 | 37.5 | 743 | 748 | 173.4 |
| C | 13 | 61 | 6086 | 30.78 | 743 | 748 | 173.4 |
| C | 7 | 247 | 2001 | 7.23 | 743 | 748 | 173.4 |
| D | 8 | 112 | 246597 | 1380.74 | 736 | 715 | 178.1 |
| D | 10 | 15 | 140244 | 783.52 | 736 | 715 | 178.1 |
| D | 13 | 235 | 75504 | 419.98 | 736 | 715 | 178.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

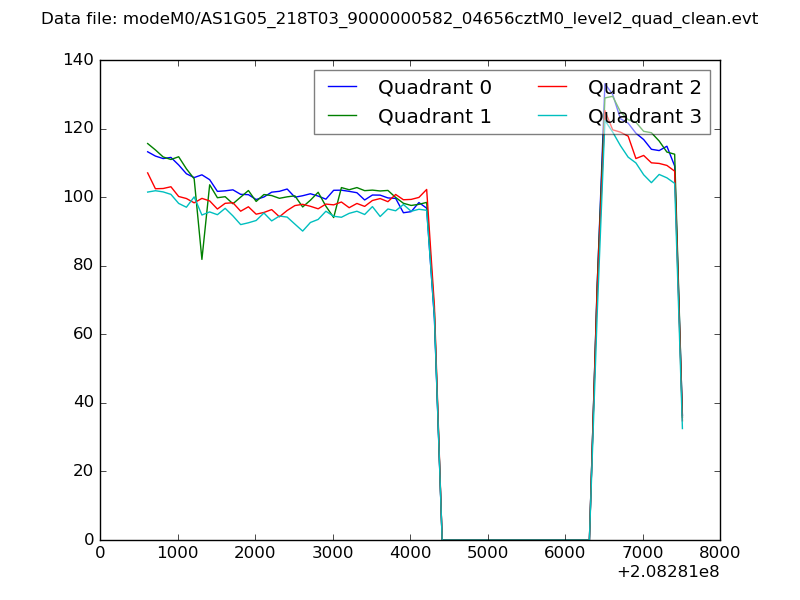

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

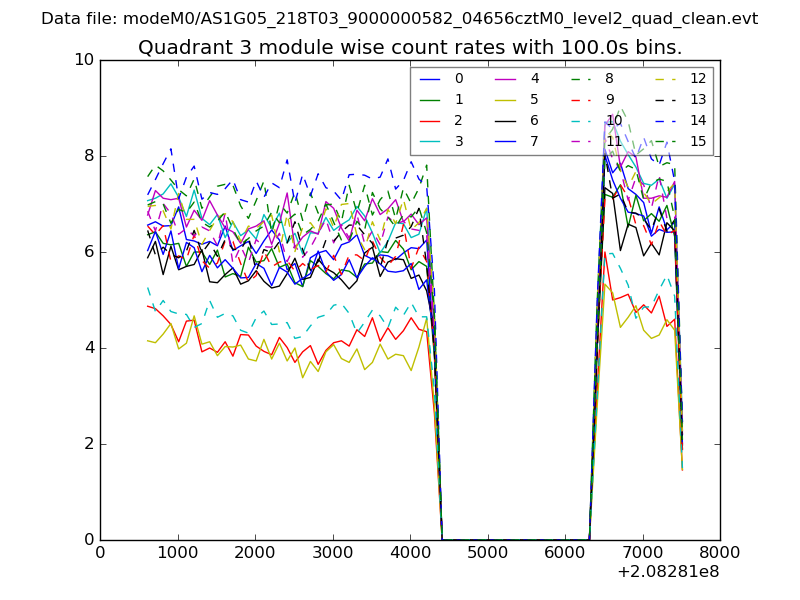

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

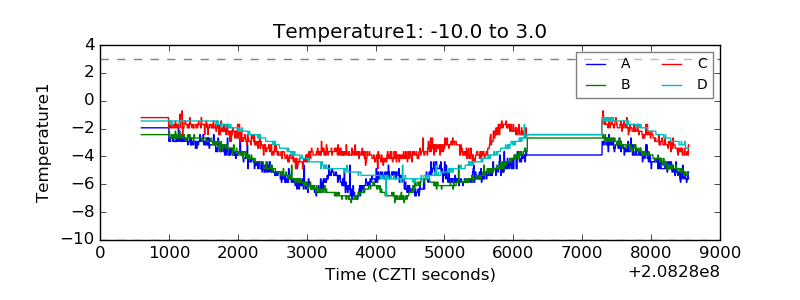

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

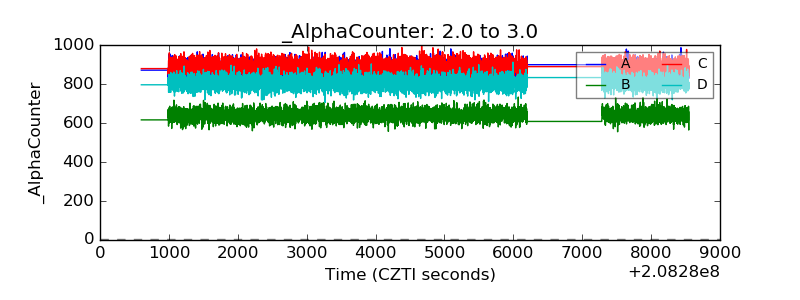

| Alpha Counter |  |

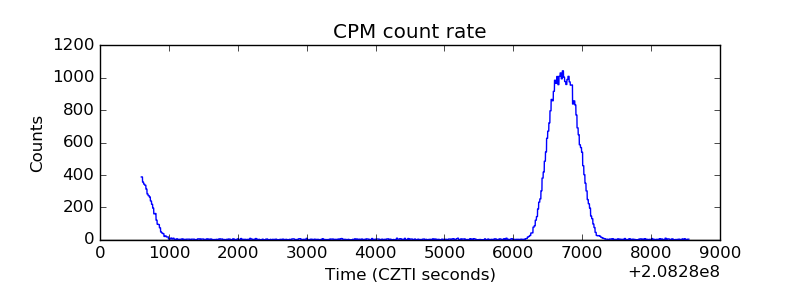

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

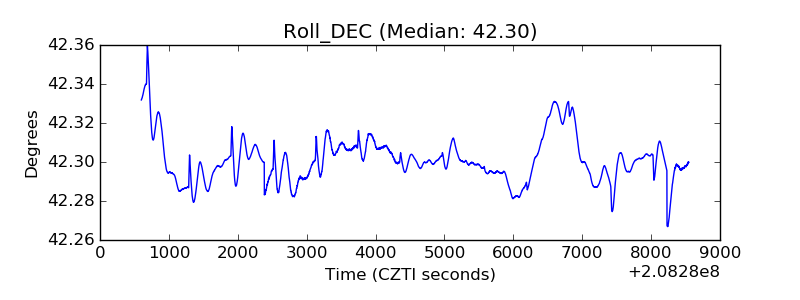

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
