| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_167T01_9000000584_04662cztM0_level2.evt | modeM0/AS1G05_167T01_9000000584_04662cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,577,280 | 83,312,640 |
| Size | 505.0 MB | 79.5 MB |
| Events in quadrant A | 3,051,488 | 545,278 |
| Events in quadrant B | 3,135,853 | 553,953 |
| Events in quadrant C | 2,995,516 | 545,752 |
| Events in quadrant D | 6,418,818 | 428,700 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13460 | 3 |
| B | 0 | 13562 | 2 |
| C | 0 | 13456 | 2 |
| D | 0 | 23525 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6433 | 18 | 0.279807% |
| B | 6433 | 25 | 0.388621% |
| C | 6433 | 22 | 0.341987% |
| D | 6433 | 1226 | 19.057982% |

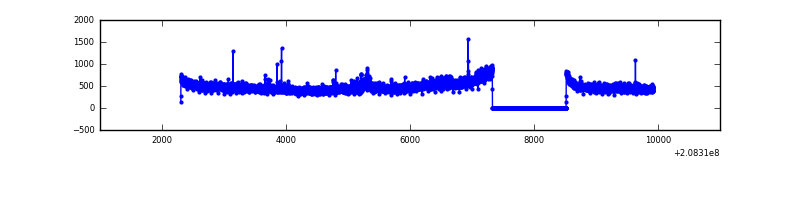

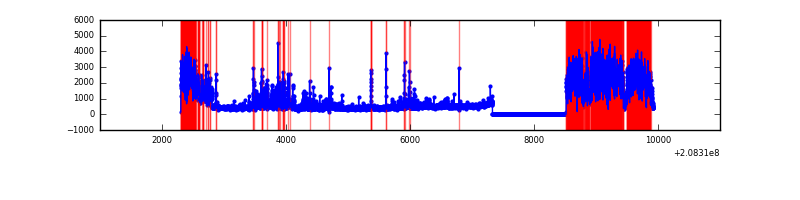

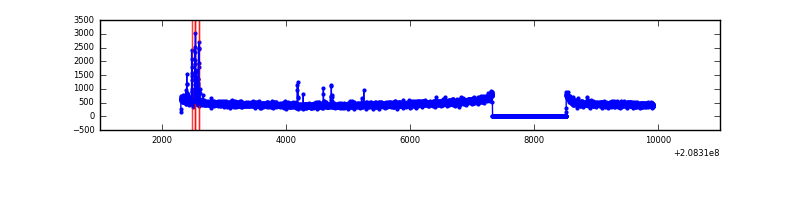

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7623 | 6434 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7623 | 6434 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7623 | 6434 | 9 | 9 | 0.12% | 0.14% |  |
| D | 7623 | 6434 | 1080 | 1080 | 14.17% | 16.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 96515 | 618.04 | 761 | 747 | 155.0 |
| A | 13 | 14 | 18660 | 115.6 | 761 | 747 | 155.0 |
| A | 8 | 15 | 9303 | 55.22 | 761 | 747 | 155.0 |
| B | 15 | 204 | 41345 | 274.72 | 777 | 761 | 147.7 |
| B | 14 | 167 | 41133 | 273.29 | 777 | 761 | 147.7 |
| B | 4 | 80 | 28185 | 185.64 | 777 | 761 | 147.7 |
| C | 9 | 247 | 68779 | 391.65 | 746 | 752 | 173.7 |
| C | 9 | 68 | 9365 | 49.59 | 746 | 752 | 173.7 |
| C | 9 | 54 | 7652 | 39.73 | 746 | 752 | 173.7 |
| D | 13 | 235 | 3170659 | 20027.43 | 657 | 638 | 158.3 |
| D | 8 | 112 | 555899 | 3508.0 | 657 | 638 | 158.3 |
| D | 2 | 234 | 59331 | 370.81 | 657 | 638 | 158.3 |

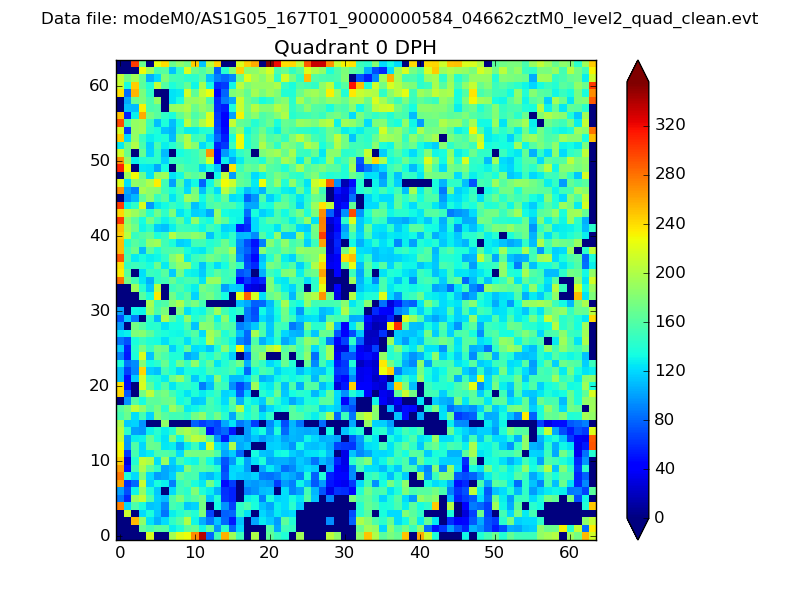

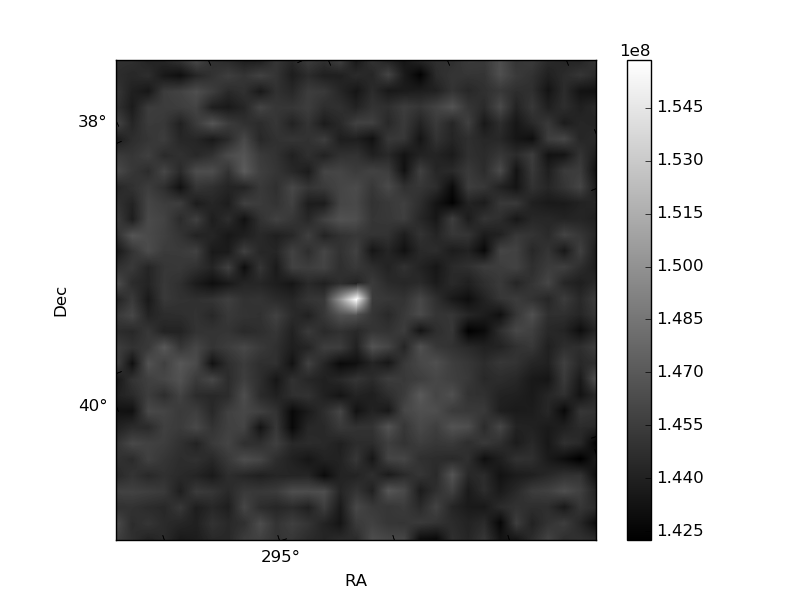

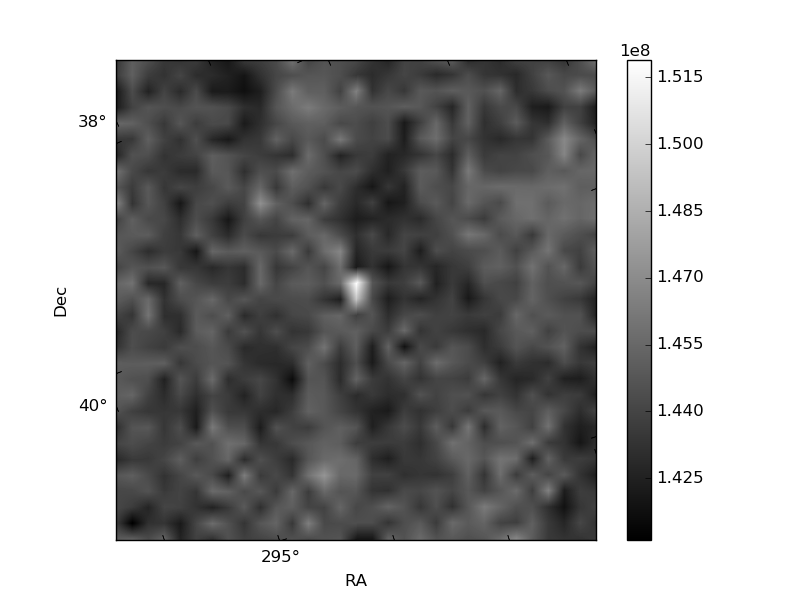

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

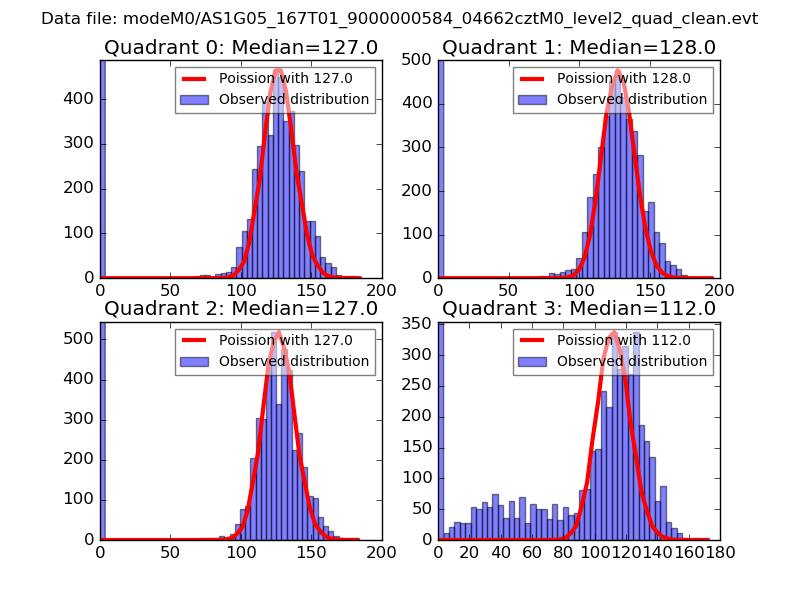

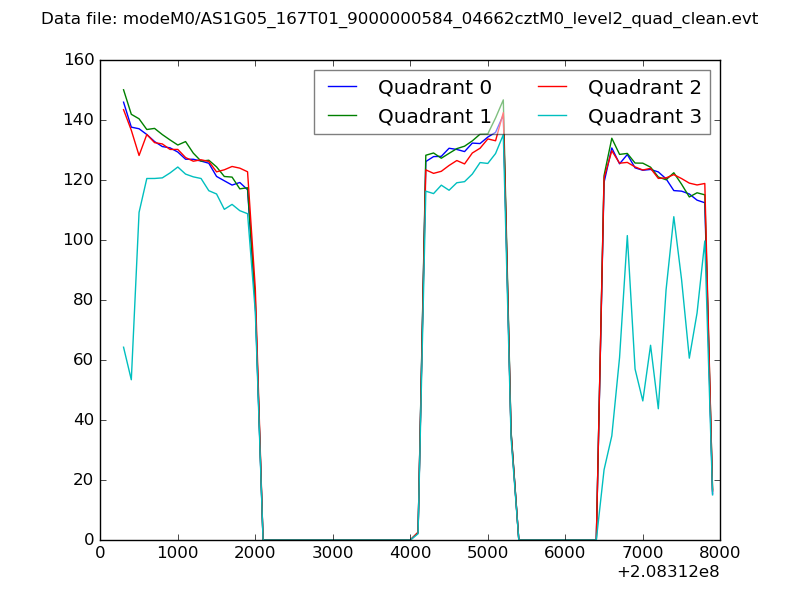

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

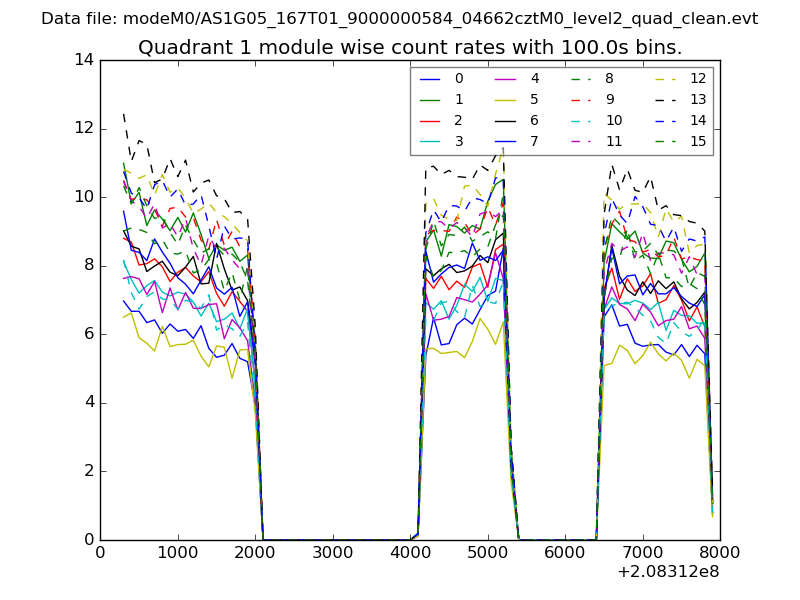

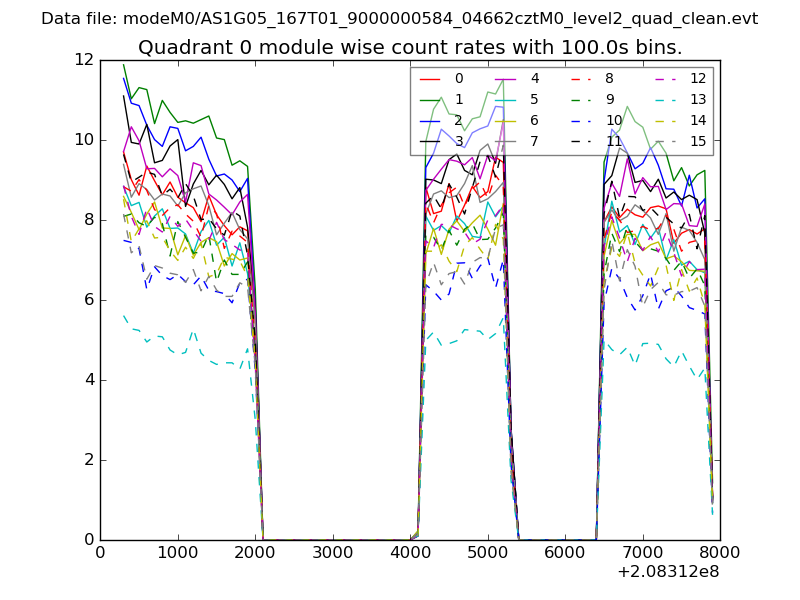

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

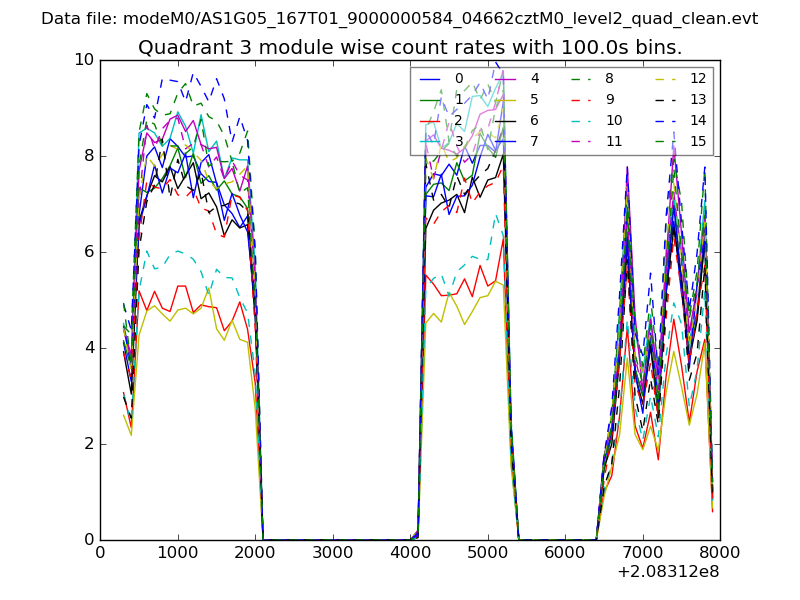

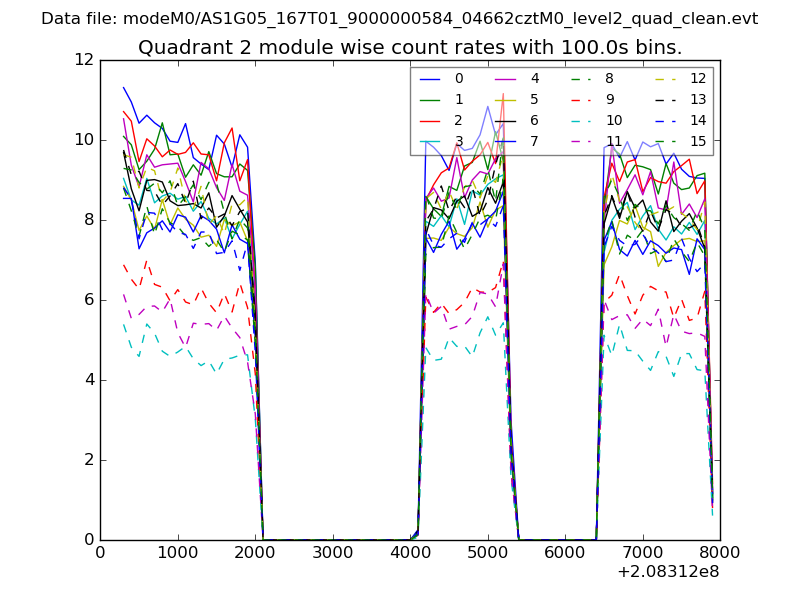

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

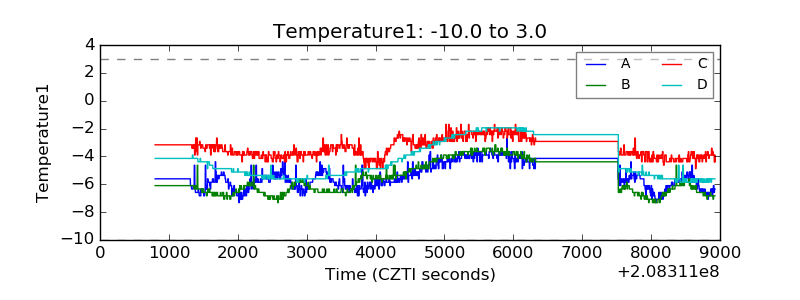

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

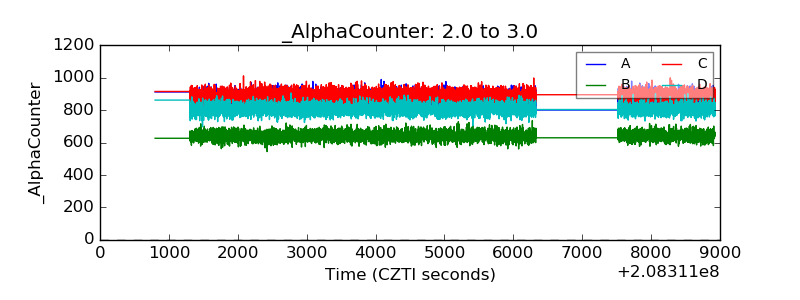

| Alpha Counter |  |

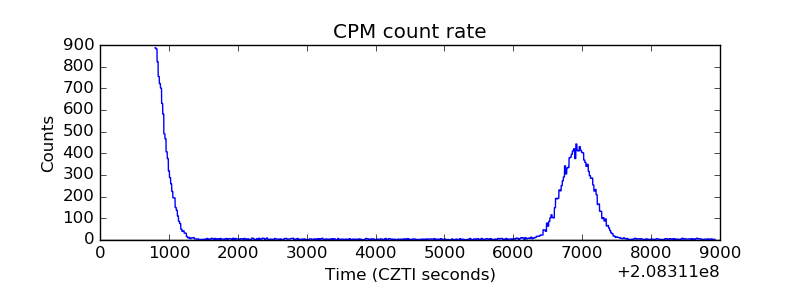

| _CPM_Rate |  |

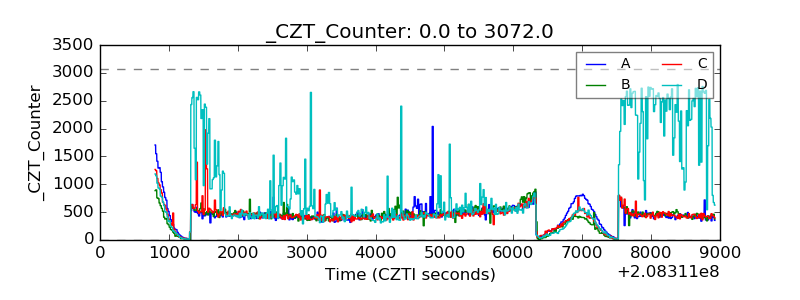

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

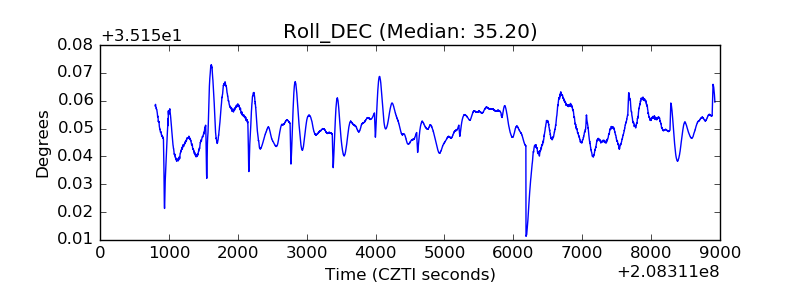

| _Roll_DEC |  |

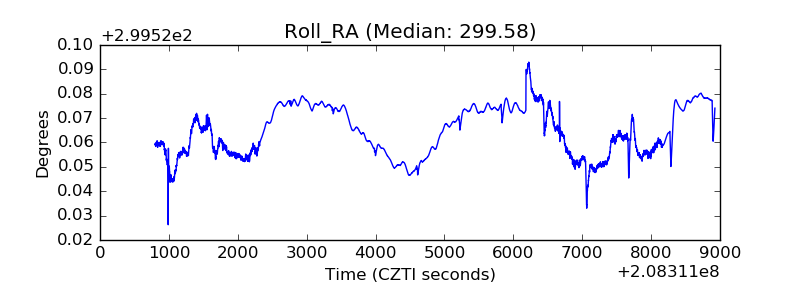

| _Roll_RA |  |

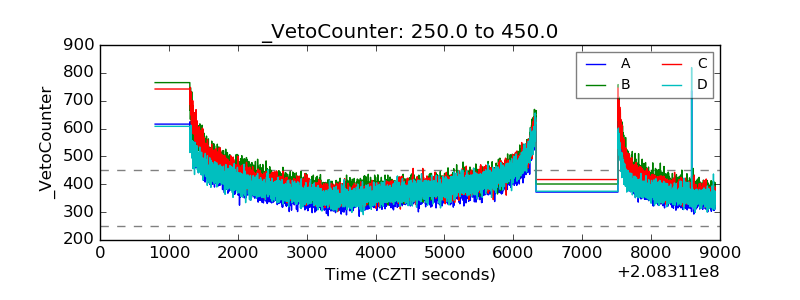

| Veto Counter |  |
