| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_251T02_9000000588_04676cztM0_level2.evt | modeM0/AS1G05_251T02_9000000588_04676cztM0_level2_quad_clean.evt |
| Size (bytes) | 749,623,680 | 101,989,440 |
| Size | 714.9 MB | 97.3 MB |
| Events in quadrant A | 3,403,464 | 708,821 |
| Events in quadrant B | 3,113,515 | 722,834 |
| Events in quadrant C | 3,047,855 | 724,054 |
| Events in quadrant D | 12,692,502 | 472,808 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14890 | 3 |
| B | 0 | 13739 | 2 |
| C | 0 | 13735 | 2 |
| D | 0 | 42163 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6578 | 138 | 2.097902% |
| B | 6578 | 48 | 0.729705% |
| C | 6578 | 46 | 0.699301% |
| D | 6578 | 3783 | 57.509881% |

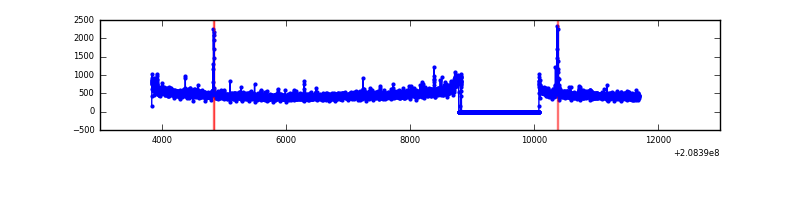

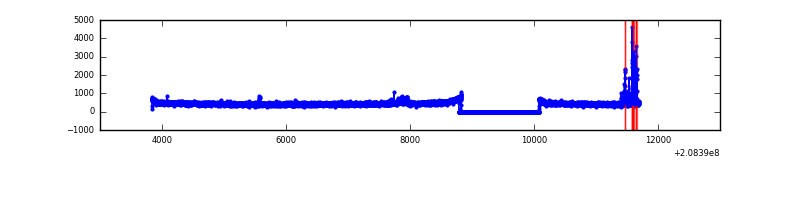

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7858 | 6580 | 77 | 77 | 0.98% | 1.17% |  |
| B | 7858 | 6580 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7858 | 6580 | 20 | 20 | 0.25% | 0.30% |  |
| D | 7857 | 6579 | 3516 | 3516 | 44.75% | 53.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 507292 | 3419.32 | 736 | 721 | 148.1 |
| A | 12 | 133 | 34186 | 225.89 | 736 | 721 | 148.1 |
| A | 13 | 251 | 22452 | 146.68 | 736 | 721 | 148.1 |
| B | 15 | 204 | 71394 | 496.8 | 760 | 742 | 142.2 |
| B | 14 | 167 | 33989 | 233.78 | 760 | 742 | 142.2 |
| B | 0 | 219 | 18579 | 125.42 | 760 | 742 | 142.2 |
| C | 14 | 48 | 102408 | 592.53 | 740 | 745 | 171.6 |
| C | 4 | 112 | 35207 | 200.86 | 740 | 745 | 171.6 |
| C | 9 | 68 | 8676 | 46.22 | 740 | 745 | 171.6 |
| D | 8 | 112 | 9921571 | 76997.66 | 540 | 523 | 128.8 |
| D | 9 | 82 | 192182 | 1487.47 | 540 | 523 | 128.8 |
| D | 2 | 136 | 113237 | 874.78 | 540 | 523 | 128.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

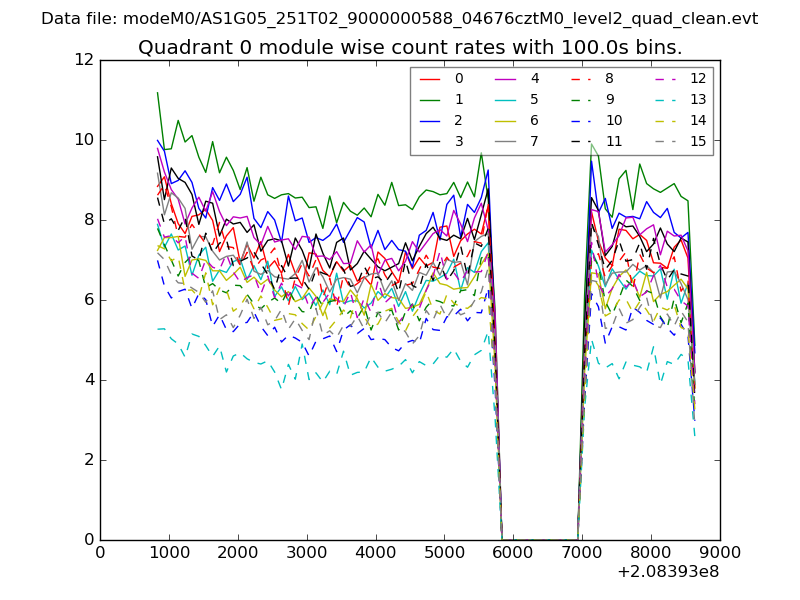

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

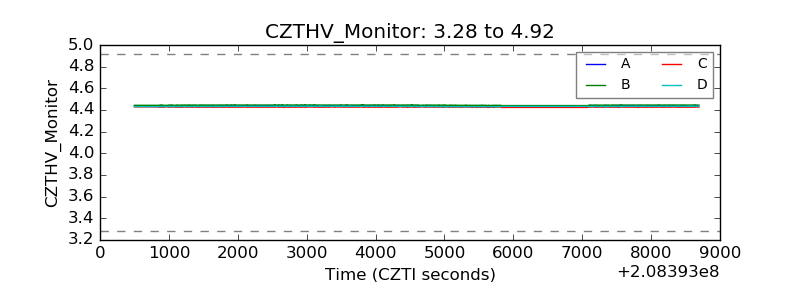

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

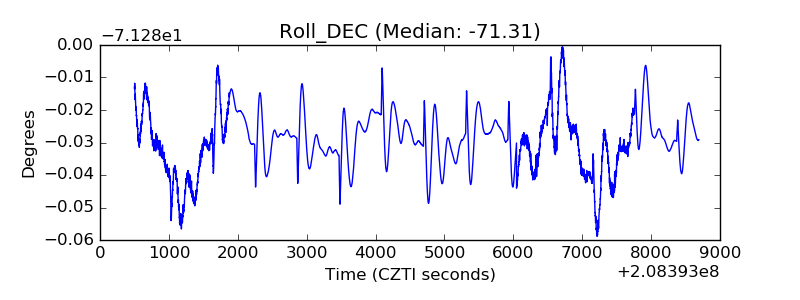

| _Roll_DEC |  |

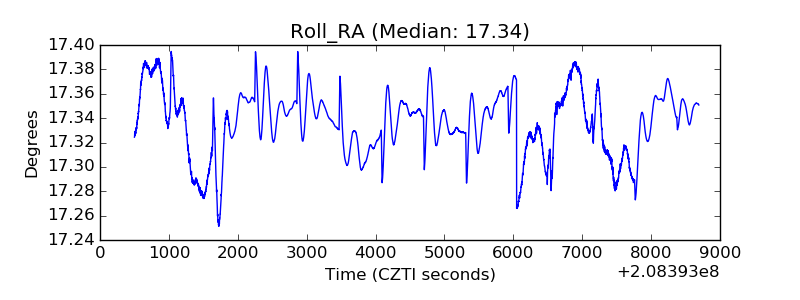

| _Roll_RA |  |

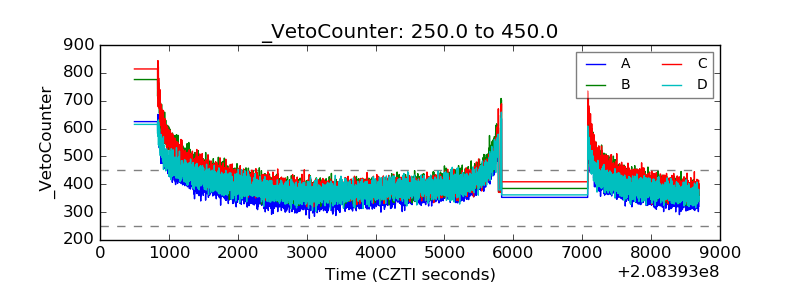

| Veto Counter |  |
