| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_235T01_9000000590_04684cztM0_level2.evt | modeM0/AS1G05_235T01_9000000590_04684cztM0_level2_quad_clean.evt |
| Size (bytes) | 383,843,520 | 40,985,280 |
| Size | 366.1 MB | 39.1 MB |
| Events in quadrant A | 1,901,430 | 264,414 |
| Events in quadrant B | 2,002,797 | 260,964 |
| Events in quadrant C | 1,848,032 | 259,488 |
| Events in quadrant D | 5,591,354 | 164,422 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8556 | 10 |
| B | 0 | 8848 | 20 |
| C | 0 | 8444 | 9 |
| D | 0 | 19460 | 159 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4126 | 54 | 1.308774% |
| B | 4121 | 52 | 1.261830% |
| C | 4126 | 36 | 0.872516% |
| D | 4107 | 1689 | 41.124909% |

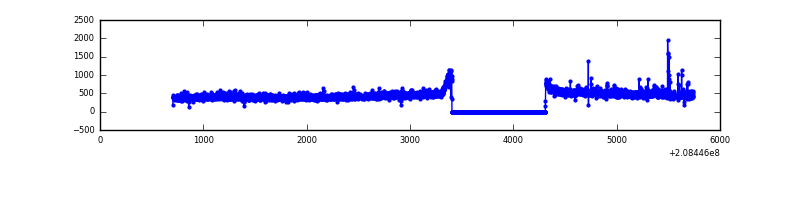

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5035 | 4131 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5035 | 4131 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5035 | 4131 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5035 | 4130 | 1388 | 1388 | 27.57% | 33.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 34284 | 342.7 | 480 | 469 | 98.7 |
| A | 12 | 113 | 7676 | 73.04 | 480 | 469 | 98.7 |
| A | 3 | 1 | 6674 | 62.89 | 480 | 469 | 98.7 |
| B | 15 | 204 | 100808 | 1049.28 | 485 | 473 | 95.6 |
| B | 0 | 183 | 14314 | 144.75 | 485 | 473 | 95.6 |
| B | 12 | 111 | 7633 | 74.88 | 485 | 473 | 95.6 |
| C | 8 | 128 | 4745 | 38.66 | 469 | 472 | 110.5 |
| C | 13 | 61 | 3850 | 30.56 | 469 | 472 | 110.5 |
| C | 9 | 68 | 3083 | 23.62 | 469 | 472 | 110.5 |
| D | 13 | 235 | 3971566 | 42221.94 | 383 | 371 | 94.1 |
| D | 2 | 136 | 72515 | 767.04 | 383 | 371 | 94.1 |
| D | 13 | 137 | 22011 | 230.08 | 383 | 371 | 94.1 |

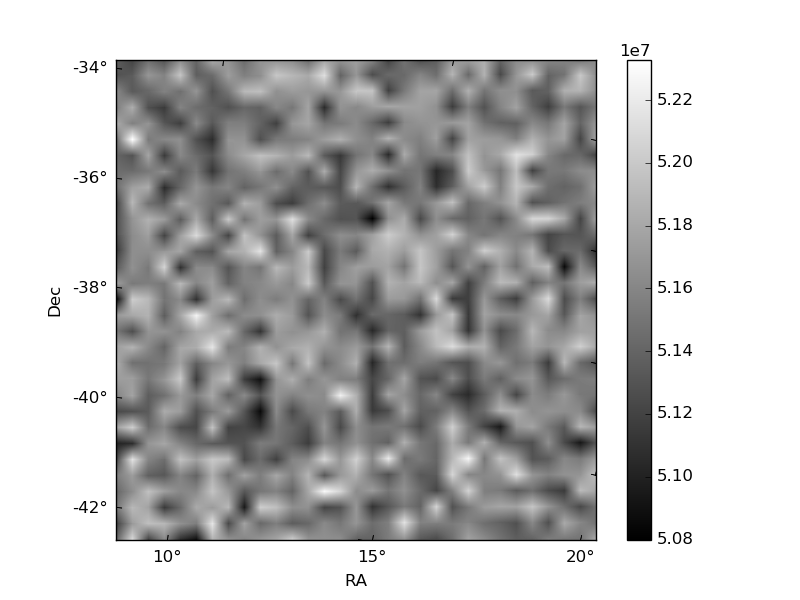

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

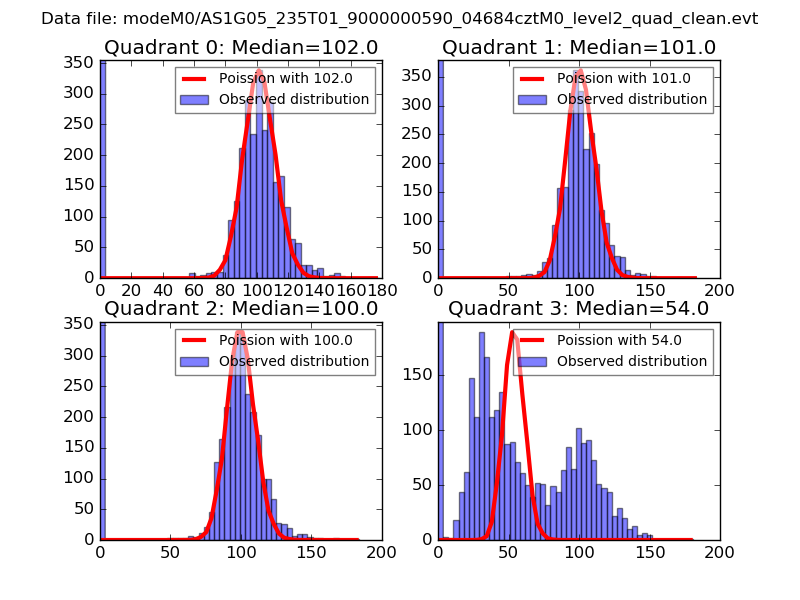

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

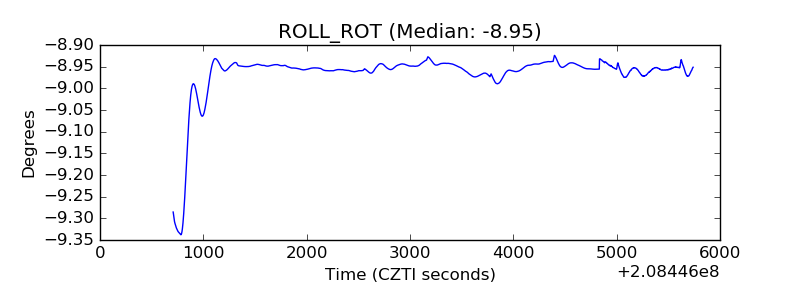

| _ROLL_ROT |  |

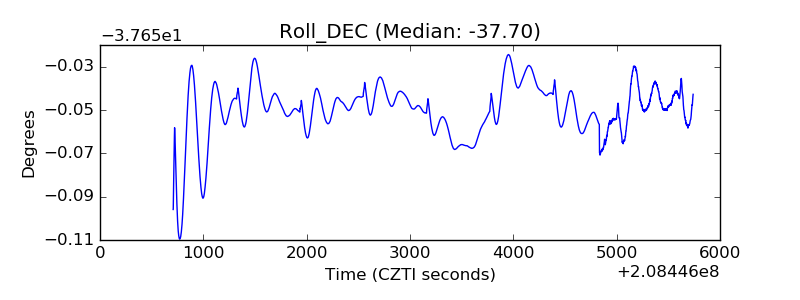

| _Roll_DEC |  |

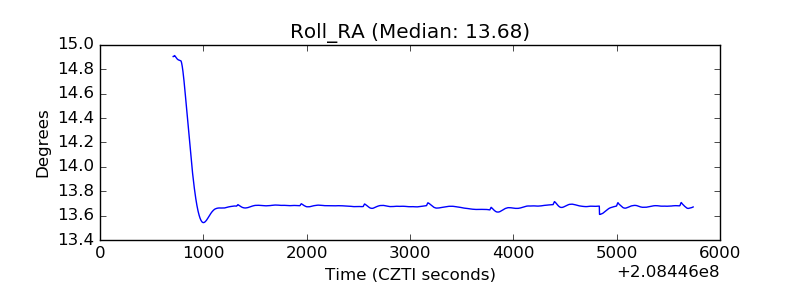

| _Roll_RA |  |
| Veto Counter |  |
