| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_227T01_9000000592_04716cztM0_level2.evt | modeM0/AS1G05_227T01_9000000592_04716cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,580,480 | 87,137,280 |
| Size | 423.0 MB | 83.1 MB |
| Events in quadrant A | 3,074,355 | 550,910 |
| Events in quadrant B | 3,553,644 | 549,953 |
| Events in quadrant C | 2,958,091 | 553,618 |
| Events in quadrant D | 3,403,145 | 528,027 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13659 | 3 |
| B | 0 | 14984 | 2 |
| C | 0 | 13458 | 2 |
| D | 0 | 14633 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 42 | 0.641809% |
| B | 6544 | 106 | 1.619804% |
| C | 6544 | 22 | 0.336186% |
| D | 6544 | 55 | 0.840465% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7739 | 6545 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7739 | 6545 | 51 | 51 | 0.66% | 0.78% |  |
| C | 7739 | 6545 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7739 | 6545 | 27 | 27 | 0.35% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 20189 | 120.23 | 784 | 767 | 161.5 |
| A | 8 | 15 | 19388 | 115.27 | 784 | 767 | 161.5 |
| A | 13 | 251 | 15386 | 90.5 | 784 | 767 | 161.5 |
| B | 14 | 167 | 260419 | 1710.81 | 788 | 771 | 151.8 |
| B | 15 | 204 | 94868 | 620.0 | 788 | 771 | 151.8 |
| B | 4 | 80 | 55124 | 358.13 | 788 | 771 | 151.8 |
| C | 9 | 247 | 20856 | 115.05 | 751 | 754 | 174.7 |
| C | 13 | 61 | 6222 | 31.29 | 751 | 754 | 174.7 |
| C | 14 | 48 | 3812 | 17.5 | 751 | 754 | 174.7 |
| D | 1 | 31 | 159572 | 875.09 | 751 | 728 | 181.5 |
| D | 2 | 136 | 103431 | 565.8 | 751 | 728 | 181.5 |
| D | 2 | 63 | 98028 | 536.04 | 751 | 728 | 181.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

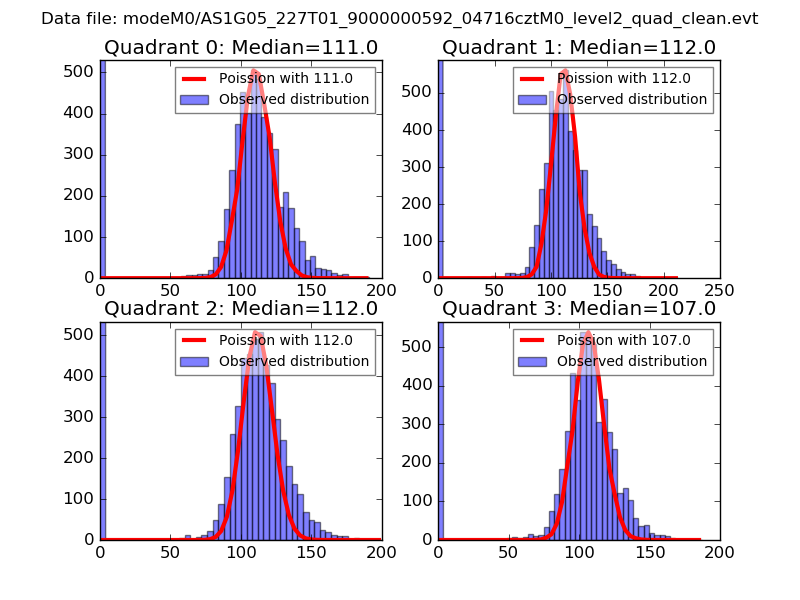

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

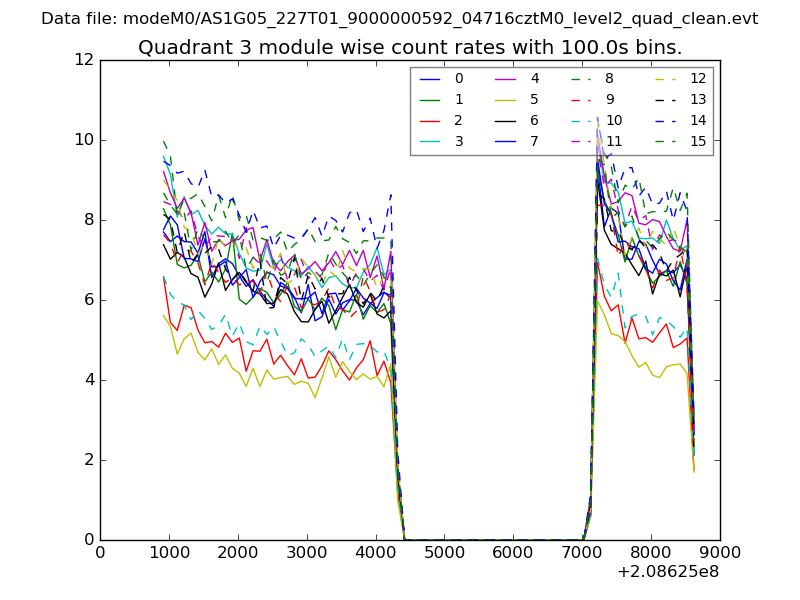

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

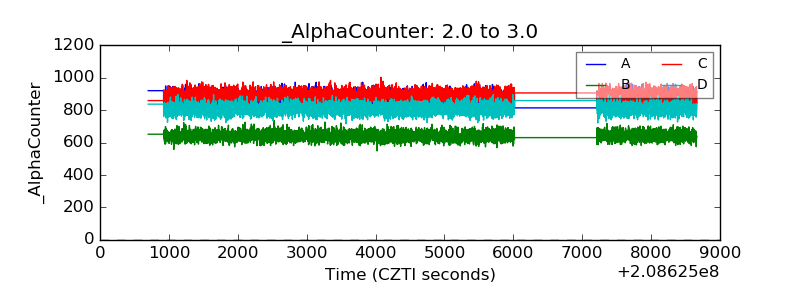

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

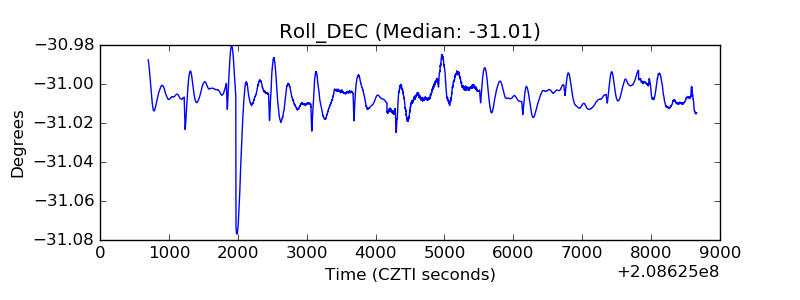

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
