| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_227T01_9000000592_04718cztM0_level2.evt | modeM0/AS1G05_227T01_9000000592_04718cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,760,960 | 76,000,320 |
| Size | 420.3 MB | 72.5 MB |
| Events in quadrant A | 3,004,400 | 471,825 |
| Events in quadrant B | 3,206,591 | 476,796 |
| Events in quadrant C | 3,240,758 | 474,363 |
| Events in quadrant D | 3,476,478 | 446,611 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13178 | 3 |
| B | 0 | 13555 | 2 |
| C | 0 | 14010 | 2 |
| D | 0 | 14365 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6189 | 47 | 0.759412% |
| B | 6189 | 54 | 0.872516% |
| C | 6189 | 128 | 2.068185% |
| D | 6189 | 37 | 0.597835% |

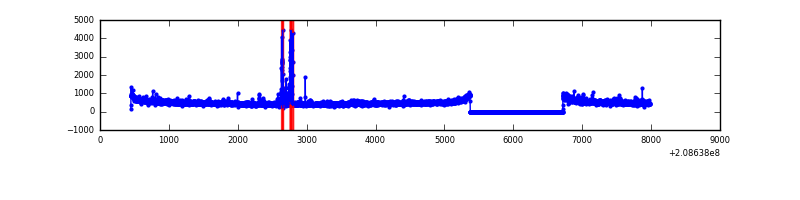

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7534 | 6190 | 14 | 14 | 0.19% | 0.23% |  |
| B | 7534 | 6190 | 33 | 33 | 0.44% | 0.53% |  |
| C | 7534 | 6190 | 61 | 61 | 0.81% | 0.99% |  |
| D | 7534 | 6190 | 14 | 14 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 108621 | 710.07 | 743 | 727 | 151.9 |
| A | 13 | 14 | 17674 | 111.53 | 743 | 727 | 151.9 |
| A | 0 | 226 | 17415 | 109.83 | 743 | 727 | 151.9 |
| B | 5 | 184 | 141305 | 978.51 | 753 | 738 | 143.7 |
| B | 15 | 204 | 77674 | 535.56 | 753 | 738 | 143.7 |
| B | 4 | 80 | 18801 | 125.74 | 753 | 738 | 143.7 |
| C | 9 | 16 | 447487 | 2707.09 | 713 | 720 | 165.0 |
| C | 9 | 247 | 10526 | 59.42 | 713 | 720 | 165.0 |
| C | 13 | 61 | 6101 | 32.61 | 713 | 720 | 165.0 |
| D | 2 | 63 | 425126 | 2467.93 | 708 | 687 | 172.0 |
| D | 1 | 31 | 68731 | 395.65 | 708 | 687 | 172.0 |
| D | 2 | 136 | 66551 | 382.97 | 708 | 687 | 172.0 |

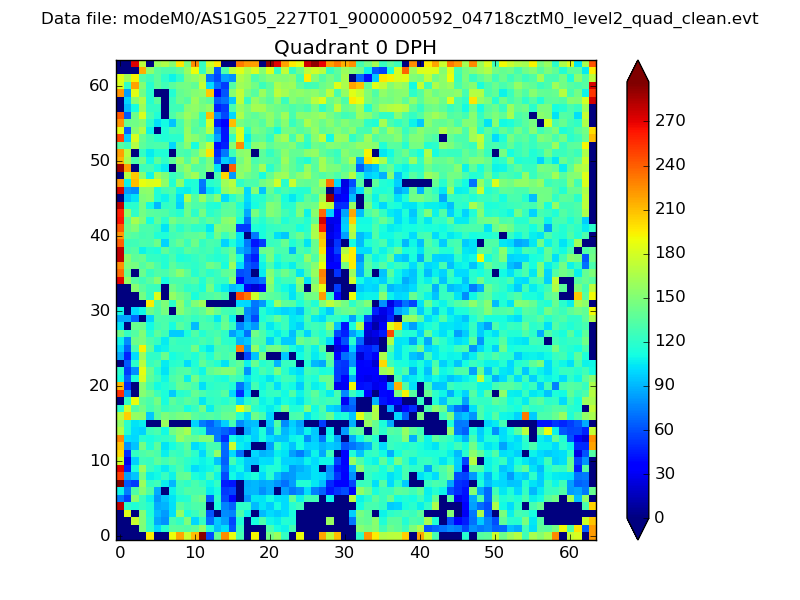

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

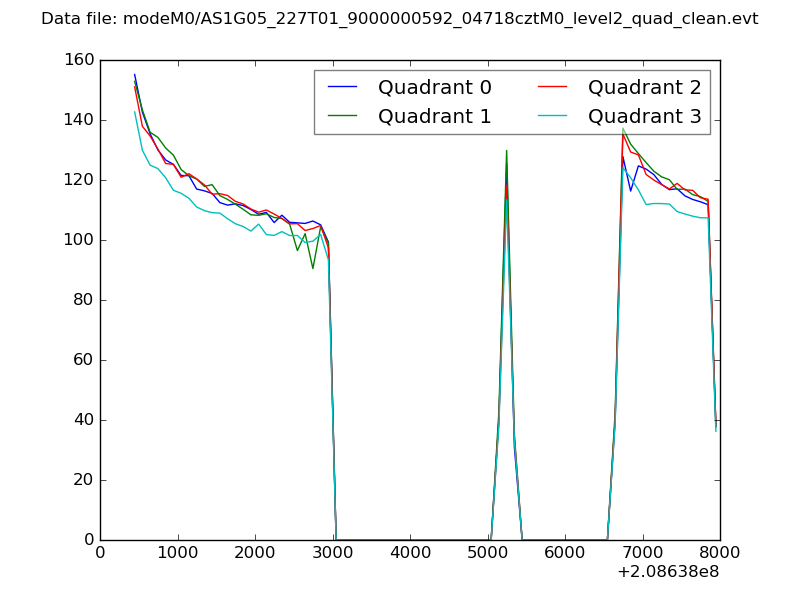

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

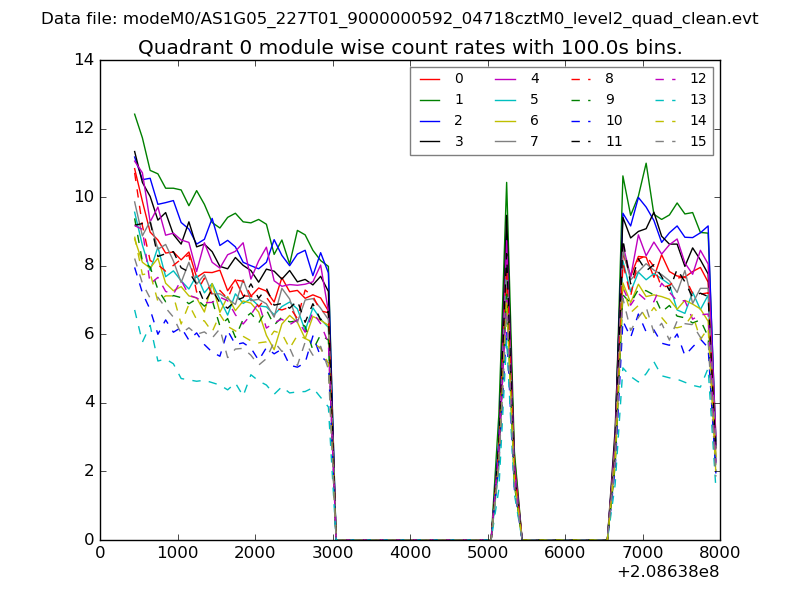

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

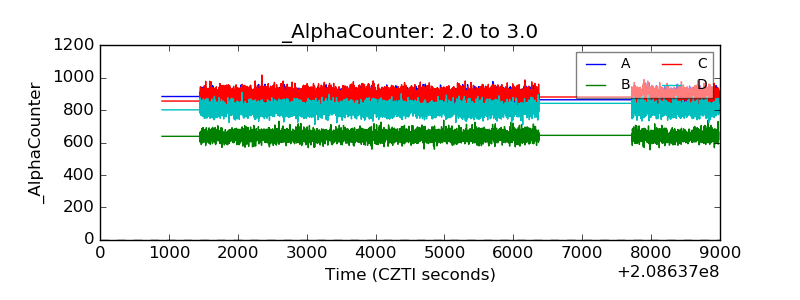

| Alpha Counter |  |
| _CPM_Rate |  |

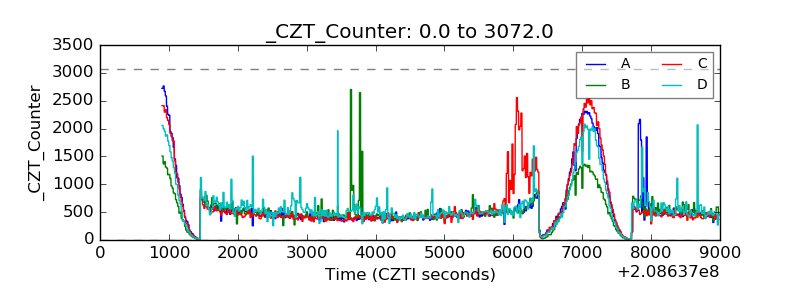

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

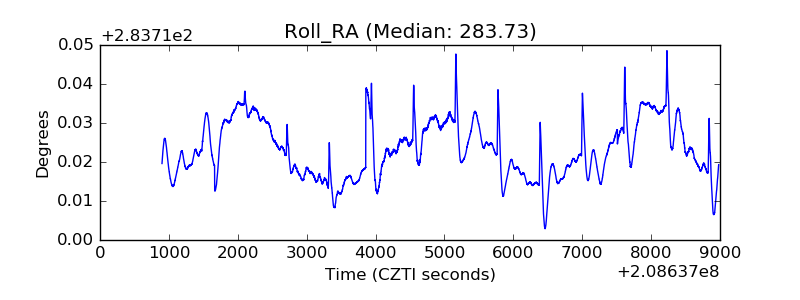

| _Roll_RA |  |
| Veto Counter |  |
