| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_227T01_9000000592_04719cztM0_level2.evt | modeM0/AS1G05_227T01_9000000592_04719cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,360,000 | 74,750,400 |
| Size | 412.3 MB | 71.3 MB |
| Events in quadrant A | 3,048,719 | 458,331 |
| Events in quadrant B | 3,285,278 | 470,012 |
| Events in quadrant C | 2,859,648 | 467,203 |
| Events in quadrant D | 3,478,501 | 434,647 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13437 | 3 |
| B | 0 | 13839 | 2 |
| C | 0 | 12898 | 2 |
| D | 0 | 14597 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6207 | 67 | 1.079426% |
| B | 6207 | 86 | 1.385532% |
| C | 6207 | 16 | 0.257773% |
| D | 6207 | 119 | 1.917190% |

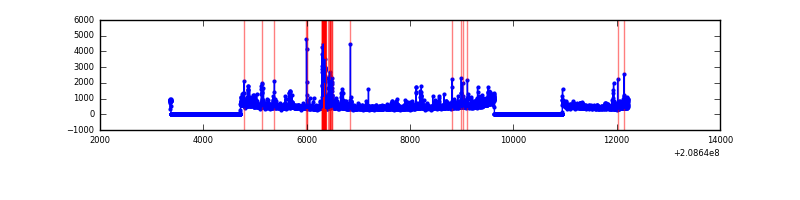

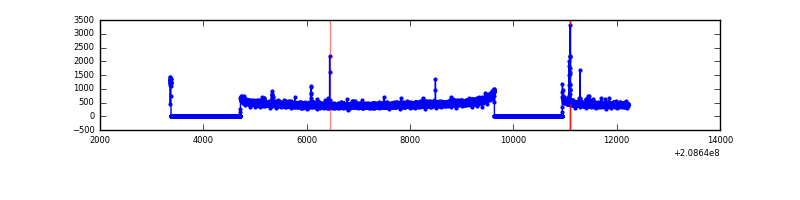

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8867 | 6209 | 21 | 21 | 0.24% | 0.34% |  |
| B | 8867 | 6209 | 23 | 23 | 0.26% | 0.37% |  |
| C | 8867 | 6209 | 5 | 5 | 0.06% | 0.08% |  |
| D | 8867 | 6209 | 82 | 82 | 0.92% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 179768 | 1192.44 | 731 | 716 | 150.2 |
| A | 0 | 226 | 23642 | 152.68 | 731 | 716 | 150.2 |
| A | 13 | 14 | 12217 | 76.59 | 731 | 716 | 150.2 |
| B | 15 | 204 | 126177 | 879.78 | 747 | 730 | 142.6 |
| B | 10 | 16 | 113802 | 793.0 | 747 | 730 | 142.6 |
| B | 14 | 167 | 46819 | 323.23 | 747 | 730 | 142.6 |
| C | 9 | 247 | 34317 | 202.14 | 714 | 718 | 166.2 |
| C | 9 | 16 | 25508 | 149.14 | 714 | 718 | 166.2 |
| C | 13 | 61 | 5965 | 31.57 | 714 | 718 | 166.2 |
| D | 12 | 217 | 222174 | 1302.6 | 698 | 679 | 170.0 |
| D | 2 | 63 | 184778 | 1082.68 | 698 | 679 | 170.0 |
| D | 2 | 136 | 172127 | 1008.28 | 698 | 679 | 170.0 |

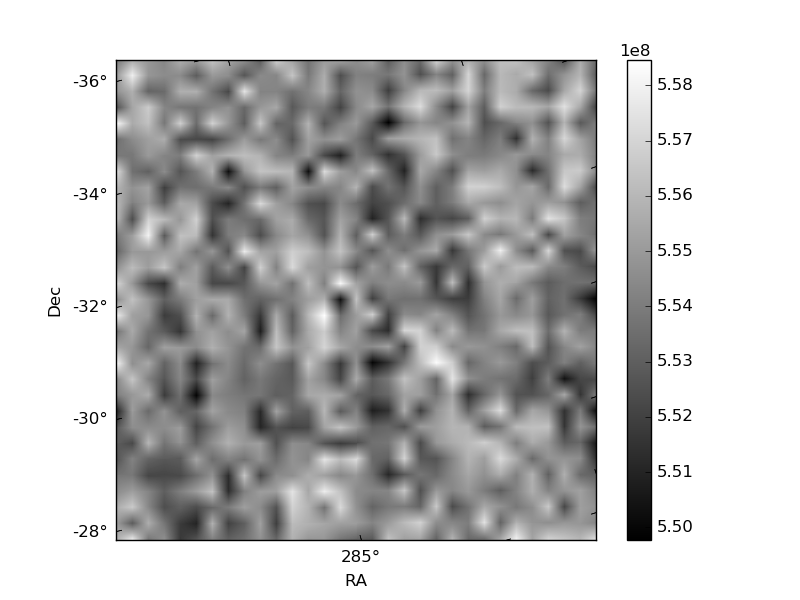

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

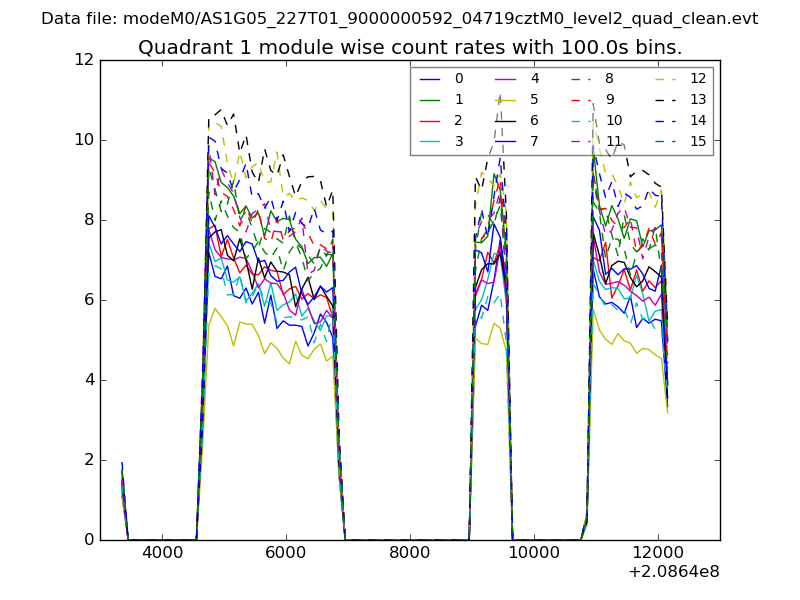

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

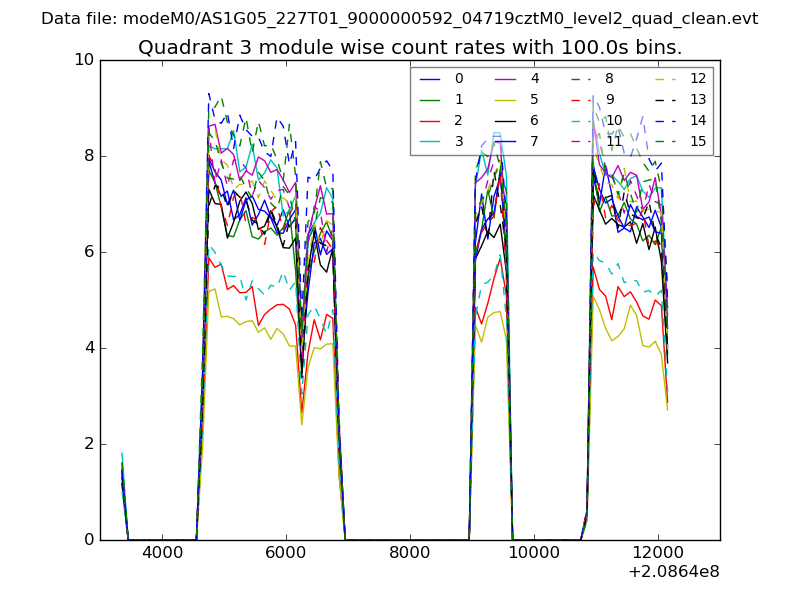

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

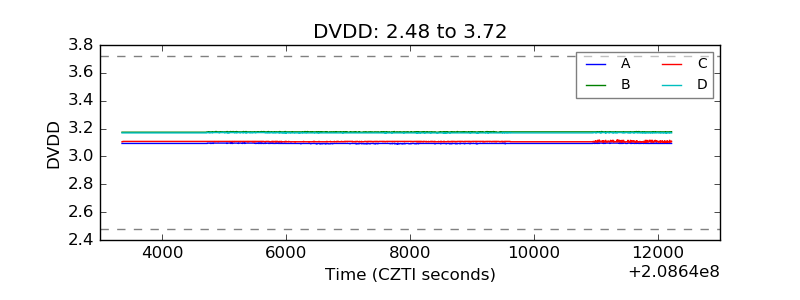

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

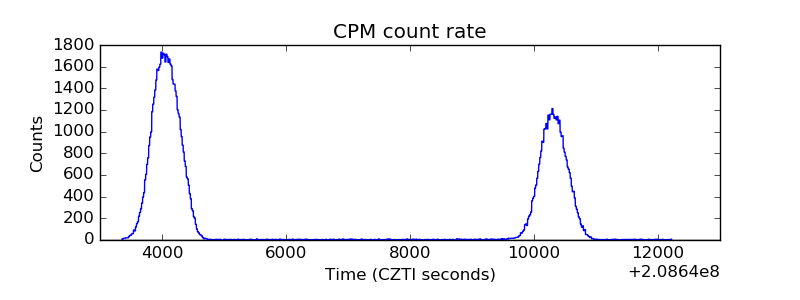

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

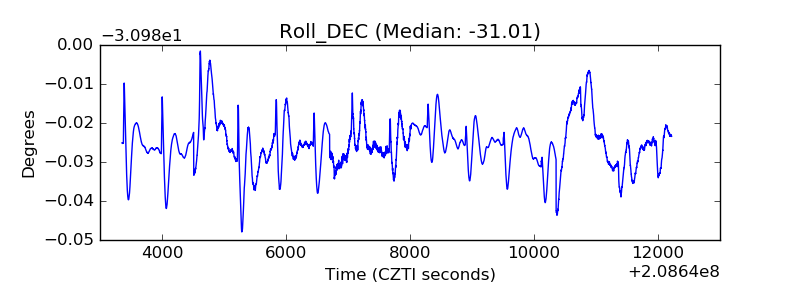

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
