| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_227T01_9000000592_04720cztM0_level2.evt | modeM0/AS1G05_227T01_9000000592_04720cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,834,240 | 75,032,640 |
| Size | 435.7 MB | 71.6 MB |
| Events in quadrant A | 3,046,042 | 457,585 |
| Events in quadrant B | 3,639,702 | 468,324 |
| Events in quadrant C | 2,886,211 | 470,834 |
| Events in quadrant D | 3,829,145 | 429,497 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13662 | 3 |
| B | 0 | 15007 | 2 |
| C | 0 | 13151 | 2 |
| D | 0 | 15702 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6386 | 63 | 0.986533% |
| B | 6386 | 174 | 2.724710% |
| C | 6386 | 10 | 0.156593% |
| D | 6386 | 248 | 3.883495% |

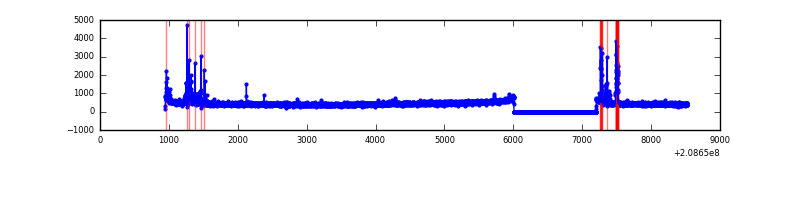

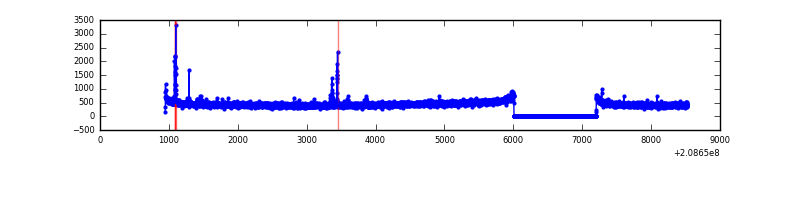

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7581 | 6387 | 36 | 36 | 0.47% | 0.56% |  |
| B | 7581 | 6387 | 140 | 140 | 1.85% | 2.19% |  |
| C | 7581 | 6387 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7580 | 6386 | 188 | 188 | 2.48% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 188433 | 1254.99 | 730 | 714 | 149.6 |
| A | 0 | 226 | 24860 | 161.43 | 730 | 714 | 149.6 |
| A | 13 | 251 | 11862 | 74.53 | 730 | 714 | 149.6 |
| B | 10 | 16 | 495339 | 3432.07 | 747 | 730 | 144.1 |
| B | 15 | 204 | 142795 | 985.78 | 747 | 730 | 144.1 |
| B | 14 | 167 | 38427 | 261.57 | 747 | 730 | 144.1 |
| C | 9 | 247 | 57267 | 338.14 | 718 | 722 | 167.2 |
| C | 8 | 128 | 15510 | 88.43 | 718 | 722 | 167.2 |
| C | 8 | 112 | 7306 | 39.37 | 718 | 722 | 167.2 |
| D | 13 | 235 | 580244 | 3421.01 | 692 | 672 | 169.4 |
| D | 2 | 63 | 345140 | 2033.27 | 692 | 672 | 169.4 |
| D | 2 | 234 | 88738 | 519.82 | 692 | 672 | 169.4 |

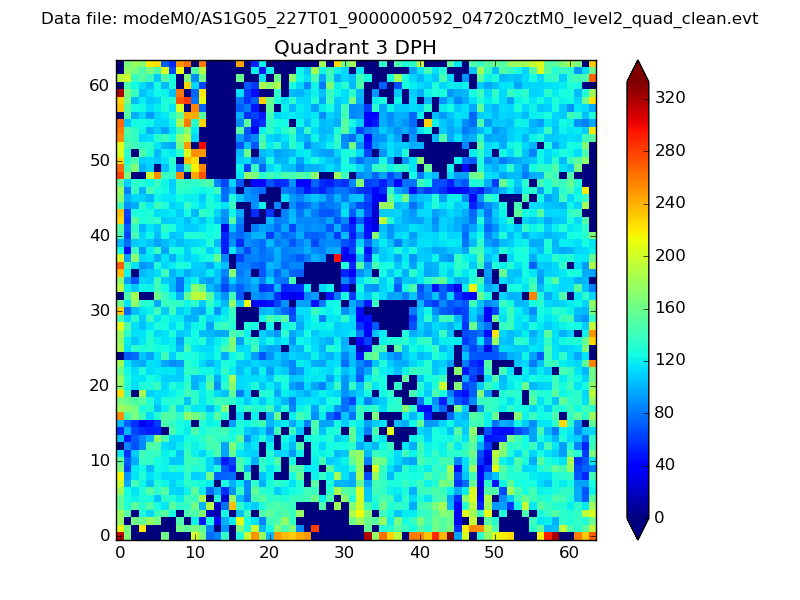

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

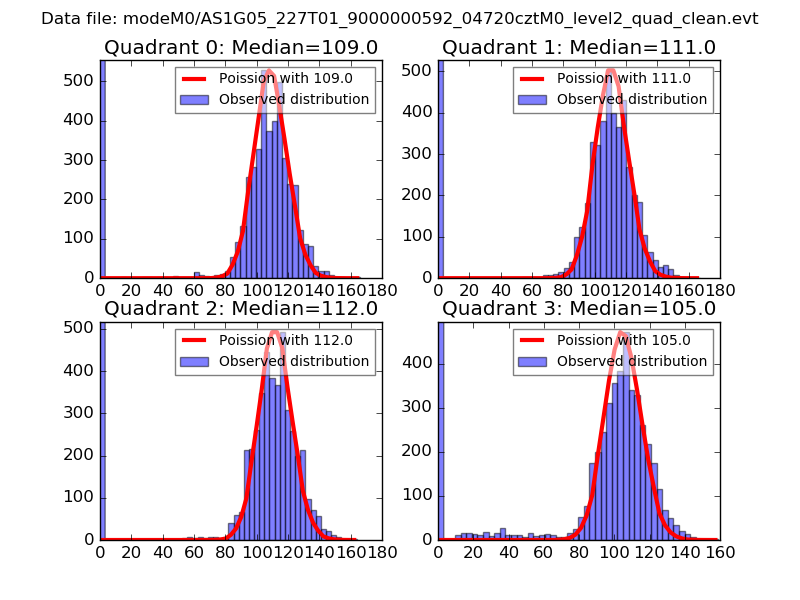

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

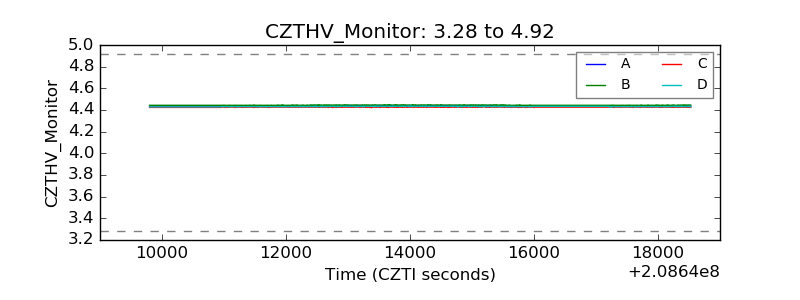

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

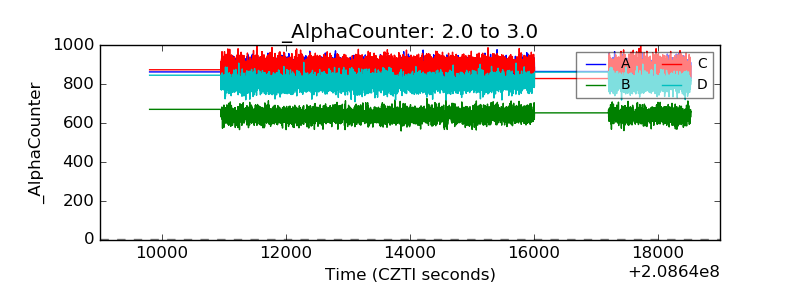

| Alpha Counter |  |

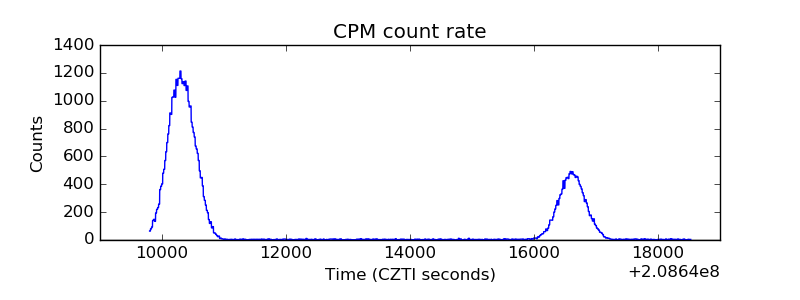

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

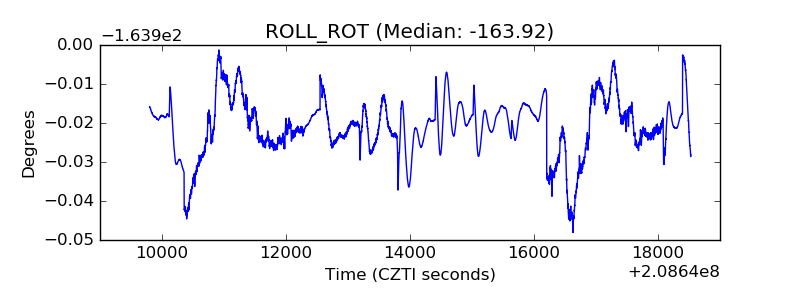

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
