| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_227T01_9000000592_04723cztM0_level2.evt | modeM0/AS1G05_227T01_9000000592_04723cztM0_level2_quad_clean.evt |
| Size (bytes) | 573,289,920 | 71,755,200 |
| Size | 546.7 MB | 68.4 MB |
| Events in quadrant A | 3,403,396 | 417,533 |
| Events in quadrant B | 4,080,367 | 417,628 |
| Events in quadrant C | 3,413,475 | 429,771 |
| Events in quadrant D | 5,950,613 | 379,932 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15772 | 2 |
| B | 0 | 17337 | 1 |
| C | 0 | 15803 | 1 |
| D | 0 | 23076 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7575 | 162 | 2.138614% |
| B | 7575 | 211 | 2.785479% |
| C | 7575 | 150 | 1.980198% |
| D | 7575 | 655 | 8.646865% |

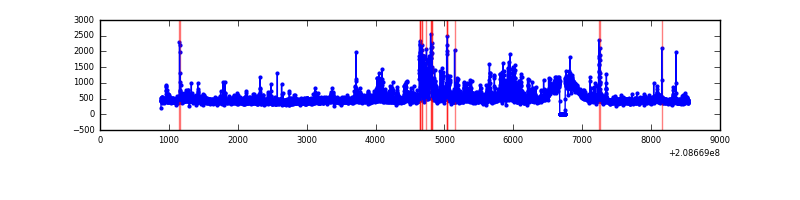

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7655 | 7576 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7655 | 7576 | 19 | 19 | 0.25% | 0.25% |  |
| C | 7655 | 7576 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7655 | 7575 | 373 | 373 | 4.87% | 4.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 11603 | 58.58 | 877 | 856 | 183.4 |
| A | 0 | 226 | 9632 | 47.84 | 877 | 856 | 183.4 |
| A | 12 | 194 | 8909 | 43.89 | 877 | 856 | 183.4 |
| B | 4 | 80 | 334917 | 1912.61 | 891 | 869 | 174.7 |
| B | 14 | 167 | 249319 | 1422.51 | 891 | 869 | 174.7 |
| B | 15 | 204 | 35028 | 195.58 | 891 | 869 | 174.7 |
| C | 9 | 221 | 34602 | 166.8 | 863 | 866 | 202.3 |
| C | 13 | 61 | 7275 | 31.69 | 863 | 866 | 202.3 |
| C | 8 | 128 | 6390 | 27.31 | 863 | 866 | 202.3 |
| D | 2 | 63 | 1992370 | 9978.79 | 817 | 794 | 199.6 |
| D | 13 | 235 | 313926 | 1568.95 | 817 | 794 | 199.6 |
| D | 2 | 234 | 225274 | 1124.76 | 817 | 794 | 199.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

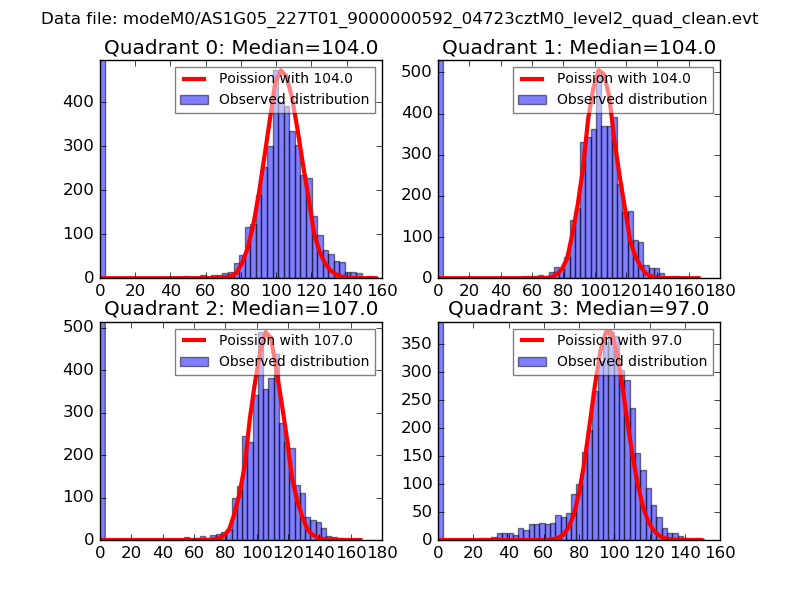

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

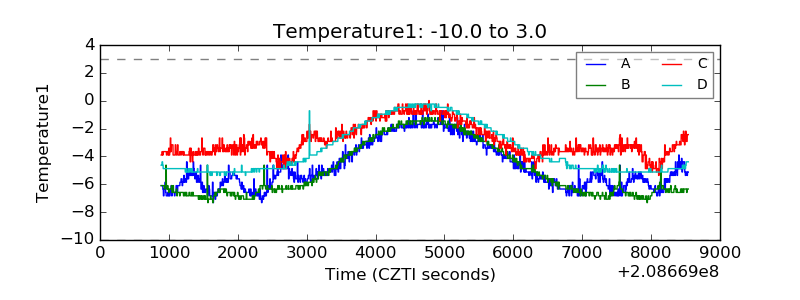

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

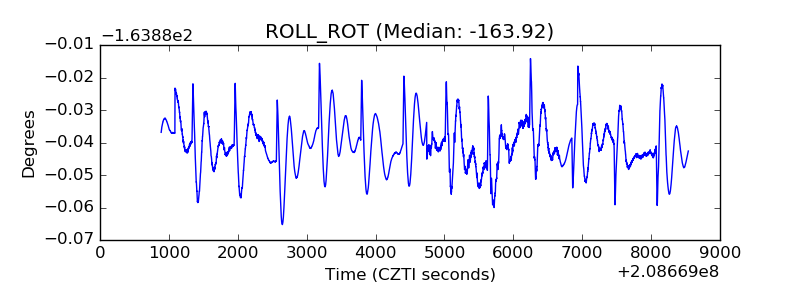

| _ROLL_ROT |  |

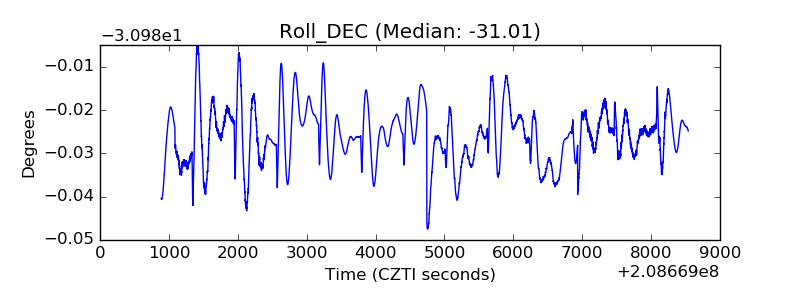

| _Roll_DEC |  |

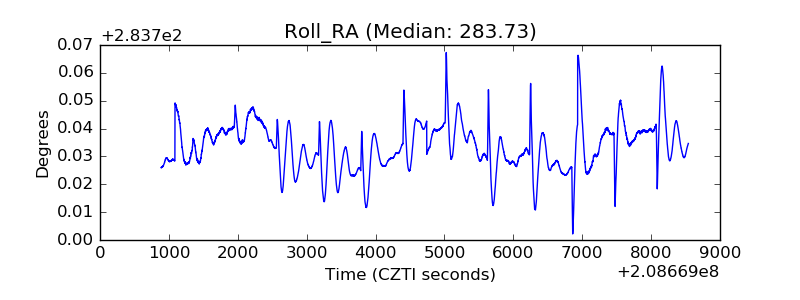

| _Roll_RA |  |
| Veto Counter |  |
