| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_192T01_9000000594_04730cztM0_level2.evt | modeM0/AS1G05_192T01_9000000594_04730cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,697,920 | 82,748,160 |
| Size | 501.3 MB | 78.9 MB |
| Events in quadrant A | 3,060,427 | 532,882 |
| Events in quadrant B | 3,101,573 | 534,927 |
| Events in quadrant C | 5,619,387 | 495,754 |
| Events in quadrant D | 3,704,110 | 494,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13560 | 3 |
| B | 0 | 13624 | 2 |
| C | 0 | 21024 | 2 |
| D | 0 | 15581 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 57 | 0.887989% |
| B | 6419 | 48 | 0.747780% |
| C | 6419 | 627 | 9.767877% |
| D | 6419 | 189 | 2.944384% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6420 | 19 | 19 | 0.25% | 0.30% |  |
| B | 7544 | 6420 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7544 | 6420 | 414 | 414 | 5.49% | 6.45% |  |
| D | 7544 | 6420 | 126 | 126 | 1.67% | 1.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 83185 | 526.22 | 764 | 749 | 156.7 |
| A | 8 | 15 | 20843 | 128.27 | 764 | 749 | 156.7 |
| A | 0 | 226 | 14662 | 88.81 | 764 | 749 | 156.7 |
| B | 10 | 16 | 52701 | 353.23 | 769 | 753 | 147.1 |
| B | 14 | 167 | 49733 | 333.05 | 769 | 753 | 147.1 |
| B | 15 | 204 | 24269 | 159.9 | 769 | 753 | 147.1 |
| C | 14 | 48 | 2772990 | 16722.71 | 720 | 722 | 165.8 |
| C | 9 | 247 | 19380 | 112.54 | 720 | 722 | 165.8 |
| C | 8 | 208 | 14731 | 84.5 | 720 | 722 | 165.8 |
| D | 13 | 235 | 632076 | 3563.32 | 734 | 712 | 177.2 |
| D | 13 | 137 | 128229 | 719.69 | 734 | 712 | 177.2 |
| D | 13 | 239 | 47129 | 261.97 | 734 | 712 | 177.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

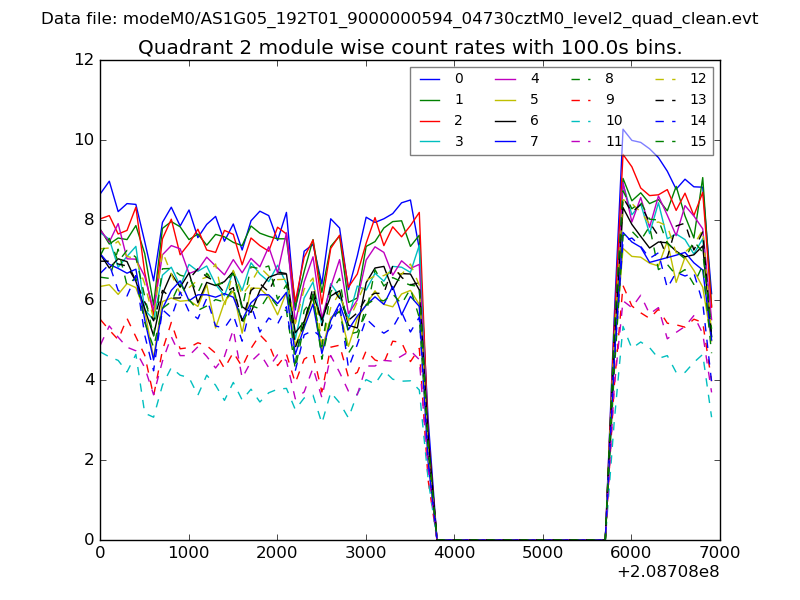

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

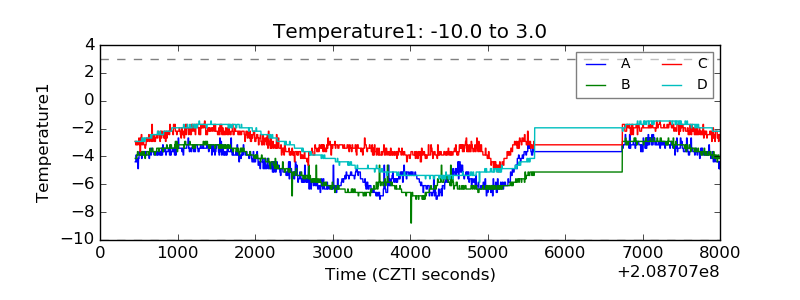

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

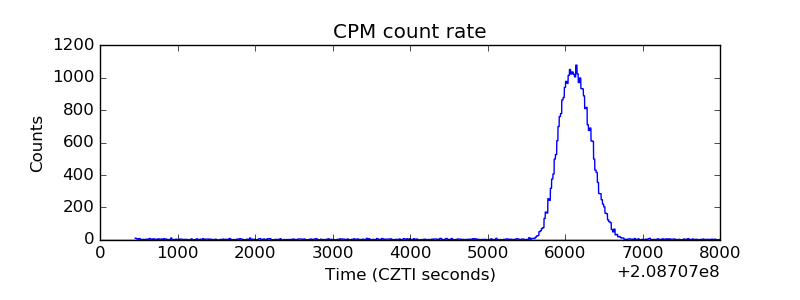

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

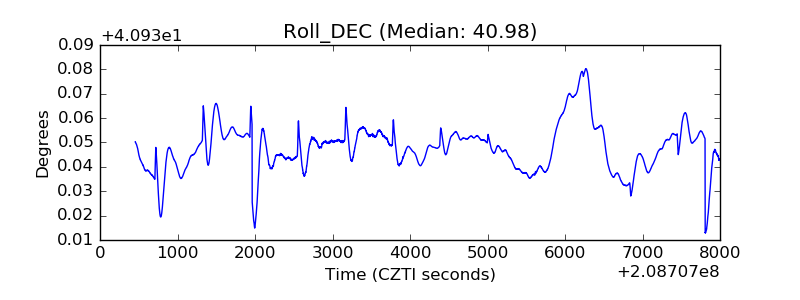

| _Roll_DEC |  |

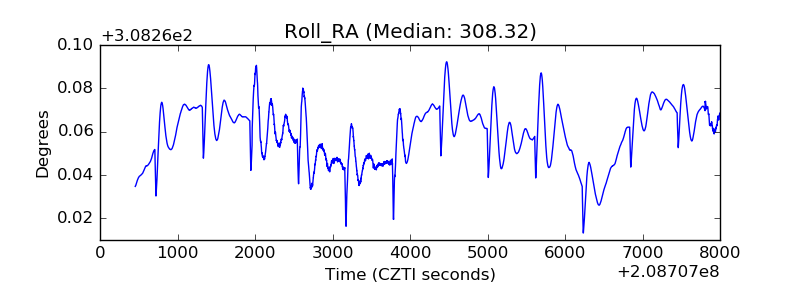

| _Roll_RA |  |

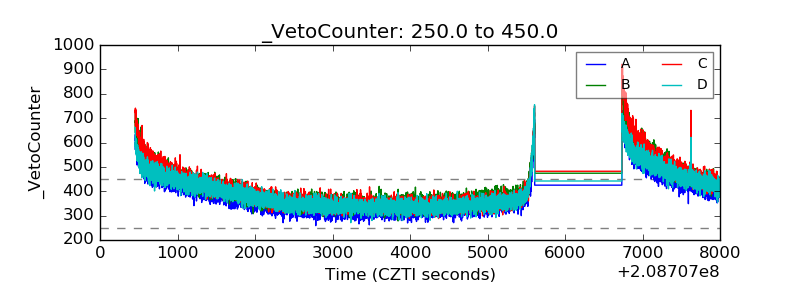

| Veto Counter |  |
