| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_195T01_9000000598_04756cztM0_level2.evt | modeM0/AS1G05_195T01_9000000598_04756cztM0_level2_quad_clean.evt |
| Size (bytes) | 707,221,440 | 120,588,480 |
| Size | 674.5 MB | 115.0 MB |
| Events in quadrant A | 4,312,523 | 750,581 |
| Events in quadrant B | 5,322,572 | 748,326 |
| Events in quadrant C | 4,280,426 | 760,232 |
| Events in quadrant D | 6,844,666 | 719,726 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 200 | 0 |
| B | 0 | 200 | 0 |
| C | 0 | 200 | 0 |
| D | 0 | 200 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19727 | 3 |
| B | 0 | 22163 | 2 |
| C | 0 | 19740 | 2 |
| D | 0 | 27235 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9704 | 129 | 1.329349% |
| B | 9704 | 371 | 3.823166% |
| C | 9704 | 101 | 1.040808% |
| D | 9703 | 368 | 3.792641% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11184 | 9705 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11184 | 9706 | 203 | 203 | 1.82% | 2.09% |  |
| C | 11184 | 9705 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11184 | 9706 | 219 | 219 | 1.96% | 2.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 14786 | 59.91 | 1113 | 1085 | 228.7 |
| A | 0 | 226 | 11346 | 44.87 | 1113 | 1085 | 228.7 |
| A | 12 | 194 | 11107 | 43.82 | 1113 | 1085 | 228.7 |
| B | 10 | 16 | 489773 | 2299.35 | 1105 | 1078 | 212.5 |
| B | 14 | 167 | 375278 | 1760.64 | 1105 | 1078 | 212.5 |
| B | 15 | 204 | 57177 | 263.95 | 1105 | 1078 | 212.5 |
| C | 14 | 48 | 41403 | 160.36 | 1079 | 1080 | 251.5 |
| C | 12 | 4 | 15178 | 56.06 | 1079 | 1080 | 251.5 |
| C | 13 | 61 | 8884 | 31.03 | 1079 | 1080 | 251.5 |
| D | 11 | 132 | 2166858 | 8382.04 | 1067 | 1033 | 258.4 |
| D | 13 | 239 | 221343 | 852.63 | 1067 | 1033 | 258.4 |
| D | 2 | 136 | 107181 | 410.81 | 1067 | 1033 | 258.4 |

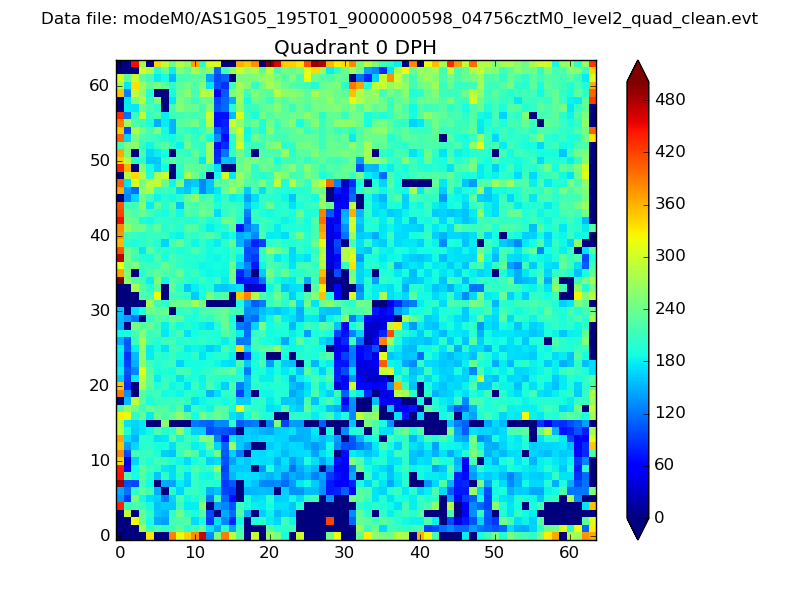

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

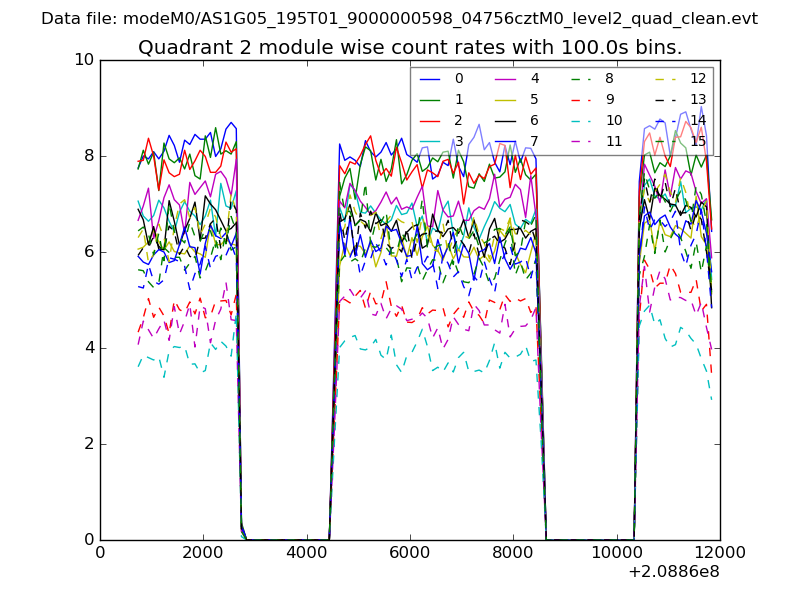

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

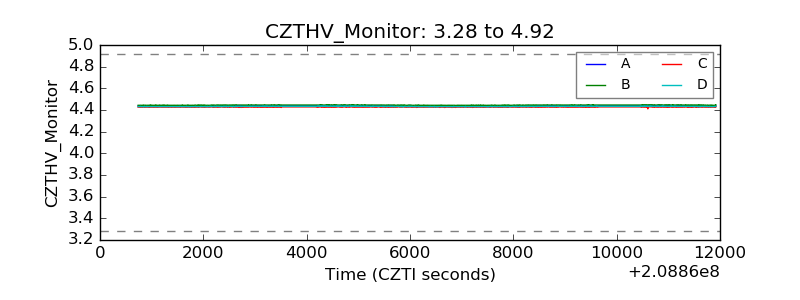

| CZT HV Monitor |  |

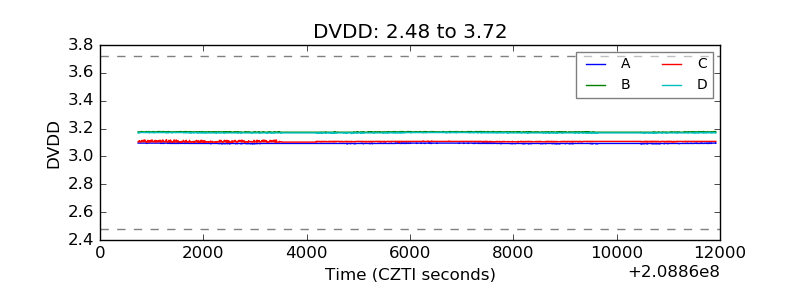

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

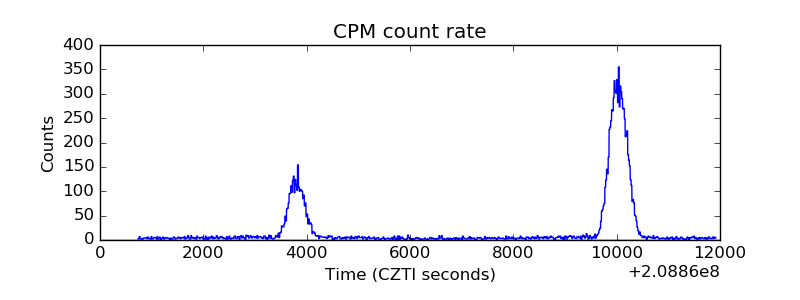

| _CPM_Rate |  |

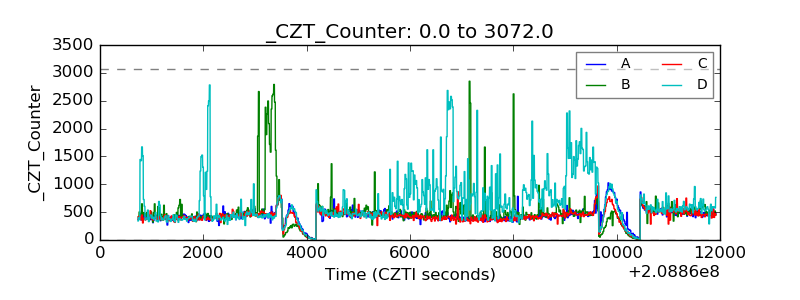

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
