| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_207T01_9000000596_04738cztM0_level2.evt | modeM0/AS1G05_207T01_9000000596_04738cztM0_level2_quad_clean.evt |
| Size (bytes) | 329,198,400 | 48,585,600 |
| Size | 313.9 MB | 46.3 MB |
| Events in quadrant A | 1,821,095 | 302,214 |
| Events in quadrant B | 2,376,069 | 302,585 |
| Events in quadrant C | 3,149,875 | 301,682 |
| Events in quadrant D | 2,358,363 | 290,484 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8120 | 2 |
| B | 0 | 9603 | 1 |
| C | 0 | 12026 | 1 |
| D | 0 | 9678 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 80 | 0 |
| B | 0 | 80 | 0 |
| C | 0 | 80 | 0 |
| D | 0 | 80 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3872 | 181 | 4.674587% |
| B | 3872 | 303 | 7.825413% |
| C | 3872 | 435 | 11.234504% |
| D | 3872 | 186 | 4.803719% |

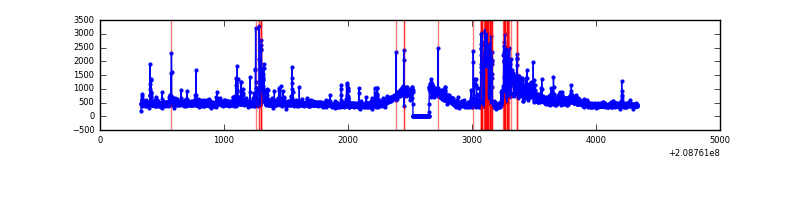

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4002 | 3873 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4002 | 3873 | 64 | 64 | 1.60% | 1.65% |  |
| C | 4002 | 3873 | 262 | 262 | 6.55% | 6.76% |  |
| D | 4002 | 3873 | 74 | 74 | 1.85% | 1.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 4815 | 44.0 | 471 | 459 | 99.0 |
| A | 12 | 194 | 4662 | 42.45 | 471 | 459 | 99.0 |
| A | 0 | 50 | 2267 | 18.26 | 471 | 459 | 99.0 |
| B | 14 | 167 | 489247 | 5168.88 | 473 | 460 | 94.6 |
| B | 15 | 204 | 35092 | 366.23 | 473 | 460 | 94.6 |
| B | 4 | 80 | 16510 | 169.73 | 473 | 460 | 94.6 |
| C | 14 | 48 | 1287042 | 11835.86 | 453 | 453 | 108.7 |
| C | 7 | 190 | 69228 | 632.69 | 453 | 453 | 108.7 |
| C | 8 | 208 | 20140 | 181.11 | 453 | 453 | 108.7 |
| D | 13 | 53 | 362418 | 3170.33 | 460 | 443 | 114.2 |
| D | 1 | 31 | 105319 | 918.54 | 460 | 443 | 114.2 |
| D | 2 | 234 | 63586 | 553.03 | 460 | 443 | 114.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

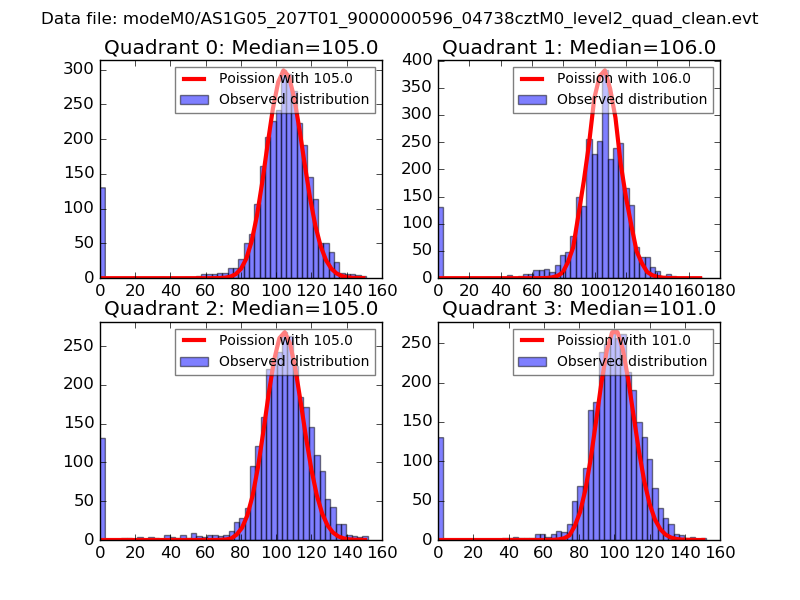

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

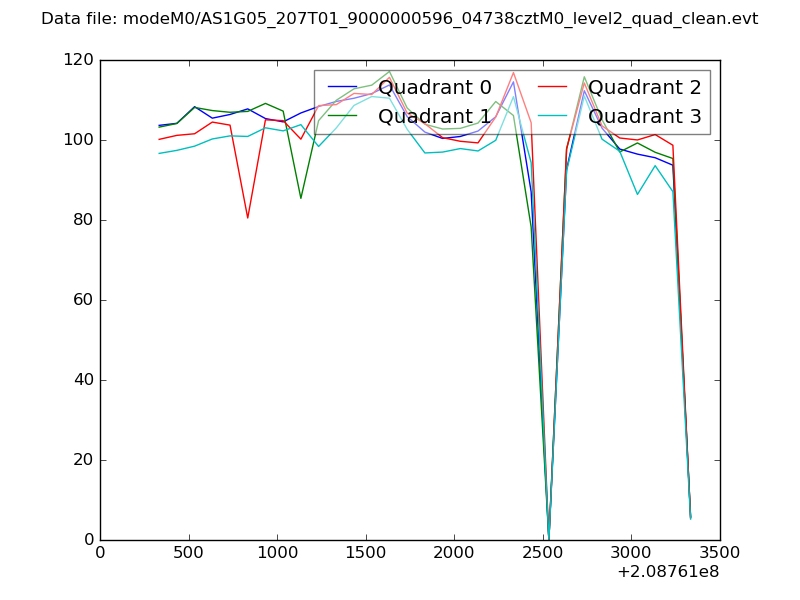

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

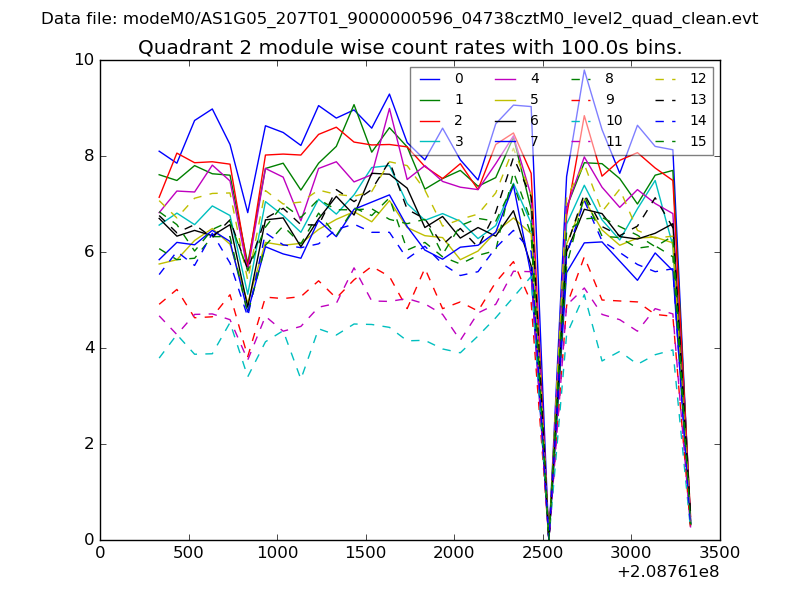

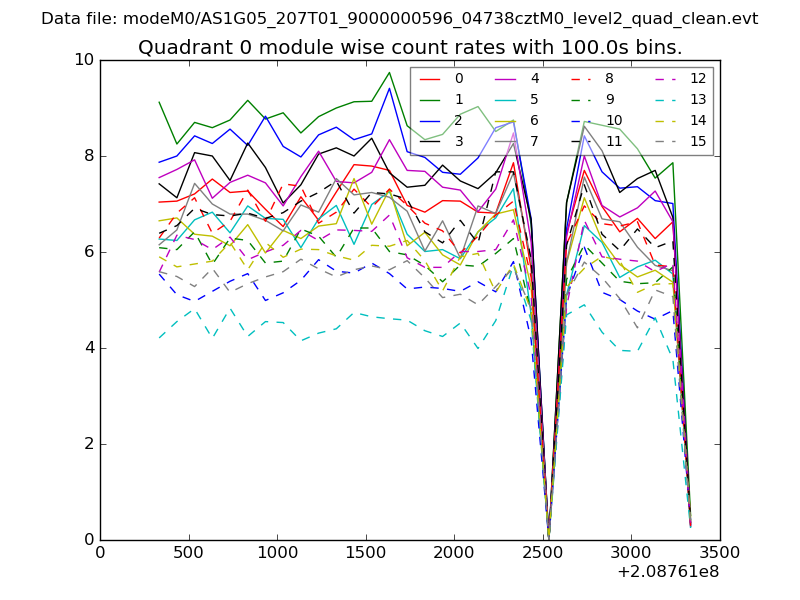

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

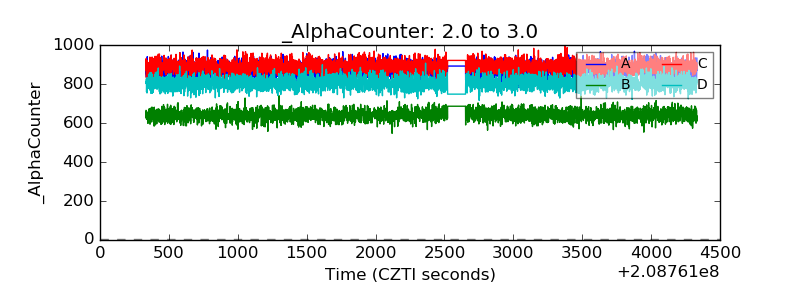

| Alpha Counter |  |
| _CPM_Rate |  |

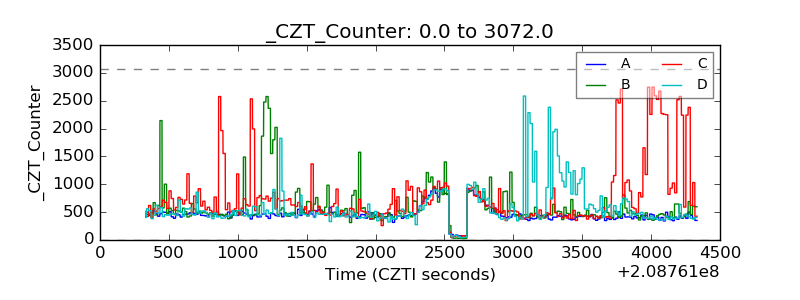

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

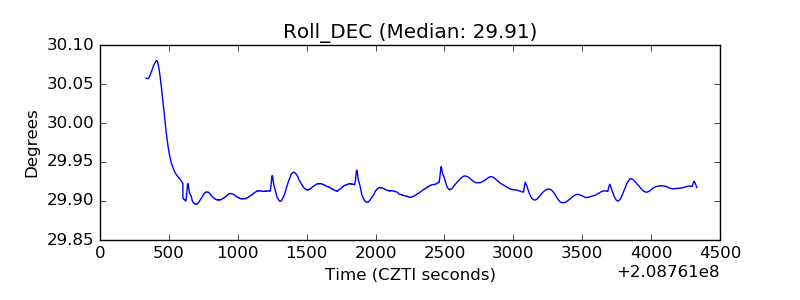

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
