| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_207T01_9000000596_04742cztM0_level2.evt | modeM0/AS1G05_207T01_9000000596_04742cztM0_level2_quad_clean.evt |
| Size (bytes) | 505,031,040 | 69,246,720 |
| Size | 481.6 MB | 66.0 MB |
| Events in quadrant A | 3,068,793 | 419,623 |
| Events in quadrant B | 3,219,920 | 424,591 |
| Events in quadrant C | 5,075,146 | 388,419 |
| Events in quadrant D | 3,474,382 | 395,136 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13687 | 2 |
| B | 0 | 13898 | 1 |
| C | 0 | 19555 | 1 |
| D | 0 | 15200 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6724 | 102 | 1.516954% |
| B | 6724 | 117 | 1.740036% |
| C | 6724 | 636 | 9.458656% |
| D | 6724 | 198 | 2.944676% |

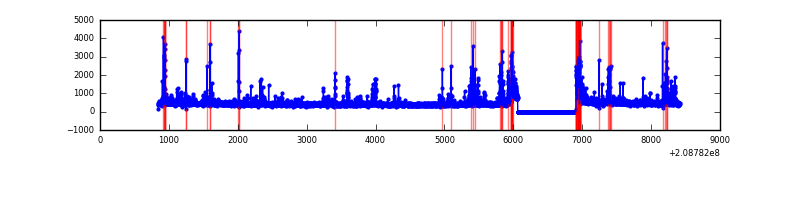

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6724 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7569 | 6724 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7569 | 6724 | 387 | 387 | 5.11% | 5.76% |  |
| D | 7569 | 6724 | 90 | 90 | 1.19% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7905 | 43.71 | 795 | 778 | 163.0 |
| A | 12 | 194 | 7604 | 41.87 | 795 | 778 | 163.0 |
| A | 0 | 50 | 4293 | 21.56 | 795 | 778 | 163.0 |
| B | 4 | 80 | 59815 | 379.17 | 801 | 781 | 155.7 |
| B | 15 | 204 | 42234 | 266.25 | 801 | 781 | 155.7 |
| B | 12 | 111 | 15323 | 93.4 | 801 | 781 | 155.7 |
| C | 14 | 48 | 2159061 | 12494.08 | 736 | 741 | 172.7 |
| C | 8 | 208 | 36509 | 207.05 | 736 | 741 | 172.7 |
| C | 13 | 61 | 5949 | 30.15 | 736 | 741 | 172.7 |
| D | 13 | 239 | 168332 | 919.5 | 750 | 728 | 182.3 |
| D | 1 | 31 | 126420 | 689.57 | 750 | 728 | 182.3 |
| D | 13 | 105 | 121688 | 663.61 | 750 | 728 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

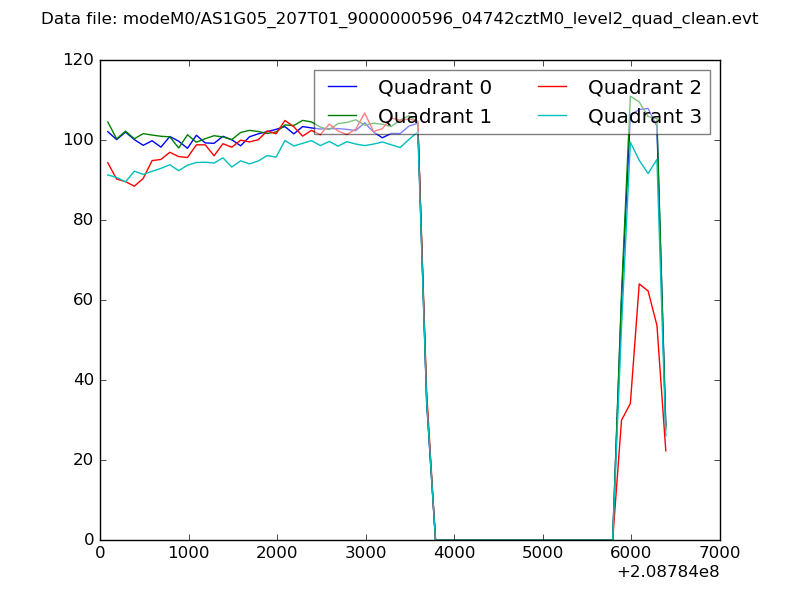

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

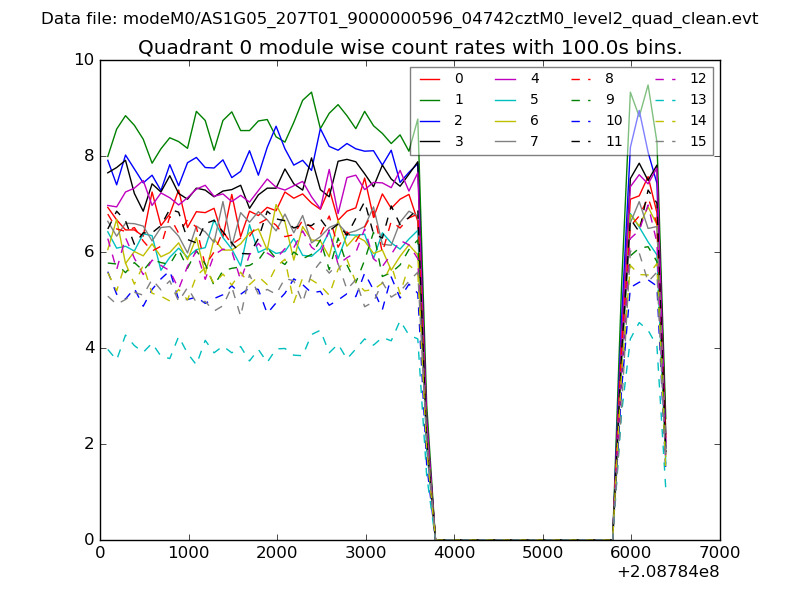

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

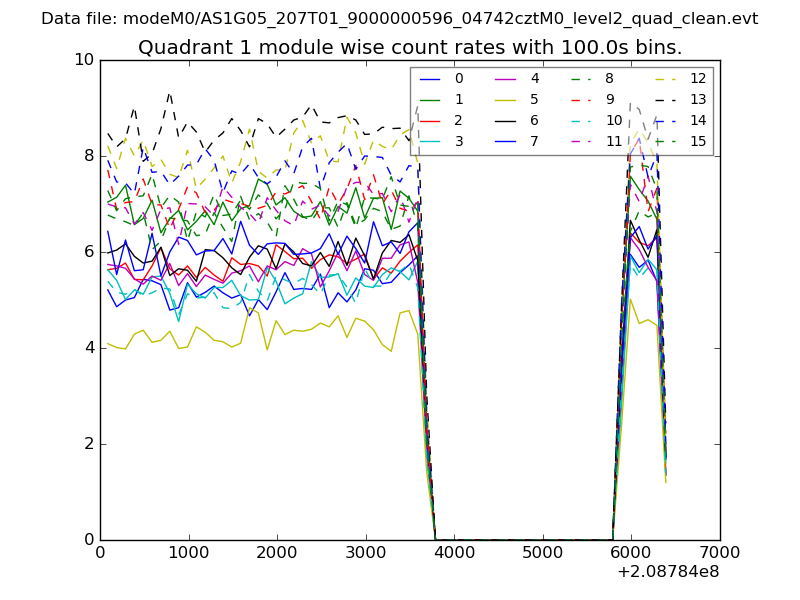

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

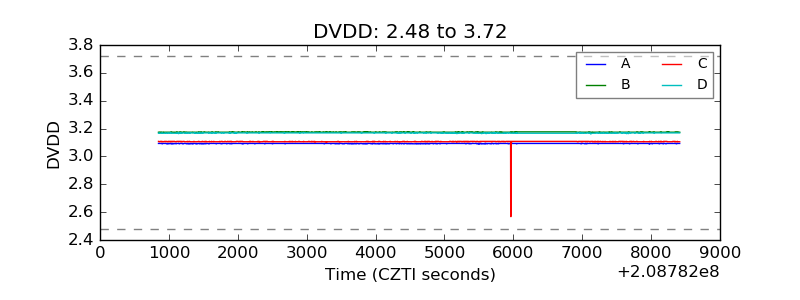

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

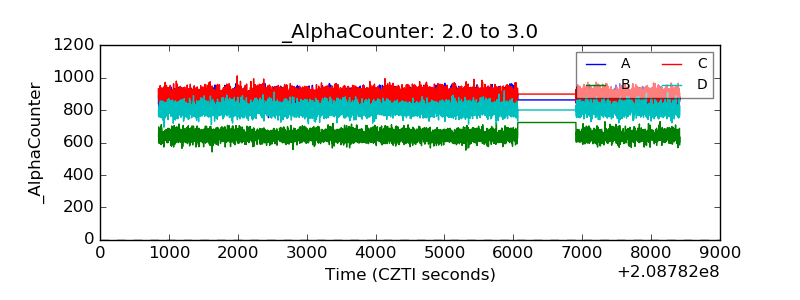

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
