| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_156T09_9000000604_04786cztM0_level2.evt | modeM0/AS1G05_156T09_9000000604_04786cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,975,360 | 81,339,840 |
| Size | 478.7 MB | 77.6 MB |
| Events in quadrant A | 3,088,979 | 541,396 |
| Events in quadrant B | 3,041,633 | 532,558 |
| Events in quadrant C | 4,211,647 | 482,163 |
| Events in quadrant D | 4,437,726 | 472,421 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13460 | 2 |
| B | 0 | 13248 | 1 |
| C | 0 | 17082 | 1 |
| D | 0 | 17473 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6293 | 77 | 1.223582% |
| B | 6293 | 36 | 0.572064% |
| C | 6259 | 613 | 9.793897% |
| D | 6034 | 319 | 5.286709% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7293 | 6293 | 24 | 24 | 0.33% | 0.38% |  |
| B | 7293 | 6294 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7293 | 6261 | 498 | 498 | 6.83% | 7.95% |  |
| D | 7293 | 6035 | 240 | 240 | 3.29% | 3.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 160569 | 1082.85 | 723 | 706 | 147.6 |
| A | 0 | 118 | 53241 | 355.85 | 723 | 706 | 147.6 |
| A | 15 | 249 | 30343 | 200.75 | 723 | 706 | 147.6 |
| B | 4 | 80 | 105654 | 749.87 | 725 | 707 | 140.0 |
| B | 14 | 167 | 48031 | 338.14 | 725 | 707 | 140.0 |
| B | 15 | 204 | 25917 | 180.13 | 725 | 707 | 140.0 |
| C | 14 | 48 | 1625382 | 10652.83 | 657 | 659 | 152.5 |
| C | 1 | 16 | 17062 | 107.55 | 657 | 659 | 152.5 |
| C | 13 | 61 | 5488 | 31.66 | 657 | 659 | 152.5 |
| D | 2 | 234 | 801486 | 4939.63 | 662 | 641 | 162.1 |
| D | 13 | 235 | 683866 | 4214.15 | 662 | 641 | 162.1 |
| D | 2 | 136 | 189891 | 1167.3 | 662 | 641 | 162.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

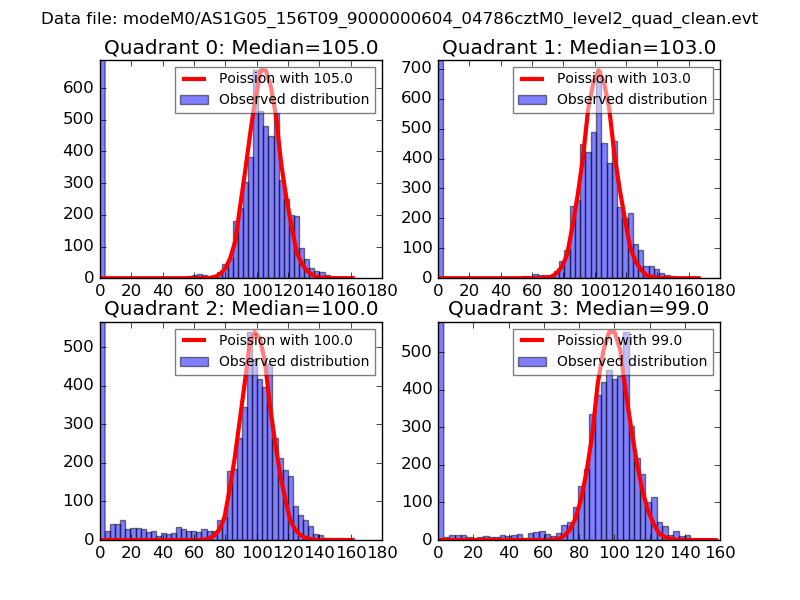

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

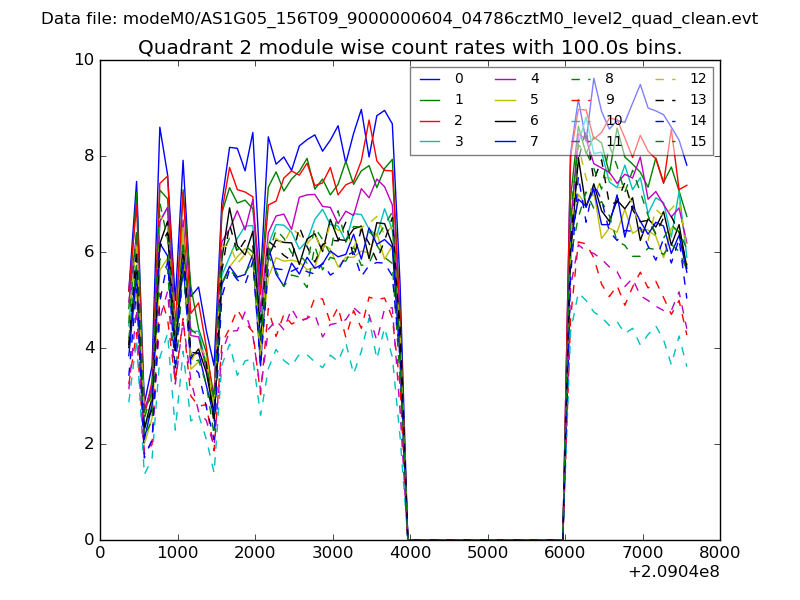

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

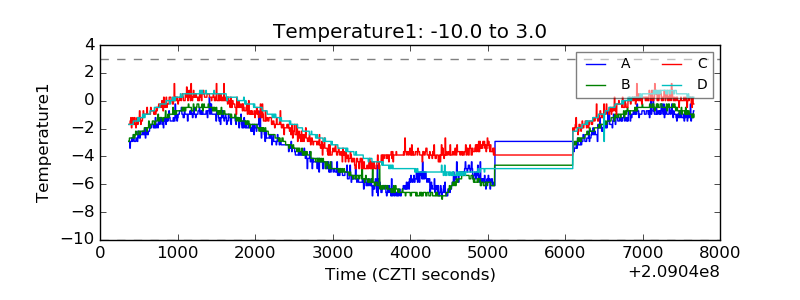

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

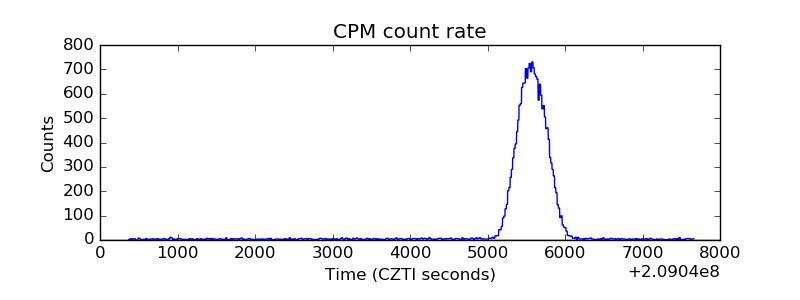

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

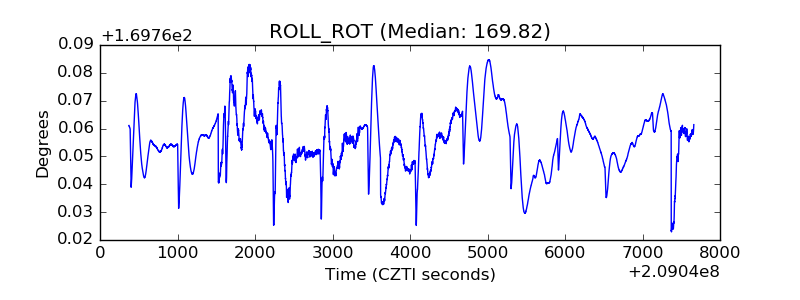

| _ROLL_ROT |  |

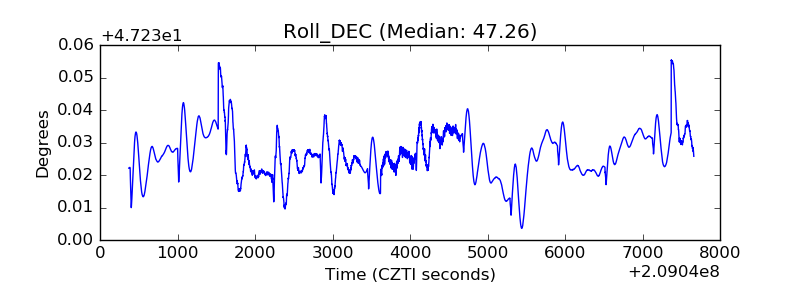

| _Roll_DEC |  |

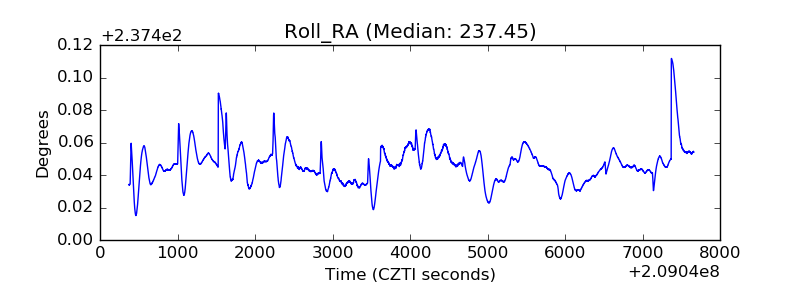

| _Roll_RA |  |
| Veto Counter |  |
