| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_156T09_9000000604_04789cztM0_level2.evt | modeM0/AS1G05_156T09_9000000604_04789cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,164,800 | 79,024,320 |
| Size | 419.8 MB | 75.4 MB |
| Events in quadrant A | 3,171,979 | 503,822 |
| Events in quadrant B | 3,669,624 | 483,618 |
| Events in quadrant C | 2,954,320 | 493,409 |
| Events in quadrant D | 3,114,072 | 480,393 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13620 | 2 |
| B | 0 | 15215 | 1 |
| C | 0 | 13064 | 1 |
| D | 0 | 13543 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6183 | 149 | 2.409833% |
| B | 6183 | 256 | 4.140385% |
| C | 6183 | 55 | 0.889536% |
| D | 6183 | 74 | 1.196830% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7393 | 6183 | 57 | 57 | 0.77% | 0.92% |  |
| B | 7393 | 6184 | 181 | 181 | 2.45% | 2.93% |  |
| C | 7393 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7393 | 6183 | 24 | 24 | 0.32% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 166044 | 1132.0 | 728 | 713 | 146.1 |
| A | 8 | 15 | 48375 | 326.34 | 728 | 713 | 146.1 |
| A | 0 | 118 | 37107 | 249.18 | 728 | 713 | 146.1 |
| B | 14 | 167 | 577682 | 4242.44 | 723 | 707 | 136.0 |
| B | 15 | 204 | 93575 | 682.85 | 723 | 707 | 136.0 |
| B | 10 | 16 | 64891 | 471.94 | 723 | 707 | 136.0 |
| C | 8 | 208 | 159948 | 960.82 | 715 | 716 | 165.7 |
| C | 13 | 61 | 5996 | 31.86 | 715 | 716 | 165.7 |
| C | 12 | 4 | 2638 | 11.6 | 715 | 716 | 165.7 |
| D | 13 | 235 | 131753 | 770.36 | 717 | 696 | 170.1 |
| D | 2 | 136 | 87575 | 510.68 | 717 | 696 | 170.1 |
| D | 2 | 234 | 41808 | 241.66 | 717 | 696 | 170.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

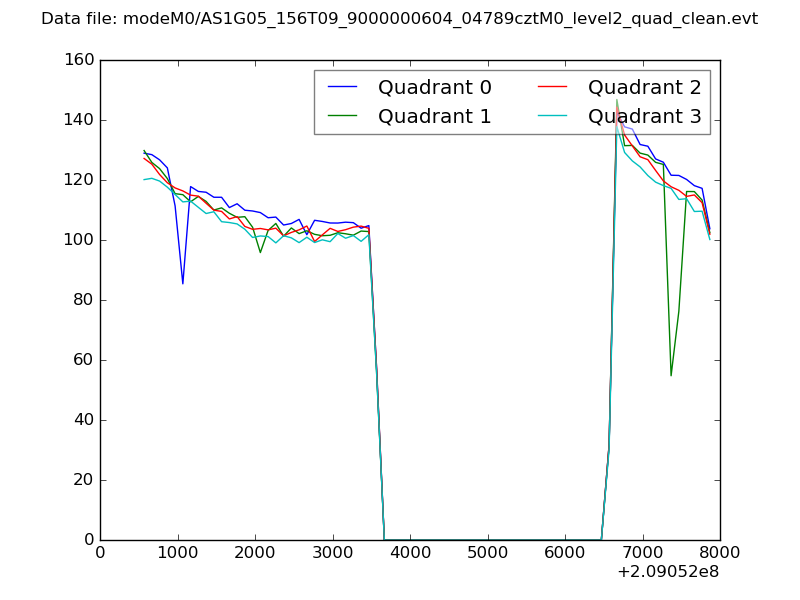

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
