| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_156T09_9000000604_04793cztM0_level2.evt | modeM0/AS1G05_156T09_9000000604_04793cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,139,520 | 78,419,520 |
| Size | 496.0 MB | 74.8 MB |
| Events in quadrant A | 3,203,977 | 491,351 |
| Events in quadrant B | 3,662,588 | 483,667 |
| Events in quadrant C | 4,681,868 | 468,827 |
| Events in quadrant D | 3,751,901 | 465,890 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14349 | 3 |
| B | 0 | 15419 | 2 |
| C | 0 | 18641 | 2 |
| D | 0 | 15826 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6670 | 75 | 1.124438% |
| B | 6670 | 117 | 1.754123% |
| C | 6670 | 278 | 4.167916% |
| D | 6670 | 55 | 0.824588% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7630 | 6671 | 28 | 28 | 0.37% | 0.42% |  |
| B | 7630 | 6671 | 51 | 51 | 0.67% | 0.76% |  |
| C | 7630 | 6671 | 31 | 31 | 0.41% | 0.46% |  |
| D | 7630 | 6671 | 28 | 28 | 0.37% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 129401 | 829.78 | 753 | 733 | 155.1 |
| A | 14 | 238 | 119707 | 767.27 | 753 | 733 | 155.1 |
| A | 8 | 15 | 30221 | 190.17 | 753 | 733 | 155.1 |
| B | 10 | 16 | 340093 | 2342.38 | 764 | 746 | 144.9 |
| B | 15 | 204 | 121542 | 833.81 | 764 | 746 | 144.9 |
| B | 14 | 167 | 70973 | 484.75 | 764 | 746 | 144.9 |
| C | 8 | 208 | 1809939 | 10643.75 | 730 | 731 | 170.0 |
| C | 1 | 16 | 12668 | 70.23 | 730 | 731 | 170.0 |
| C | 12 | 4 | 8553 | 46.02 | 730 | 731 | 170.0 |
| D | 13 | 235 | 331345 | 1853.14 | 732 | 710 | 178.4 |
| D | 2 | 136 | 245250 | 1370.59 | 732 | 710 | 178.4 |
| D | 2 | 234 | 147925 | 825.11 | 732 | 710 | 178.4 |

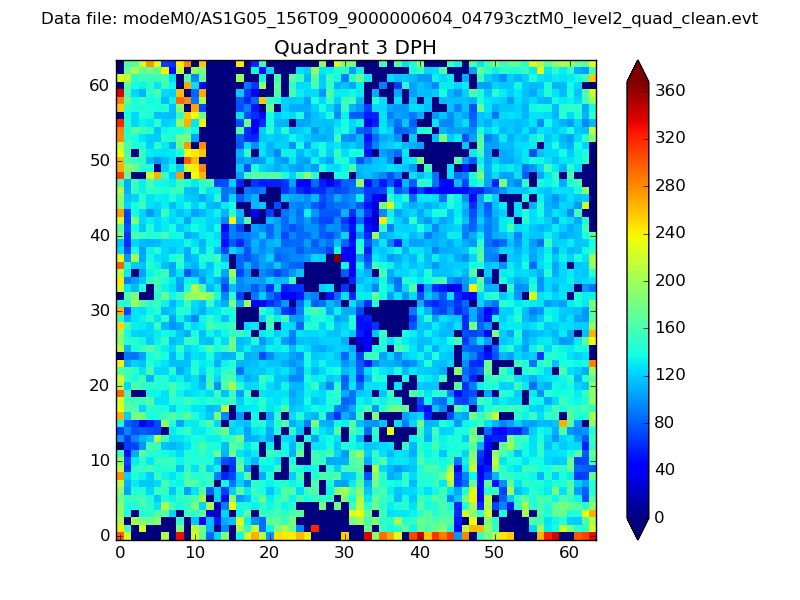

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

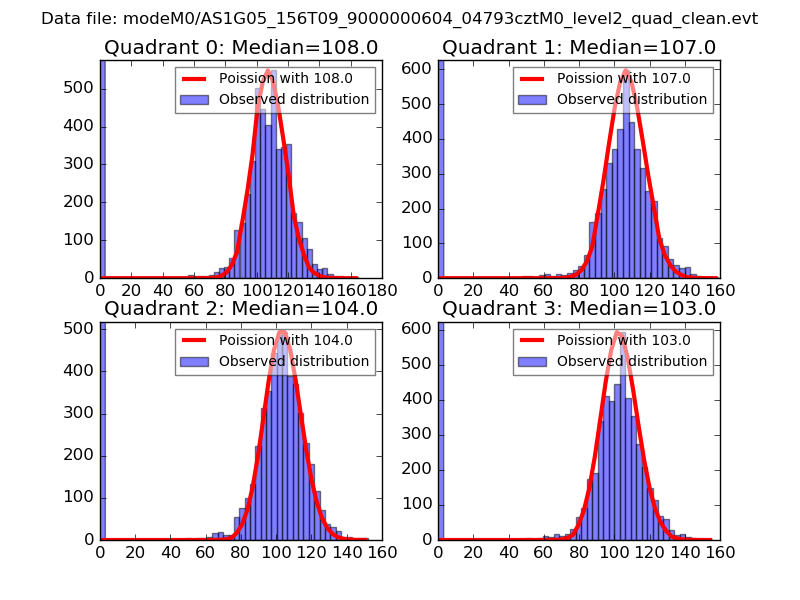

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

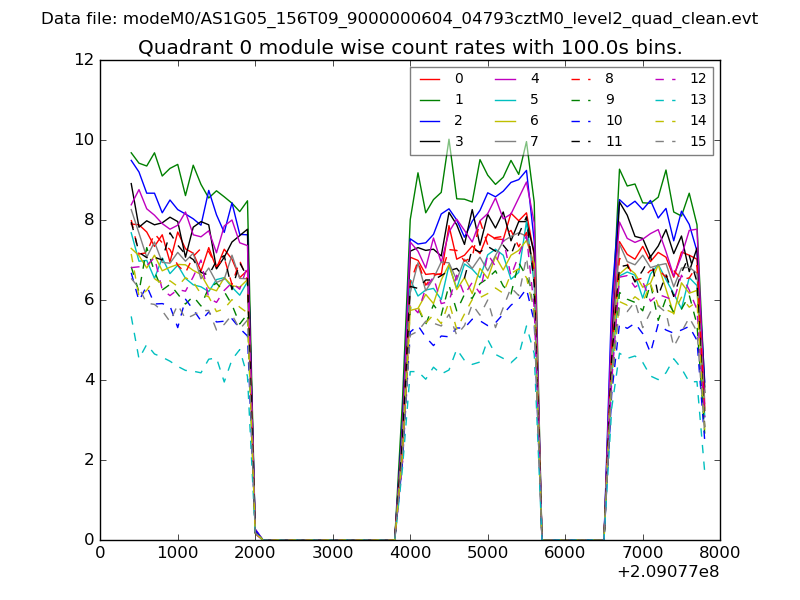

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

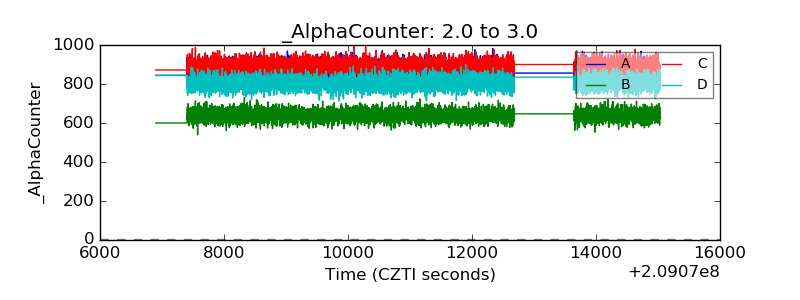

| Alpha Counter |  |

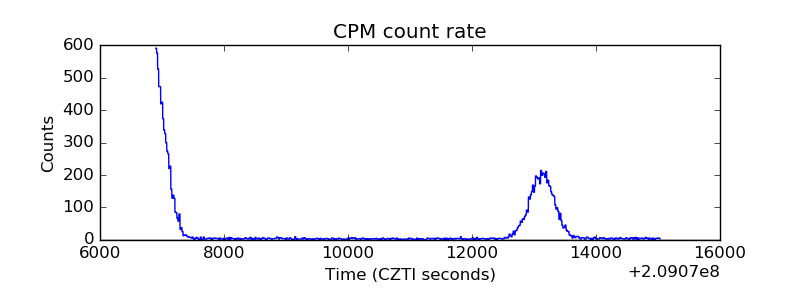

| _CPM_Rate |  |
| CZT Counter |  |

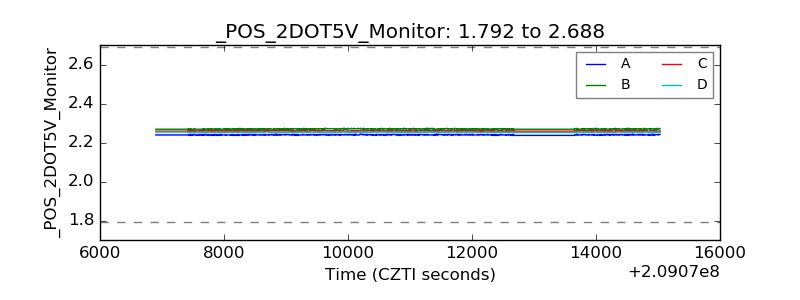

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

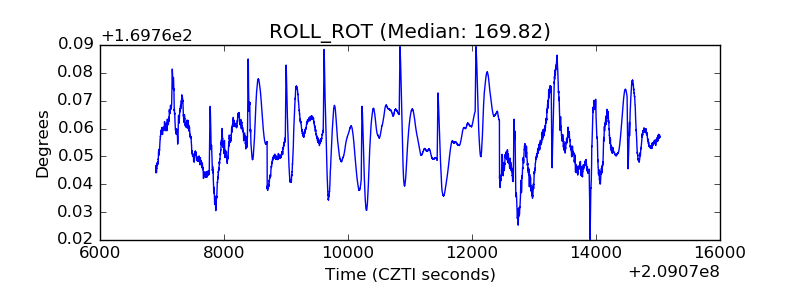

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
