| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_156T09_9000000604_04796cztM0_level2.evt | modeM0/AS1G05_156T09_9000000604_04796cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,542,720 | 68,270,400 |
| Size | 496.4 MB | 65.1 MB |
| Events in quadrant A | 3,991,308 | 394,241 |
| Events in quadrant B | 3,621,573 | 390,242 |
| Events in quadrant C | 3,239,649 | 390,934 |
| Events in quadrant D | 4,408,712 | 375,520 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17101 | 2 |
| B | 0 | 15736 | 1 |
| C | 0 | 15110 | 1 |
| D | 0 | 18495 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7413 | 285 | 3.844597% |
| B | 7413 | 129 | 1.740186% |
| C | 7413 | 61 | 0.822879% |
| D | 7413 | 274 | 3.696209% |

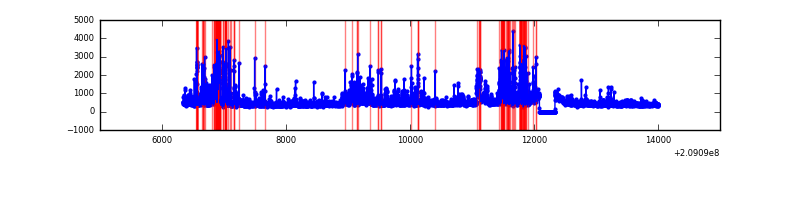

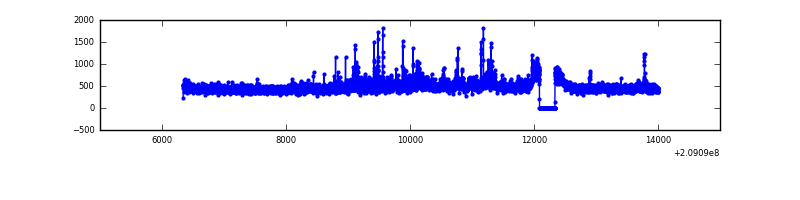

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7663 | 7414 | 129 | 129 | 1.68% | 1.74% |  |
| B | 7663 | 7414 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7663 | 7414 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7663 | 7414 | 177 | 177 | 2.31% | 2.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 434895 | 2535.84 | 830 | 810 | 171.2 |
| A | 0 | 50 | 228187 | 1328.29 | 830 | 810 | 171.2 |
| A | 8 | 15 | 70547 | 407.39 | 830 | 810 | 171.2 |
| B | 8 | 3 | 181839 | 1101.78 | 849 | 829 | 164.3 |
| B | 15 | 204 | 64639 | 388.4 | 849 | 829 | 164.3 |
| B | 14 | 167 | 29500 | 174.52 | 849 | 829 | 164.3 |
| C | 1 | 16 | 20544 | 102.62 | 821 | 825 | 192.2 |
| C | 13 | 61 | 6923 | 31.73 | 821 | 825 | 192.2 |
| C | 8 | 128 | 5911 | 26.47 | 821 | 825 | 192.2 |
| D | 13 | 235 | 472984 | 2406.41 | 806 | 781 | 196.2 |
| D | 5 | 239 | 246271 | 1251.05 | 806 | 781 | 196.2 |
| D | 2 | 136 | 218974 | 1111.94 | 806 | 781 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

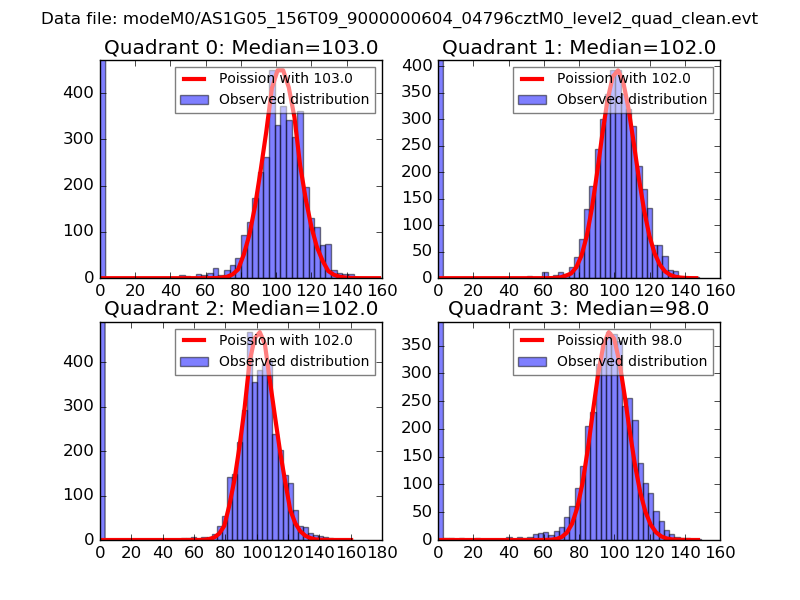

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

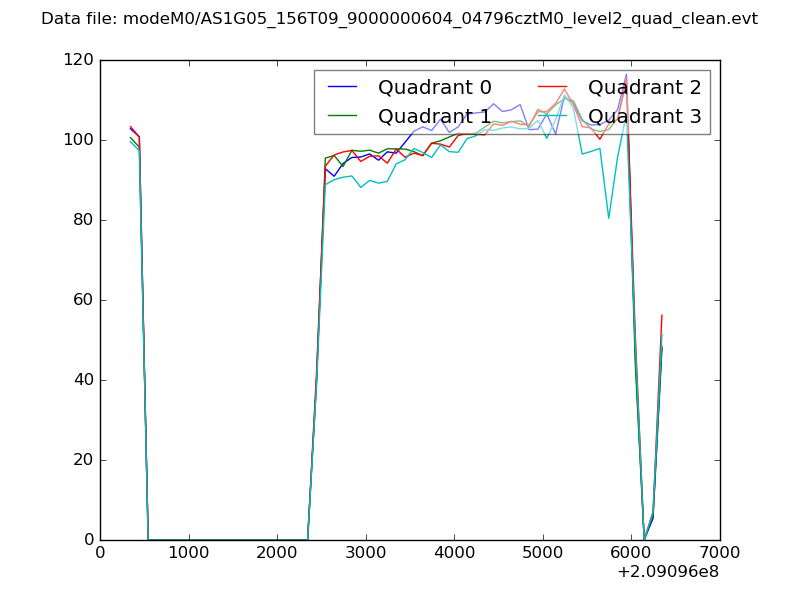

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

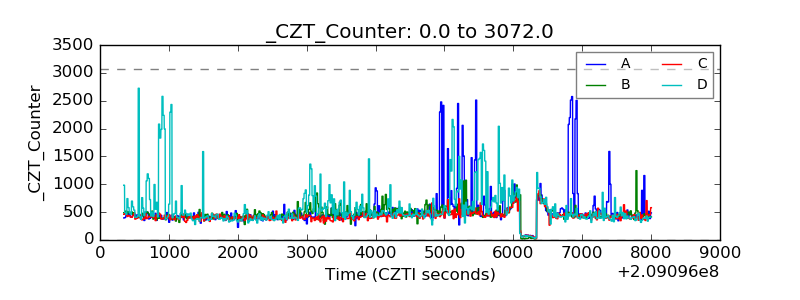

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

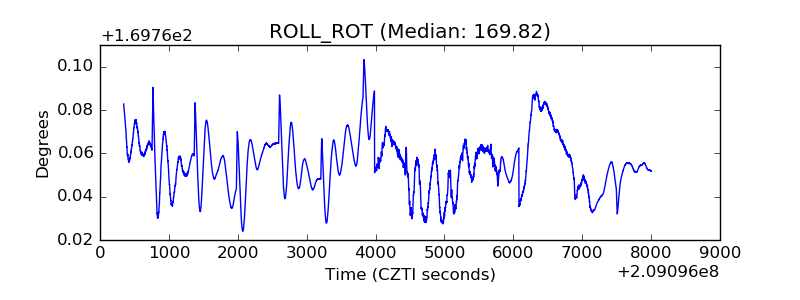

| _ROLL_ROT |  |
| _Roll_DEC |  |

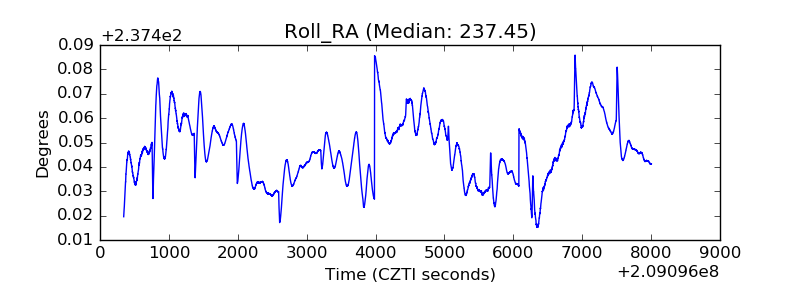

| _Roll_RA |  |
| Veto Counter |  |
