| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_156T09_9000000604_04799cztM0_level2.evt | modeM0/AS1G05_156T09_9000000604_04799cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,739,200 | 66,248,640 |
| Size | 409.8 MB | 63.2 MB |
| Events in quadrant A | 3,228,996 | 396,715 |
| Events in quadrant B | 3,290,867 | 389,698 |
| Events in quadrant C | 2,853,288 | 388,229 |
| Events in quadrant D | 3,201,280 | 379,535 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13974 | 1 |
| B | 0 | 14214 | 1 |
| C | 0 | 13178 | 1 |
| D | 0 | 14299 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6480 | 69 | 1.064815% |
| B | 6480 | 71 | 1.095679% |
| C | 6480 | 31 | 0.478395% |
| D | 6479 | 99 | 1.528014% |

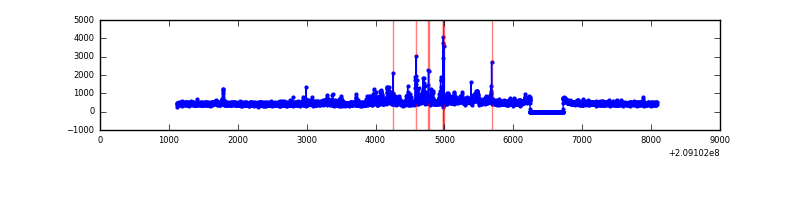

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6960 | 6481 | 16 | 16 | 0.23% | 0.25% |  |
| B | 6960 | 6481 | 9 | 9 | 0.13% | 0.14% |  |
| C | 6960 | 6481 | 3 | 3 | 0.04% | 0.05% |  |
| D | 6960 | 6481 | 46 | 46 | 0.66% | 0.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 287381 | 1907.16 | 726 | 710 | 150.3 |
| A | 8 | 15 | 90441 | 596.96 | 726 | 710 | 150.3 |
| A | 0 | 50 | 22616 | 145.74 | 726 | 710 | 150.3 |
| B | 15 | 204 | 165776 | 1161.02 | 736 | 717 | 142.2 |
| B | 10 | 16 | 82694 | 576.62 | 736 | 717 | 142.2 |
| B | 8 | 3 | 64397 | 447.92 | 736 | 717 | 142.2 |
| C | 1 | 16 | 39095 | 229.74 | 712 | 713 | 167.1 |
| C | 12 | 4 | 12089 | 68.09 | 712 | 713 | 167.1 |
| C | 5 | 175 | 10434 | 58.19 | 712 | 713 | 167.1 |
| D | 13 | 235 | 220889 | 1287.17 | 703 | 681 | 171.1 |
| D | 2 | 234 | 118979 | 691.48 | 703 | 681 | 171.1 |
| D | 2 | 136 | 61322 | 354.46 | 703 | 681 | 171.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

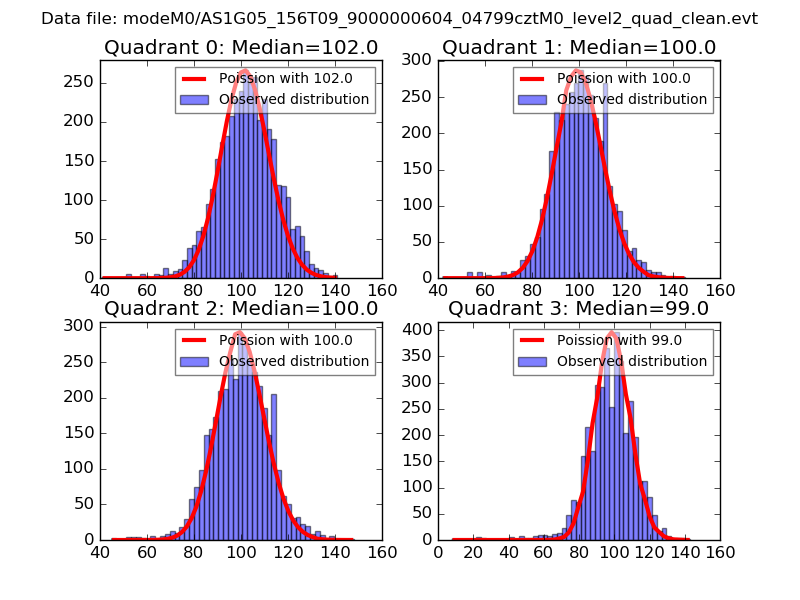

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

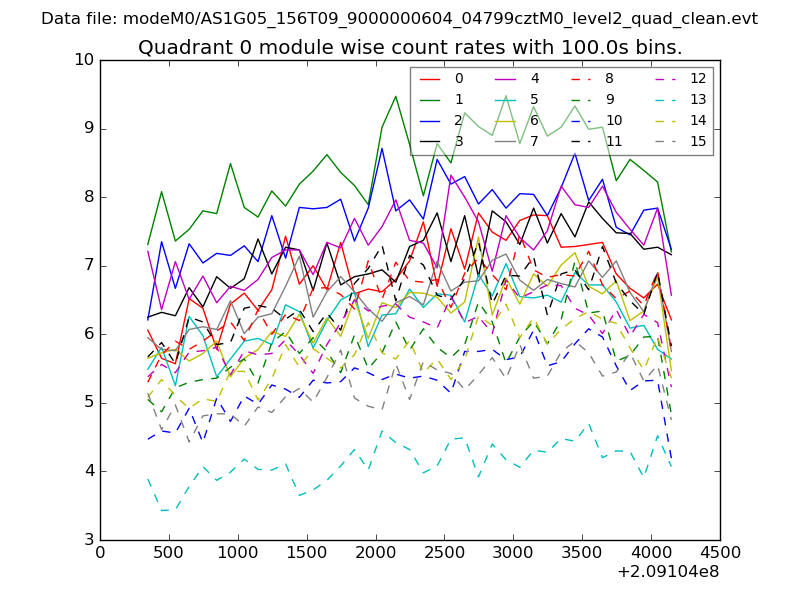

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

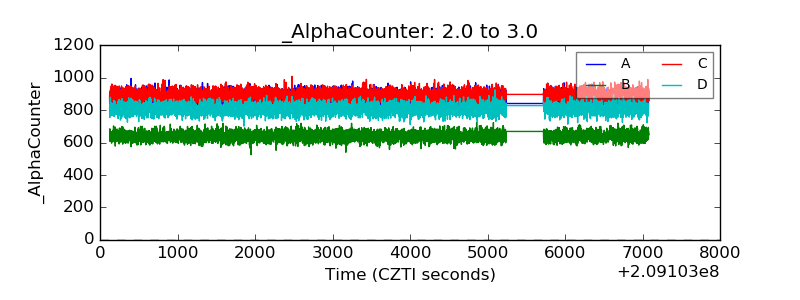

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

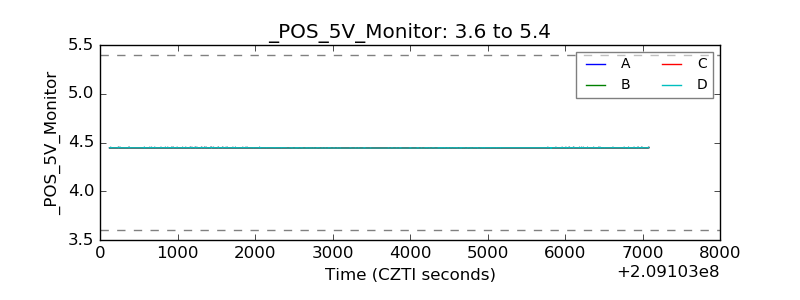

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

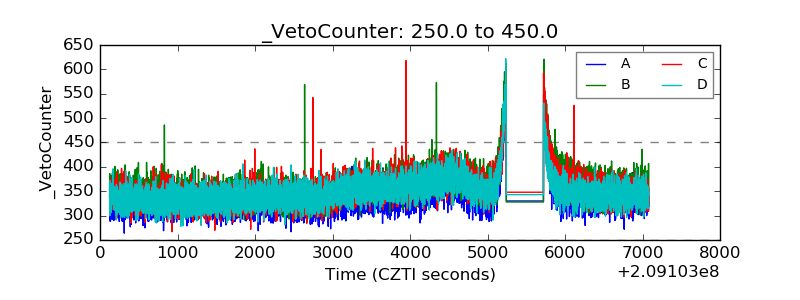

| Veto Counter |  |
