| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T03_9000000608_04805cztM0_level2.evt | modeM0/AS1G05_002T03_9000000608_04805cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,068,160 | 79,021,440 |
| Size | 434.9 MB | 75.4 MB |
| Events in quadrant A | 3,347,418 | 493,880 |
| Events in quadrant B | 3,377,366 | 497,312 |
| Events in quadrant C | 2,906,998 | 498,010 |
| Events in quadrant D | 3,763,121 | 474,863 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13839 | 2 |
| B | 0 | 14086 | 1 |
| C | 0 | 12847 | 1 |
| D | 0 | 15382 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6143 | 187 | 3.044115% |
| B | 6143 | 116 | 1.888328% |
| C | 6143 | 67 | 1.090672% |
| D | 6143 | 271 | 4.411525% |

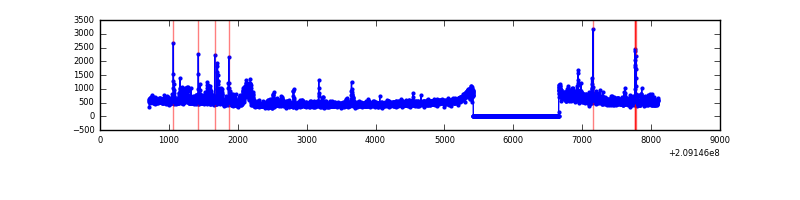

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 6143 | 82 | 82 | 1.11% | 1.33% |  |
| B | 7383 | 6143 | 9 | 9 | 0.12% | 0.15% |  |
| C | 7383 | 6144 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7383 | 6144 | 160 | 160 | 2.17% | 2.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 263512 | 1717.89 | 751 | 737 | 153.0 |
| A | 13 | 251 | 151036 | 982.58 | 751 | 737 | 153.0 |
| A | 8 | 15 | 31840 | 203.33 | 751 | 737 | 153.0 |
| B | 15 | 204 | 240250 | 1641.26 | 760 | 745 | 145.9 |
| B | 8 | 3 | 66807 | 452.71 | 760 | 745 | 145.9 |
| B | 10 | 16 | 66343 | 449.53 | 760 | 745 | 145.9 |
| C | 12 | 4 | 86283 | 513.56 | 723 | 727 | 166.6 |
| C | 13 | 61 | 6167 | 32.65 | 723 | 727 | 166.6 |
| C | 3 | 202 | 1863 | 6.82 | 723 | 727 | 166.6 |
| D | 13 | 235 | 679847 | 3935.12 | 716 | 696 | 172.6 |
| D | 2 | 136 | 209520 | 1209.96 | 716 | 696 | 172.6 |
| D | 2 | 234 | 73028 | 419.1 | 716 | 696 | 172.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

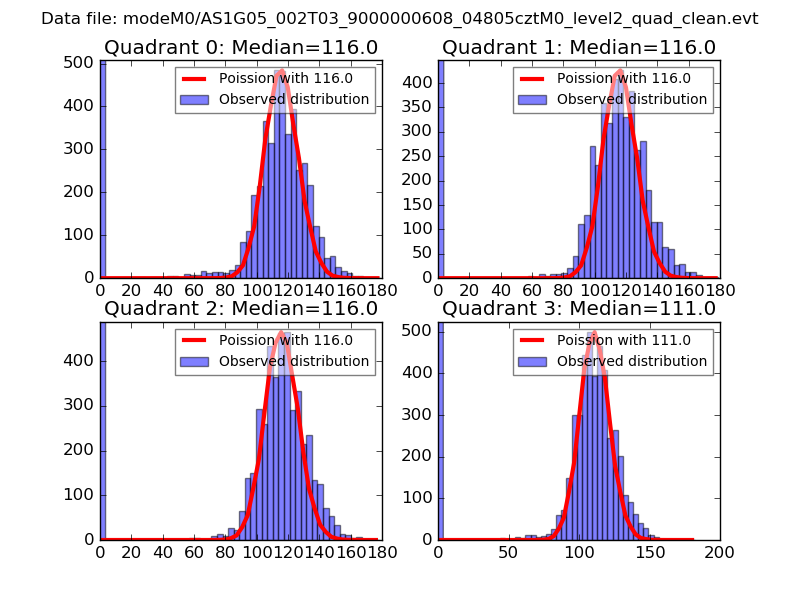

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

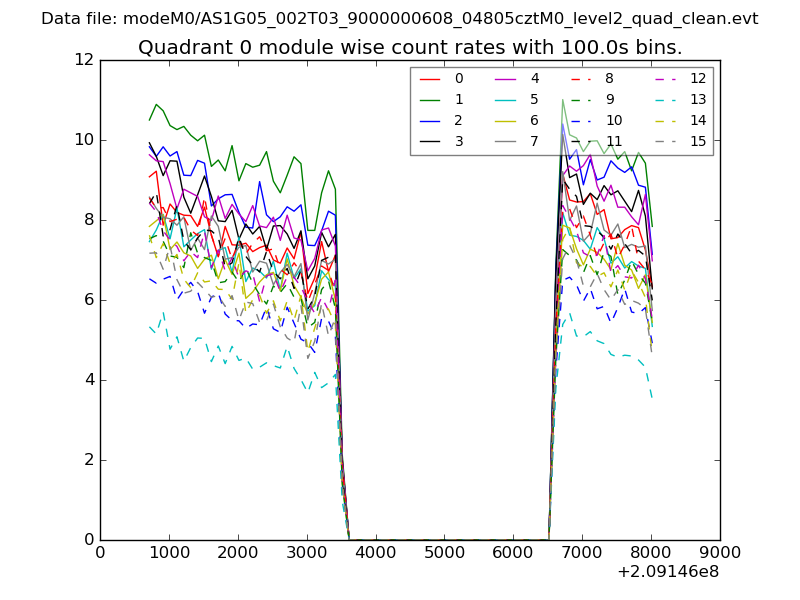

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

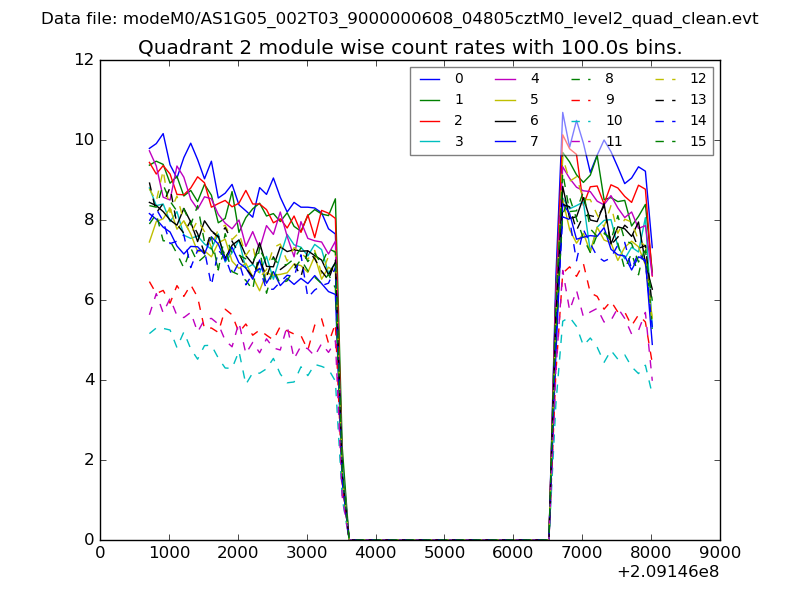

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

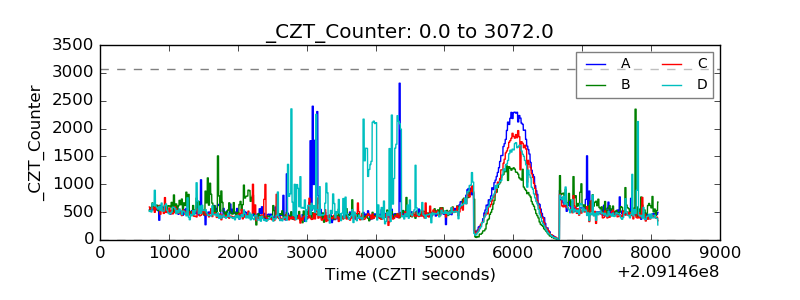

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

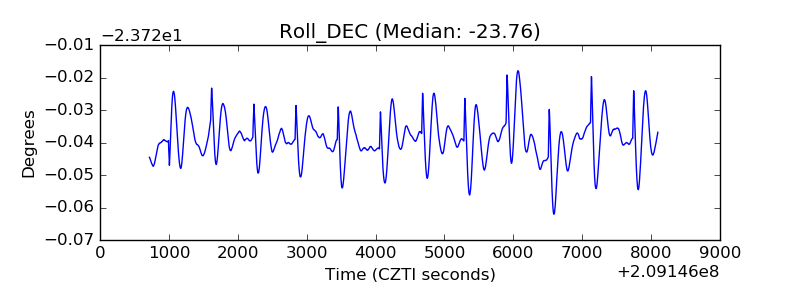

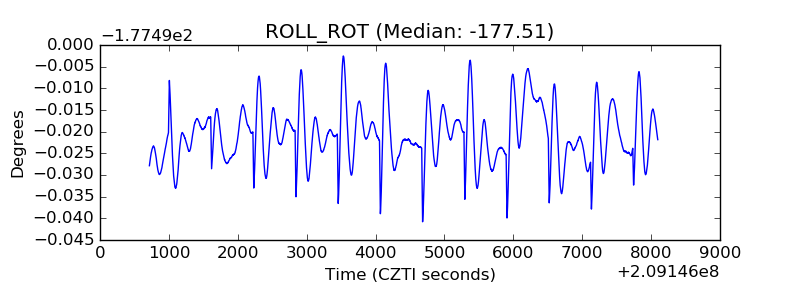

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
