| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T03_9000000608_04807cztM0_level2.evt | modeM0/AS1G05_002T03_9000000608_04807cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,990,720 | 74,914,560 |
| Size | 533.1 MB | 71.4 MB |
| Events in quadrant A | 2,970,009 | 464,326 |
| Events in quadrant B | 3,320,793 | 468,698 |
| Events in quadrant C | 3,894,965 | 462,775 |
| Events in quadrant D | 6,304,991 | 421,610 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13401 | 3 |
| B | 0 | 14146 | 2 |
| C | 0 | 16179 | 8 |
| D | 0 | 23191 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6464 | 45 | 0.696163% |
| B | 6464 | 55 | 0.850866% |
| C | 6463 | 222 | 3.434937% |
| D | 6464 | 1329 | 20.560025% |

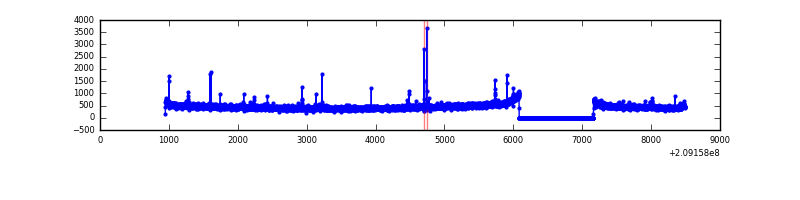

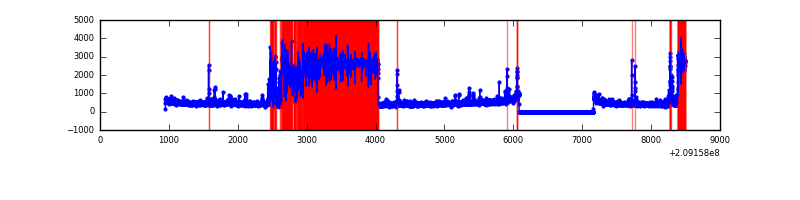

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7544 | 6465 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7544 | 6465 | 17 | 17 | 0.23% | 0.26% |  |
| C | 7544 | 6465 | 185 | 185 | 2.45% | 2.86% |  |
| D | 7543 | 6464 | 1330 | 1330 | 17.63% | 20.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 16455 | 101.11 | 754 | 740 | 155.4 |
| A | 0 | 50 | 15217 | 93.14 | 754 | 740 | 155.4 |
| A | 13 | 251 | 9734 | 57.87 | 754 | 740 | 155.4 |
| B | 14 | 167 | 115635 | 775.36 | 766 | 747 | 148.2 |
| B | 15 | 204 | 87436 | 585.05 | 766 | 747 | 148.2 |
| B | 10 | 16 | 74609 | 498.48 | 766 | 747 | 148.2 |
| C | 9 | 247 | 1054928 | 6213.25 | 724 | 728 | 169.7 |
| C | 12 | 4 | 13527 | 75.43 | 724 | 728 | 169.7 |
| C | 13 | 61 | 6029 | 31.24 | 724 | 728 | 169.7 |
| D | 13 | 235 | 3467239 | 20932.93 | 670 | 649 | 165.6 |
| D | 2 | 136 | 94940 | 569.37 | 670 | 649 | 165.6 |
| D | 13 | 239 | 62262 | 372.05 | 670 | 649 | 165.6 |

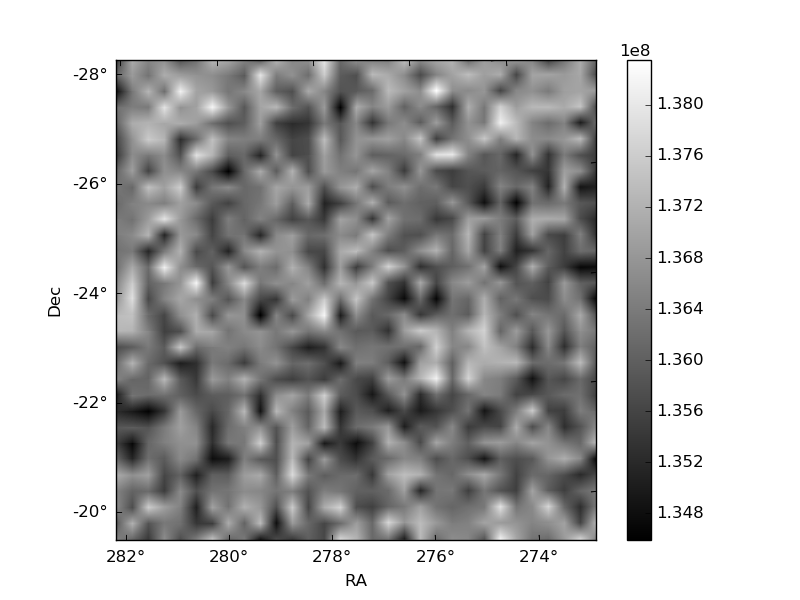

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

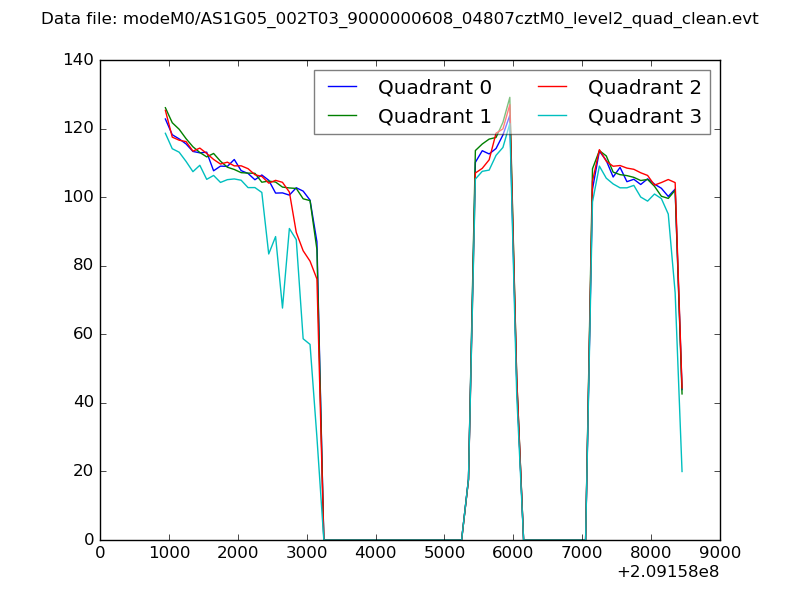

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

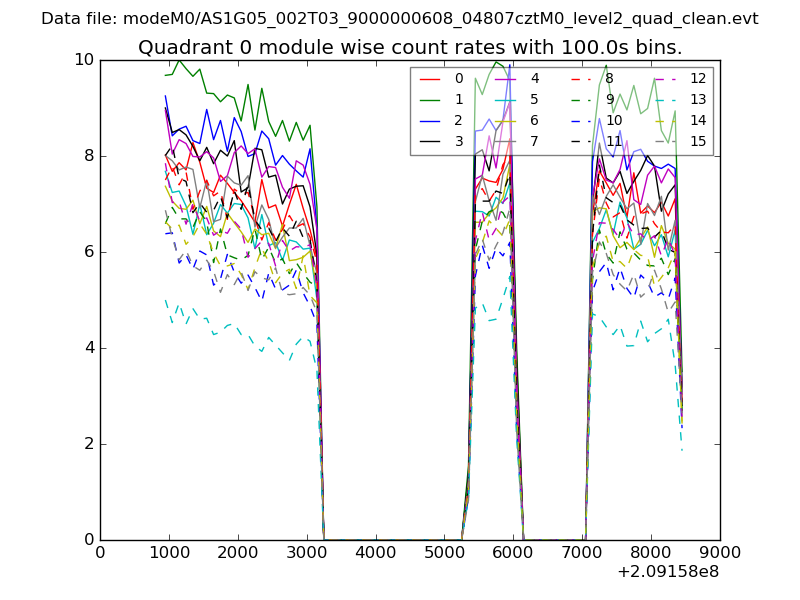

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

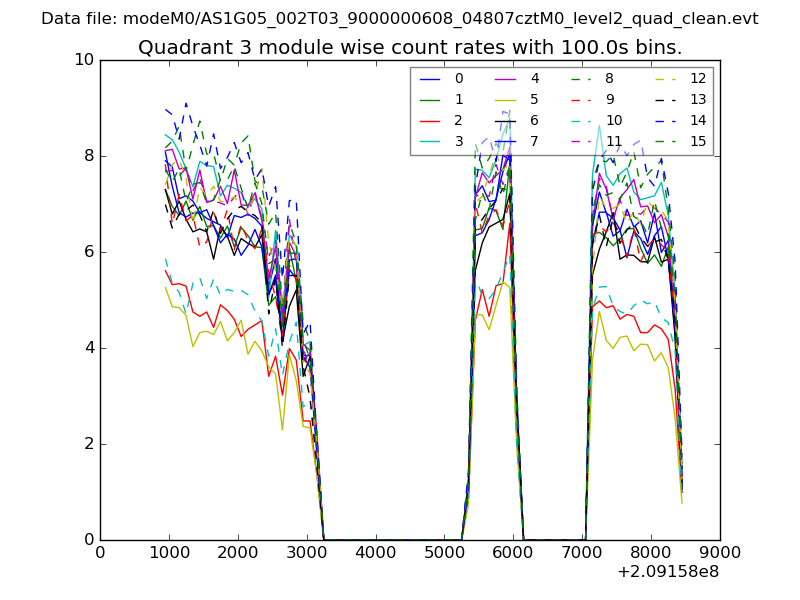

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

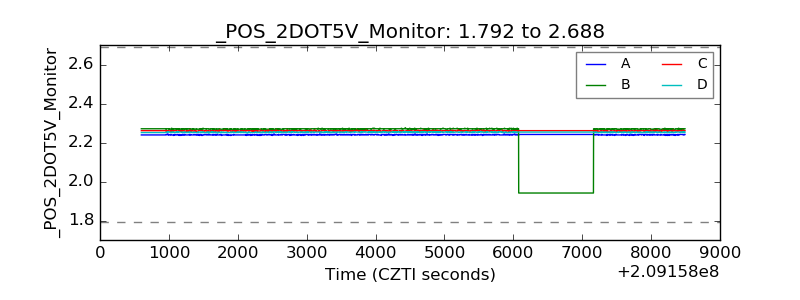

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

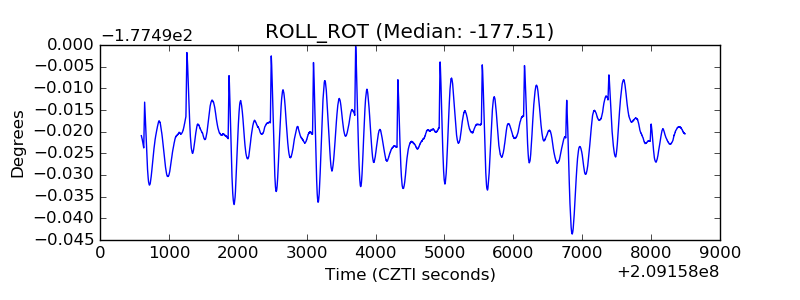

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
