| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_142T01_9000000610_04814cztM0_level2.evt | modeM0/AS1G05_142T01_9000000610_04814cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,861,260,480 | 240,943,680 |
| Size | 1.7 GB | 229.8 MB |
| Events in quadrant A | 11,128,824 | 1,467,501 |
| Events in quadrant B | 13,086,217 | 1,468,300 |
| Events in quadrant C | 11,482,591 | 1,483,675 |
| Events in quadrant D | 19,105,373 | 1,280,769 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 470 | 0 |
| B | 0 | 470 | 0 |
| C | 0 | 470 | 0 |
| D | 0 | 470 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48805 | 6 |
| B | 0 | 54120 | 5 |
| C | 0 | 50354 | 5 |
| D | 0 | 73172 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23202 | 436 | 1.879148% |
| B | 23202 | 763 | 3.288510% |
| C | 23202 | 397 | 1.711059% |
| D | 23201 | 3312 | 14.275247% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

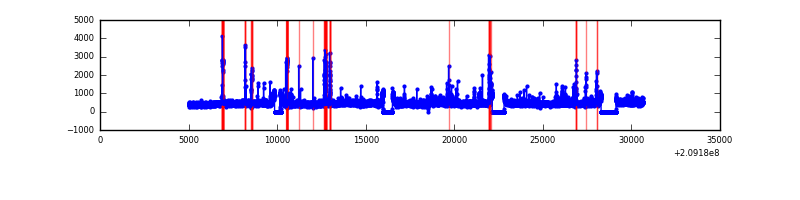

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25604 | 23205 | 82 | 82 | 0.32% | 0.35% |  |
| B | 25604 | 23205 | 320 | 320 | 1.25% | 1.38% |  |
| C | 25604 | 23206 | 104 | 104 | 0.41% | 0.45% |  |
| D | 25603 | 23205 | 2690 | 2690 | 10.51% | 11.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 340547 | 610.62 | 2699 | 2639 | 553.4 |
| A | 8 | 15 | 218536 | 390.14 | 2699 | 2639 | 553.4 |
| A | 0 | 50 | 123357 | 218.14 | 2699 | 2639 | 553.4 |
| B | 10 | 16 | 2249178 | 4287.37 | 2718 | 2658 | 524.0 |
| B | 14 | 167 | 122995 | 229.66 | 2718 | 2658 | 524.0 |
| B | 15 | 54 | 67059 | 122.91 | 2718 | 2658 | 524.0 |
| C | 9 | 247 | 1024884 | 1677.6 | 2619 | 2628 | 609.4 |
| C | 9 | 54 | 71007 | 112.21 | 2619 | 2628 | 609.4 |
| C | 12 | 4 | 42507 | 65.44 | 2619 | 2628 | 609.4 |
| D | 12 | 79 | 8200793 | 14008.41 | 2409 | 2337 | 585.3 |
| D | 2 | 136 | 580721 | 988.26 | 2409 | 2337 | 585.3 |
| D | 13 | 235 | 456732 | 776.41 | 2409 | 2337 | 585.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

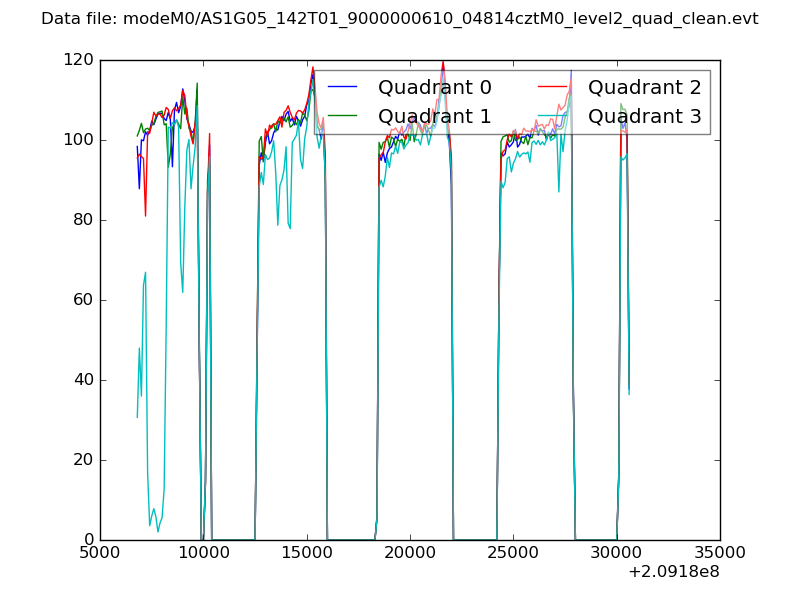

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

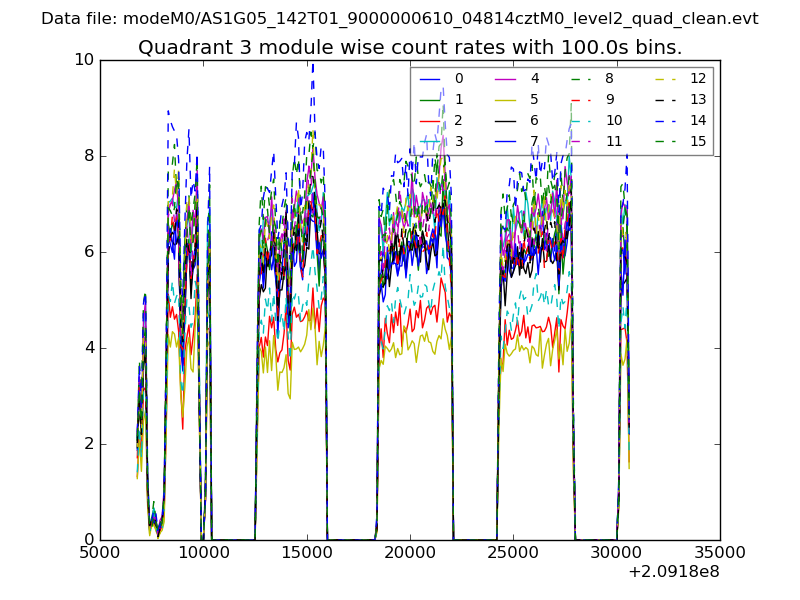

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

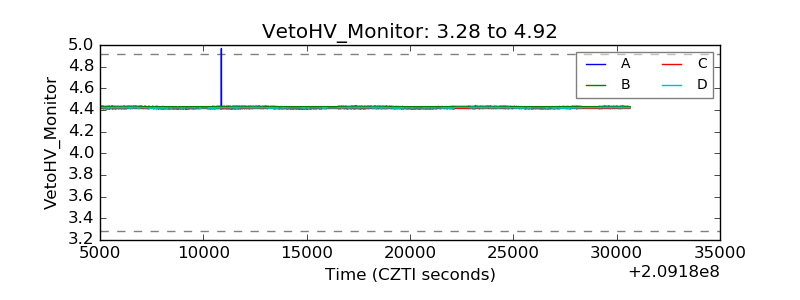

| Veto HV Monitor |  |
| Veto LLD |  |

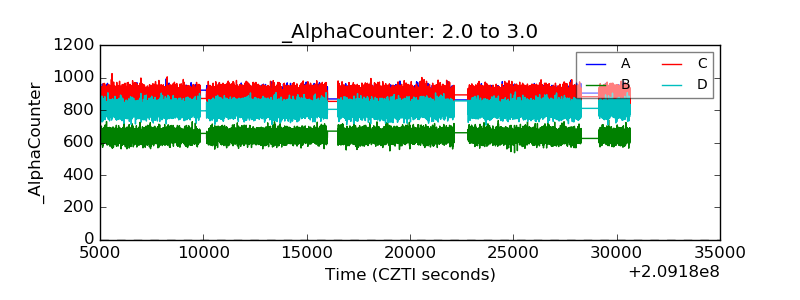

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

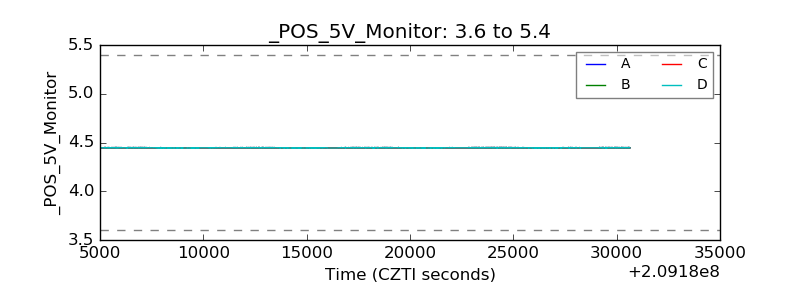

| +5 Volts monitor |  |
| _ROLL_ROT |  |

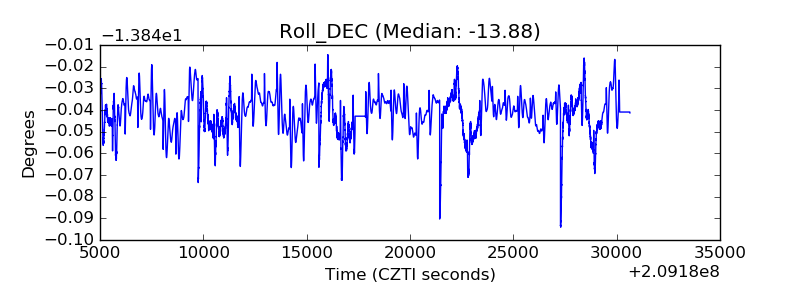

| _Roll_DEC |  |
| _Roll_RA |  |

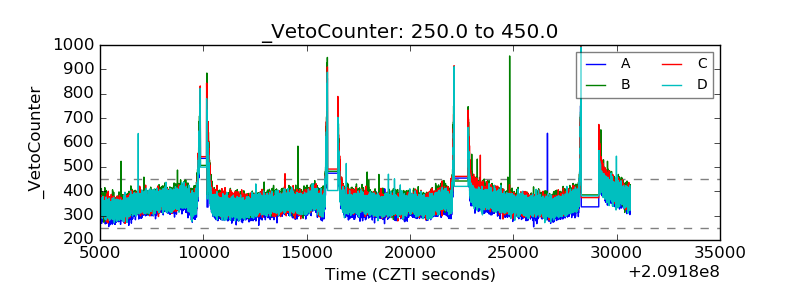

| Veto Counter |  |
