| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_144T01_9000000612_04820cztM0_level2.evt | modeM0/AS1G05_144T01_9000000612_04820cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,416,640 | 80,599,680 |
| Size | 461.0 MB | 76.9 MB |
| Events in quadrant A | 3,218,903 | 503,230 |
| Events in quadrant B | 3,836,784 | 505,870 |
| Events in quadrant C | 3,018,009 | 502,476 |
| Events in quadrant D | 4,126,089 | 476,720 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13964 | 3 |
| B | 0 | 15612 | 2 |
| C | 0 | 13558 | 2 |
| D | 0 | 16604 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 162 | 2.498843% |
| B | 6483 | 140 | 2.159494% |
| C | 6483 | 46 | 0.709548% |
| D | 6483 | 123 | 1.897270% |

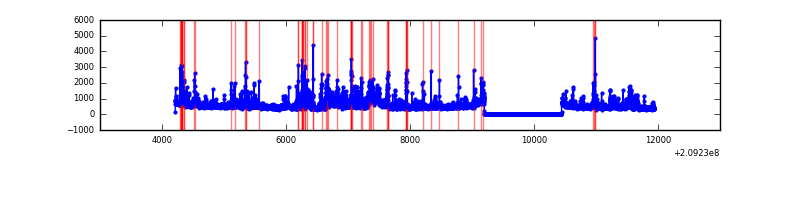

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7728 | 6483 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7728 | 6484 | 39 | 39 | 0.50% | 0.60% |  |
| C | 7728 | 6484 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7728 | 6484 | 69 | 69 | 0.89% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 125352 | 784.37 | 782 | 766 | 158.8 |
| A | 8 | 15 | 34247 | 210.79 | 782 | 766 | 158.8 |
| A | 0 | 50 | 16861 | 101.33 | 782 | 766 | 158.8 |
| B | 4 | 80 | 342595 | 2262.33 | 792 | 775 | 151.1 |
| B | 10 | 16 | 233992 | 1543.54 | 792 | 775 | 151.1 |
| B | 15 | 204 | 101841 | 668.9 | 792 | 775 | 151.1 |
| C | 9 | 247 | 57332 | 324.11 | 754 | 758 | 174.6 |
| C | 8 | 208 | 7515 | 38.71 | 754 | 758 | 174.6 |
| C | 12 | 4 | 7231 | 37.08 | 754 | 758 | 174.6 |
| D | 13 | 235 | 634224 | 3502.7 | 750 | 729 | 180.9 |
| D | 13 | 105 | 146300 | 804.89 | 750 | 729 | 180.9 |
| D | 2 | 136 | 140038 | 770.26 | 750 | 729 | 180.9 |

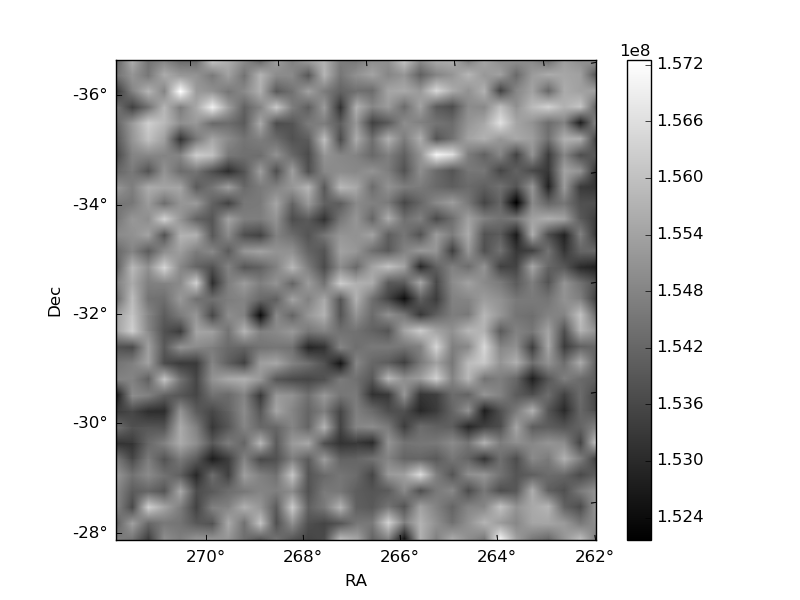

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

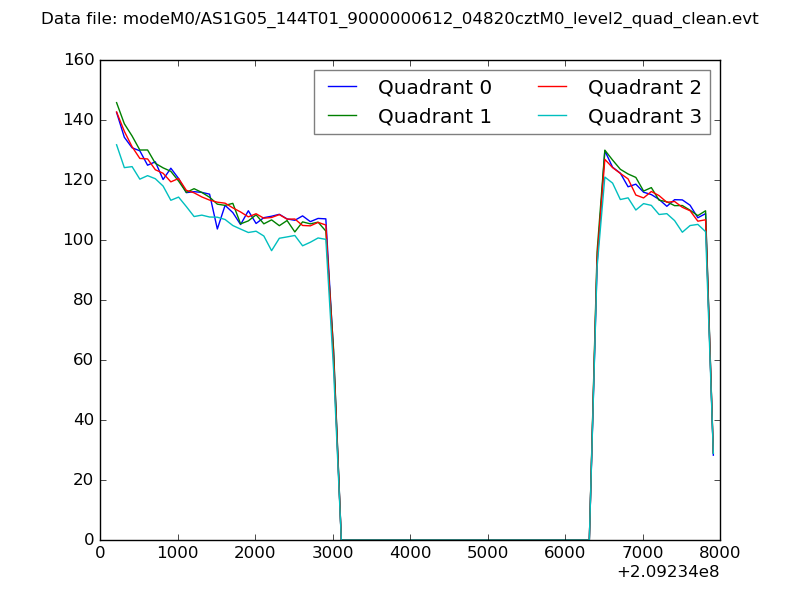

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

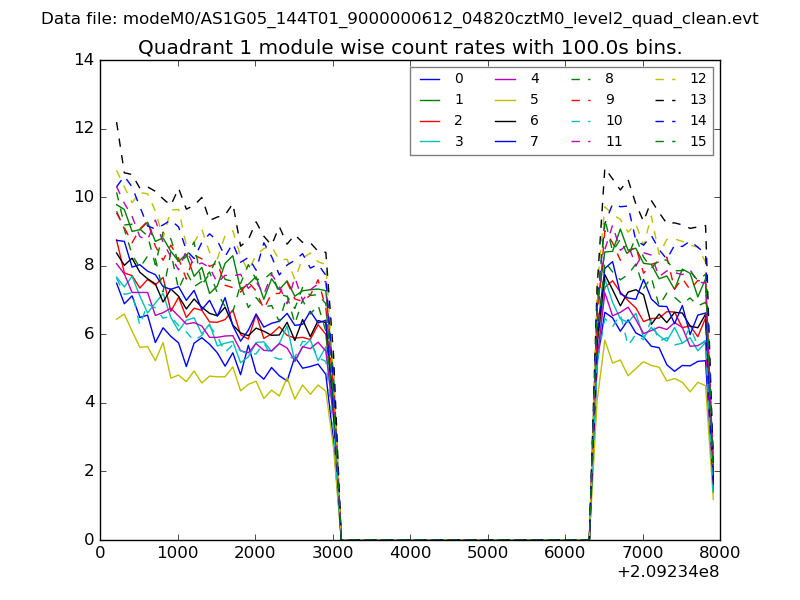

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

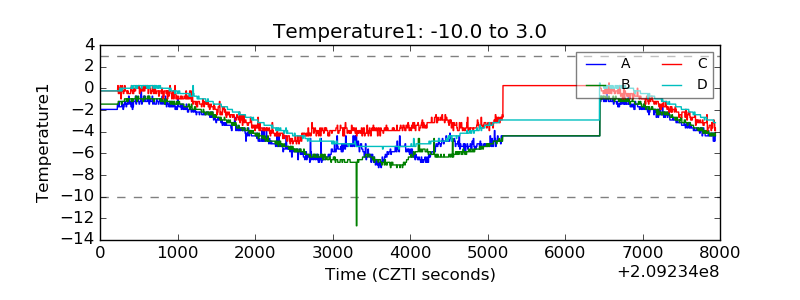

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

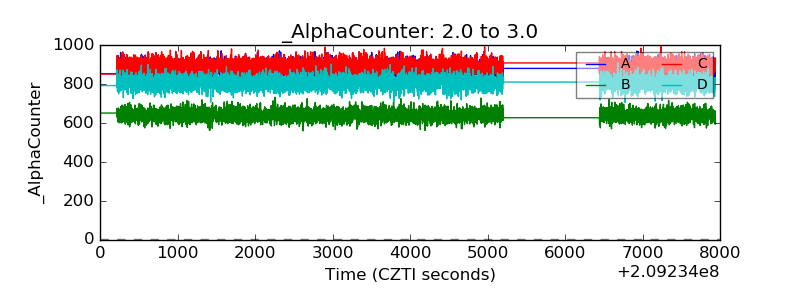

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

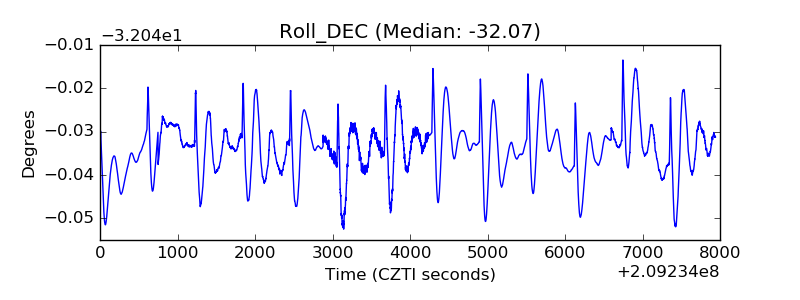

| _Roll_DEC |  |

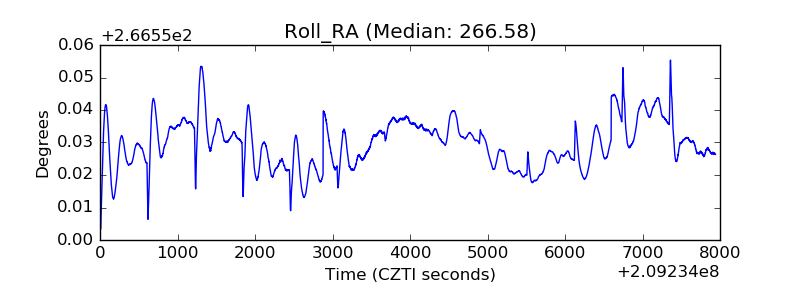

| _Roll_RA |  |
| Veto Counter |  |
