| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T02_9000000614_04833cztM0_level2.evt | modeM0/AS1G05_253T02_9000000614_04833cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,773,760 | 91,224,000 |
| Size | 461.4 MB | 87.0 MB |
| Events in quadrant A | 3,340,458 | 587,989 |
| Events in quadrant B | 4,156,478 | 583,384 |
| Events in quadrant C | 3,055,821 | 584,380 |
| Events in quadrant D | 3,665,039 | 561,662 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14239 | 2 |
| B | 0 | 16615 | 1 |
| C | 0 | 13354 | 1 |
| D | 0 | 15217 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6378 | 128 | 2.006899% |
| B | 6378 | 216 | 3.386642% |
| C | 6378 | 51 | 0.799624% |
| D | 6378 | 147 | 2.304798% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7608 | 6378 | 34 | 34 | 0.45% | 0.53% |  |
| B | 7608 | 6378 | 68 | 68 | 0.89% | 1.07% |  |
| C | 7608 | 6378 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7608 | 6379 | 78 | 78 | 1.03% | 1.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 142723 | 883.9 | 792 | 777 | 160.6 |
| A | 8 | 15 | 83425 | 514.65 | 792 | 777 | 160.6 |
| A | 14 | 111 | 48056 | 294.41 | 792 | 777 | 160.6 |
| B | 14 | 167 | 769237 | 5123.5 | 787 | 771 | 150.0 |
| B | 10 | 16 | 193806 | 1287.0 | 787 | 771 | 150.0 |
| B | 15 | 54 | 43959 | 287.94 | 787 | 771 | 150.0 |
| C | 9 | 247 | 53996 | 303.5 | 760 | 763 | 175.4 |
| C | 0 | 10 | 18225 | 99.56 | 760 | 763 | 175.4 |
| C | 12 | 4 | 9232 | 48.28 | 760 | 763 | 175.4 |
| D | 13 | 235 | 248021 | 1355.54 | 764 | 742 | 182.4 |
| D | 2 | 136 | 210747 | 1151.21 | 764 | 742 | 182.4 |
| D | 2 | 234 | 175923 | 960.31 | 764 | 742 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

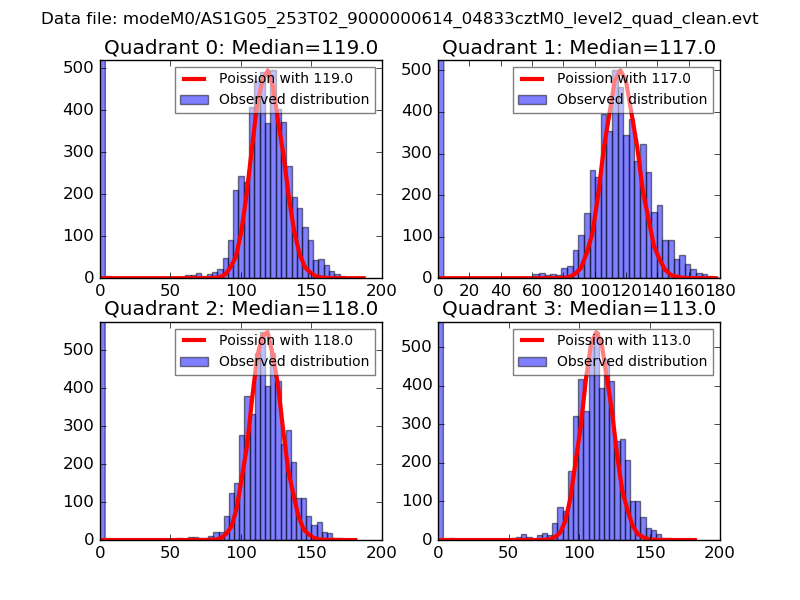

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

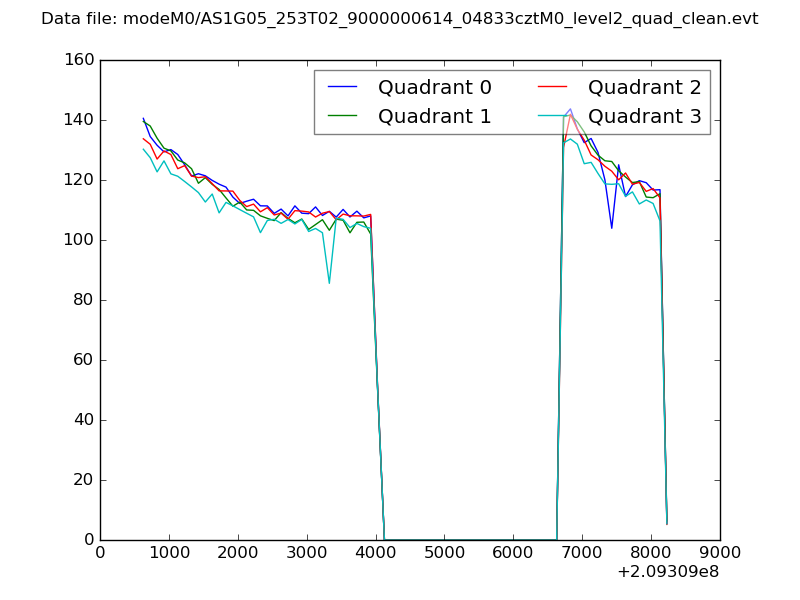

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

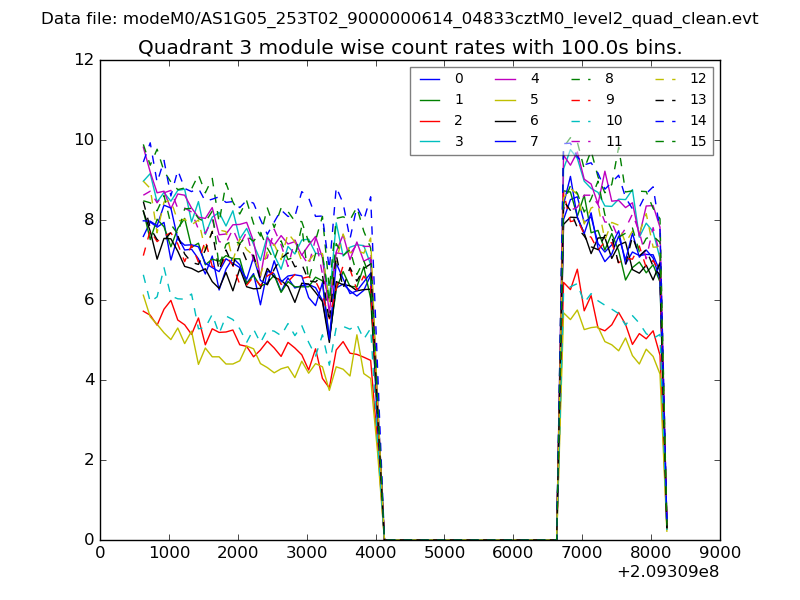

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

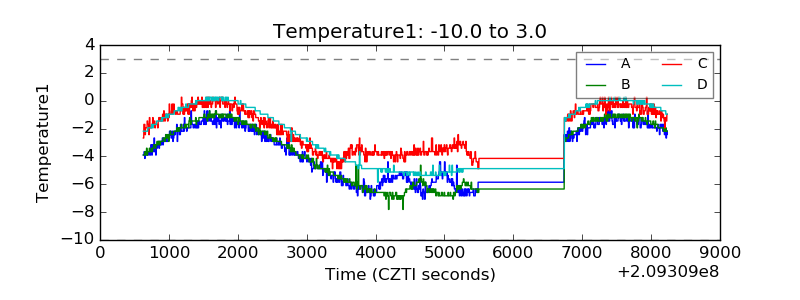

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

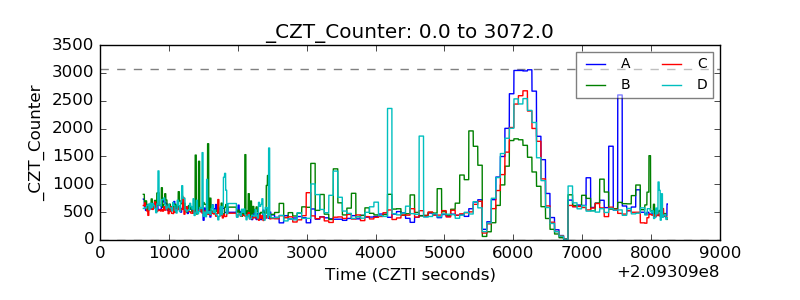

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

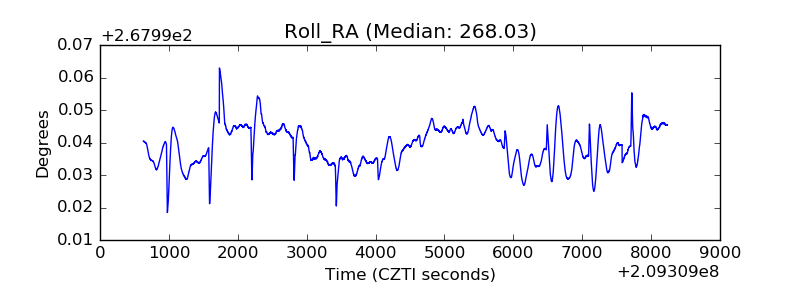

| _Roll_RA |  |
| Veto Counter |  |
