| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T02_9000000614_04835cztM0_level2.evt | modeM0/AS1G05_253T02_9000000614_04835cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,406,720 | 72,944,640 |
| Size | 420.0 MB | 69.6 MB |
| Events in quadrant A | 3,060,579 | 450,947 |
| Events in quadrant B | 3,610,002 | 447,698 |
| Events in quadrant C | 2,828,809 | 447,835 |
| Events in quadrant D | 3,417,135 | 429,479 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13244 | 2 |
| B | 0 | 14907 | 1 |
| C | 0 | 12815 | 1 |
| D | 0 | 14471 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6199 | 67 | 1.080819% |
| B | 6199 | 106 | 1.709953% |
| C | 6199 | 36 | 0.580739% |
| D | 6199 | 102 | 1.645427% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 6200 | 9 | 9 | 0.12% | 0.15% |  |
| B | 7439 | 6200 | 46 | 46 | 0.62% | 0.74% |  |
| C | 7439 | 6200 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7439 | 6200 | 52 | 52 | 0.70% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 100929 | 652.86 | 742 | 728 | 153.5 |
| A | 0 | 50 | 54378 | 349.56 | 742 | 728 | 153.5 |
| A | 14 | 111 | 35353 | 225.6 | 742 | 728 | 153.5 |
| B | 14 | 167 | 483409 | 3380.57 | 746 | 730 | 142.8 |
| B | 15 | 204 | 67336 | 466.49 | 746 | 730 | 142.8 |
| B | 8 | 3 | 53559 | 370.0 | 746 | 730 | 142.8 |
| C | 0 | 10 | 25955 | 151.13 | 713 | 716 | 167.0 |
| C | 1 | 16 | 17025 | 97.66 | 713 | 716 | 167.0 |
| C | 13 | 61 | 5919 | 31.15 | 713 | 716 | 167.0 |
| D | 15 | 217 | 246132 | 1408.43 | 711 | 691 | 174.3 |
| D | 13 | 235 | 186736 | 1067.59 | 711 | 691 | 174.3 |
| D | 2 | 136 | 104845 | 597.67 | 711 | 691 | 174.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

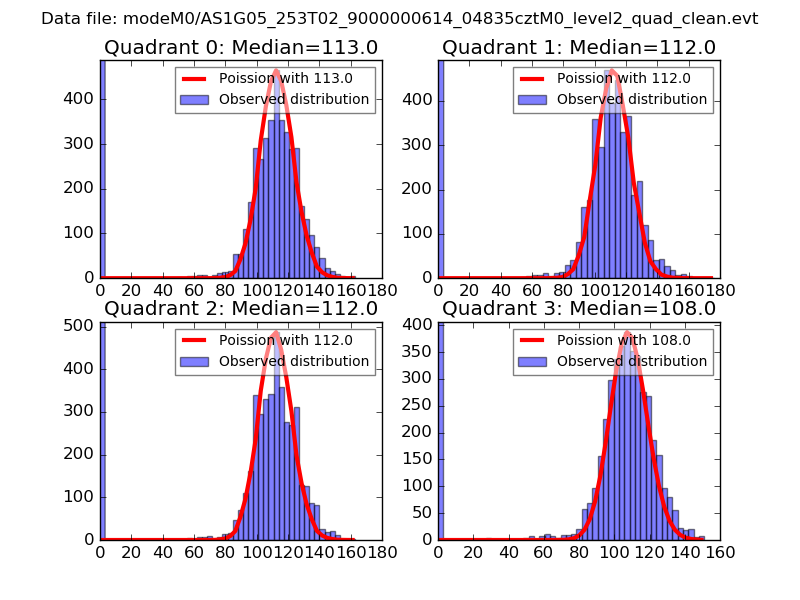

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

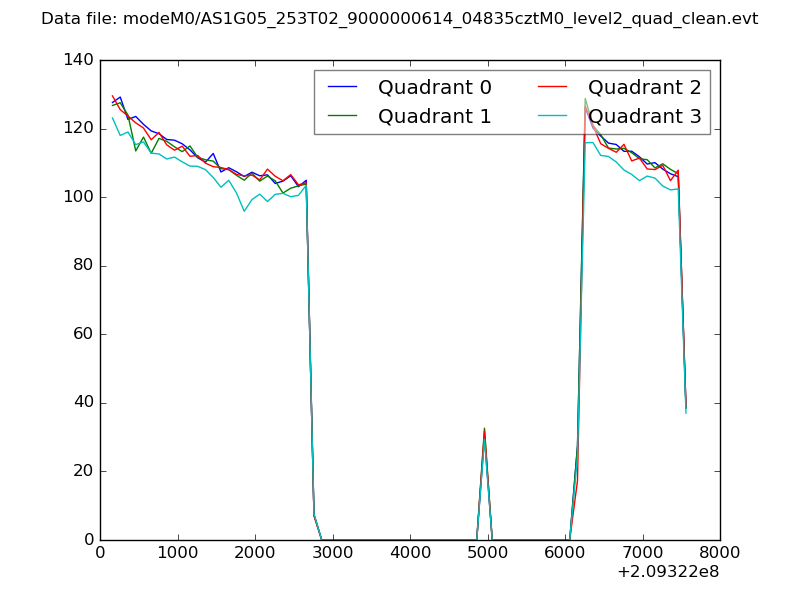

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

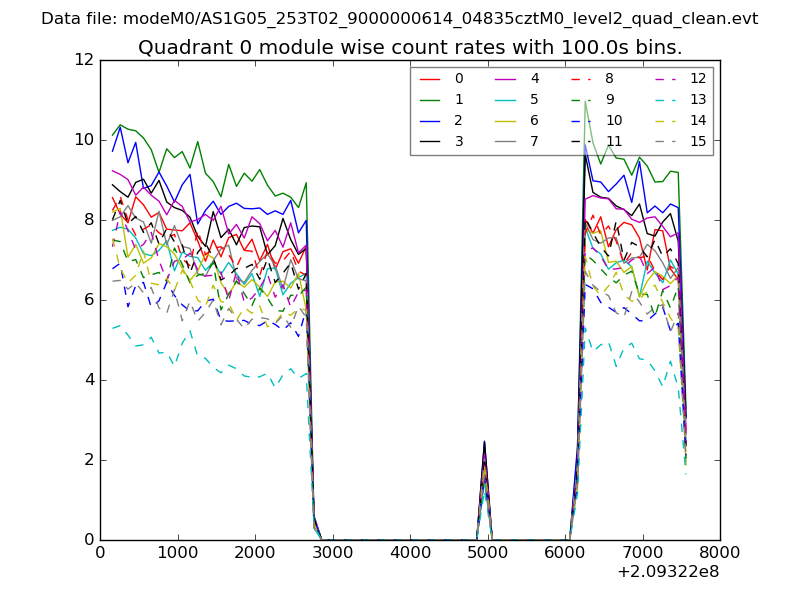

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

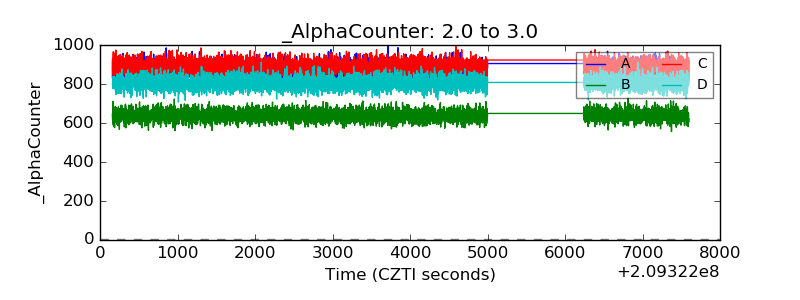

| Alpha Counter |  |
| _CPM_Rate |  |

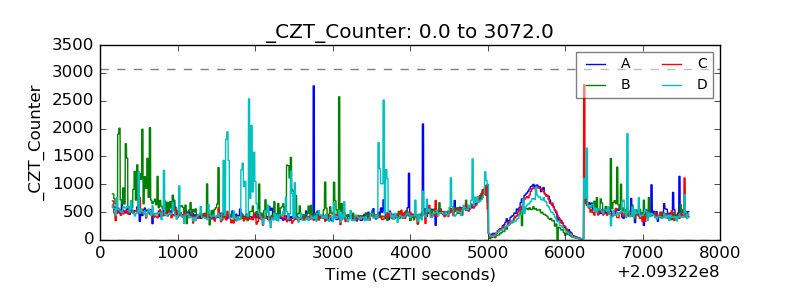

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
