| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T02_9000000614_04837cztM0_level2.evt | modeM0/AS1G05_253T02_9000000614_04837cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,649,280 | 79,168,320 |
| Size | 496.5 MB | 75.5 MB |
| Events in quadrant A | 3,098,562 | 492,110 |
| Events in quadrant B | 3,416,992 | 490,188 |
| Events in quadrant C | 3,377,510 | 492,321 |
| Events in quadrant D | 5,412,481 | 447,837 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14105 | 3 |
| B | 0 | 14817 | 4 |
| C | 0 | 15001 | 2 |
| D | 0 | 20870 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6811 | 41 | 0.601967% |
| B | 6810 | 83 | 1.218796% |
| C | 6811 | 44 | 0.646014% |
| D | 6811 | 514 | 7.546616% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7511 | 6812 | 10 | 10 | 0.13% | 0.15% |  |
| B | 7511 | 6812 | 41 | 41 | 0.55% | 0.60% |  |
| C | 7511 | 6812 | 59 | 59 | 0.79% | 0.87% |  |
| D | 7511 | 6812 | 427 | 427 | 5.68% | 6.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 48511 | 298.46 | 784 | 767 | 160.0 |
| A | 0 | 50 | 23702 | 143.37 | 784 | 767 | 160.0 |
| A | 12 | 194 | 7976 | 45.06 | 784 | 767 | 160.0 |
| B | 10 | 16 | 106021 | 685.42 | 791 | 771 | 153.6 |
| B | 10 | 245 | 48516 | 310.93 | 791 | 771 | 153.6 |
| B | 4 | 80 | 48188 | 308.8 | 791 | 771 | 153.6 |
| C | 8 | 208 | 397354 | 2217.52 | 758 | 761 | 178.8 |
| C | 12 | 4 | 8531 | 43.45 | 758 | 761 | 178.8 |
| C | 1 | 16 | 7484 | 37.59 | 758 | 761 | 178.8 |
| D | 2 | 234 | 957417 | 5248.03 | 734 | 709 | 182.3 |
| D | 13 | 235 | 736474 | 4036.05 | 734 | 709 | 182.3 |
| D | 13 | 53 | 567890 | 3111.28 | 734 | 709 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

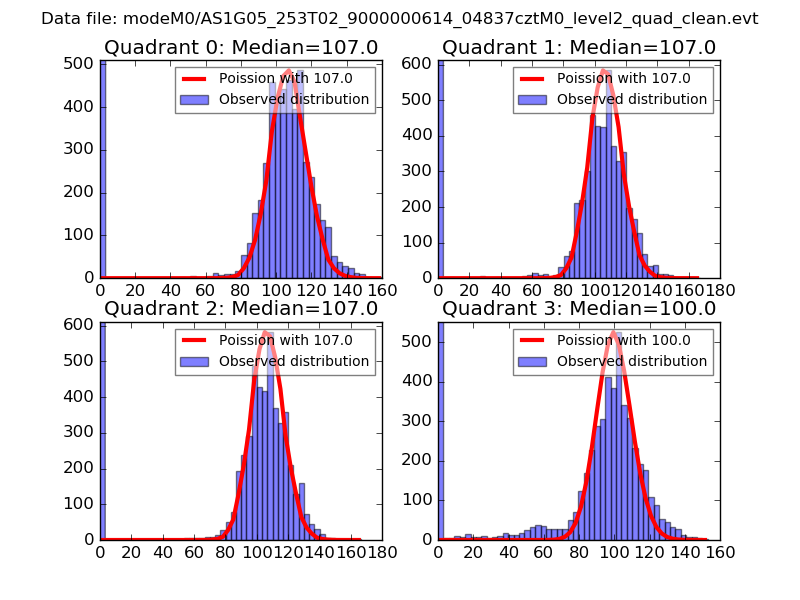

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

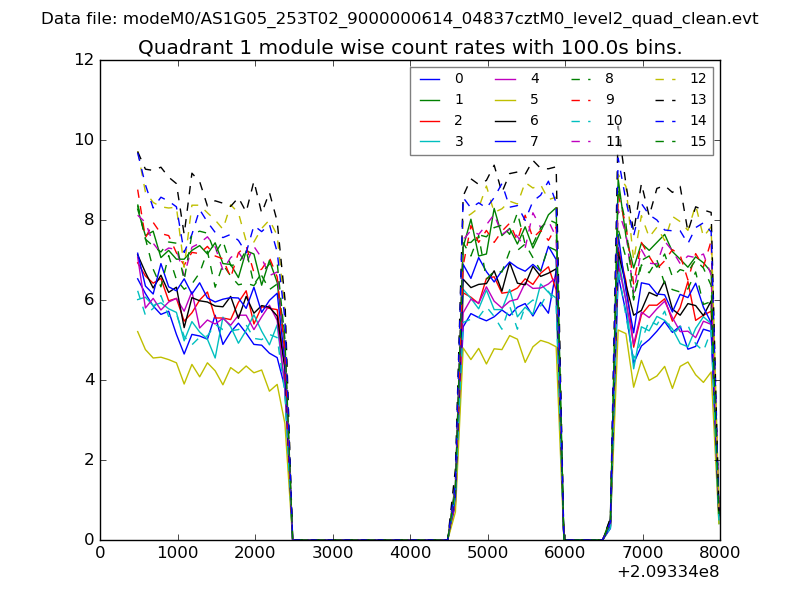

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

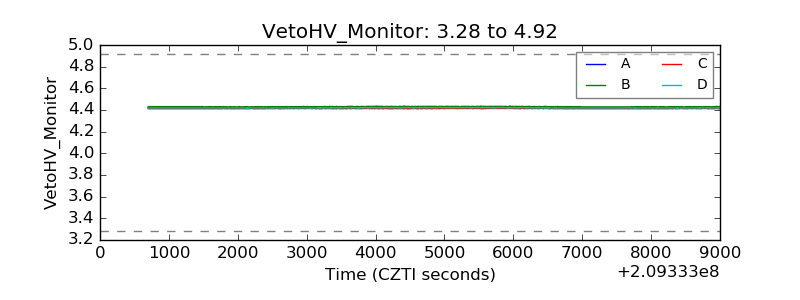

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

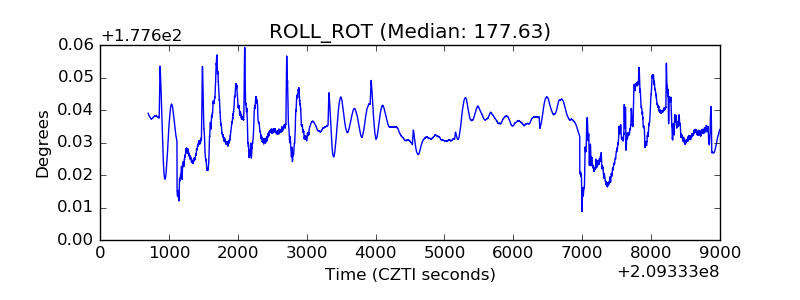

| _ROLL_ROT |  |
| _Roll_DEC |  |

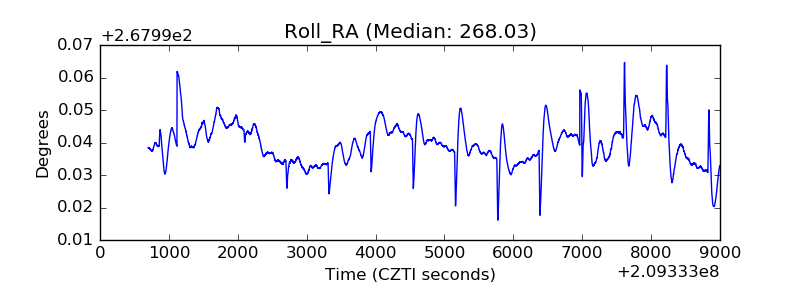

| _Roll_RA |  |
| Veto Counter |  |
