| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T02_9000000614_04846cztM0_level2.evt | modeM0/AS1G05_253T02_9000000614_04846cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,521,280 | 83,047,680 |
| Size | 446.8 MB | 79.2 MB |
| Events in quadrant A | 3,300,371 | 521,867 |
| Events in quadrant B | 3,346,521 | 523,083 |
| Events in quadrant C | 3,257,502 | 521,113 |
| Events in quadrant D | 3,842,681 | 494,741 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14180 | 11 |
| B | 0 | 14051 | 13 |
| C | 0 | 14133 | 21 |
| D | 0 | 15831 | 14 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6511 | 104 | 1.597297% |
| B | 6510 | 77 | 1.182796% |
| C | 6509 | 61 | 0.937164% |
| D | 6512 | 212 | 3.255528% |

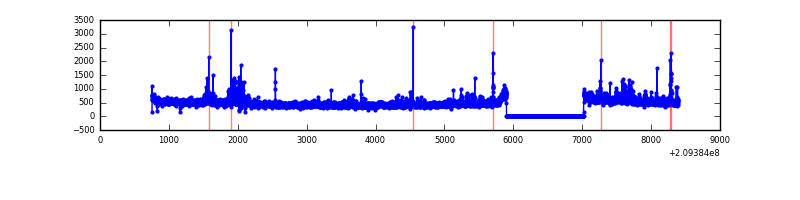

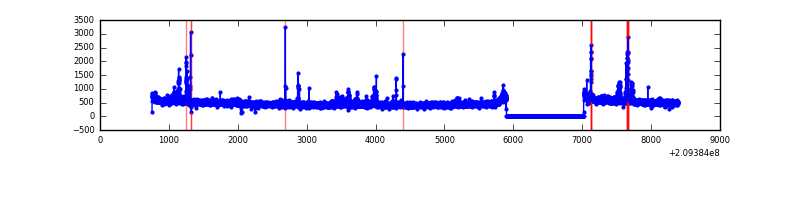

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7635 | 6515 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7635 | 6515 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7635 | 6515 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7635 | 6515 | 109 | 109 | 1.43% | 1.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 135330 | 827.32 | 800 | 783 | 162.6 |
| A | 13 | 251 | 73421 | 446.65 | 800 | 783 | 162.6 |
| A | 12 | 194 | 8474 | 47.29 | 800 | 783 | 162.6 |
| B | 15 | 204 | 120895 | 787.27 | 798 | 781 | 152.6 |
| B | 14 | 167 | 63994 | 414.32 | 798 | 781 | 152.6 |
| B | 10 | 246 | 36551 | 234.45 | 798 | 781 | 152.6 |
| C | 9 | 247 | 236968 | 1327.0 | 768 | 772 | 178.0 |
| C | 12 | 4 | 11819 | 62.06 | 768 | 772 | 178.0 |
| C | 13 | 61 | 6315 | 31.14 | 768 | 772 | 178.0 |
| D | 13 | 235 | 447434 | 2359.02 | 769 | 745 | 189.4 |
| D | 2 | 136 | 143219 | 752.42 | 769 | 745 | 189.4 |
| D | 2 | 234 | 100497 | 526.8 | 769 | 745 | 189.4 |

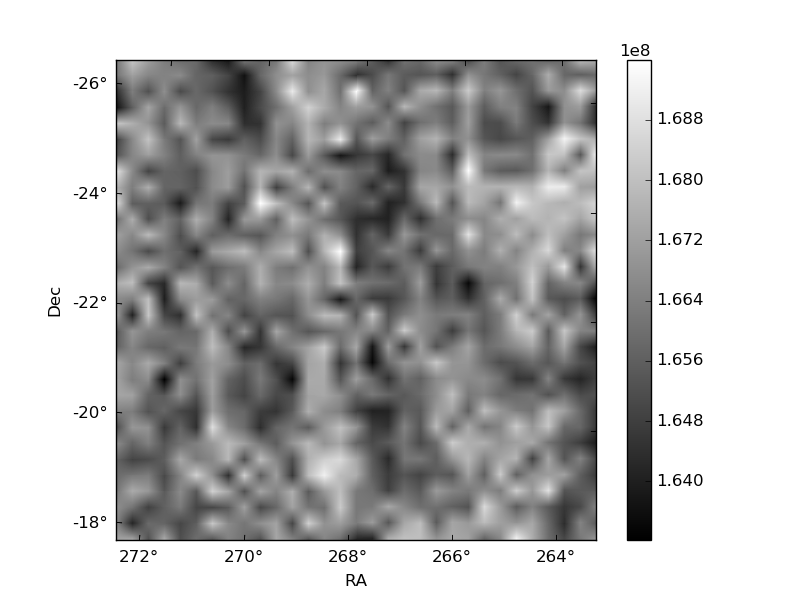

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

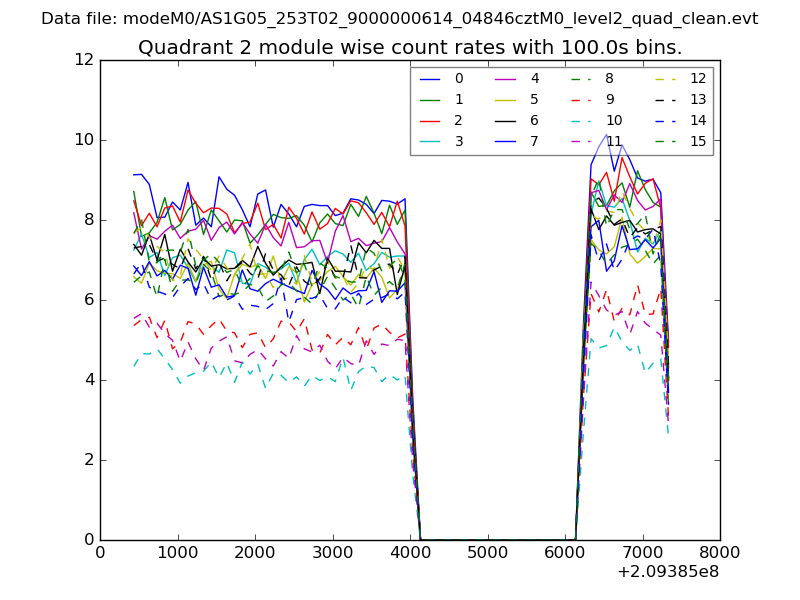

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

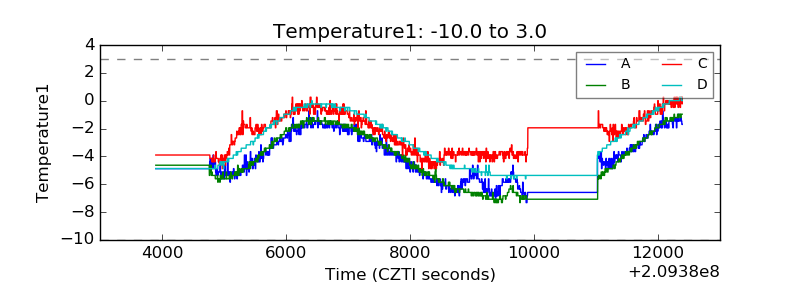

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

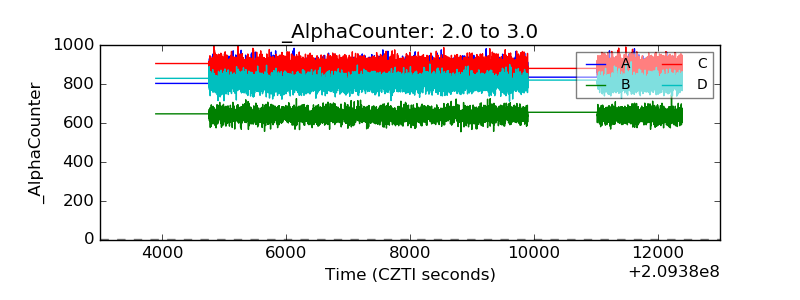

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

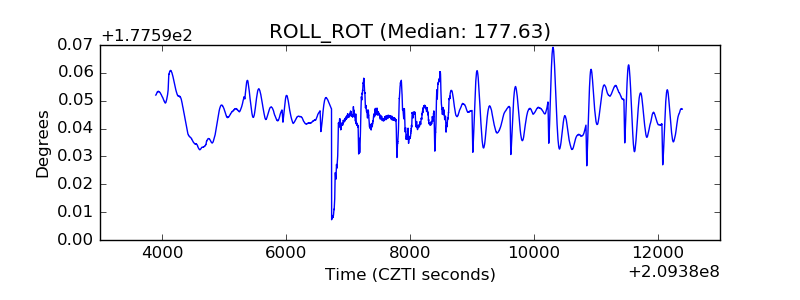

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

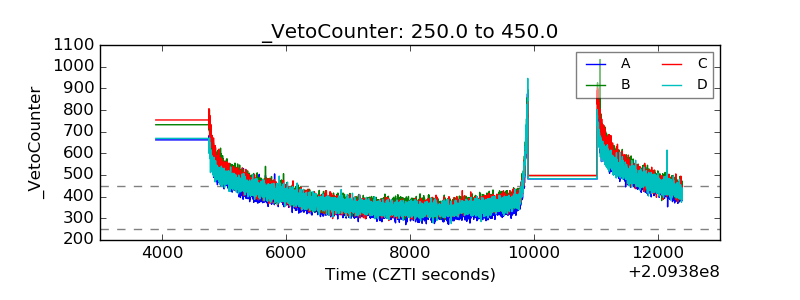

| Veto Counter |  |
