| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_002T01_9000000616_04858cztM0_level2.evt | modeM0/AS1G05_002T01_9000000616_04858cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,497,012,480 | 274,752,000 |
| Size | 1.4 GB | 262.0 MB |
| Events in quadrant A | 10,224,782 | 1,694,161 |
| Events in quadrant B | 11,267,904 | 1,686,669 |
| Events in quadrant C | 9,996,252 | 1,723,358 |
| Events in quadrant D | 12,291,740 | 1,633,575 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 474 | 0 |
| B | 0 | 474 | 0 |
| C | 0 | 474 | 0 |
| D | 0 | 474 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 47163 | 6 |
| B | 0 | 49349 | 7 |
| C | 0 | 46970 | 5 |
| D | 0 | 53252 | 10 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 22991 | 214 | 0.930799% |
| B | 22990 | 271 | 1.178773% |
| C | 22991 | 190 | 0.826410% |
| D | 22989 | 577 | 2.509896% |

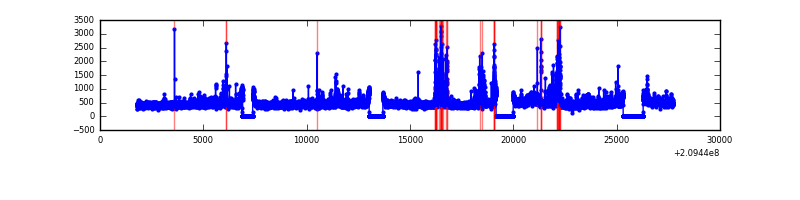

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25956 | 22993 | 22 | 22 | 0.08% | 0.10% |  |
| B | 25956 | 22993 | 53 | 53 | 0.20% | 0.23% |  |
| C | 25956 | 22992 | 9 | 9 | 0.03% | 0.04% |  |
| D | 25956 | 22992 | 347 | 347 | 1.34% | 1.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 200782 | 379.31 | 2571 | 2510 | 522.7 |
| A | 13 | 251 | 63081 | 115.88 | 2571 | 2510 | 522.7 |
| A | 8 | 6 | 39042 | 69.89 | 2571 | 2510 | 522.7 |
| B | 10 | 16 | 840179 | 1697.52 | 2593 | 2535 | 493.5 |
| B | 4 | 80 | 113462 | 224.8 | 2593 | 2535 | 493.5 |
| B | 14 | 167 | 100569 | 198.67 | 2593 | 2535 | 493.5 |
| C | 12 | 4 | 161701 | 276.11 | 2505 | 2509 | 576.6 |
| C | 9 | 247 | 40845 | 66.49 | 2505 | 2509 | 576.6 |
| C | 13 | 61 | 20446 | 31.11 | 2505 | 2509 | 576.6 |
| D | 1 | 31 | 728206 | 1190.26 | 2487 | 2407 | 609.8 |
| D | 2 | 234 | 529488 | 864.37 | 2487 | 2407 | 609.8 |
| D | 13 | 235 | 522707 | 853.25 | 2487 | 2407 | 609.8 |

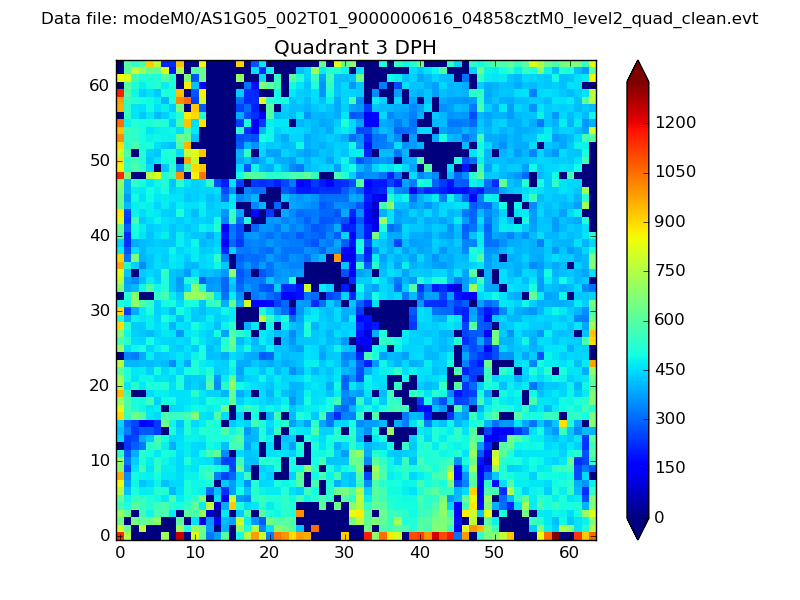

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

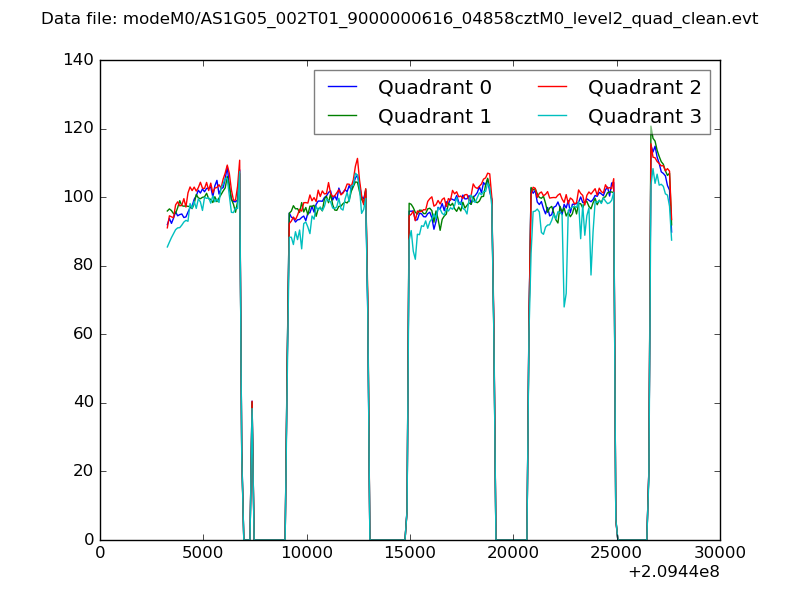

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

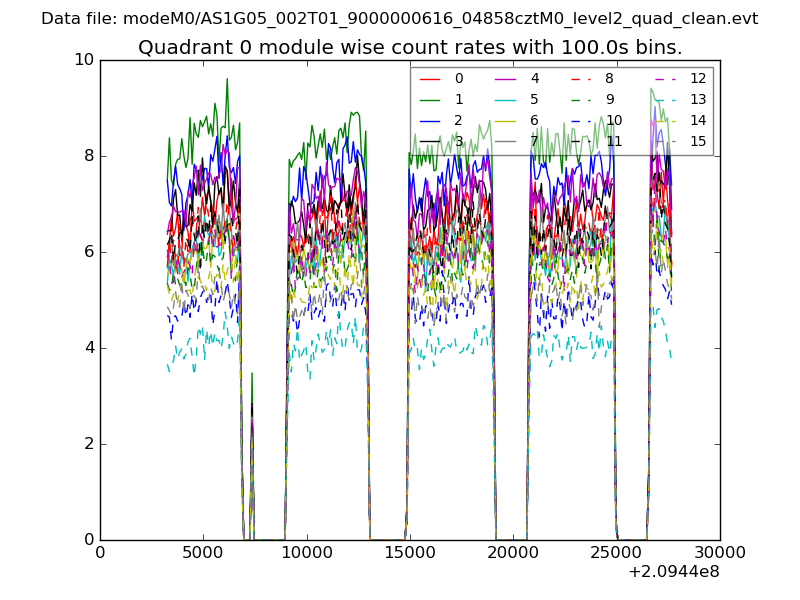

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

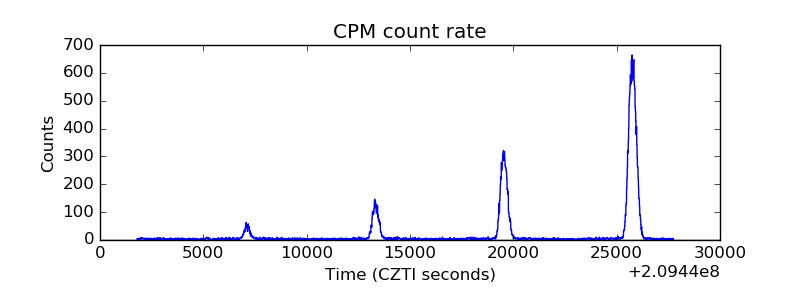

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

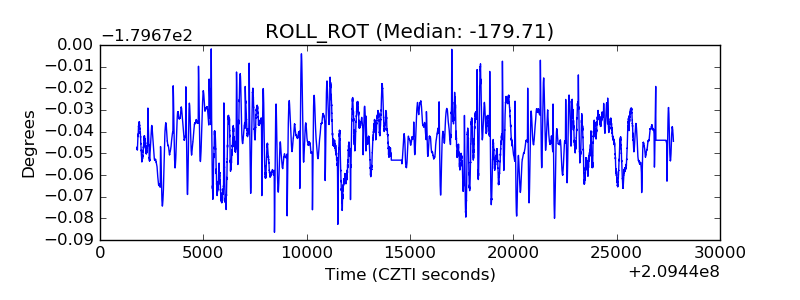

| _ROLL_ROT |  |

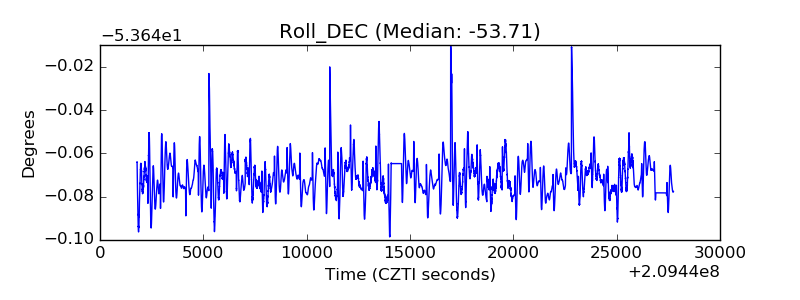

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
