| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_009T02_9000000618_04861cztM0_level2.evt | modeM0/AS1G05_009T02_9000000618_04861cztM0_level2_quad_clean.evt |
| Size (bytes) | 198,262,080 | 36,915,840 |
| Size | 189.1 MB | 35.2 MB |
| Events in quadrant A | 1,084,051 | 247,928 |
| Events in quadrant B | 2,025,375 | 227,164 |
| Events in quadrant C | 1,085,506 | 241,923 |
| Events in quadrant D | 1,647,946 | 231,366 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4925 | 4 |
| B | 0 | 7572 | 6 |
| C | 0 | 4960 | 5 |
| D | 0 | 6519 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 1 | 1 | 0 |
| C | 1 | -1 | -1 |
| D | 1 | -1 | -1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2340 | 68 | 2.905983% |
| B | 2340 | 439 | 18.760684% |
| C | 2340 | 51 | 2.179487% |
| D | 2341 | 153 | 6.535669% |

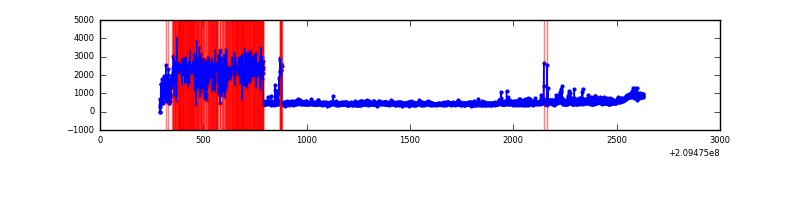

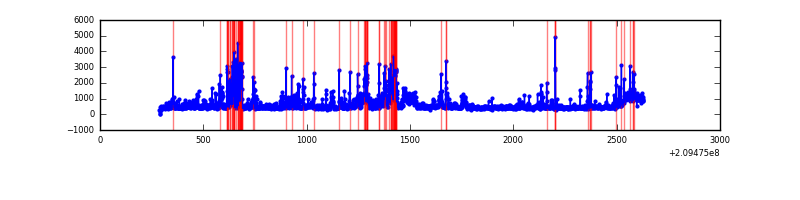

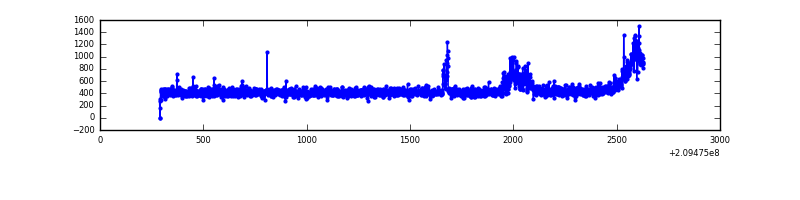

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2342 | 2340 | 5 | 5 | 0.21% | 0.21% |  |
| B | 2342 | 2340 | 312 | 312 | 13.32% | 13.33% |  |
| C | 2342 | 2340 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2343 | 2341 | 97 | 97 | 4.14% | 4.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 29027 | 502.9 | 266 | 260 | 57.2 |
| A | 8 | 15 | 22260 | 384.6 | 266 | 260 | 57.2 |
| A | 12 | 133 | 7196 | 121.25 | 266 | 260 | 57.2 |
| B | 10 | 16 | 1013347 | 19574.36 | 255 | 248 | 51.8 |
| B | 4 | 80 | 15284 | 290.51 | 255 | 248 | 51.8 |
| B | 10 | 246 | 7135 | 133.07 | 255 | 248 | 51.8 |
| C | 12 | 4 | 55974 | 886.47 | 263 | 264 | 62.8 |
| C | 13 | 61 | 2183 | 30.54 | 263 | 264 | 62.8 |
| C | 8 | 222 | 1263 | 15.9 | 263 | 264 | 62.8 |
| D | 1 | 31 | 412237 | 6381.89 | 256 | 248 | 64.6 |
| D | 13 | 239 | 114210 | 1765.32 | 256 | 248 | 64.6 |
| D | 2 | 136 | 62423 | 963.12 | 256 | 248 | 64.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

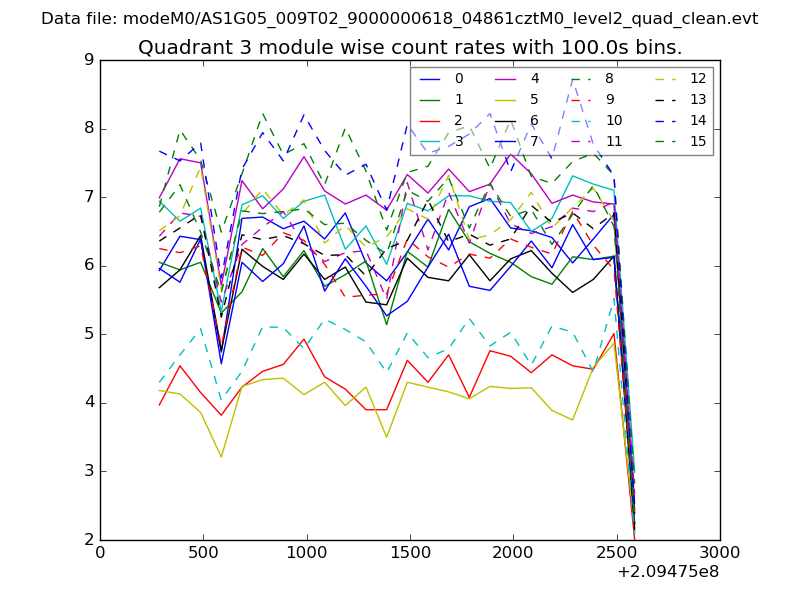

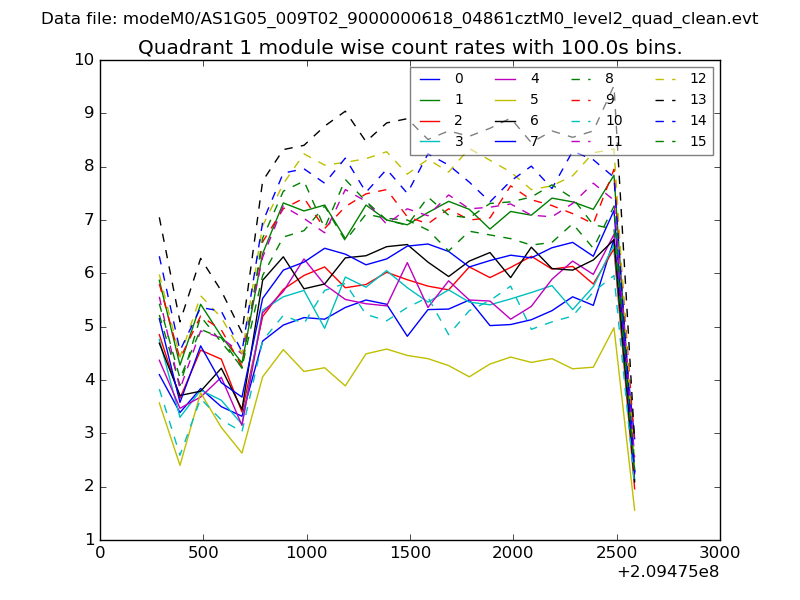

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

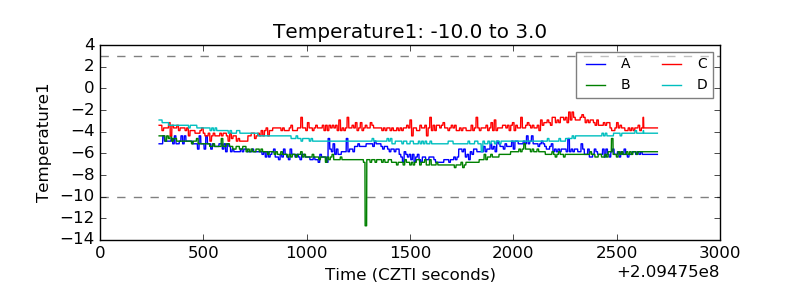

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

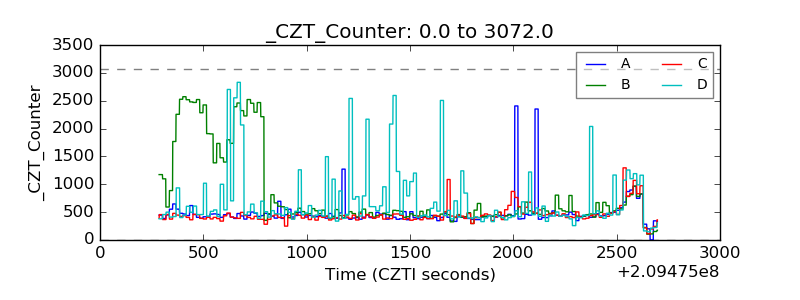

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

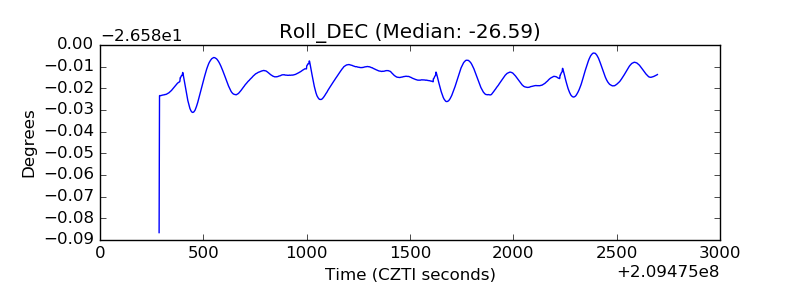

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
