| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_237T01_9000000620_04904cztM0_level2.evt | modeM0/AS1G05_237T01_9000000620_04904cztM0_level2_quad_clean.evt |
| Size (bytes) | 723,556,800 | 64,068,480 |
| Size | 690.0 MB | 61.1 MB |
| Events in quadrant A | 2,842,654 | 449,992 |
| Events in quadrant B | 2,839,531 | 450,313 |
| Events in quadrant C | 2,612,135 | 445,736 |
| Events in quadrant D | 13,233,163 | 195,149 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11977 | 2 |
| B | 0 | 11805 | 1 |
| C | 0 | 11560 | 1 |
| D | 0 | 43185 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5675 | 55 | 0.969163% |
| B | 5675 | 63 | 1.110132% |
| C | 5675 | 39 | 0.687225% |
| D | 5675 | 5496 | 96.845815% |

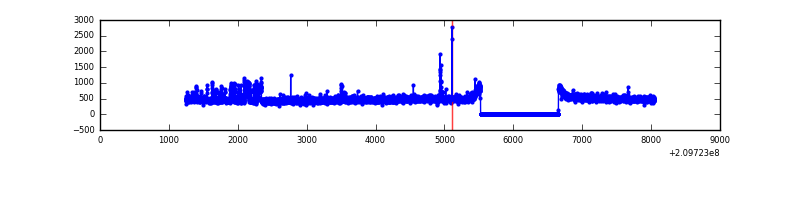

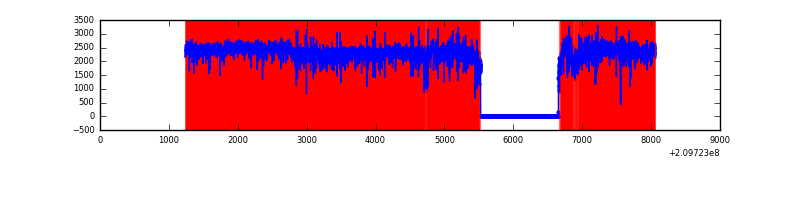

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6805 | 5675 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6805 | 5676 | 5 | 5 | 0.07% | 0.09% |  |
| C | 6805 | 5676 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6804 | 5674 | 5173 | 5173 | 76.03% | 91.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 122473 | 860.21 | 696 | 682 | 141.6 |
| A | 0 | 50 | 14128 | 94.97 | 696 | 682 | 141.6 |
| A | 0 | 31 | 10291 | 67.87 | 696 | 682 | 141.6 |
| B | 15 | 204 | 40384 | 296.65 | 696 | 682 | 133.8 |
| B | 15 | 54 | 35488 | 260.07 | 696 | 682 | 133.8 |
| B | 0 | 219 | 20617 | 148.95 | 696 | 682 | 133.8 |
| C | 13 | 61 | 5417 | 30.83 | 667 | 672 | 153.9 |
| C | 12 | 4 | 4313 | 23.66 | 667 | 672 | 153.9 |
| C | 1 | 3 | 3220 | 16.56 | 667 | 672 | 153.9 |
| D | 2 | 63 | 11462278 | 147766.8 | 312 | 303 | 77.6 |
| D | 2 | 33 | 180028 | 2317.0 | 312 | 303 | 77.6 |
| D | 2 | 136 | 83975 | 1078.69 | 312 | 303 | 77.6 |

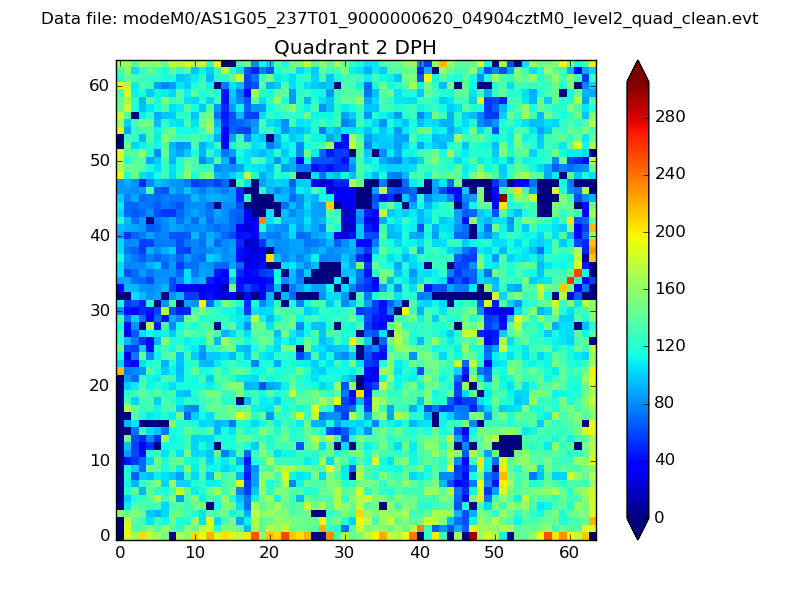

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

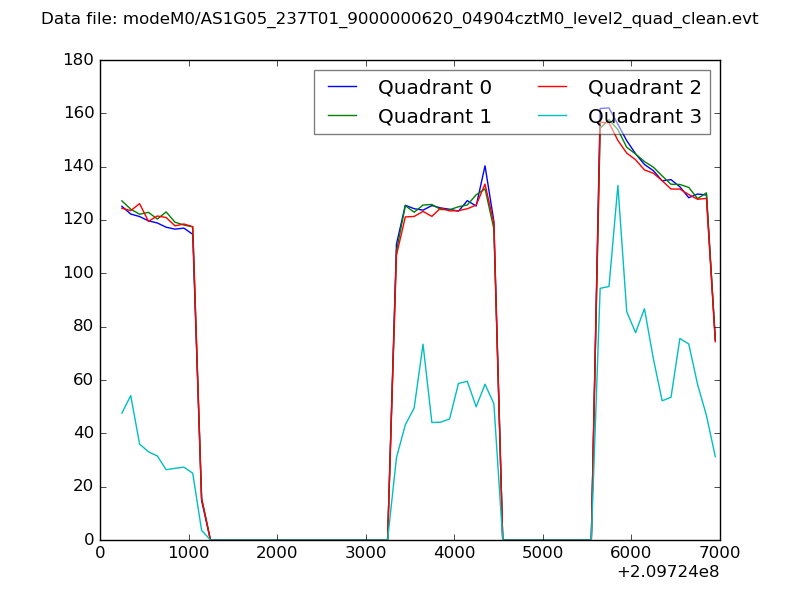

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

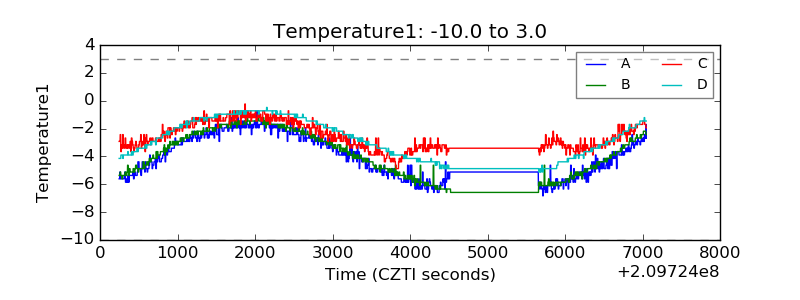

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

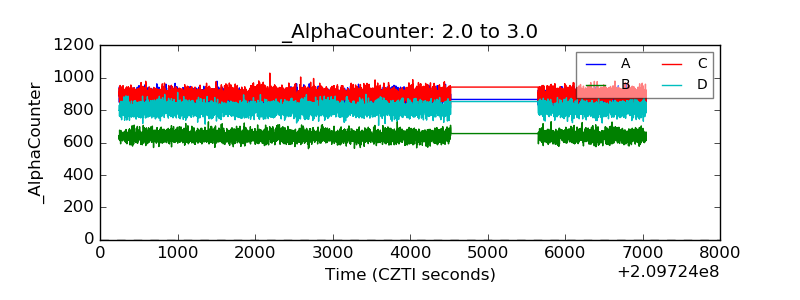

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

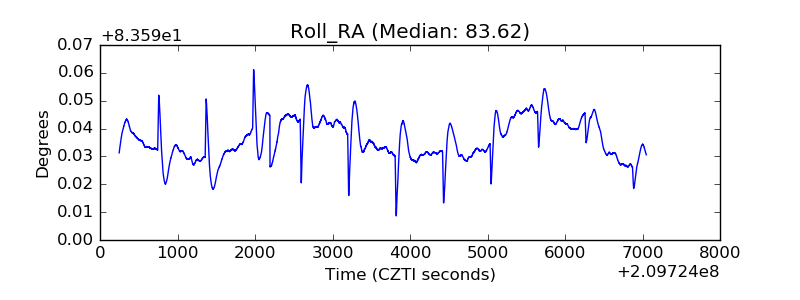

| _Roll_RA |  |
| Veto Counter |  |
