| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_118T01_9000000622_04909cztM0_level2.evt | modeM0/AS1G05_118T01_9000000622_04909cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,520,000 | 69,062,400 |
| Size | 474.5 MB | 65.9 MB |
| Events in quadrant A | 3,152,421 | 417,831 |
| Events in quadrant B | 3,069,006 | 415,874 |
| Events in quadrant C | 2,772,538 | 415,300 |
| Events in quadrant D | 5,637,031 | 393,694 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13789 | 2 |
| B | 0 | 13623 | 1 |
| C | 0 | 13085 | 1 |
| D | 0 | 21176 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6427 | 96 | 1.493698% |
| B | 6427 | 106 | 1.649292% |
| C | 6427 | 41 | 0.637934% |
| D | 6426 | 903 | 14.052288% |

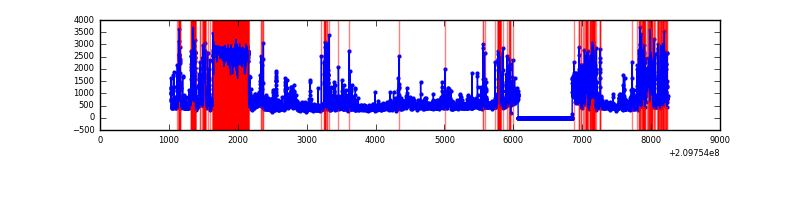

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7213 | 6428 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7213 | 6428 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7213 | 6429 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7212 | 6427 | 798 | 798 | 11.06% | 12.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 233998 | 1569.14 | 728 | 711 | 148.7 |
| A | 13 | 251 | 65117 | 433.21 | 728 | 711 | 148.7 |
| A | 0 | 50 | 28480 | 186.78 | 728 | 711 | 148.7 |
| B | 0 | 219 | 70165 | 499.08 | 733 | 715 | 139.2 |
| B | 15 | 204 | 64582 | 458.96 | 733 | 715 | 139.2 |
| B | 4 | 48 | 28758 | 201.52 | 733 | 715 | 139.2 |
| C | 13 | 61 | 5955 | 32.2 | 708 | 710 | 162.9 |
| C | 8 | 222 | 4396 | 22.63 | 708 | 710 | 162.9 |
| C | 1 | 16 | 2191 | 9.09 | 708 | 710 | 162.9 |
| D | 2 | 33 | 1595339 | 9745.61 | 667 | 646 | 163.6 |
| D | 2 | 63 | 877079 | 5356.12 | 667 | 646 | 163.6 |
| D | 2 | 136 | 214501 | 1306.93 | 667 | 646 | 163.6 |

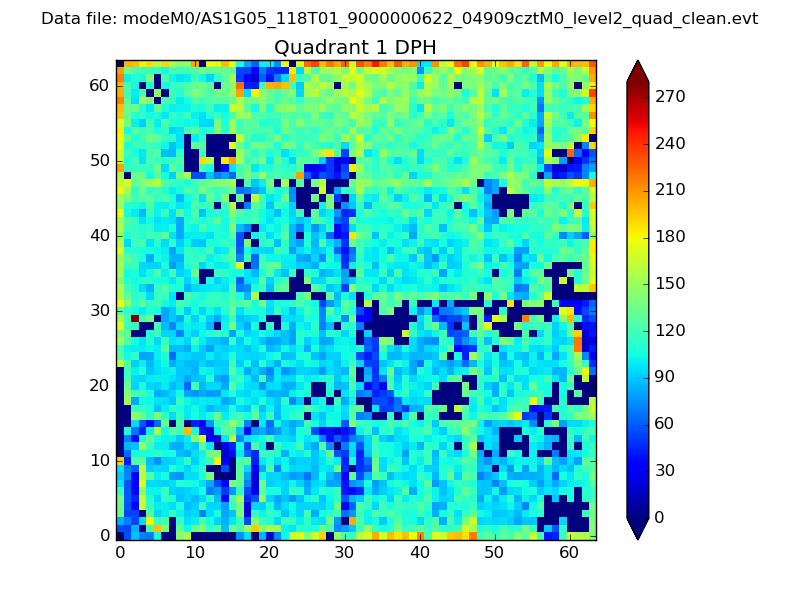

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

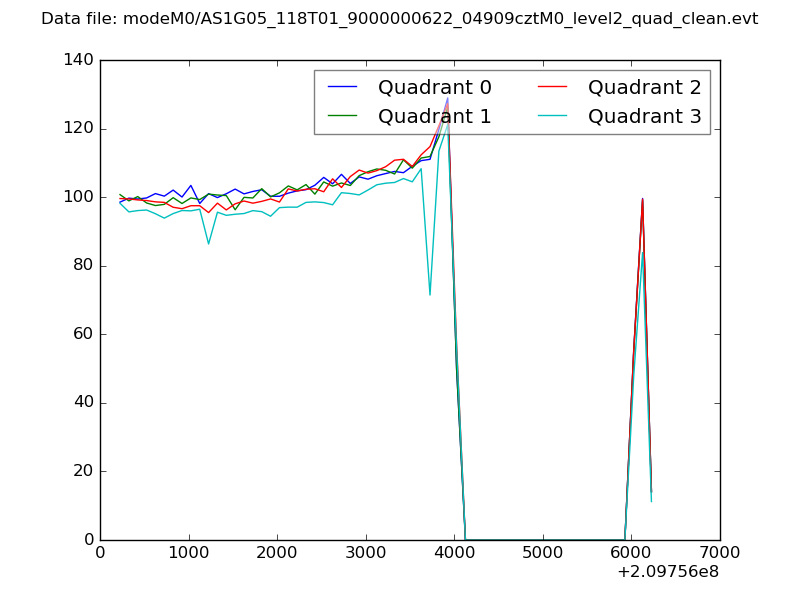

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

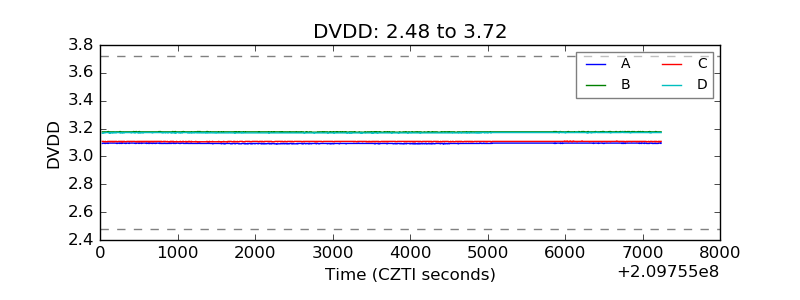

| D_VDD |  |

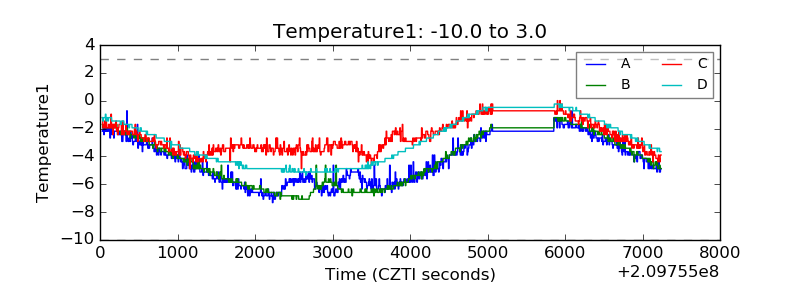

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

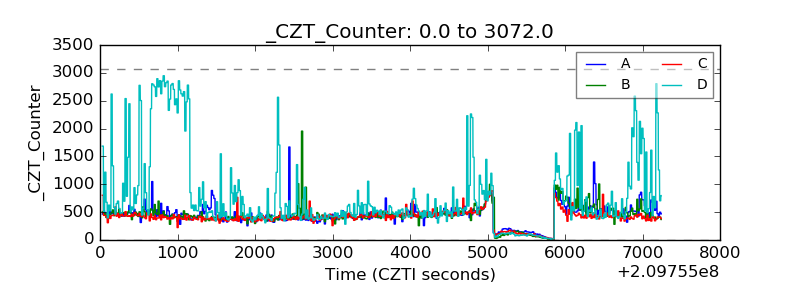

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

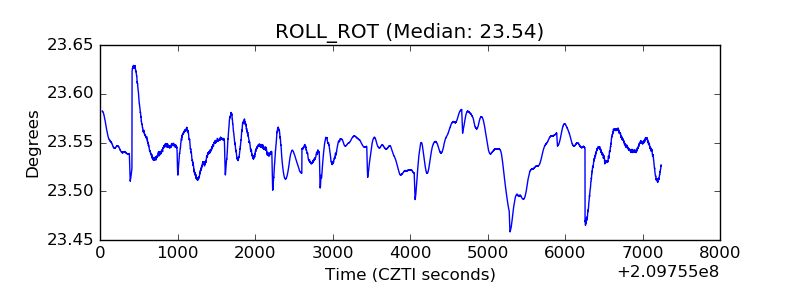

| _ROLL_ROT |  |

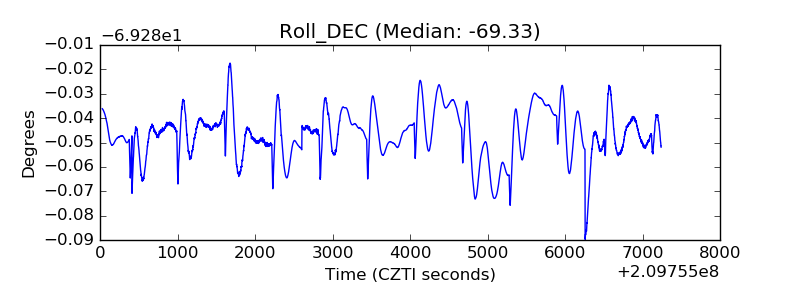

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
