| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_118T01_9000000622_04922cztM0_level2.evt | modeM0/AS1G05_118T01_9000000622_04922cztM0_level2_quad_clean.evt |
| Size (bytes) | 421,937,280 | 67,697,280 |
| Size | 402.4 MB | 64.6 MB |
| Events in quadrant A | 2,870,818 | 414,116 |
| Events in quadrant B | 3,038,440 | 414,896 |
| Events in quadrant C | 2,662,332 | 409,981 |
| Events in quadrant D | 3,798,157 | 390,945 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12411 | 2 |
| B | 0 | 12973 | 1 |
| C | 0 | 12234 | 1 |
| D | 0 | 15321 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6008 | 84 | 1.398136% |
| B | 6008 | 124 | 2.063915% |
| C | 6008 | 67 | 1.115180% |
| D | 6008 | 243 | 4.044607% |

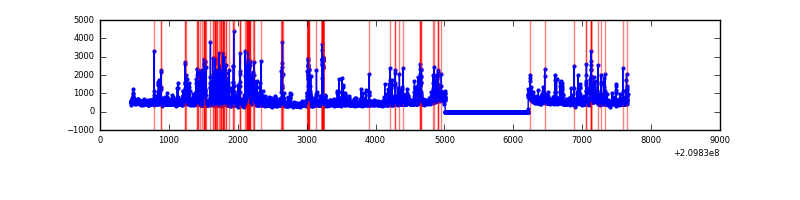

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7213 | 6008 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7213 | 6008 | 38 | 38 | 0.53% | 0.63% |  |
| C | 7213 | 6008 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7213 | 6008 | 157 | 157 | 2.18% | 2.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 112001 | 781.69 | 707 | 690 | 142.4 |
| A | 15 | 31 | 18212 | 123.05 | 707 | 690 | 142.4 |
| A | 0 | 50 | 12346 | 81.86 | 707 | 690 | 142.4 |
| B | 10 | 16 | 174746 | 1311.18 | 710 | 694 | 132.7 |
| B | 4 | 48 | 51963 | 386.22 | 710 | 694 | 132.7 |
| B | 15 | 204 | 25583 | 187.5 | 710 | 694 | 132.7 |
| C | 13 | 61 | 5589 | 31.84 | 680 | 683 | 154.1 |
| C | 8 | 222 | 2461 | 11.54 | 680 | 683 | 154.1 |
| C | 9 | 247 | 2423 | 11.29 | 680 | 683 | 154.1 |
| D | 2 | 33 | 450329 | 2736.98 | 678 | 657 | 164.3 |
| D | 2 | 136 | 276961 | 1681.75 | 678 | 657 | 164.3 |
| D | 2 | 234 | 210040 | 1274.43 | 678 | 657 | 164.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

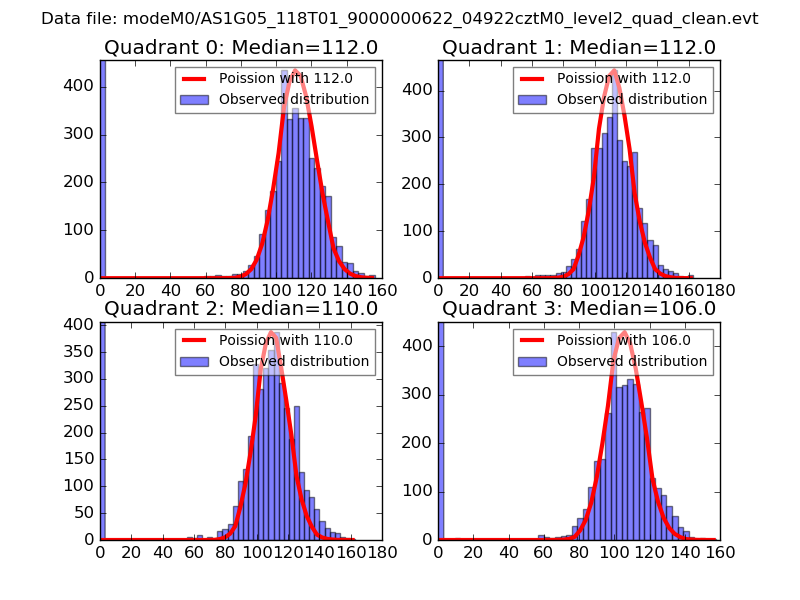

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

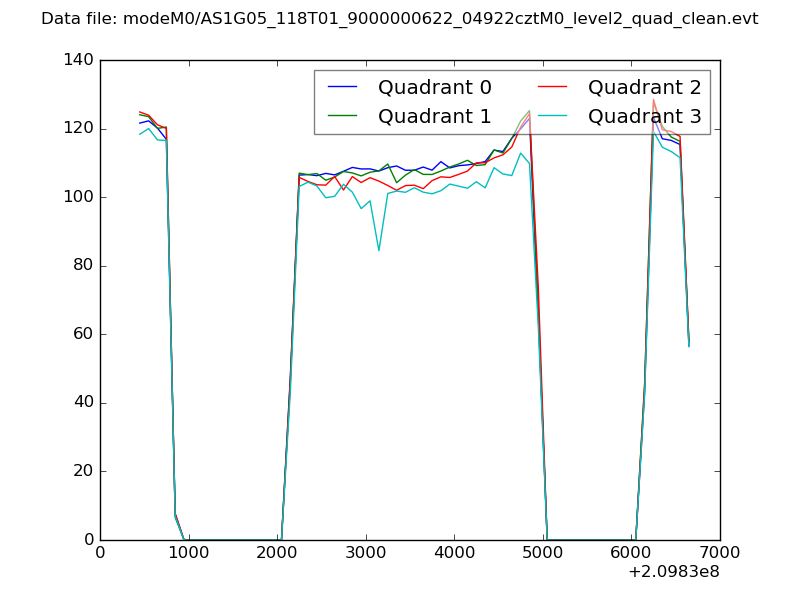

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

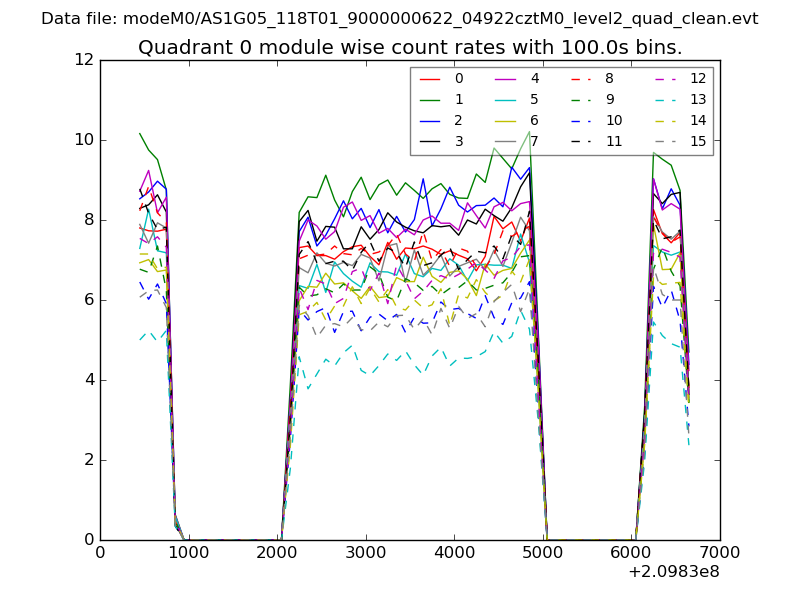

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

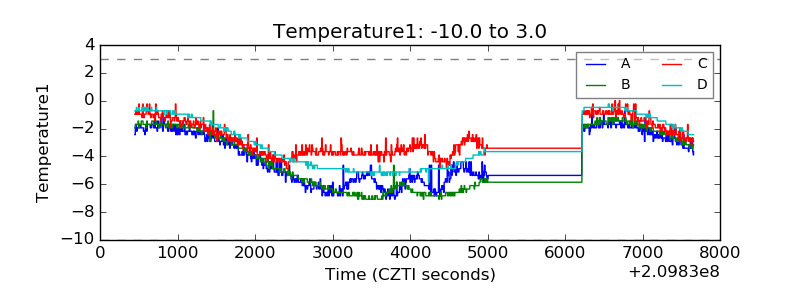

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

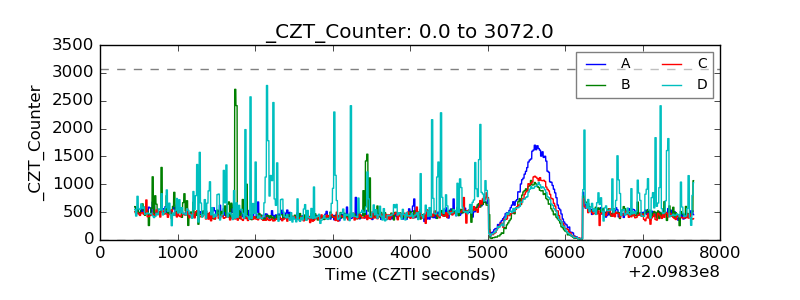

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
