| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_021T01_9000000624_04936cztM0_level2.evt | modeM0/AS1G05_021T01_9000000624_04936cztM0_level2_quad_clean.evt |
| Size (bytes) | 863,475,840 | 86,866,560 |
| Size | 823.5 MB | 82.8 MB |
| Events in quadrant A | 9,784,790 | 352,977 |
| Events in quadrant B | 2,906,348 | 669,711 |
| Events in quadrant C | 8,933,944 | 564,467 |
| Events in quadrant D | 4,126,731 | 627,689 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33031 | 2 |
| B | 0 | 12484 | 1 |
| C | 0 | 30673 | 1 |
| D | 0 | 16325 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5909 | 3177 | 53.765443% |
| B | 5909 | 41 | 0.693857% |
| C | 5909 | 1808 | 30.597394% |
| D | 5909 | 319 | 5.398545% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7213 | 5908 | 3097 | 3097 | 42.94% | 52.42% |  |
| B | 7214 | 5909 | 8 | 8 | 0.11% | 0.14% |  |
| C | 7214 | 5910 | 1825 | 1825 | 25.30% | 30.88% |  |
| D | 7214 | 5910 | 288 | 288 | 3.99% | 4.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 31 | 8175558 | 99369.94 | 399 | 391 | 82.3 |
| A | 0 | 50 | 52310 | 631.08 | 399 | 391 | 82.3 |
| A | 15 | 31 | 7322 | 84.25 | 399 | 391 | 82.3 |
| B | 0 | 219 | 43057 | 324.85 | 697 | 681 | 130.4 |
| B | 15 | 204 | 37679 | 283.62 | 697 | 681 | 130.4 |
| B | 4 | 48 | 33996 | 255.39 | 697 | 681 | 130.4 |
| C | 9 | 247 | 6556058 | 48693.41 | 592 | 594 | 134.6 |
| C | 1 | 16 | 58204 | 427.92 | 592 | 594 | 134.6 |
| C | 12 | 4 | 5036 | 32.99 | 592 | 594 | 134.6 |
| D | 2 | 33 | 1154804 | 7113.88 | 658 | 636 | 162.2 |
| D | 2 | 136 | 99393 | 608.7 | 658 | 636 | 162.2 |
| D | 13 | 235 | 94165 | 576.48 | 658 | 636 | 162.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

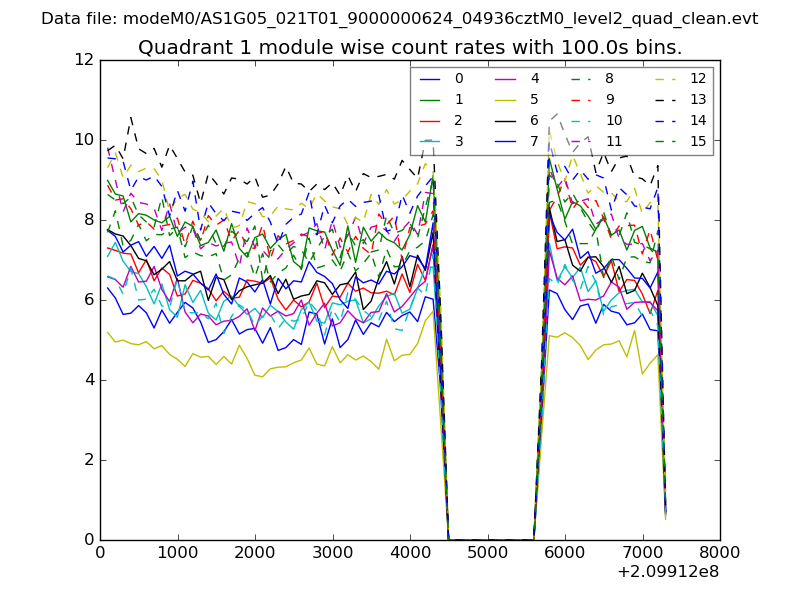

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

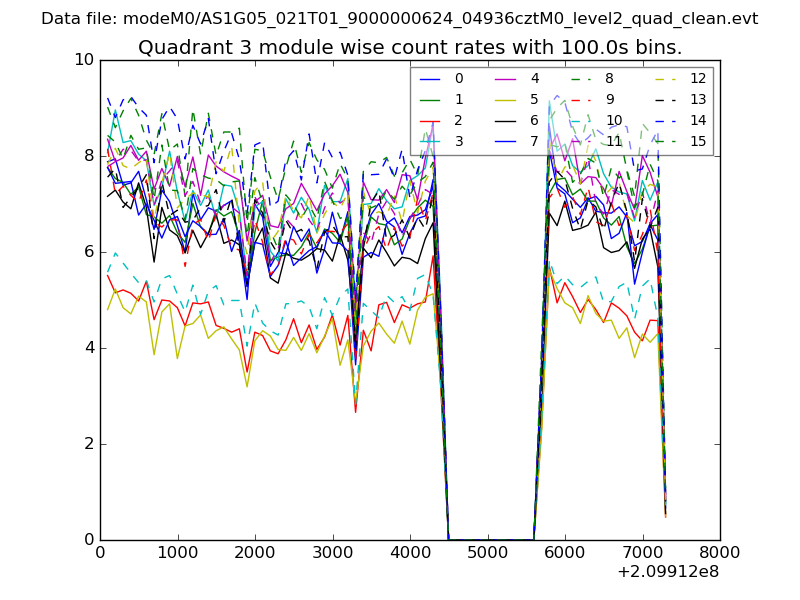

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
