| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_140T01_9000000628_04962cztM0_level2.evt | modeM0/AS1G05_140T01_9000000628_04962cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,976,000 | 90,636,480 |
| Size | 426.3 MB | 86.4 MB |
| Events in quadrant A | 3,185,231 | 577,260 |
| Events in quadrant B | 3,195,083 | 579,810 |
| Events in quadrant C | 3,048,523 | 582,563 |
| Events in quadrant D | 3,667,440 | 553,191 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13720 | 3 |
| B | 0 | 13664 | 2 |
| C | 0 | 13464 | 2 |
| D | 0 | 15202 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6478 | 98 | 1.512813% |
| B | 6478 | 95 | 1.466502% |
| C | 6478 | 83 | 1.281260% |
| D | 6478 | 144 | 2.222908% |

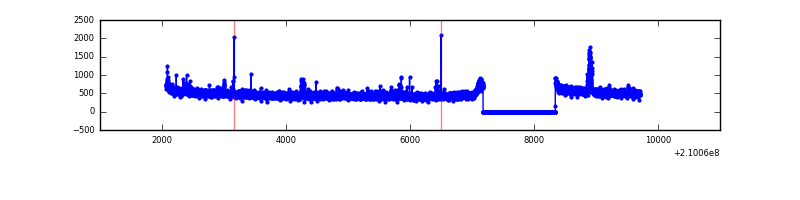

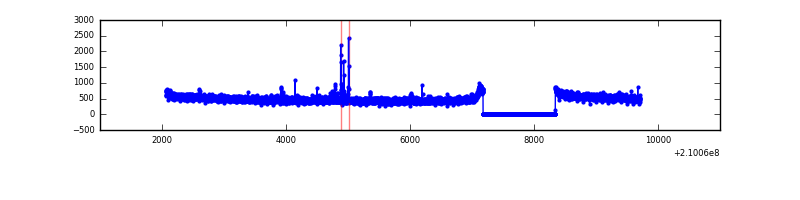

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7643 | 6478 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7643 | 6478 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7643 | 6478 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7643 | 6478 | 67 | 67 | 0.88% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 52435 | 314.7 | 801 | 785 | 164.1 |
| A | 4 | 2 | 43200 | 258.43 | 801 | 785 | 164.1 |
| A | 12 | 194 | 8041 | 44.21 | 801 | 785 | 164.1 |
| B | 15 | 204 | 33395 | 214.06 | 803 | 785 | 152.3 |
| B | 4 | 48 | 18737 | 117.84 | 803 | 785 | 152.3 |
| B | 0 | 219 | 17715 | 111.13 | 803 | 785 | 152.3 |
| C | 13 | 61 | 6216 | 30.46 | 781 | 784 | 178.3 |
| C | 3 | 202 | 1998 | 6.81 | 781 | 784 | 178.3 |
| C | 14 | 67 | 1936 | 6.46 | 781 | 784 | 178.3 |
| D | 2 | 136 | 208593 | 1095.94 | 778 | 754 | 189.6 |
| D | 2 | 33 | 156562 | 821.58 | 778 | 754 | 189.6 |
| D | 7 | 67 | 57614 | 299.82 | 778 | 754 | 189.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

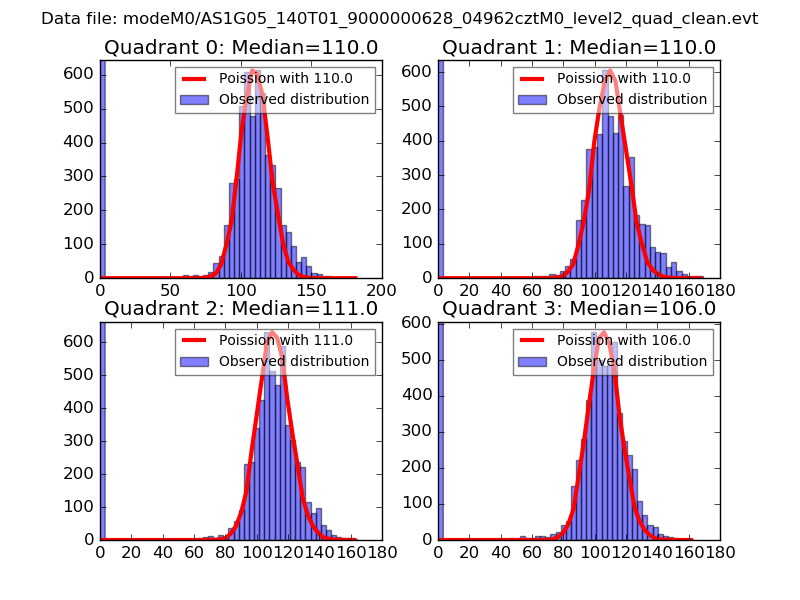

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

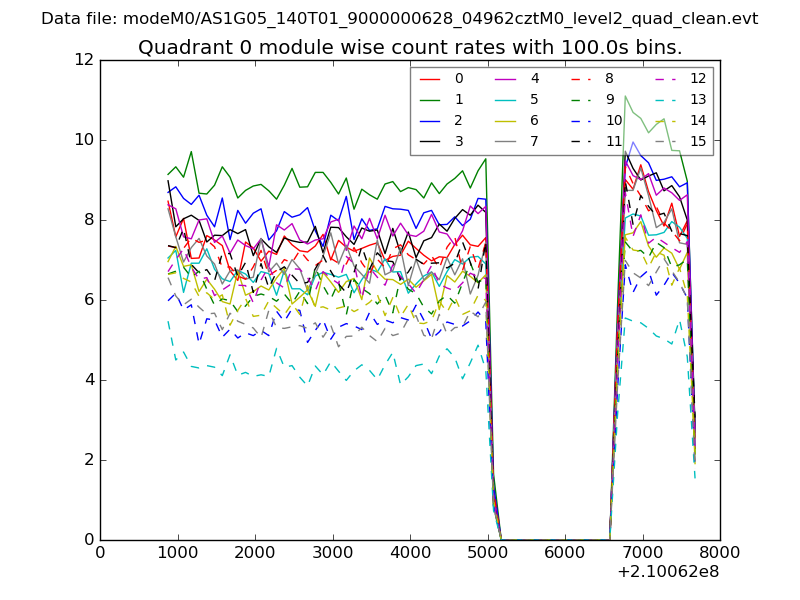

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

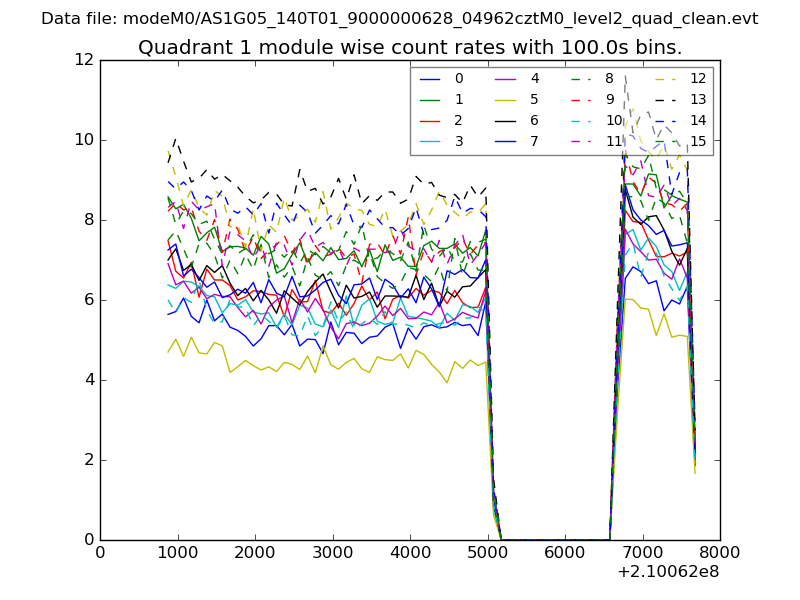

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

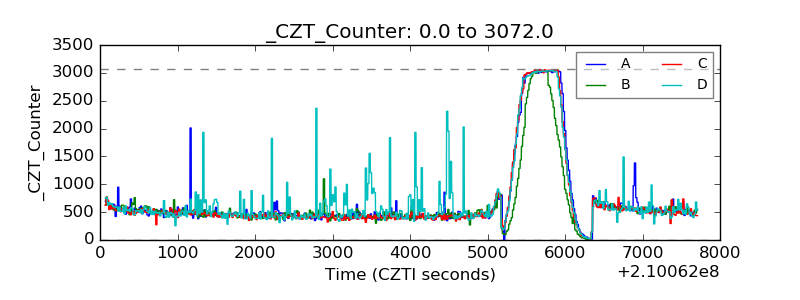

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

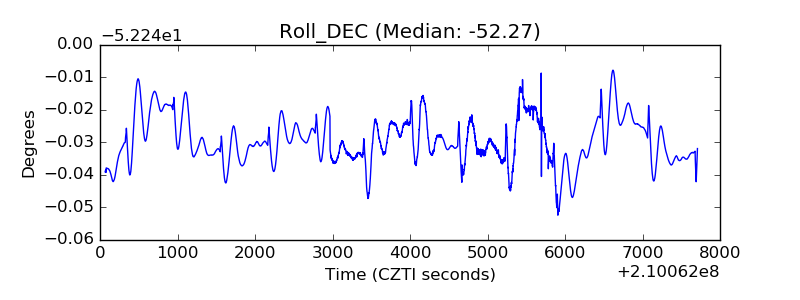

| _Roll_DEC |  |

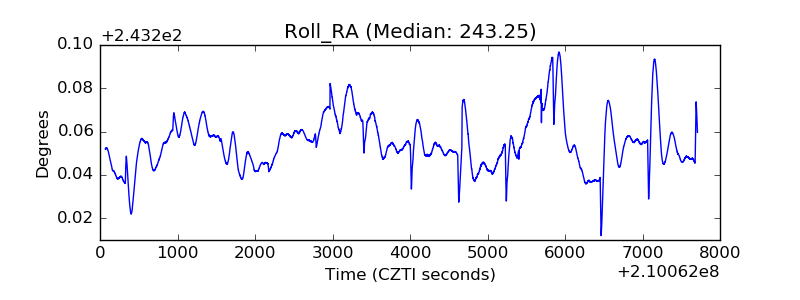

| _Roll_RA |  |
| Veto Counter |  |
