| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_158T01_9000000630_04978cztM0_level2.evt | modeM0/AS1G05_158T01_9000000630_04978cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,961,920 | 83,615,040 |
| Size | 481.6 MB | 79.7 MB |
| Events in quadrant A | 3,389,229 | 534,604 |
| Events in quadrant B | 3,323,616 | 540,617 |
| Events in quadrant C | 3,100,295 | 538,223 |
| Events in quadrant D | 5,057,722 | 484,360 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13942 | 3 |
| B | 0 | 13708 | 2 |
| C | 0 | 13190 | 2 |
| D | 0 | 19185 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6226 | 119 | 1.911340% |
| B | 6226 | 91 | 1.461613% |
| C | 6226 | 71 | 1.140379% |
| D | 6226 | 617 | 9.910055% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

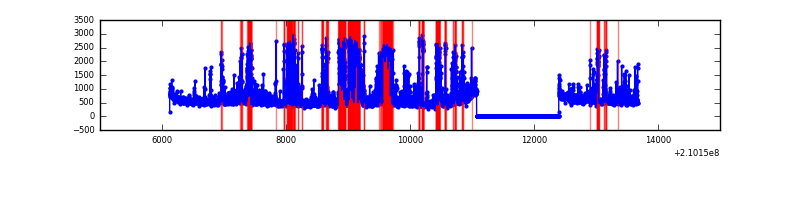

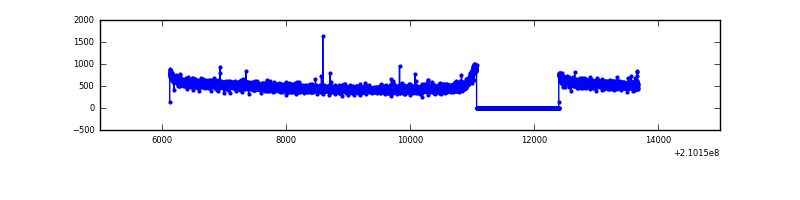

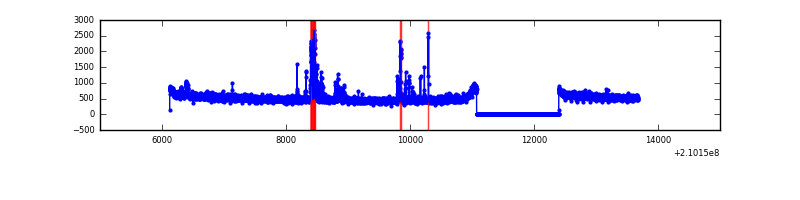

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 6226 | 33 | 33 | 0.44% | 0.53% |  |
| B | 7551 | 6226 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7551 | 6226 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7551 | 6226 | 548 | 548 | 7.26% | 8.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 192755 | 1163.08 | 820 | 805 | 165.0 |
| A | 15 | 234 | 27314 | 160.63 | 820 | 805 | 165.0 |
| A | 8 | 15 | 10894 | 61.13 | 820 | 805 | 165.0 |
| B | 0 | 219 | 83788 | 540.62 | 821 | 805 | 153.5 |
| B | 0 | 183 | 25138 | 158.52 | 821 | 805 | 153.5 |
| B | 15 | 54 | 19803 | 123.77 | 821 | 805 | 153.5 |
| C | 1 | 16 | 8600 | 43.18 | 791 | 798 | 180.7 |
| C | 13 | 61 | 6415 | 31.09 | 791 | 798 | 180.7 |
| C | 9 | 54 | 3379 | 14.29 | 791 | 798 | 180.7 |
| D | 2 | 33 | 1065233 | 5624.13 | 771 | 746 | 189.3 |
| D | 13 | 235 | 278972 | 1469.98 | 771 | 746 | 189.3 |
| D | 13 | 53 | 143635 | 754.94 | 771 | 746 | 189.3 |

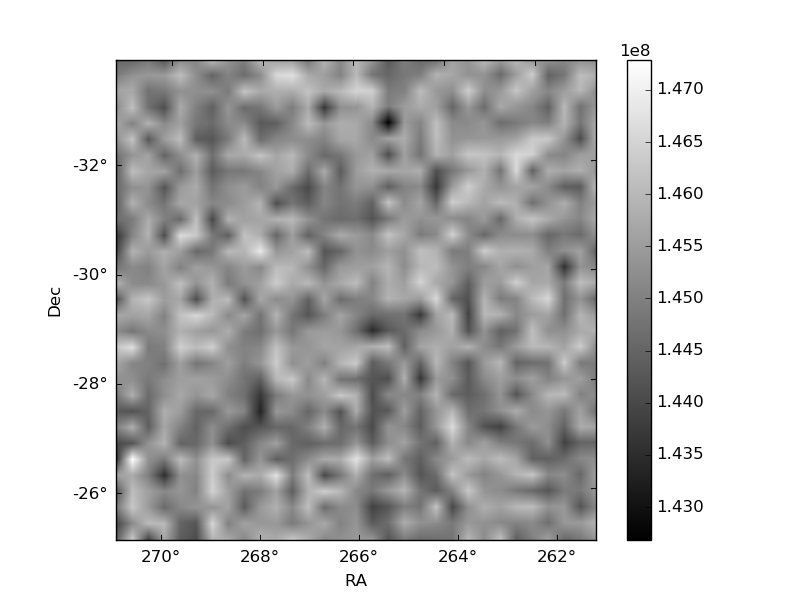

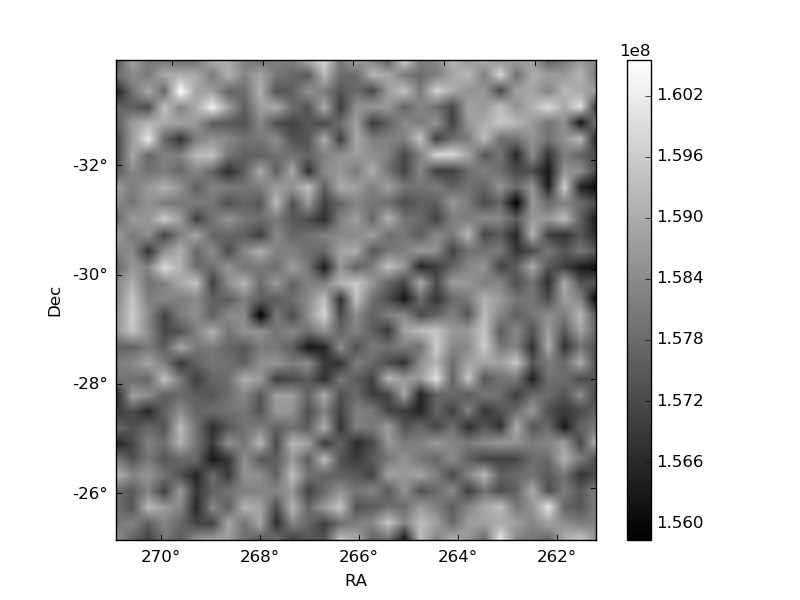

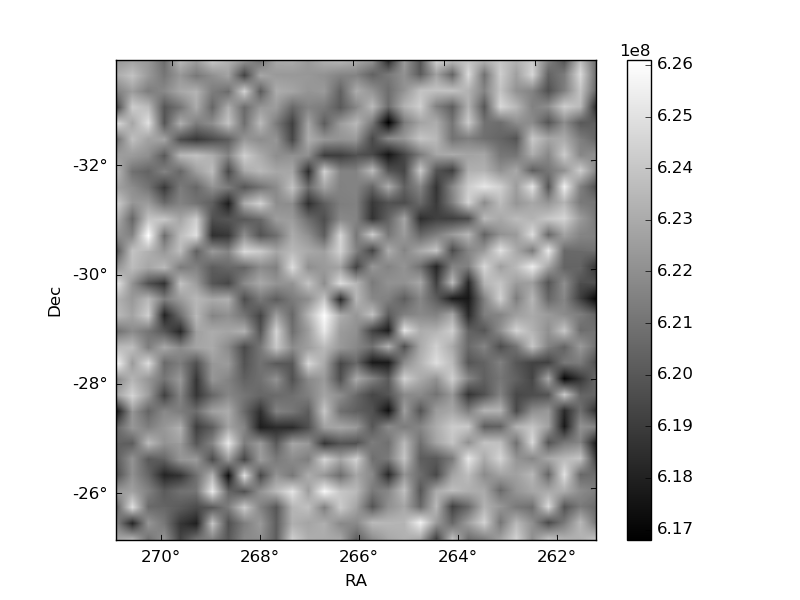

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

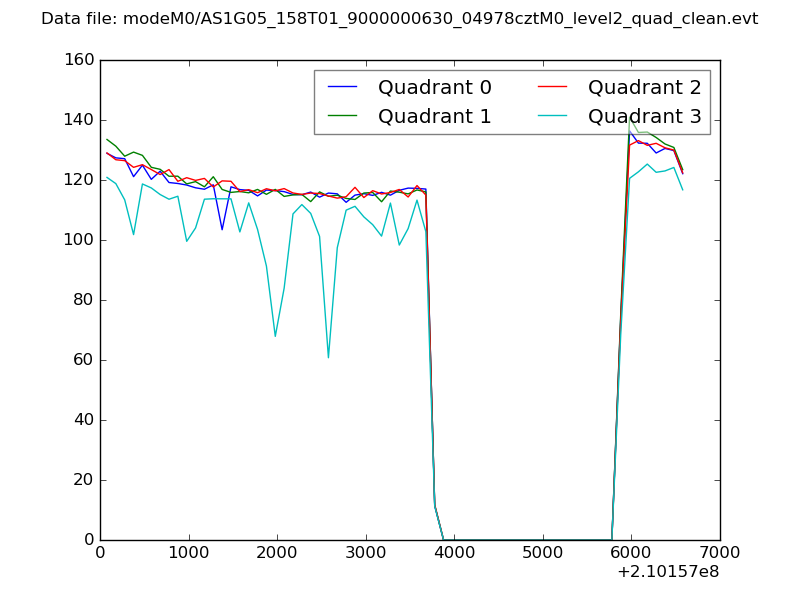

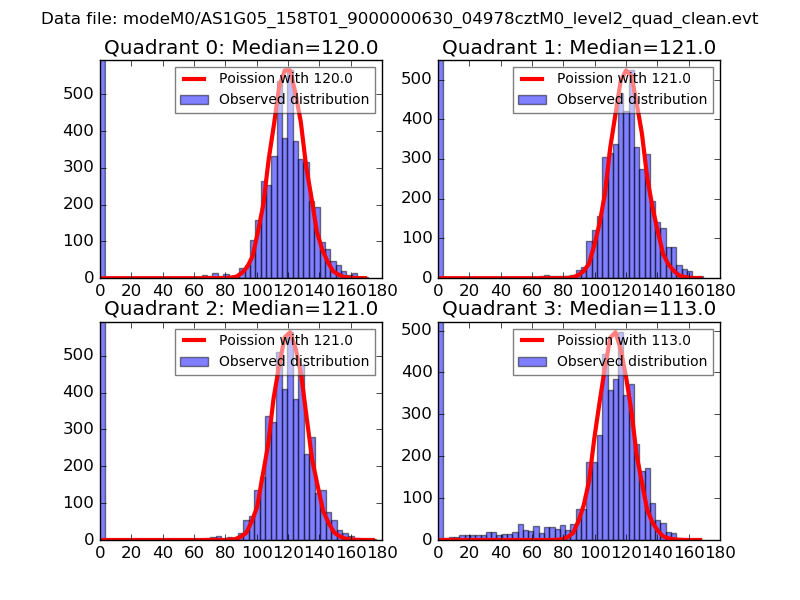

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

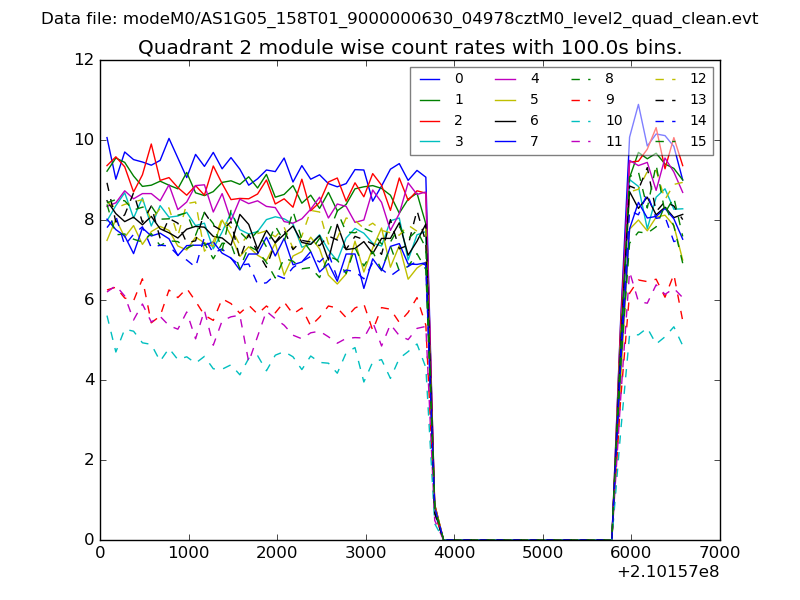

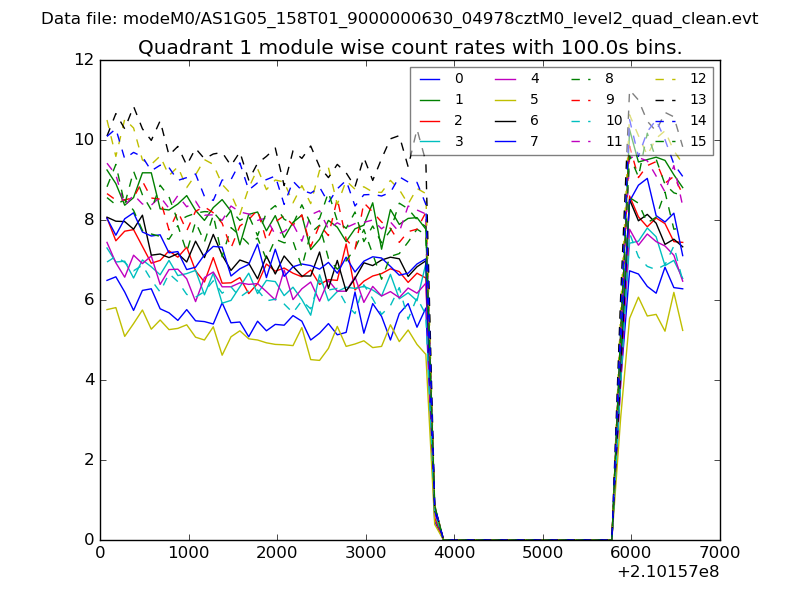

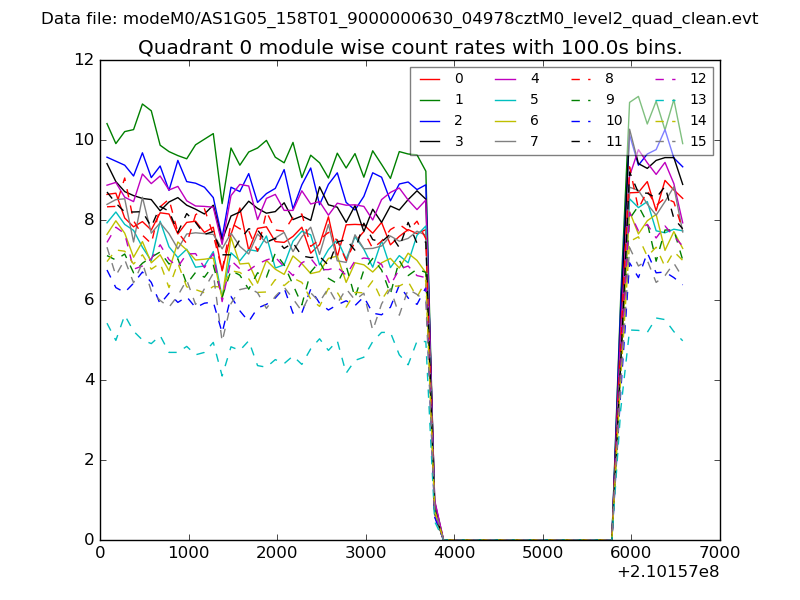

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

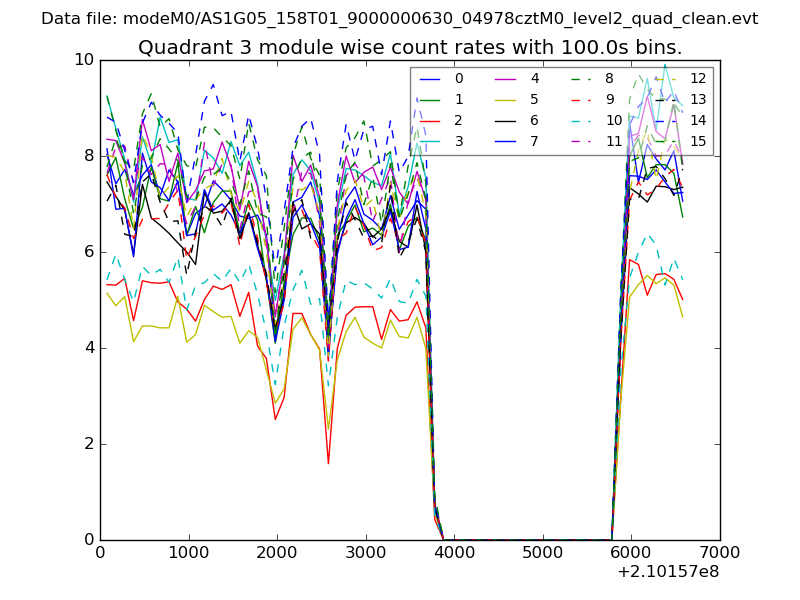

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

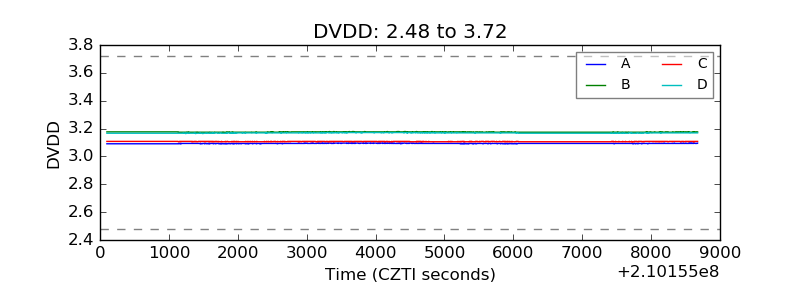

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

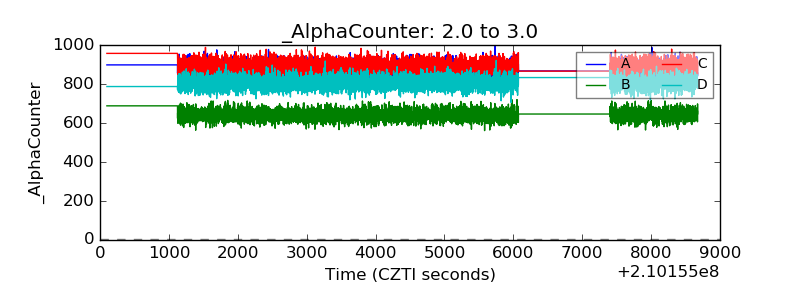

| Alpha Counter |  |

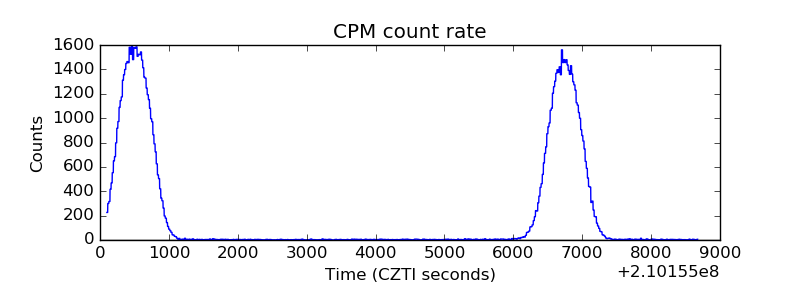

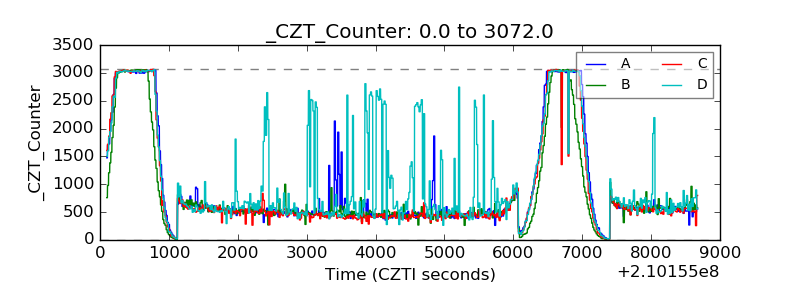

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

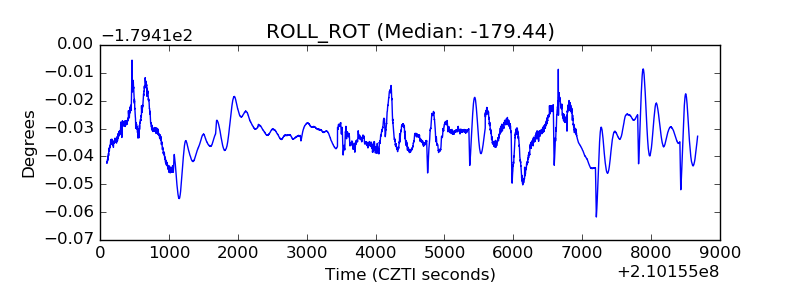

| _ROLL_ROT |  |

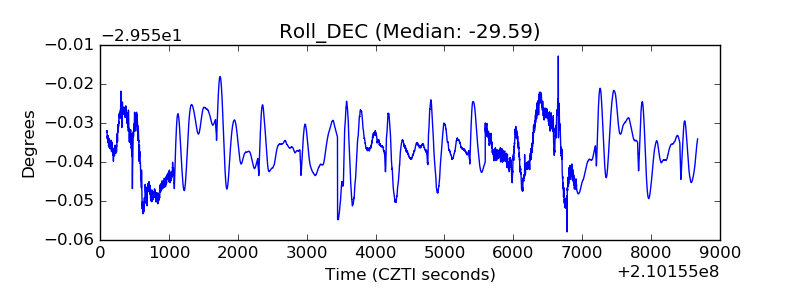

| _Roll_DEC |  |

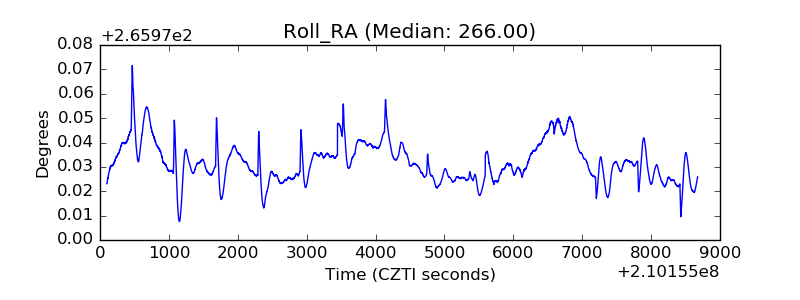

| _Roll_RA |  |

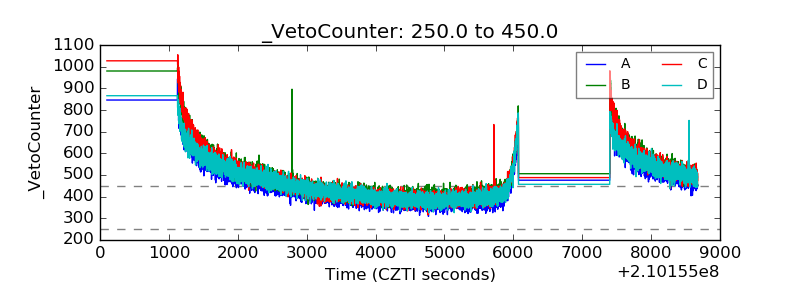

| Veto Counter |  |
