| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_115T01_9000000634_04991cztM0_level2.evt | modeM0/AS1G05_115T01_9000000634_04991cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,060,079,040 | 192,156,480 |
| Size | 1011.0 MB | 183.3 MB |
| Events in quadrant A | 7,447,748 | 1,184,968 |
| Events in quadrant B | 7,623,766 | 1,202,801 |
| Events in quadrant C | 7,046,362 | 1,211,486 |
| Events in quadrant D | 8,930,009 | 1,143,056 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 33 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33099 | 4 |
| B | 0 | 33095 | 3 |
| C | 0 | 32033 | 3 |
| D | 0 | 37326 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15616 | 141 | 0.902920% |
| B | 15616 | 82 | 0.525102% |
| C | 15616 | 47 | 0.300973% |
| D | 15616 | 442 | 2.830430% |

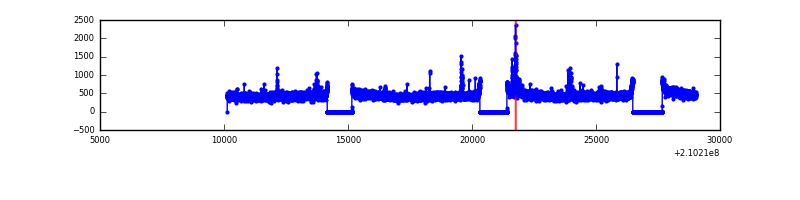

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18890 | 15617 | 78 | 78 | 0.41% | 0.50% |  |
| B | 18891 | 15619 | 16 | 16 | 0.08% | 0.10% |  |
| C | 18891 | 15619 | 3 | 3 | 0.02% | 0.02% |  |
| D | 18891 | 15619 | 368 | 368 | 1.95% | 2.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 461460 | 1250.25 | 1803 | 1761 | 367.7 |
| A | 0 | 50 | 38828 | 100.81 | 1803 | 1761 | 367.7 |
| A | 12 | 194 | 18214 | 44.75 | 1803 | 1761 | 367.7 |
| B | 0 | 219 | 415296 | 1202.99 | 1815 | 1773 | 343.7 |
| B | 15 | 204 | 70309 | 199.38 | 1815 | 1773 | 343.7 |
| B | 15 | 54 | 37286 | 103.31 | 1815 | 1773 | 343.7 |
| C | 12 | 4 | 100243 | 242.19 | 1777 | 1783 | 406.5 |
| C | 13 | 61 | 14332 | 30.87 | 1777 | 1783 | 406.5 |
| C | 1 | 16 | 6888 | 12.56 | 1777 | 1783 | 406.5 |
| D | 13 | 235 | 682977 | 1593.57 | 1759 | 1707 | 427.5 |
| D | 2 | 33 | 443393 | 1033.15 | 1759 | 1707 | 427.5 |
| D | 2 | 136 | 314534 | 731.74 | 1759 | 1707 | 427.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

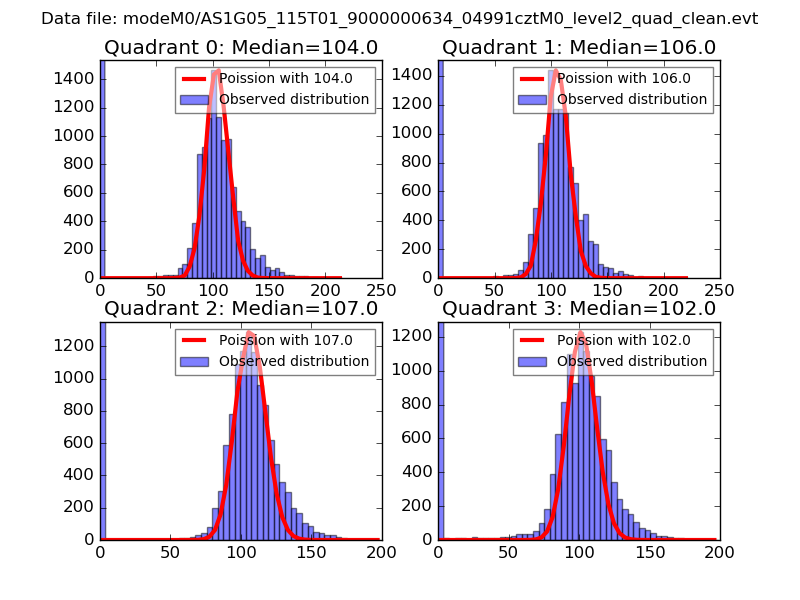

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

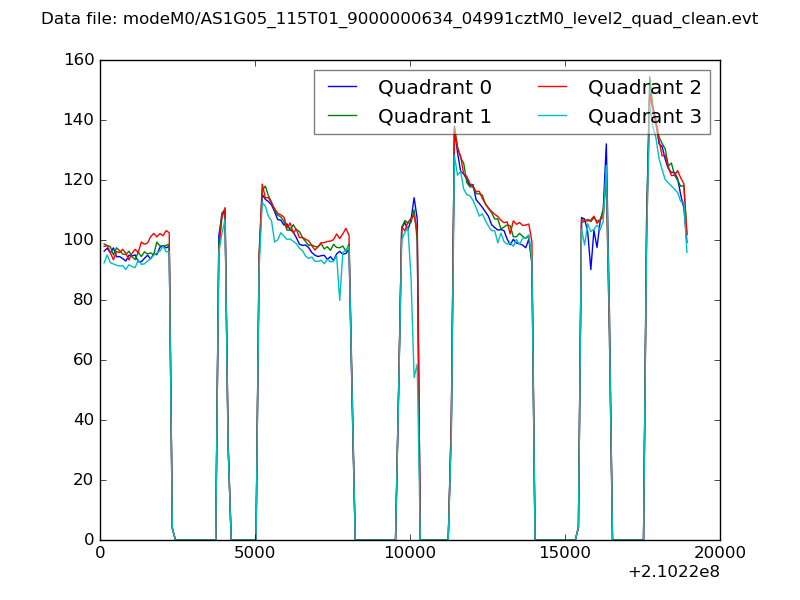

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

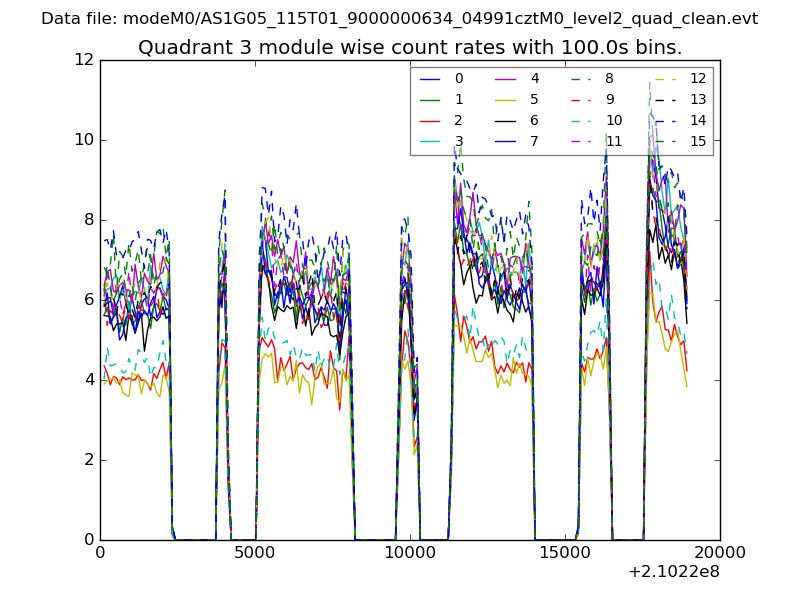

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

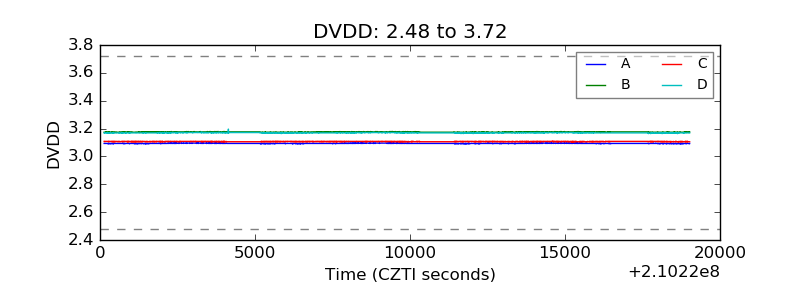

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

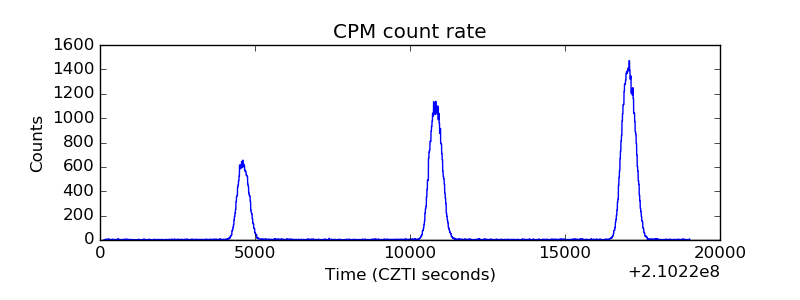

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

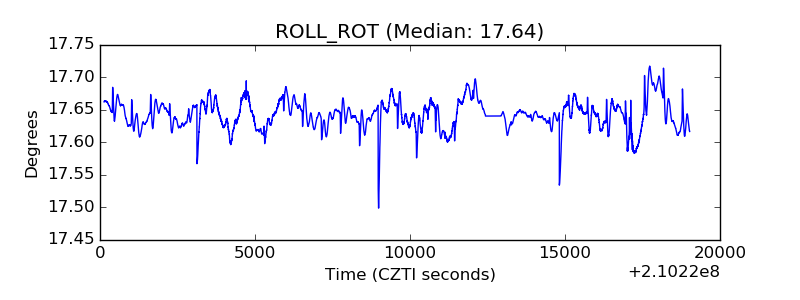

| _ROLL_ROT |  |
| _Roll_DEC |  |

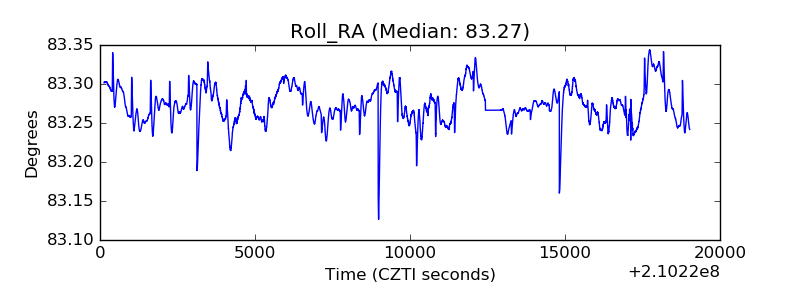

| _Roll_RA |  |
| Veto Counter |  |
