| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_115T01_9000000634_04992cztM0_level2.evt | modeM0/AS1G05_115T01_9000000634_04992cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,824,960 | 90,529,920 |
| Size | 419.4 MB | 86.3 MB |
| Events in quadrant A | 3,260,853 | 575,141 |
| Events in quadrant B | 3,179,986 | 583,856 |
| Events in quadrant C | 2,958,366 | 584,909 |
| Events in quadrant D | 3,490,709 | 555,796 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13801 | 2 |
| B | 0 | 13505 | 1 |
| C | 0 | 12997 | 1 |
| D | 0 | 14698 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6326 | 72 | 1.138160% |
| B | 6326 | 28 | 0.442618% |
| C | 6326 | 17 | 0.268732% |
| D | 6326 | 115 | 1.817894% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7626 | 6327 | 40 | 40 | 0.52% | 0.63% |  |
| B | 7626 | 6327 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7626 | 6327 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7626 | 6327 | 74 | 74 | 0.97% | 1.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 167211 | 1079.9 | 772 | 756 | 154.1 |
| A | 0 | 50 | 112950 | 727.87 | 772 | 756 | 154.1 |
| A | 12 | 194 | 7828 | 45.88 | 772 | 756 | 154.1 |
| B | 0 | 219 | 112193 | 772.63 | 770 | 754 | 144.2 |
| B | 7 | 252 | 35685 | 242.18 | 770 | 754 | 144.2 |
| B | 15 | 204 | 33047 | 223.89 | 770 | 754 | 144.2 |
| C | 13 | 61 | 6127 | 31.08 | 757 | 762 | 172.6 |
| C | 1 | 16 | 3577 | 16.31 | 757 | 762 | 172.6 |
| C | 3 | 202 | 2017 | 7.27 | 757 | 762 | 172.6 |
| D | 2 | 33 | 172738 | 944.69 | 758 | 737 | 182.1 |
| D | 12 | 233 | 124548 | 680.02 | 758 | 737 | 182.1 |
| D | 12 | 22 | 87235 | 475.08 | 758 | 737 | 182.1 |

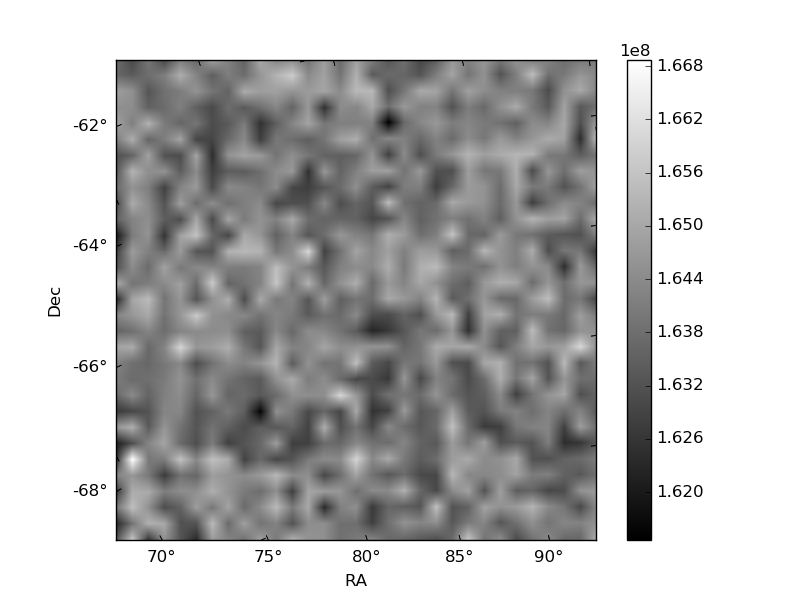

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

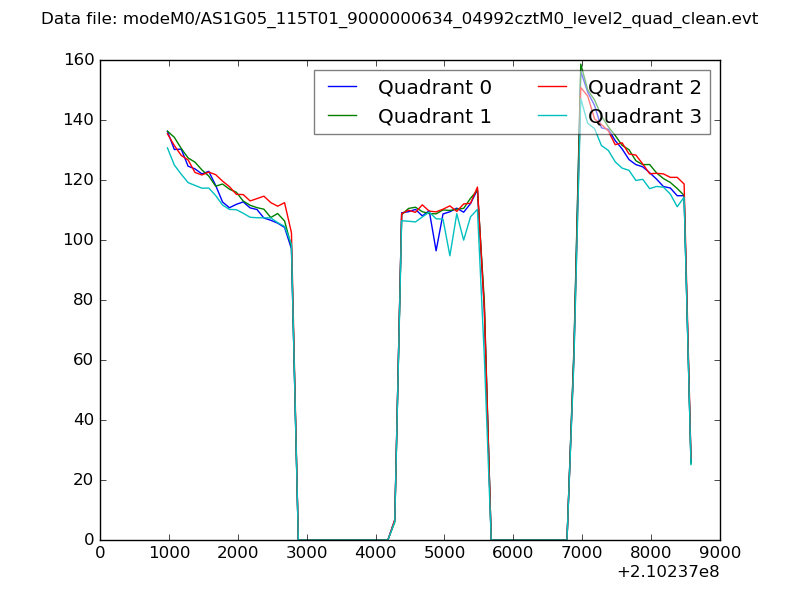

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

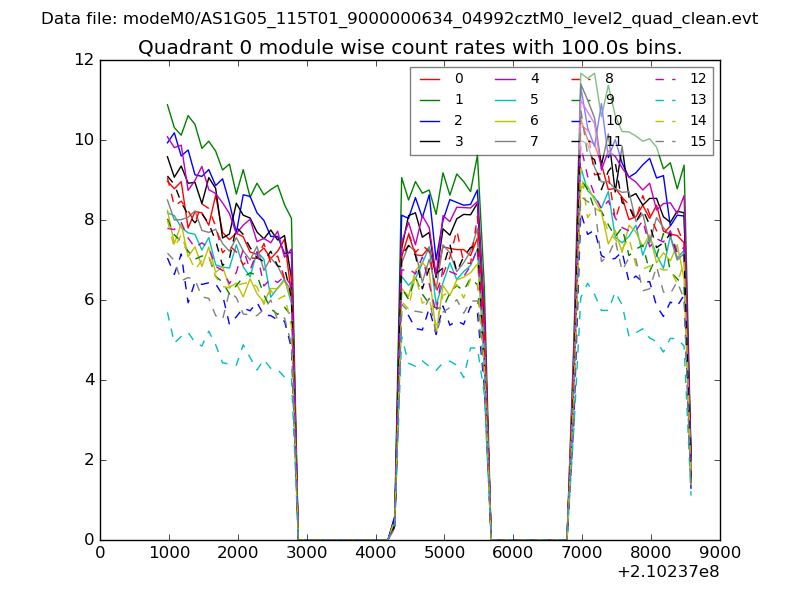

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

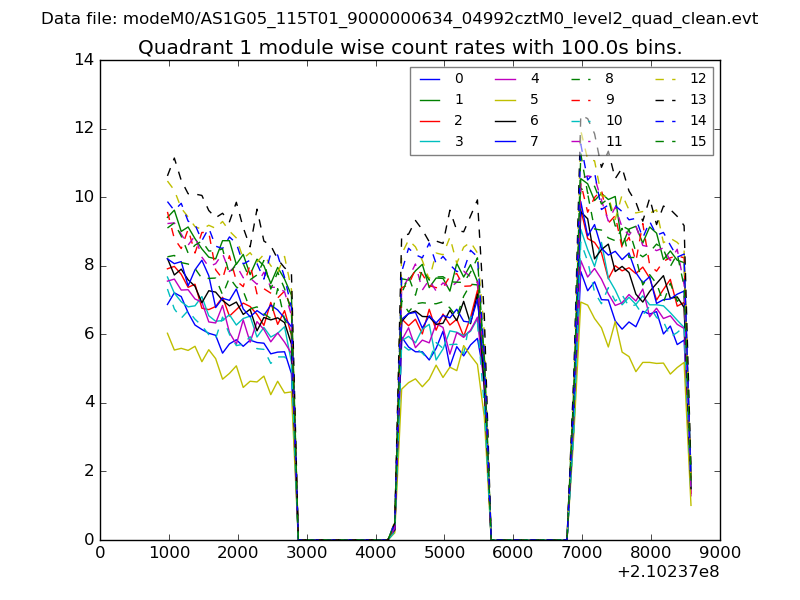

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

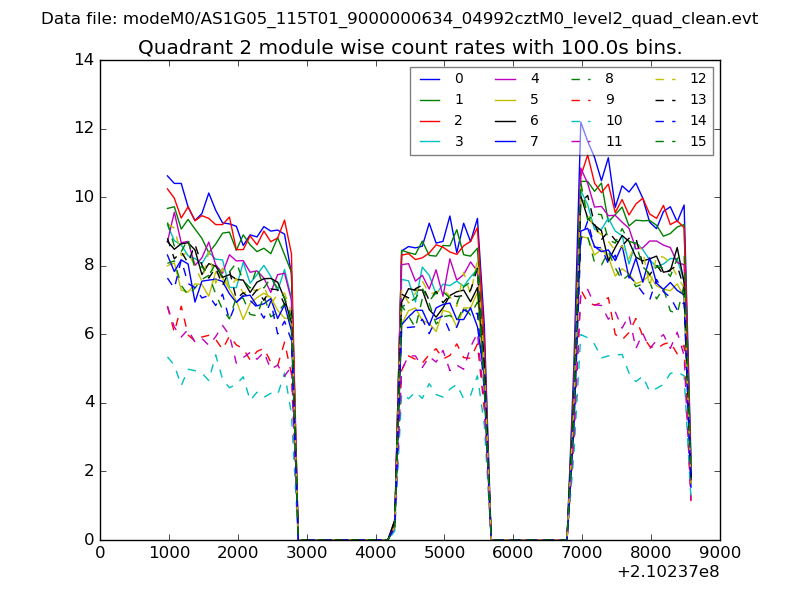

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

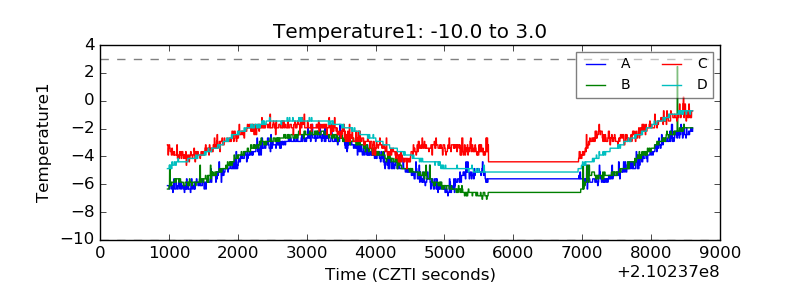

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

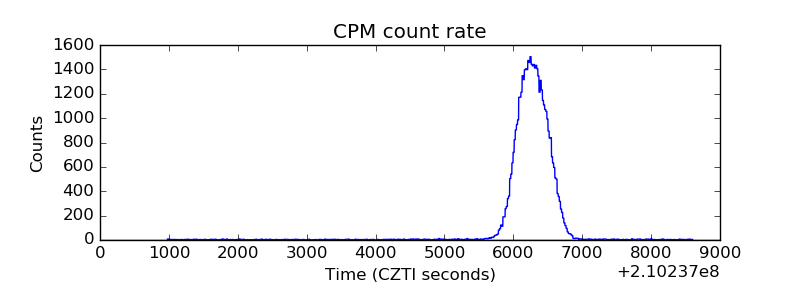

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

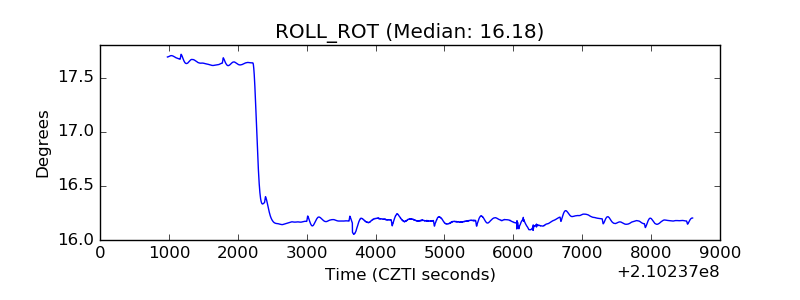

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
