| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_135T01_9000000632_04982cztM0_level2.evt | modeM0/AS1T01_135T01_9000000632_04982cztM0_level2_quad_clean.evt |
| Size (bytes) | 596,059,200 | 90,247,680 |
| Size | 568.4 MB | 86.1 MB |
| Events in quadrant A | 3,844,154 | 567,719 |
| Events in quadrant B | 4,090,257 | 565,710 |
| Events in quadrant C | 3,839,134 | 543,113 |
| Events in quadrant D | 5,730,183 | 494,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16916 | 3 |
| B | 0 | 17489 | 2 |
| C | 0 | 17025 | 2 |
| D | 0 | 22627 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8078 | 243 | 3.008170% |
| B | 8078 | 258 | 3.193860% |
| C | 8078 | 232 | 2.871998% |
| D | 8078 | 745 | 9.222580% |

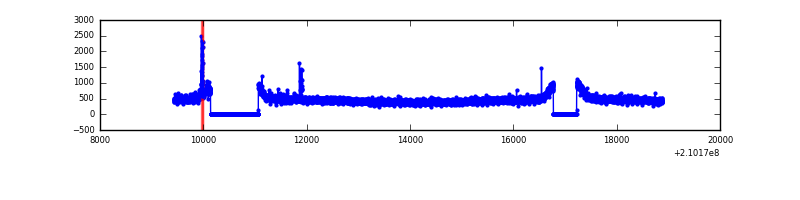

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9452 | 8077 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9452 | 8077 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9453 | 8078 | 5 | 5 | 0.05% | 0.06% |  |
| D | 9452 | 8077 | 547 | 547 | 5.79% | 6.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 9934 | 44.01 | 996 | 974 | 203.6 |
| A | 0 | 226 | 9588 | 42.31 | 996 | 974 | 203.6 |
| A | 8 | 15 | 7653 | 32.81 | 996 | 974 | 203.6 |
| B | 0 | 219 | 183301 | 931.32 | 1002 | 977 | 195.8 |
| B | 12 | 111 | 18276 | 88.36 | 1002 | 977 | 195.8 |
| B | 15 | 54 | 15474 | 74.05 | 1002 | 977 | 195.8 |
| C | 1 | 16 | 45412 | 195.37 | 969 | 972 | 227.5 |
| C | 10 | 21 | 10035 | 39.84 | 969 | 972 | 227.5 |
| C | 13 | 61 | 7818 | 30.1 | 969 | 972 | 227.5 |
| D | 13 | 235 | 1555824 | 6621.16 | 948 | 917 | 234.8 |
| D | 4 | 95 | 197449 | 836.88 | 948 | 917 | 234.8 |
| D | 13 | 239 | 124003 | 524.13 | 948 | 917 | 234.8 |

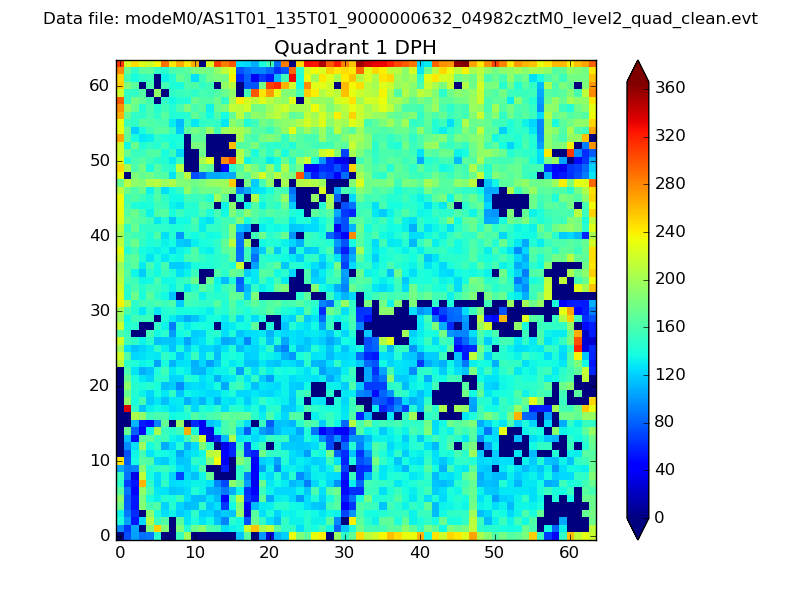

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

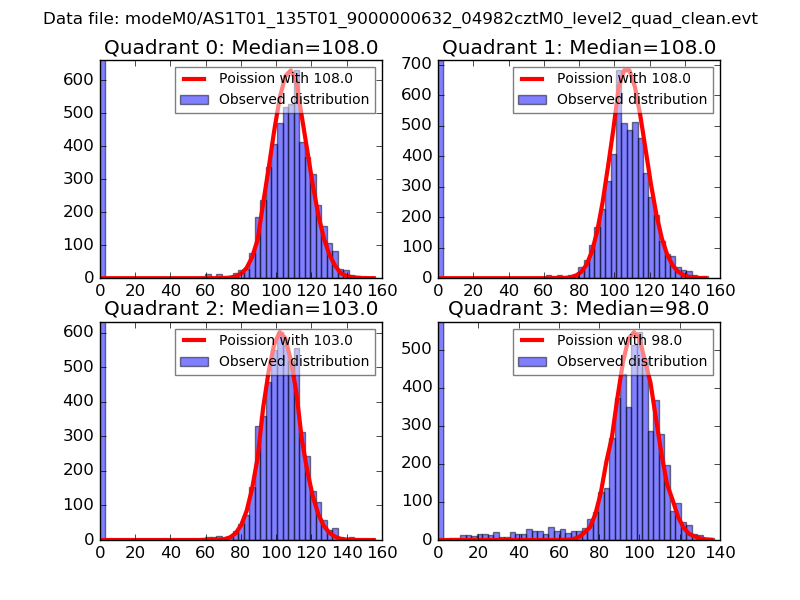

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

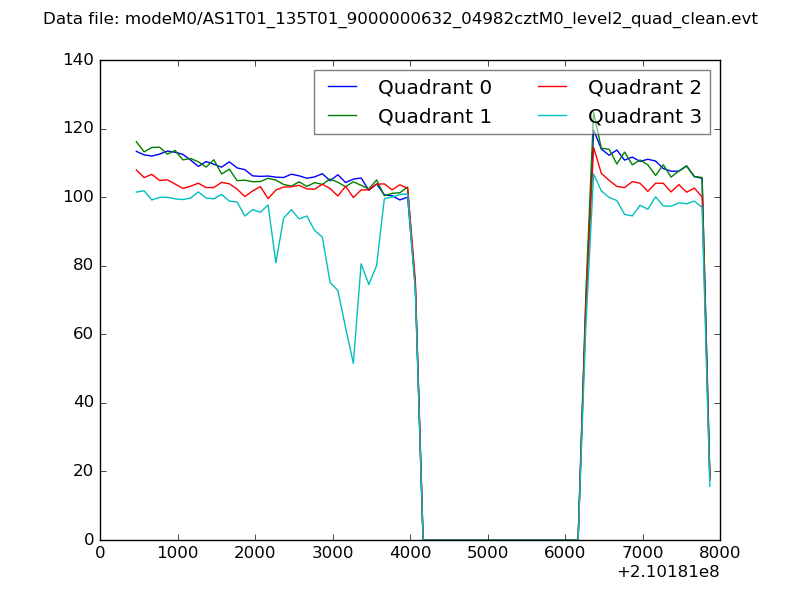

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

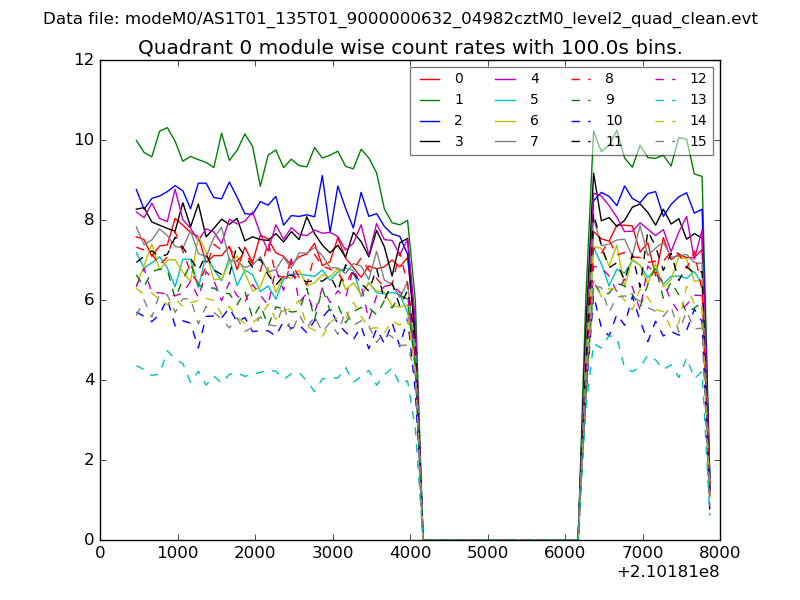

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

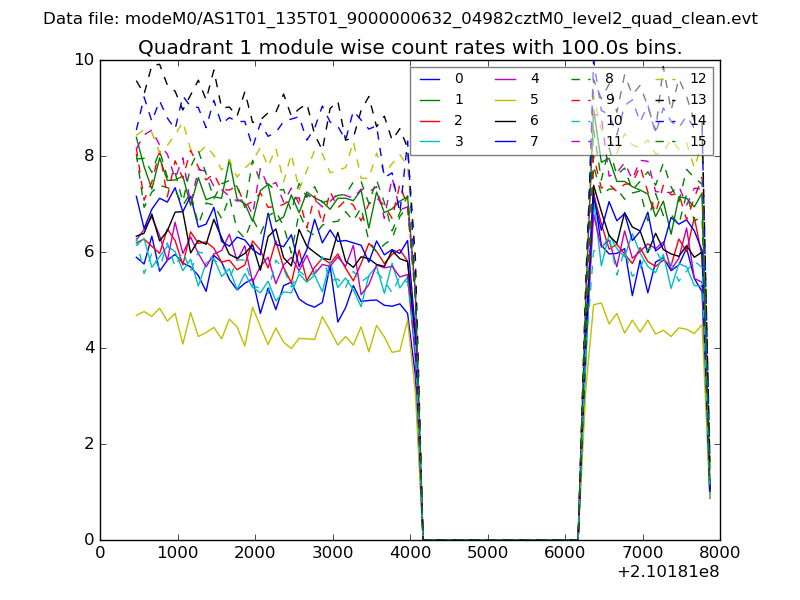

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

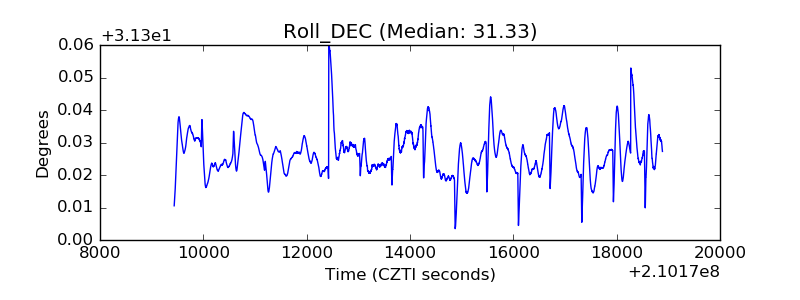

| _Roll_DEC |  |

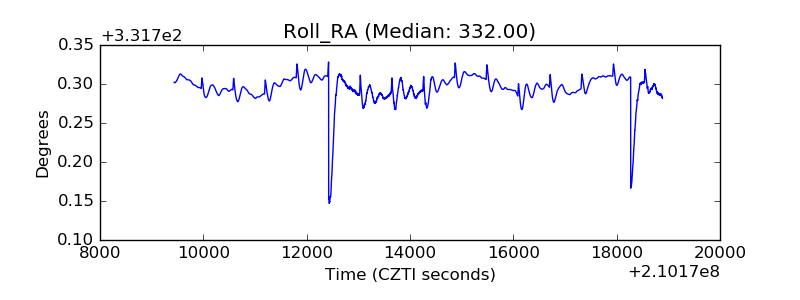

| _Roll_RA |  |
| Veto Counter |  |
