| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_132T01_9000000636_04999cztM0_level2.evt | modeM0/AS1T01_132T01_9000000636_04999cztM0_level2_quad_clean.evt |
| Size (bytes) | 115,012,800 | 14,028,480 |
| Size | 109.7 MB | 13.4 MB |
| Events in quadrant A | 775,725 | 75,825 |
| Events in quadrant B | 888,510 | 77,758 |
| Events in quadrant C | 773,994 | 78,511 |
| Events in quadrant D | 930,397 | 71,515 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 50 | 12 |
| B | 0 | 50 | 10 |
| C | 0 | 50 | 12 |
| D | 0 | 50 | 10 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4863 | 1521 |
| B | 0 | 5427 | 1767 |
| C | 0 | 4793 | 1367 |
| D | 0 | 6076 | 2254 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1624 | 10 | 0.615764% |
| B | 1615 | 40 | 2.476780% |
| C | 1677 | 10 | 0.596303% |
| D | 1550 | 33 | 2.129032% |

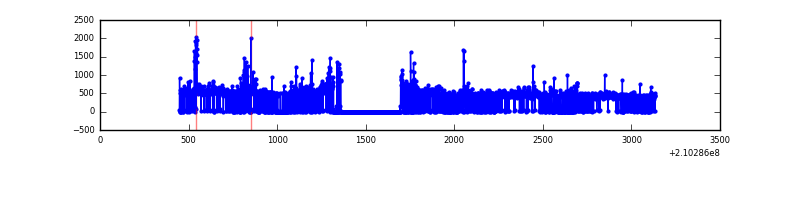

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2692 | 2069 | 1 | 1 | 0.04% | 0.05% |  |
| B | 2688 | 2048 | 2 | 2 | 0.07% | 0.10% |  |
| C | 2692 | 2096 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2688 | 1999 | 13 | 13 | 0.48% | 0.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 4278 | 92.93 | 199 | 193 | 44.0 |
| A | 15 | 174 | 2836 | 60.12 | 199 | 193 | 44.0 |
| A | 0 | 226 | 1912 | 39.1 | 199 | 193 | 44.0 |
| B | 0 | 219 | 47951 | 1151.25 | 198 | 193 | 41.5 |
| B | 8 | 3 | 23118 | 552.63 | 198 | 193 | 41.5 |
| B | 15 | 204 | 16983 | 404.74 | 198 | 193 | 41.5 |
| C | 12 | 4 | 3780 | 75.21 | 196 | 197 | 47.6 |
| C | 13 | 61 | 1653 | 30.56 | 196 | 197 | 47.6 |
| C | 7 | 159 | 1574 | 28.9 | 196 | 197 | 47.6 |
| D | 13 | 235 | 54750 | 1175.94 | 181 | 175 | 46.4 |
| D | 2 | 136 | 52687 | 1131.49 | 181 | 175 | 46.4 |
| D | 2 | 33 | 43665 | 937.09 | 181 | 175 | 46.4 |

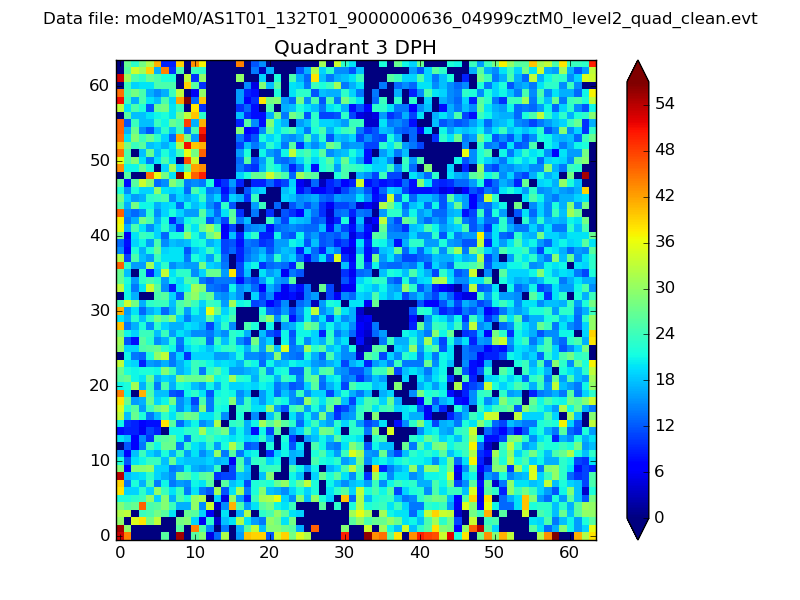

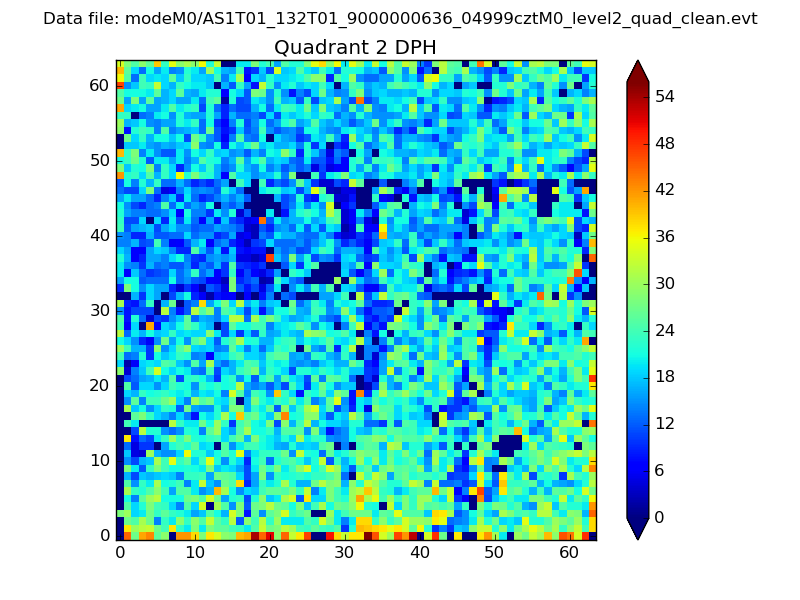

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

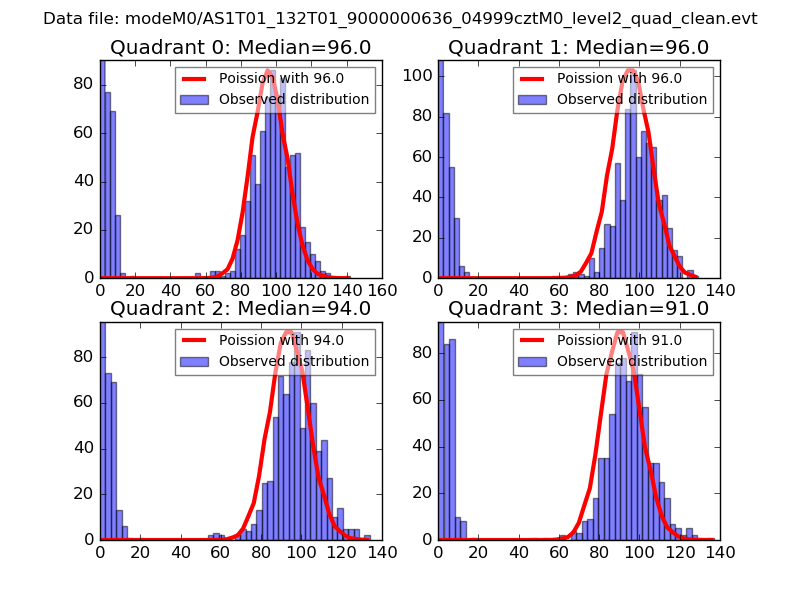

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

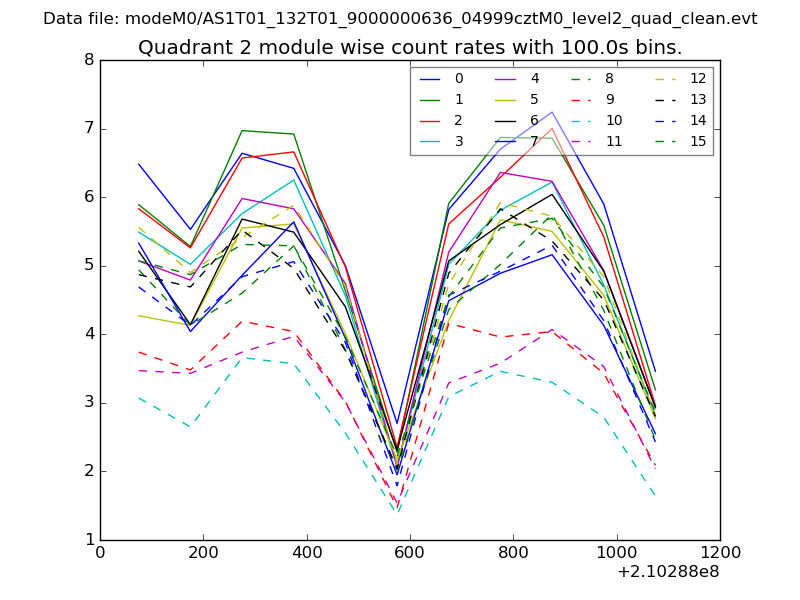

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

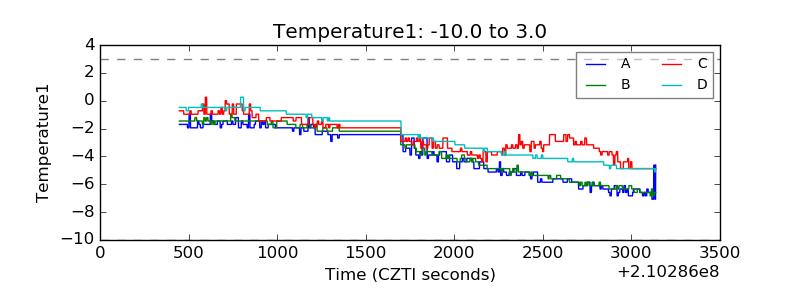

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

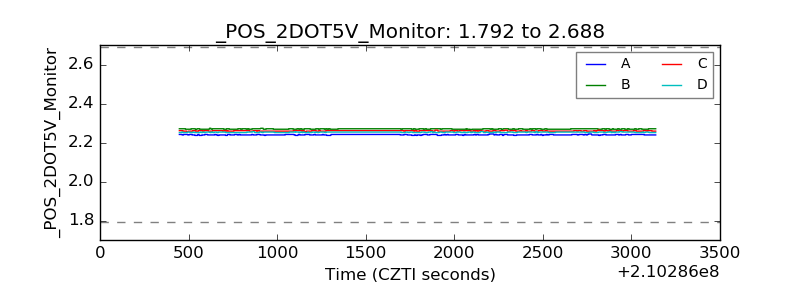

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

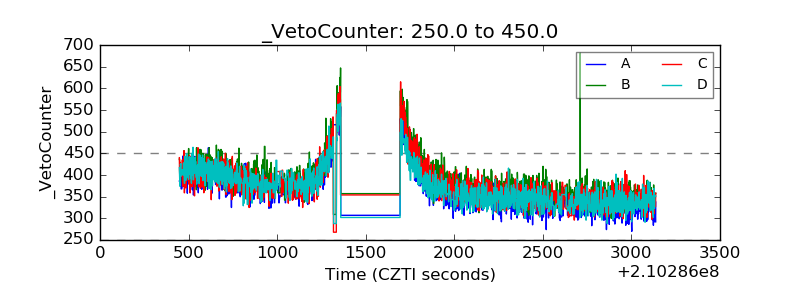

| Veto Counter |  |
