| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_132T01_9000000636_05006cztM0_level2.evt | modeM0/AS1T01_132T01_9000000636_05006cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,071,771,840 | 158,572,800 |
| Size | 1022.1 MB | 151.2 MB |
| Events in quadrant A | 6,881,538 | 944,373 |
| Events in quadrant B | 8,375,961 | 953,862 |
| Events in quadrant C | 6,782,949 | 955,978 |
| Events in quadrant D | 9,401,504 | 910,546 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 306 | 0 |
| B | 0 | 306 | 0 |
| C | 0 | 306 | 0 |
| D | 0 | 306 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30787 | 4 |
| B | 0 | 34966 | 3 |
| C | 0 | 30607 | 3 |
| D | 0 | 38295 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15036 | 98 | 0.651769% |
| B | 15036 | 157 | 1.044161% |
| C | 15036 | 65 | 0.432296% |
| D | 15036 | 692 | 4.602288% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18016 | 15039 | 14 | 14 | 0.08% | 0.09% |  |
| B | 18016 | 15039 | 34 | 34 | 0.19% | 0.23% |  |
| C | 18016 | 15039 | 1 | 1 | 0.01% | 0.01% |  |
| D | 18016 | 15039 | 543 | 543 | 3.01% | 3.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 68343 | 185.94 | 1761 | 1721 | 358.3 |
| A | 12 | 194 | 17925 | 45.23 | 1761 | 1721 | 358.3 |
| A | 0 | 226 | 17540 | 44.15 | 1761 | 1721 | 358.3 |
| B | 8 | 3 | 712990 | 2118.01 | 1766 | 1723 | 335.8 |
| B | 15 | 204 | 384978 | 1141.26 | 1766 | 1723 | 335.8 |
| B | 0 | 219 | 250265 | 740.11 | 1766 | 1723 | 335.8 |
| C | 1 | 16 | 22131 | 51.18 | 1730 | 1740 | 398.4 |
| C | 13 | 61 | 13914 | 30.55 | 1730 | 1740 | 398.4 |
| C | 14 | 67 | 8493 | 16.95 | 1730 | 1740 | 398.4 |
| D | 2 | 33 | 1313519 | 3166.8 | 1707 | 1660 | 414.3 |
| D | 13 | 235 | 593481 | 1428.64 | 1707 | 1660 | 414.3 |
| D | 2 | 136 | 312506 | 750.38 | 1707 | 1660 | 414.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

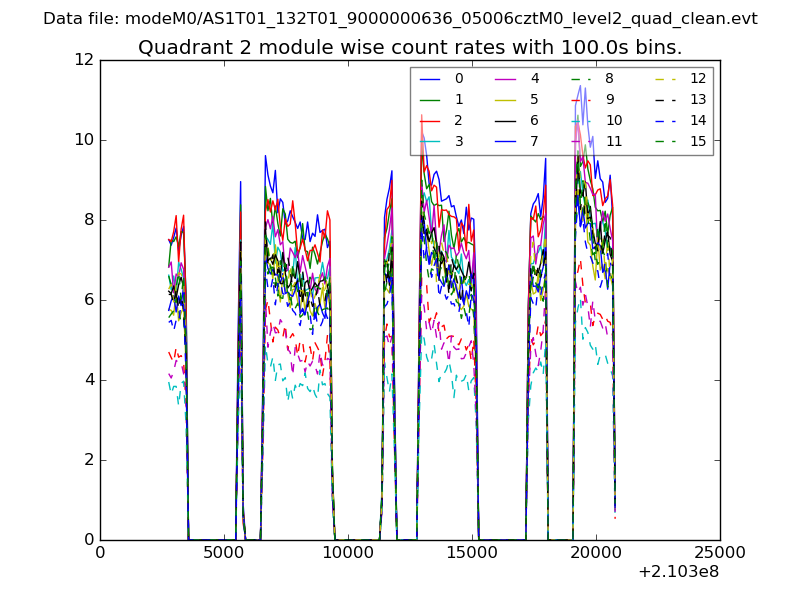

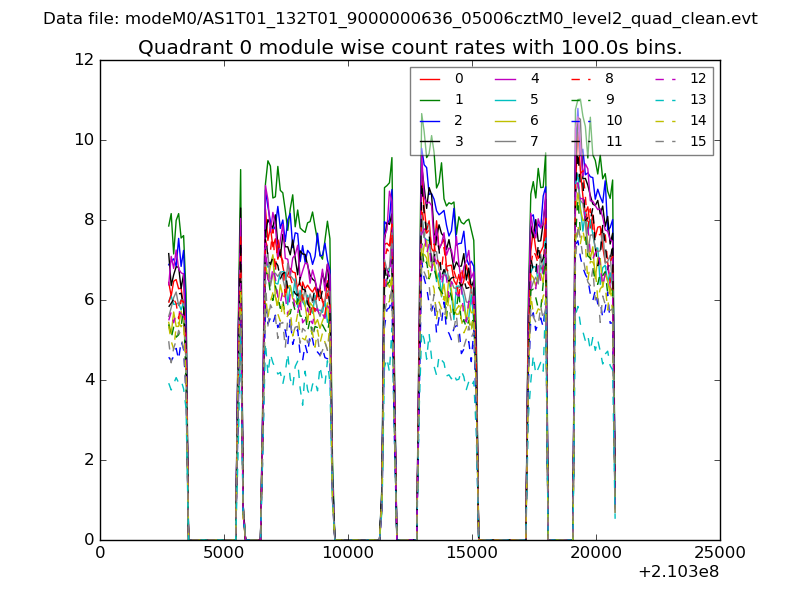

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

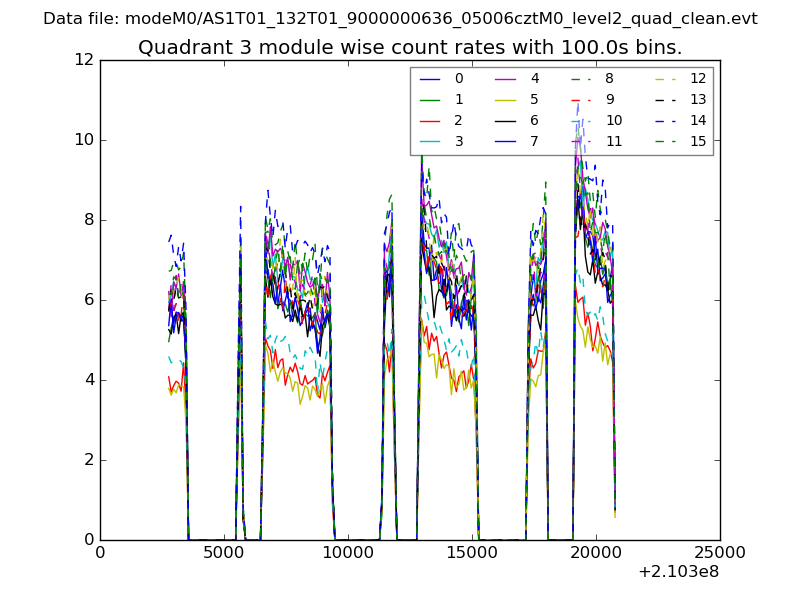

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

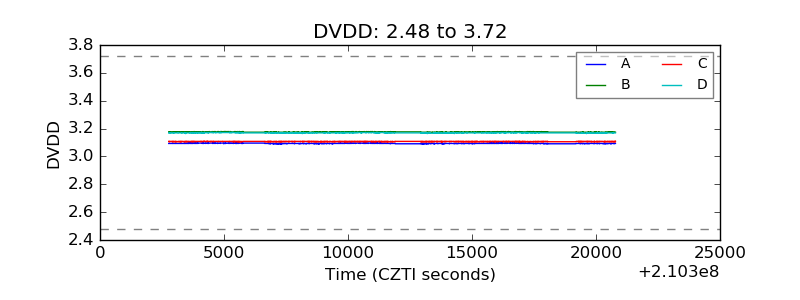

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

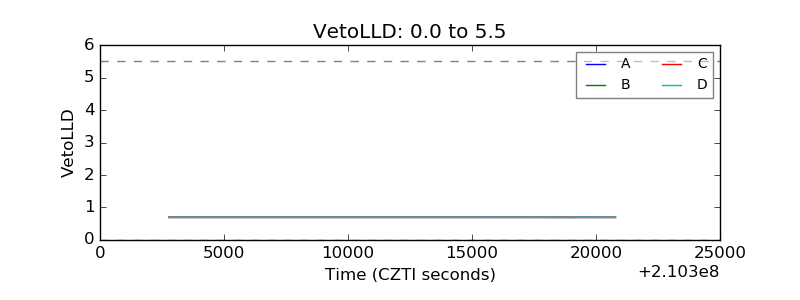

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

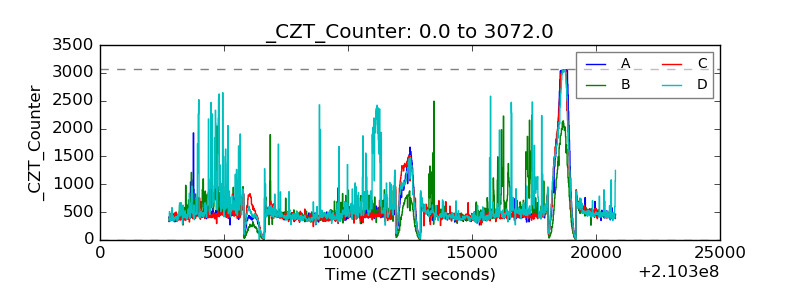

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

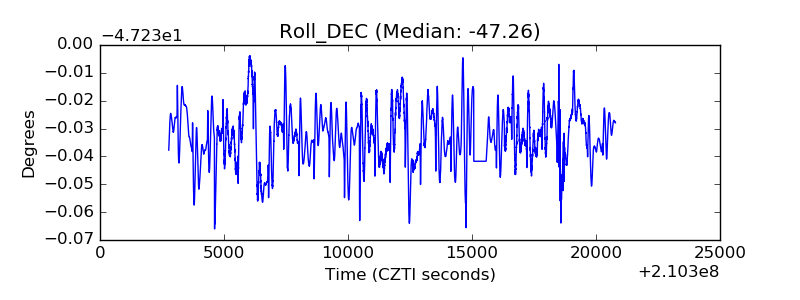

| _Roll_DEC |  |
| _Roll_RA |  |

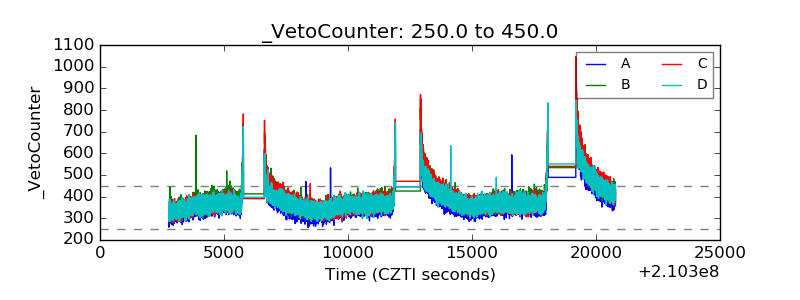

| Veto Counter |  |
