| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_132T01_9000000636_05008cztM0_level2.evt | modeM0/AS1T01_132T01_9000000636_05008cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,859,200 | 62,470,080 |
| Size | 492.9 MB | 59.6 MB |
| Events in quadrant A | 2,992,519 | 379,314 |
| Events in quadrant B | 3,925,842 | 380,975 |
| Events in quadrant C | 2,958,652 | 373,422 |
| Events in quadrant D | 5,364,144 | 333,526 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12563 | 2 |
| B | 0 | 15461 | 1 |
| C | 0 | 12556 | 1 |
| D | 0 | 19861 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6068 | 71 | 1.170073% |
| B | 6068 | 184 | 3.032301% |
| C | 6068 | 40 | 0.659196% |
| D | 6068 | 874 | 14.403428% |

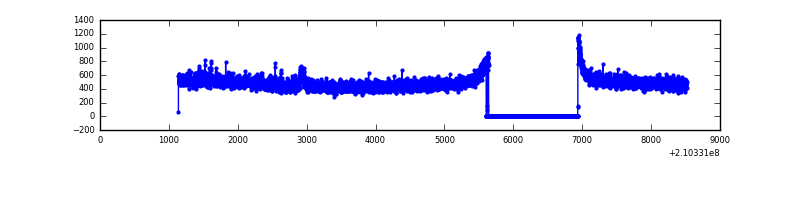

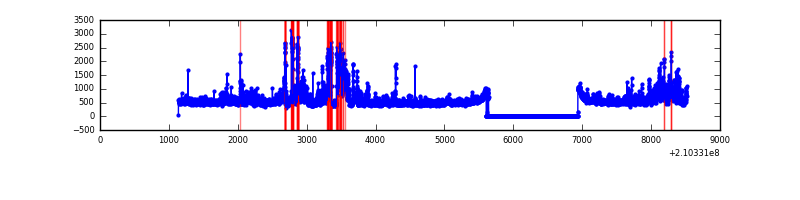

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7378 | 6070 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7378 | 6070 | 102 | 102 | 1.38% | 1.68% |  |
| C | 7378 | 6070 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7378 | 6070 | 675 | 675 | 9.15% | 11.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 30231 | 191.62 | 765 | 749 | 153.9 |
| A | 8 | 15 | 14014 | 86.22 | 765 | 749 | 153.9 |
| A | 12 | 194 | 7857 | 46.2 | 765 | 749 | 153.9 |
| B | 8 | 3 | 735659 | 5142.0 | 756 | 739 | 142.9 |
| B | 15 | 204 | 109867 | 763.53 | 756 | 739 | 142.9 |
| B | 4 | 80 | 60625 | 419.0 | 756 | 739 | 142.9 |
| C | 1 | 16 | 67897 | 398.31 | 736 | 740 | 168.6 |
| C | 14 | 67 | 10288 | 56.63 | 736 | 740 | 168.6 |
| C | 8 | 208 | 6627 | 34.92 | 736 | 740 | 168.6 |
| D | 2 | 33 | 1462487 | 8637.04 | 697 | 675 | 169.2 |
| D | 13 | 235 | 619558 | 3656.64 | 697 | 675 | 169.2 |
| D | 12 | 233 | 171416 | 1008.81 | 697 | 675 | 169.2 |

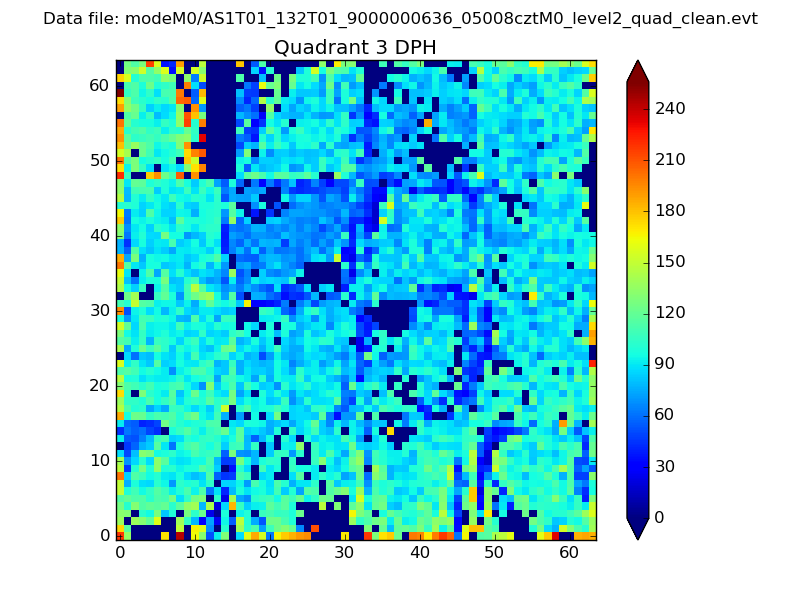

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

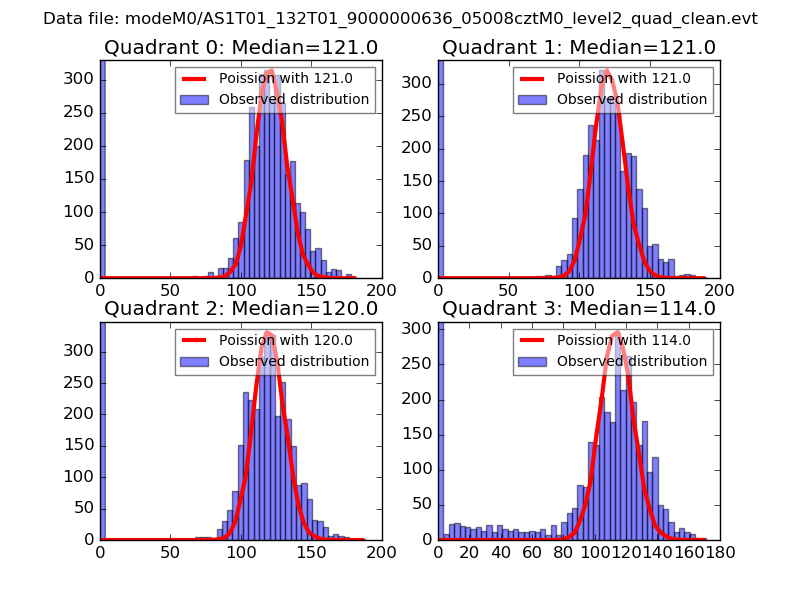

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

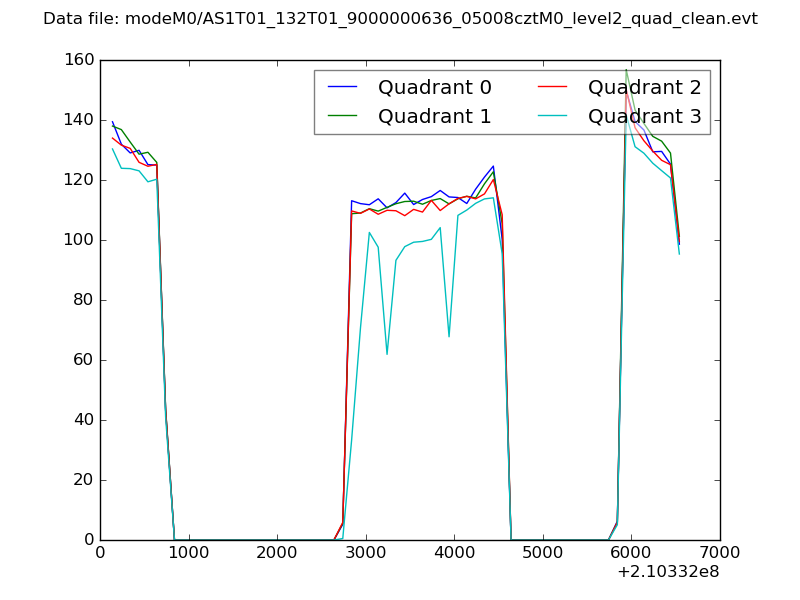

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

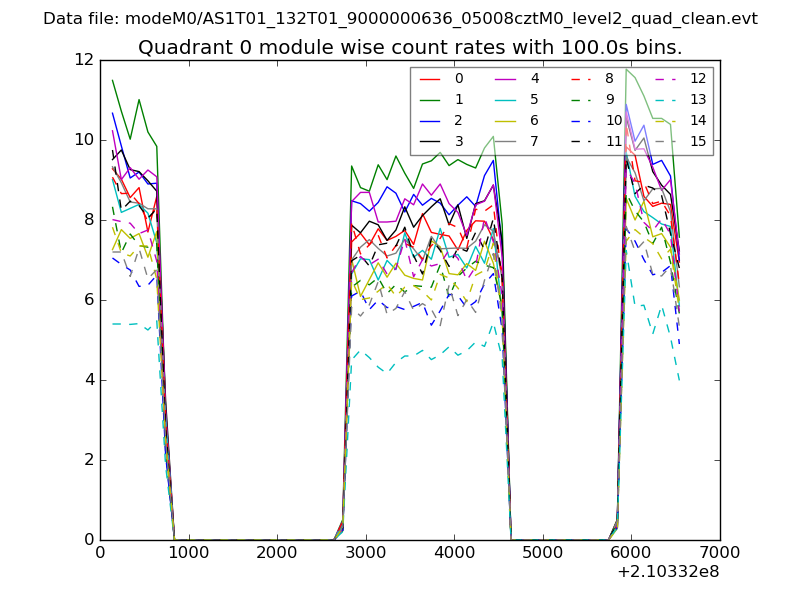

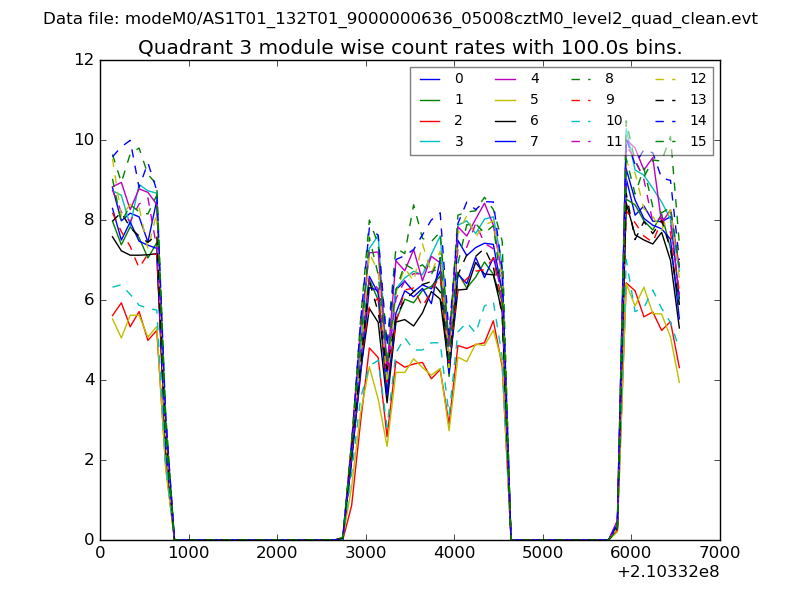

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

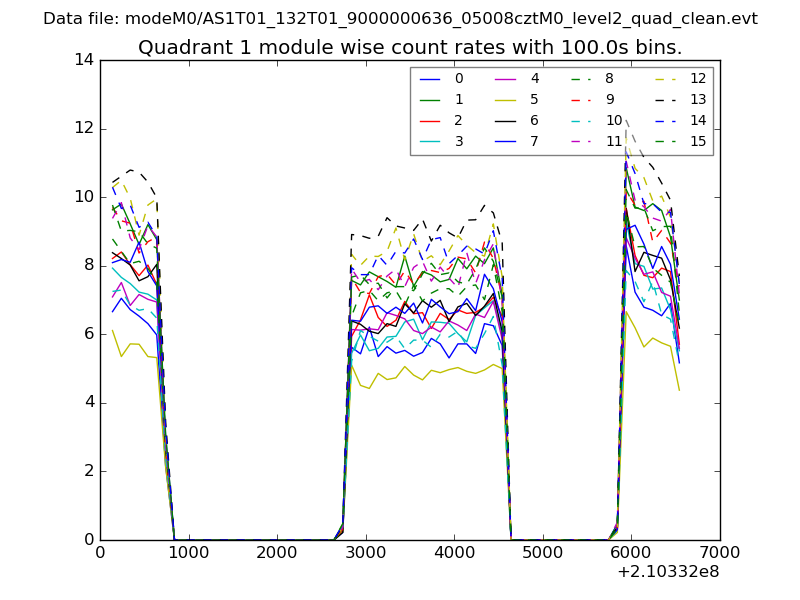

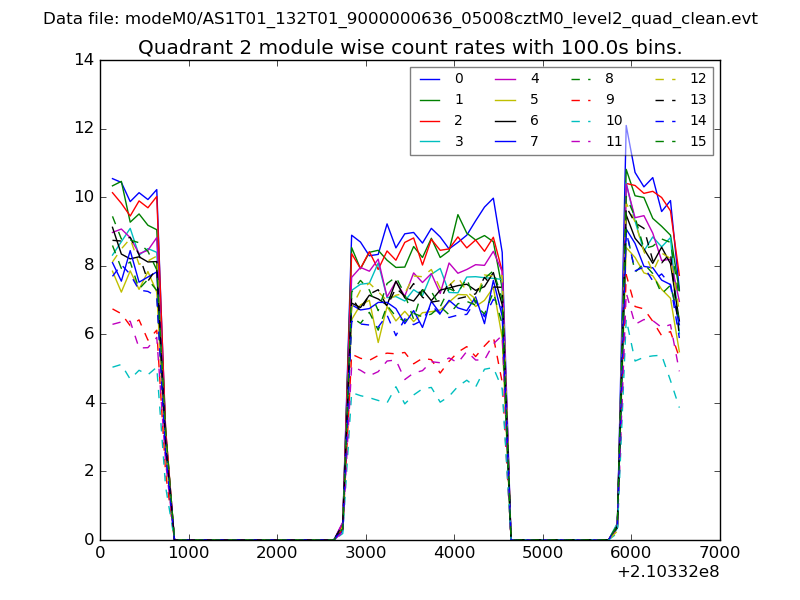

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

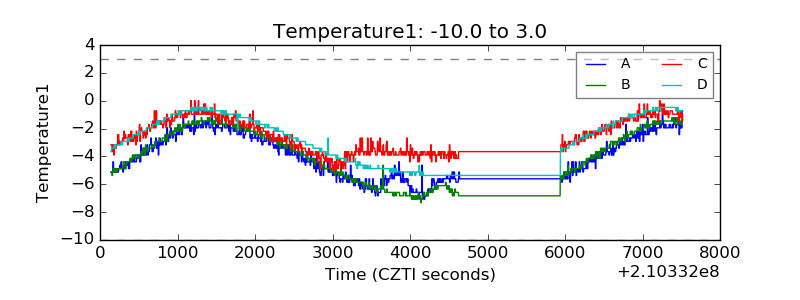

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

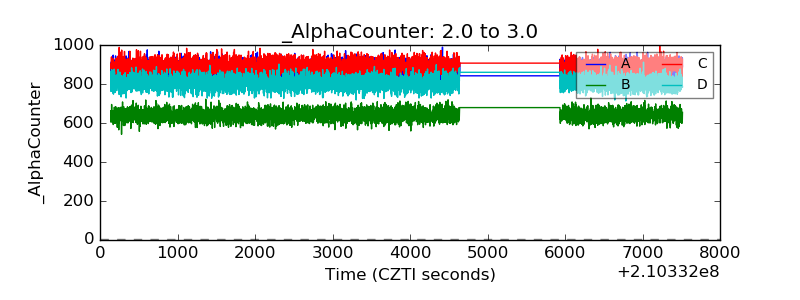

| Alpha Counter |  |

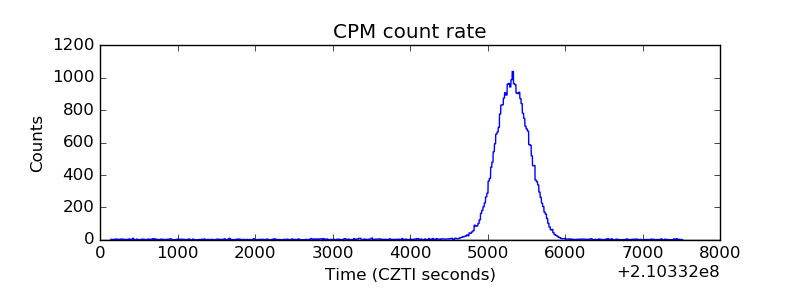

| _CPM_Rate |  |

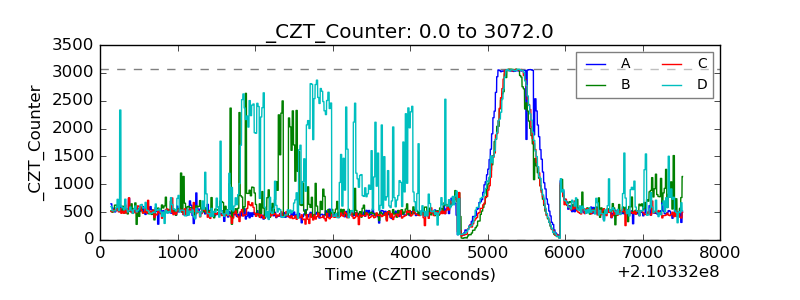

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

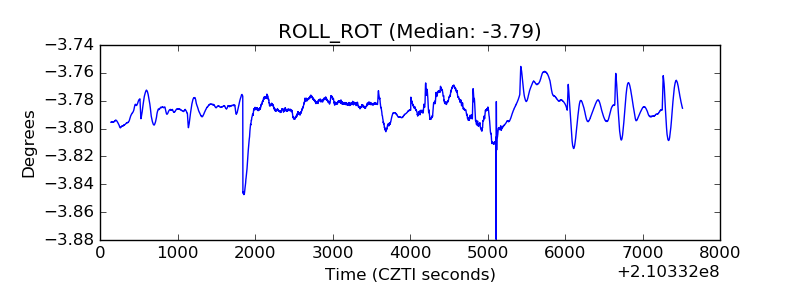

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

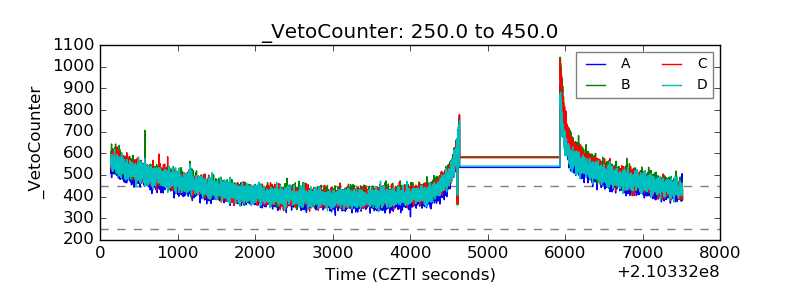

| Veto Counter |  |
