| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_132T01_9000000636_05011cztM0_level2.evt | modeM0/AS1T01_132T01_9000000636_05011cztM0_level2_quad_clean.evt |
| Size (bytes) | 75,012,480 | 9,120,960 |
| Size | 71.5 MB | 8.7 MB |
| Events in quadrant A | 559,032 | 48,567 |
| Events in quadrant B | 567,118 | 51,244 |
| Events in quadrant C | 541,729 | 50,588 |
| Events in quadrant D | 528,126 | 44,233 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 109 |
| B | 0 | 135 | 109 |
| C | 0 | 138 | 118 |
| D | 0 | 140 | 118 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14218 | 11800 |
| B | 0 | 15361 | 13040 |
| C | 0 | 13894 | 11522 |
| D | 0 | 18017 | 15880 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 2 |
| C | 0 | 5 | 1 |
| D | 0 | 5 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1141 | 51 | 4.469763% |
| B | 1051 | 59 | 5.613701% |
| C | 1140 | 20 | 1.754386% |
| D | 855 | 26 | 3.040936% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6818 | 1810 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6643 | 1704 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7049 | 1809 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6605 | 1415 | 6 | 6 | 0.09% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 3697 | 112.96 | 142 | 139 | 31.5 |
| A | 8 | 15 | 2137 | 63.43 | 142 | 139 | 31.5 |
| A | 13 | 251 | 1564 | 45.24 | 142 | 139 | 31.5 |
| B | 8 | 3 | 26217 | 943.14 | 132 | 128 | 27.7 |
| B | 15 | 204 | 18381 | 659.87 | 132 | 128 | 27.7 |
| B | 4 | 80 | 6620 | 234.69 | 132 | 128 | 27.7 |
| C | 1 | 16 | 7859 | 231.04 | 136 | 137 | 33.4 |
| C | 13 | 61 | 1110 | 29.11 | 136 | 137 | 33.4 |
| C | 9 | 54 | 468 | 9.9 | 136 | 137 | 33.4 |
| D | 2 | 33 | 61404 | 2223.09 | 105 | 101 | 27.6 |
| D | 12 | 227 | 46325 | 1676.26 | 105 | 101 | 27.6 |
| D | 2 | 136 | 7722 | 276.37 | 105 | 101 | 27.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

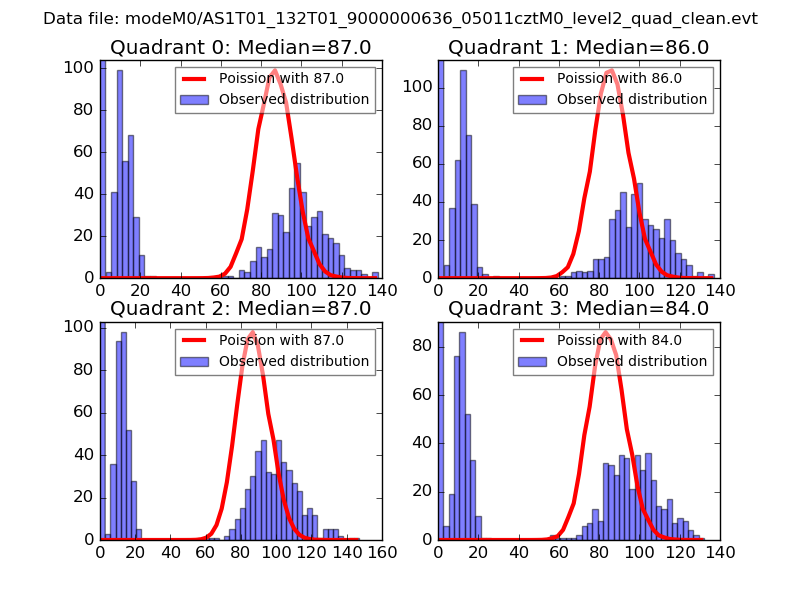

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

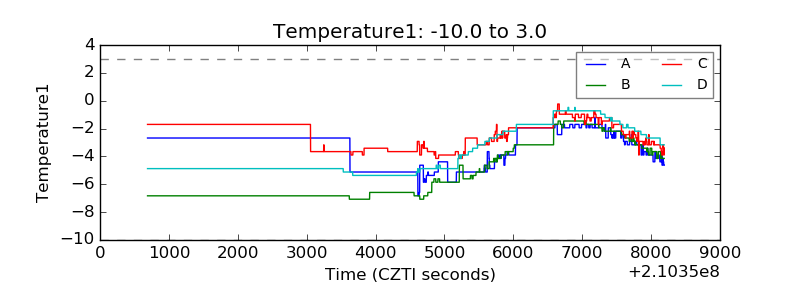

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

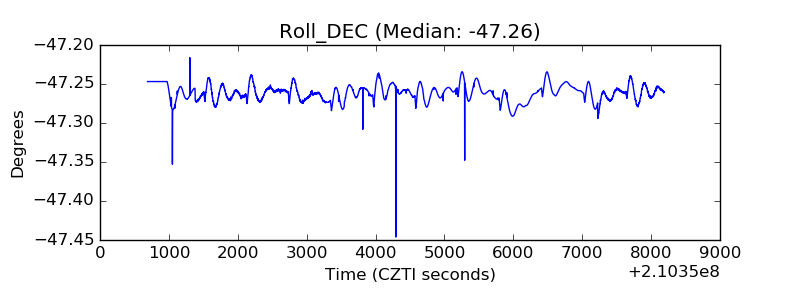

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
