| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_132T01_9000000636_05013cztM0_level2.evt | modeM0/AS1T01_132T01_9000000636_05013cztM0_level2_quad_clean.evt |
| Size (bytes) | 539,974,080 | 76,492,800 |
| Size | 515.0 MB | 72.9 MB |
| Events in quadrant A | 3,696,427 | 454,222 |
| Events in quadrant B | 4,254,854 | 454,573 |
| Events in quadrant C | 3,572,235 | 453,058 |
| Events in quadrant D | 4,326,505 | 438,167 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15884 | 2 |
| B | 0 | 17662 | 1 |
| C | 0 | 16008 | 1 |
| D | 0 | 18120 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7417 | 98 | 1.321289% |
| B | 7417 | 203 | 2.736956% |
| C | 7417 | 69 | 0.930295% |
| D | 7417 | 220 | 2.966159% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7562 | 7419 | 8 | 8 | 0.11% | 0.11% |  |
| B | 7562 | 7419 | 15 | 15 | 0.20% | 0.20% |  |
| C | 7562 | 7419 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7562 | 7419 | 107 | 107 | 1.41% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 316405 | 1798.29 | 852 | 832 | 175.5 |
| A | 0 | 50 | 67020 | 377.17 | 852 | 832 | 175.5 |
| A | 8 | 15 | 14070 | 75.44 | 852 | 832 | 175.5 |
| B | 15 | 204 | 563327 | 3413.91 | 857 | 837 | 164.8 |
| B | 0 | 219 | 169913 | 1026.17 | 857 | 837 | 164.8 |
| B | 8 | 3 | 87488 | 525.91 | 857 | 837 | 164.8 |
| C | 1 | 16 | 337963 | 1760.3 | 825 | 829 | 191.5 |
| C | 13 | 61 | 6784 | 31.09 | 825 | 829 | 191.5 |
| C | 8 | 222 | 4353 | 18.4 | 825 | 829 | 191.5 |
| D | 2 | 33 | 461619 | 2263.39 | 821 | 792 | 203.6 |
| D | 12 | 227 | 332741 | 1630.4 | 821 | 792 | 203.6 |
| D | 2 | 136 | 128744 | 628.45 | 821 | 792 | 203.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

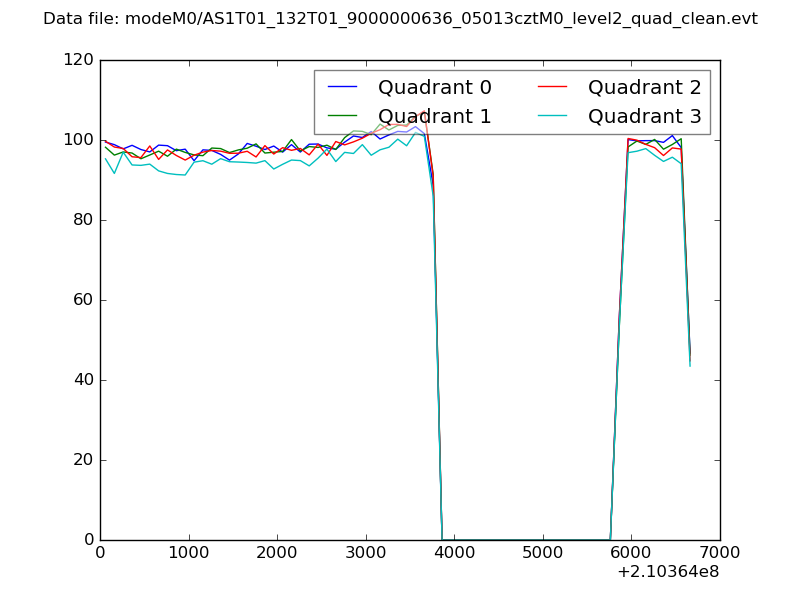

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

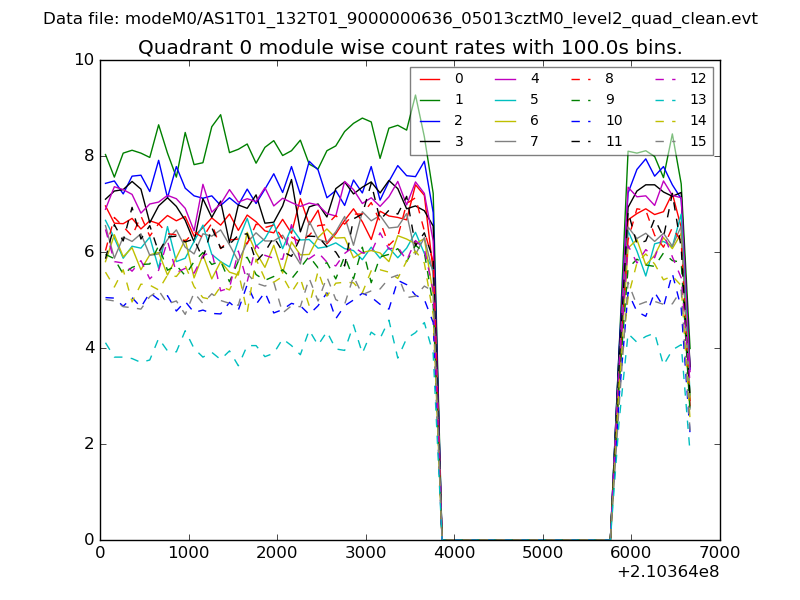

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

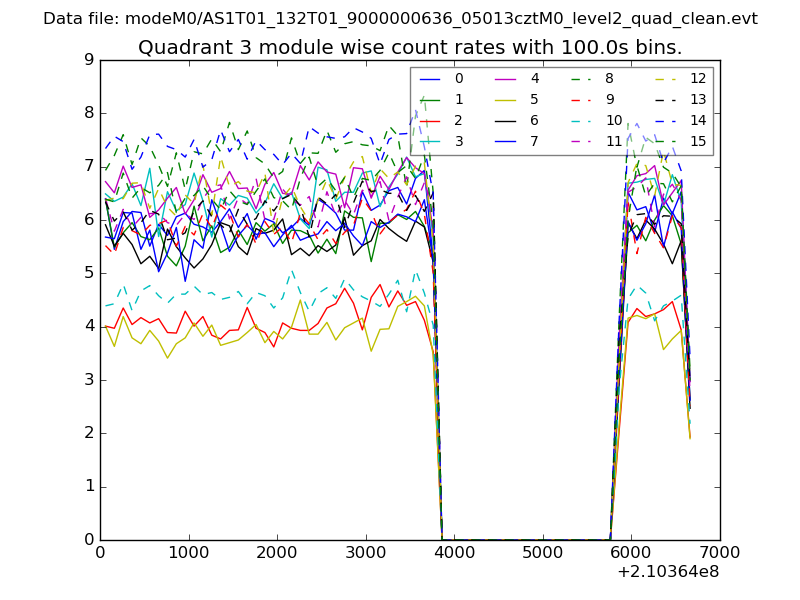

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

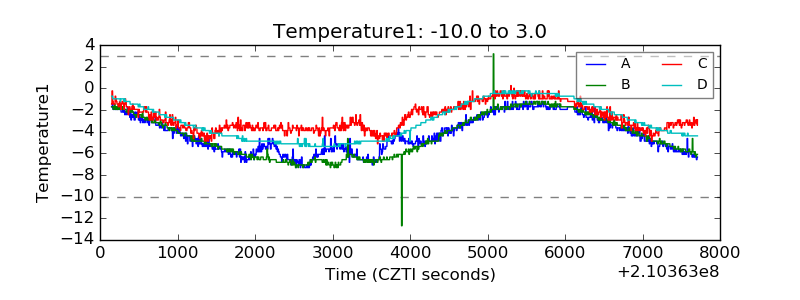

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

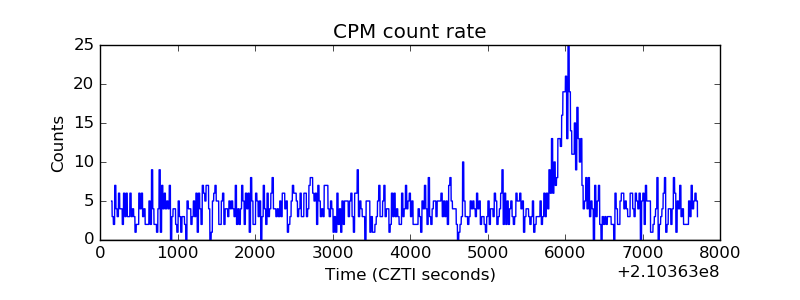

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

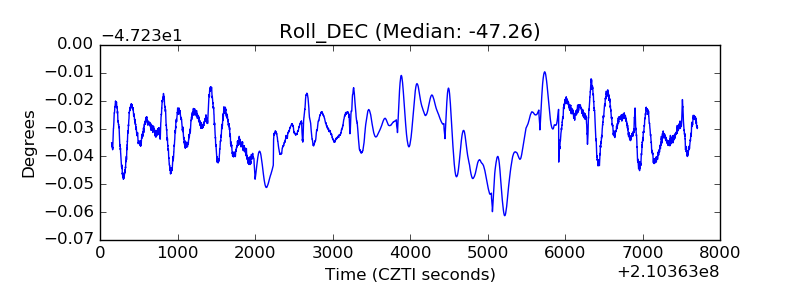

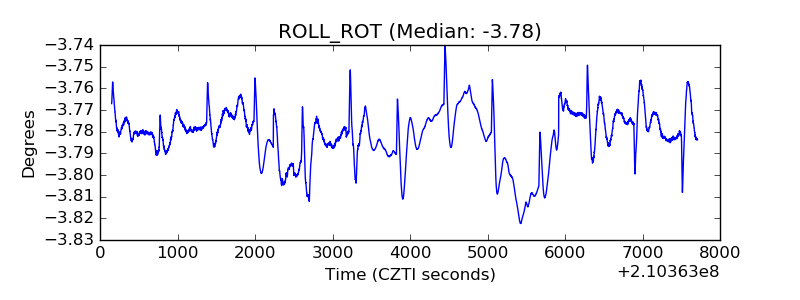

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
