| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_250T02_9000000638_05034cztM0_level2.evt | modeM0/AS1G05_250T02_9000000638_05034cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,763,520 | 78,540,480 |
| Size | 442.3 MB | 74.9 MB |
| Events in quadrant A | 2,772,545 | 497,386 |
| Events in quadrant B | 3,128,686 | 493,295 |
| Events in quadrant C | 2,763,909 | 499,393 |
| Events in quadrant D | 4,957,348 | 453,572 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12746 | 2 |
| B | 0 | 13462 | 1 |
| C | 0 | 12869 | 1 |
| D | 0 | 19149 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6225 | 34 | 0.546185% |
| B | 6225 | 48 | 0.771084% |
| C | 6225 | 20 | 0.321285% |
| D | 6225 | 412 | 6.618474% |

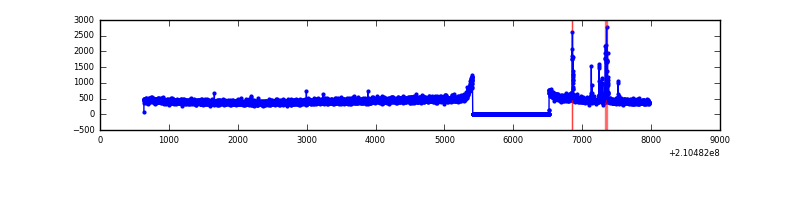

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7335 | 6226 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7335 | 6226 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7335 | 6226 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7335 | 6226 | 322 | 322 | 4.39% | 5.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 22804 | 151.14 | 713 | 697 | 146.3 |
| A | 0 | 226 | 7049 | 43.43 | 713 | 697 | 146.3 |
| A | 12 | 194 | 6990 | 43.02 | 713 | 697 | 146.3 |
| B | 4 | 48 | 207773 | 1513.09 | 716 | 699 | 136.9 |
| B | 15 | 204 | 50895 | 366.78 | 716 | 699 | 136.9 |
| B | 0 | 219 | 36902 | 264.54 | 716 | 699 | 136.9 |
| C | 9 | 54 | 69225 | 431.17 | 687 | 692 | 158.9 |
| C | 1 | 16 | 8603 | 49.77 | 687 | 692 | 158.9 |
| C | 13 | 61 | 5495 | 30.22 | 687 | 692 | 158.9 |
| D | 12 | 227 | 973656 | 6038.57 | 660 | 641 | 161.1 |
| D | 13 | 235 | 716171 | 4440.61 | 660 | 641 | 161.1 |
| D | 12 | 233 | 685691 | 4251.45 | 660 | 641 | 161.1 |

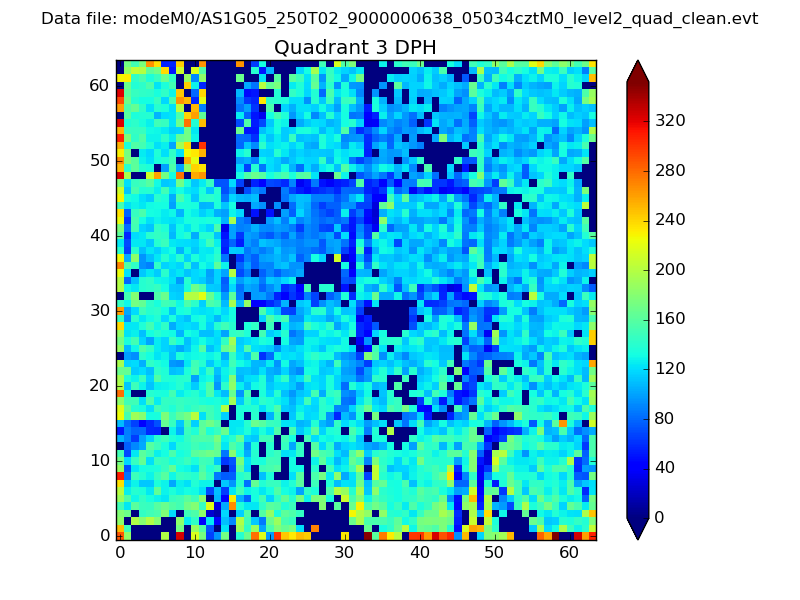

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

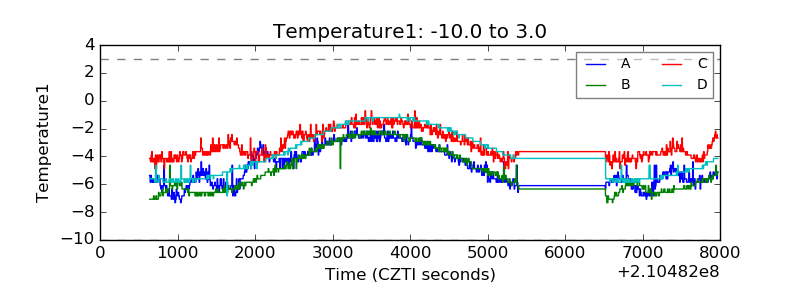

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

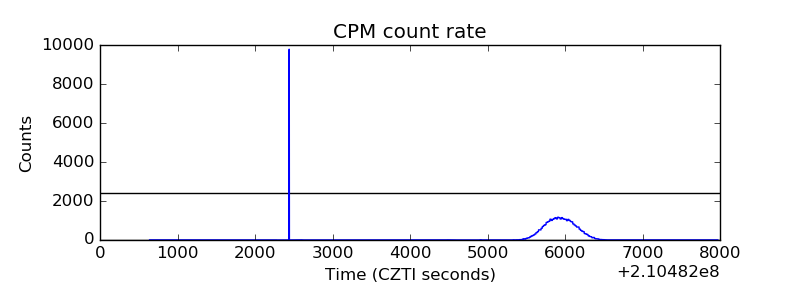

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

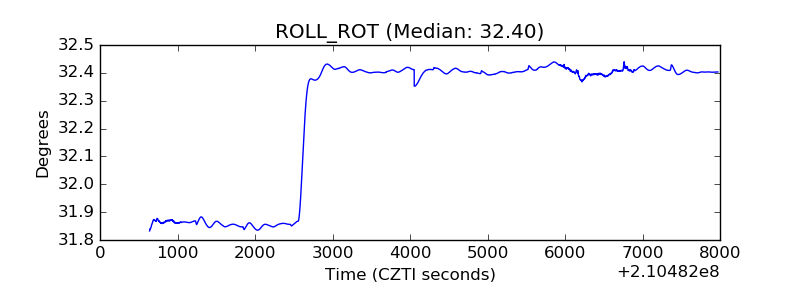

| _ROLL_ROT |  |

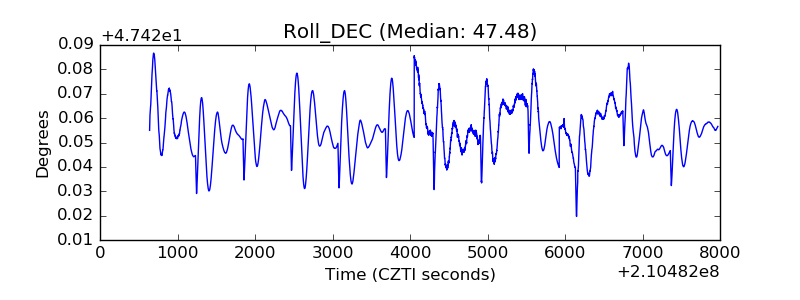

| _Roll_DEC |  |

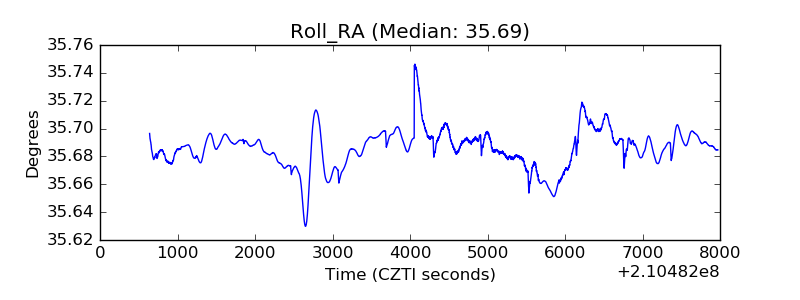

| _Roll_RA |  |

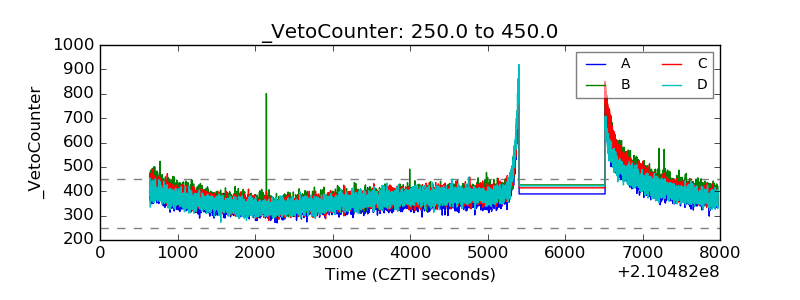

| Veto Counter |  |
