| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_250T02_9000000638_05040cztM0_level2.evt | modeM0/AS1G05_250T02_9000000638_05040cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,225,600 | 73,157,760 |
| Size | 466.6 MB | 69.8 MB |
| Events in quadrant A | 3,344,390 | 432,817 |
| Events in quadrant B | 4,048,056 | 426,100 |
| Events in quadrant C | 3,197,446 | 435,232 |
| Events in quadrant D | 3,740,241 | 422,917 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14998 | 3 |
| B | 0 | 16785 | 2 |
| C | 0 | 14631 | 2 |
| D | 0 | 16059 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7147 | 150 | 2.098783% |
| B | 7147 | 172 | 2.406604% |
| C | 7147 | 111 | 1.553099% |
| D | 7147 | 174 | 2.434588% |

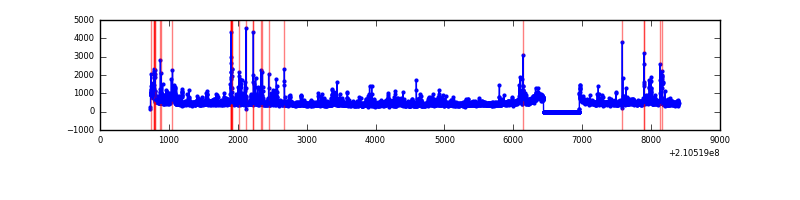

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7667 | 7148 | 18 | 18 | 0.23% | 0.25% |  |
| B | 7667 | 7148 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7667 | 7148 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7667 | 7148 | 30 | 30 | 0.39% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 247 | 63155 | 367.84 | 835 | 818 | 169.5 |
| A | 15 | 174 | 34727 | 200.09 | 835 | 818 | 169.5 |
| A | 15 | 234 | 17607 | 99.07 | 835 | 818 | 169.5 |
| B | 15 | 204 | 669515 | 4158.74 | 838 | 815 | 160.8 |
| B | 0 | 219 | 60960 | 374.05 | 838 | 815 | 160.8 |
| B | 4 | 48 | 48210 | 294.76 | 838 | 815 | 160.8 |
| C | 14 | 67 | 39021 | 204.15 | 809 | 810 | 187.2 |
| C | 13 | 61 | 6703 | 31.48 | 809 | 810 | 187.2 |
| C | 14 | 82 | 2009 | 6.41 | 809 | 810 | 187.2 |
| D | 2 | 136 | 125628 | 629.27 | 809 | 783 | 198.4 |
| D | 1 | 7 | 125270 | 627.47 | 809 | 783 | 198.4 |
| D | 2 | 14 | 84697 | 422.96 | 809 | 783 | 198.4 |

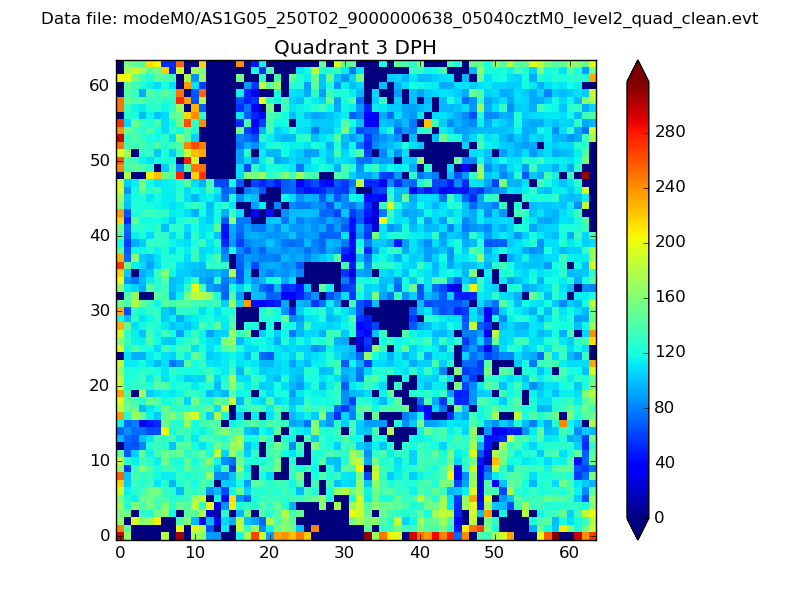

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

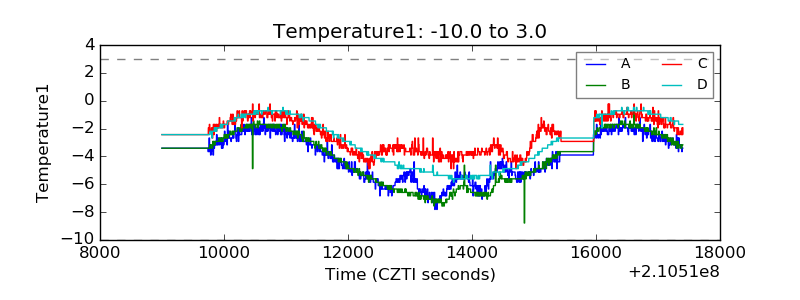

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

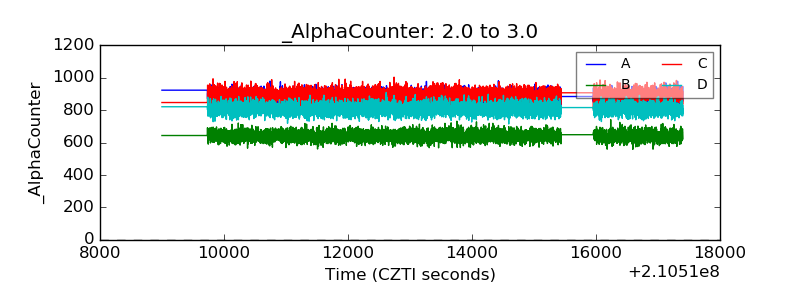

| Alpha Counter |  |

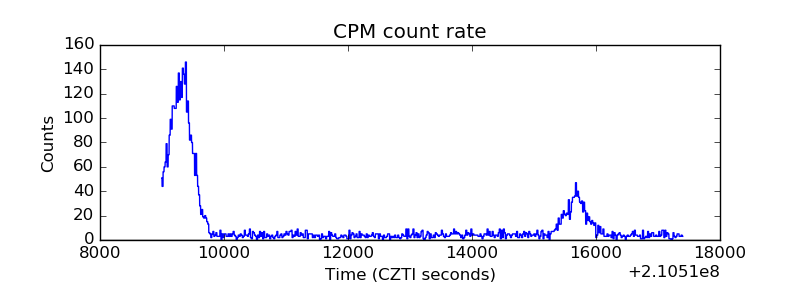

| _CPM_Rate |  |

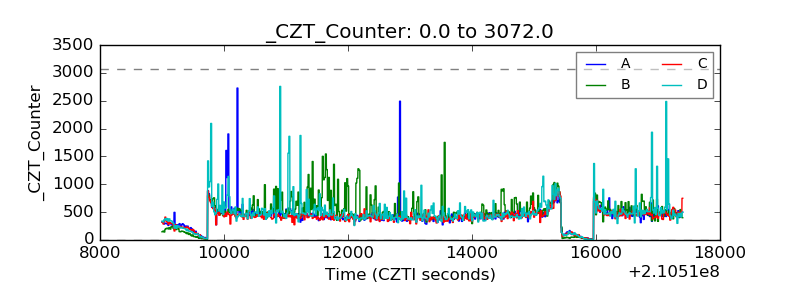

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

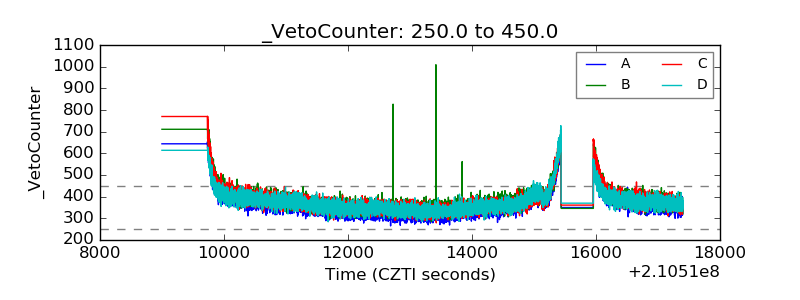

| Veto Counter |  |
